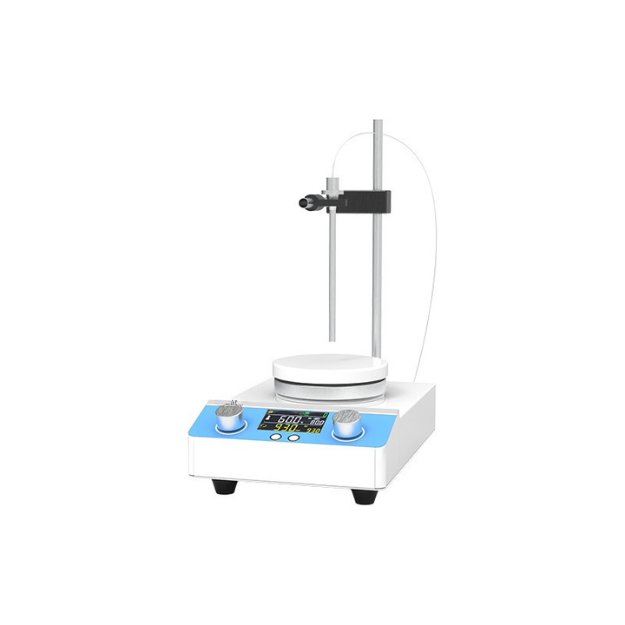

The Hotplate Magnetic Stirrer is a versatile laboratory instrument used for heating and stirring solutions simultaneously. It combines a heated surface with a magnetic stirrer, making it ideal for a w…
The Hotplate Magnetic Stirrer is a versatile laboratory instrument used for heating and stirring solutions simultaneously. It combines a heated surface with a magnetic stirrer, making it ideal for a wide range of chemical, biological, and medical applications where precise temperature control and uniform stirring are essential.
Features：
1. Built-in temperature control system.
2. The temperature and rotation speed can be accurately set through the digital display screen, and the temperature control range is wide.
3. Rubber feet support, more stable.
4. Configure temperature sensor PT100.
5. With relay over temperature protection alarm, safe and convenient.
Technical Parameters：
| Model |
MS-H-10 |
MS-H-11 |
|
Working Plate Size |
180*180mm |
φ150mm |
|
Platform Material |
Aluminum, anodized |
|
|
Motor Type |
DC brushless motor |
|
|
Number of Stirring Points |
1 |
|
|
Maximum Stirring Volume(Water) |
5L |
|
|
Stirrer Maximum Size |
50mm |
|
|
Rotation Range |
20~2000r/min |
|
|
Data Display |
LED |
|
|
Heating Temperature Range |
Room temperature~360.0℃ |
|
|
Overheating Protection |
360~400℃ adjustable |
|
|
Temperature Display Accuracy |
±0.1℃ |
|
|
External Temperature Sensor |
PT100(Accuracy ±0.6℃)(Standard) |
|
|
Speed Control Accuracy |
±1rpm |
|
|
Protection Class |
IP21 |
|
|
Motor Power |
20W |
|
|
Heating Power |
820W |
420W |
|
Power Supply |
Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz |
|
|
External Size(L*W*H) |
222*320*135mm |
222*320*122mm |
|
Net Weight |
4.2kg |
3.9kg |
|
Packing Size |
300*410*210mm |
|
|
Gross Weight |
7.6kg |
6.0kg |
| Model | MS-H-10, MS-H-10, MS-H-11, MS-H-11 |
|---|
