Description
Lab Automatic Glassware Washer provides standard and automatic cleaning and disinfection for most of medical equipment, so as to eliminate the possibility of infection in cleaning and disinfecting.
Features:
1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program.
2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process.
3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃.
4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process.
5. PLC touch screen control with preset 12 programs and 99 cutomized programs.
6. Safety protection—electronic security door lock to prevent unexpected door opening, water&drying air temperature dual control and equipped with emergency switch.
Standard Washing Procedure(can be self-designed by the user):
Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying

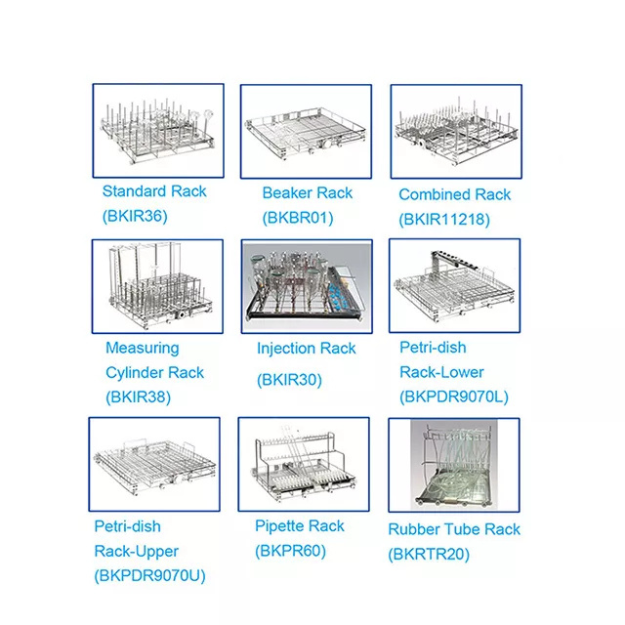

ALL cleaning racks can be removed completely, convenient to washing rack pipeline:
Technical Parameters:
|
Model |
BK-LW120 |
BK-LW220 |
BK-LW320 |
|||
|
Cleaning |
Capacity |
120L |
220L |
320L |
||
|
Washer Load Level |
1 |
2 |
3 |
|||
|
Water Wash Power |
0.75KW |
0.75KW |
1.5KW |
|||
|
Water Heater Power |
5KW |
5KW |
15KW |
5KW |
15KW |
|
|
MAX. Power |
6KW |
6KW |
16KW |
7KW |
17KW |
|
|
Water Consumption/Step |
17L |
20L |
22L |
|||
|
Tank Internal Temperature |
0~99℃ |
|||||
|
Water Supply Pressure |
0.3~1.0Mpa |
|||||
|
Peristaltic Pump for Cleaning Agent |
2 independent pumps control detergent agent and neutralizing agent |
|||||
|
Cleaning Agent Level Sensor |
YES |
|||||
|
Washing Pump |
Sweden 430L/min |
Sweden 800L/min |
Sweden 1000L/min |
|||
|
Standard Cleaning Racks |
BKIR36*1 |
BKIR36*2 |
BKIR36*3 |
|||
|
Drying |
Drying Function |
YES |
||||
|
Steam Condenser |
YES |
|||||
|
Dry Power |
3KW |
3.6KW |
3.6KW |
|||
|
Control System and Traceability |
Control System |
7" color LCD touch screen display, microprocessor |
||||
|
Cleaning Program |
12 pre-set programs(editable)+99 PLC free programming |
|||||
|
Password Protection |
3 levels password |
|||||
|
Safety Emergency Button |
YES |
|||||
|
USB Port |
YES |
|||||
|
Integrated Printer |
Optional |
|||||
|
Online Monitor Performance of Washing |
Optional |
|||||
|
Dimensions&Weight |
Chamber Dimension(W*D*H) |
600*629*539mm |
600*629*754mm |
600*629*915mm |
||
|
Exterior Dimension(W*D*H) |
980*740*870mm |
695*870*1820mm |
695*870*1990mm |
|||
|
Package Dimension(W*D*H) |
1110*940*1075mm |
810*990*2015mm |
810*990*2185mm |
|||
|
Net Weight(Host only) |
169kg |
220kg |
237kg |
|||
|
Gross Weight(Host with rack) |
200kg |
300kg |
320kg |
|||
|
Others |
Door |
Double-layered glass door |
||||
|
Safety Door Lock |
YES |
|||||
|
Built-in RO Water Pump |
YES |
|||||
|
Noise |
<50dB |
<55dB |
<55dB |
|||
|
Power Supply |
AC220V, 50Hz(Standard); AC110V, 50/60Hz; 220V, 60Hz(Optional) |
AC220V, 50Hz; 380V, 50Hz(Standard); AC110V, 50/60Hz; AC220V, 60Hz; 220V, 60Hz(Three phase), 380V, 60Hz(Optional) |
||||
