Application:
BK-TS200X lab test sieve is suitable for particles distribution analysis. It is primarily used to determine particle size distribution for particles,power and liquid in laboratory and quality control department.
$0.00

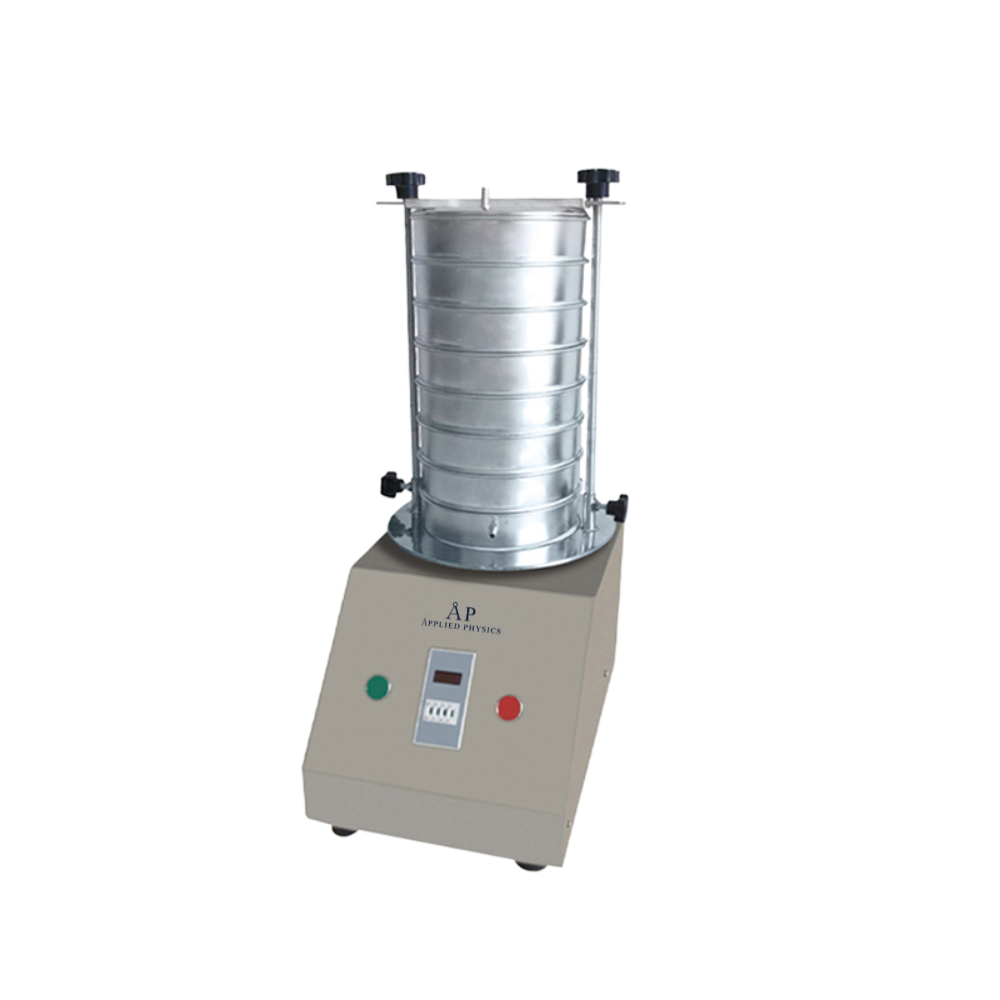

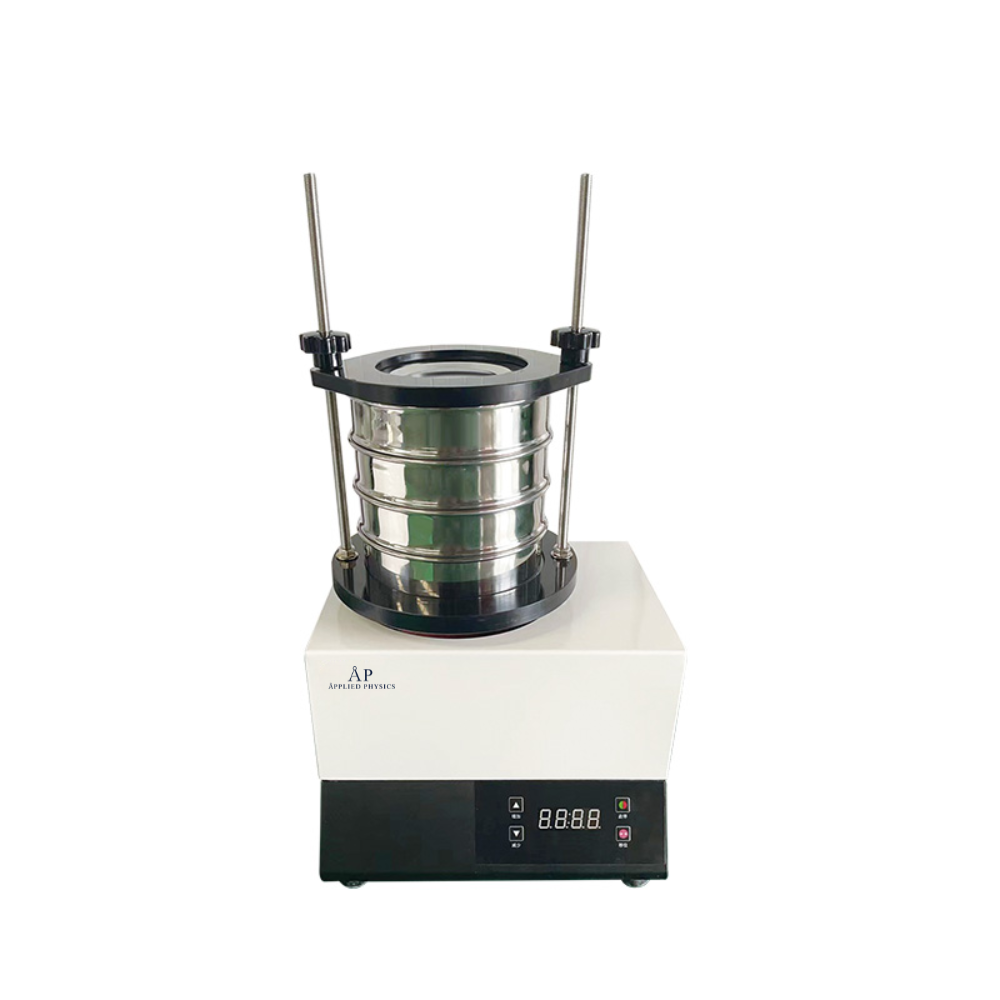

Laboratory Test Sieve BK-TS200 BK-TS200X BK-TS300
Features:
1. Screen mesh size range: from 2 mesh to 2800 mesh.
2. Timing range: 0~99min59s, time can be set from seconds to hours freely.
3. Typically requires 50~150g of sample material.
Technical Parameters:
Model
BK-TS200
BK-TS200X
BK-TS300
Working Layer
1~8 layers
Screen Mesh Size
0.003~12.5mm
Diameter
200mm
300mm
Material
Stainless steel 304
Timing Range
0~99min59s
Speed
1440r/min
Power Consumption
125W
180W
Power Supply
AC220V, 50Hz(Standard); 220V, 60Hz; 110V, 60Hz(Optional)
Standard Accessory
Lid and base(Except BK-TS300)
External Size(W*D*H)mm
400*300*370
390*340*340
435*390*370
Package Size(W*D*H)mm
460*380*430
470*410*570
530*470*420
Net Weight(kg)
33
30
40
Gross Weight(kg)
35
40
42

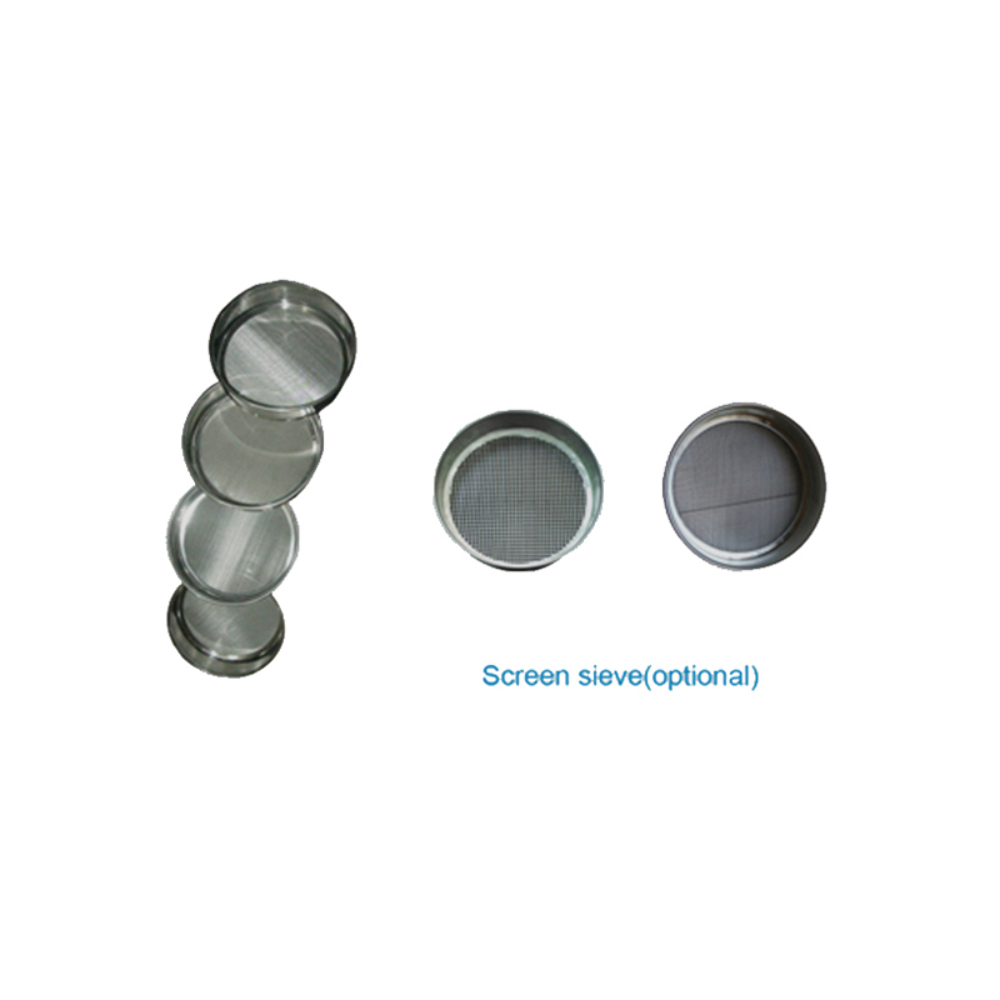

Screen Mesh:
Number of Mesh
Aperture(mm)
Number of Mesh
Aperture(mm)
Number of Mesh
Aperture(mm)
2
12.5
45
0.4
220
0.065
3
8
50
0.355
240
0.063
4
6
55
0.315
250
0.061
5
5
60
0.28
280
0.055
6
4
65
0.25
300
0.050
8
3
70
0.224
320
0.045
10
2
75
0.2
325
0.043
12
1.6
80
0.18
340
0.041
14
1.43
90
0.16
360
0.040
16
1.25
100
0.154
400
0.0385
18
1
110
0.15
500
0.0308
20
0.9
120
0.125
600
0.026
24
0.8
130
0.112
800
0.022
26
0.71
140
0.105
900
0.020
28
0.68
150
0.100
1000
0.015
30
0.6
160
0.096
1800
0.010
32
0.58
180
0.09
2000
0.008
35
0.50
190
0.08
2300
0.005
40
0.45
200
0.074
2800
0.003
| Model | BK-TS200, BK-TS200X, BK-TS300 |
|---|
