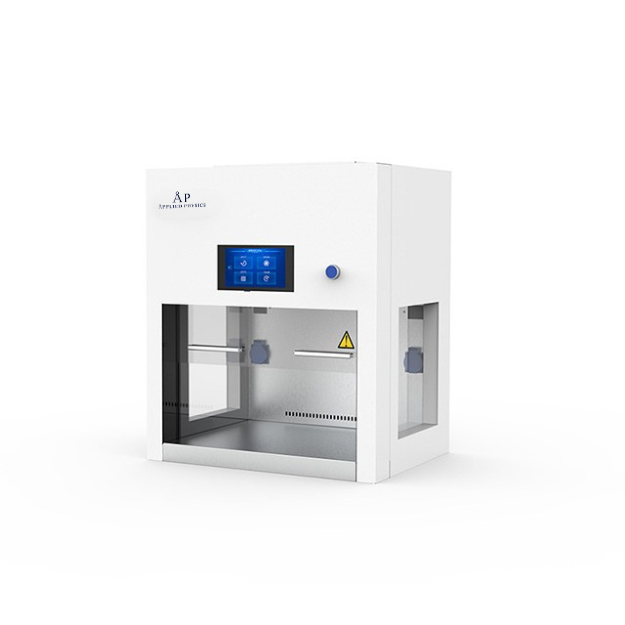

Laminar Flow Cabinet (BBS-V1100-XF)
The Vertical Laminar Flow Cabinet is a high-performance clean air workstation designed to protect samples from contamination by providing a sterile environment. This cabinet directs HEPA-filtered air …
Technical Parameters:
Model | BBS-V1100-XF | BBS-V1500-XF | BBS-V1800-XF |
Airflow Pattern | Vertical laminar flow, return air | ||
Applicable Number of People | 1 | 2 | 3 |
External Size(W*D*H) | 1100*710*1850mm | 1500*710*1850mm | 1800*710*1850mm |
Instrument Size(W*D*H) | 1000*575*625mm | 1400*575*625mm | 1700*575*625mm |
Work Surface Height | 750mm | ||
Max Opening | 400mm | ||
Air Velocity | 0.3~0.45m/s | ||
Airflow Volume | 750m³/h | ||
Noise | ≤65dB(A) | ||
LED Lamp | 12W*1 | 16W*1 | 16W*1 |
UV Lamp | 20W*1 | 40W*1 | 40W*1 |
Power Supply | 220V±10%, 50/60Hz; 110V±10%, 60Hz | ||
Consumption | 700W | 750W | 900W |
HEPA Filter | 1pc | ||
Gross Weight | 190kg | 240kg | 280kg |
Package Size(W*D*H) | 1240*980*1350mm | 1640*980*1350mm | 1940*980*1350mm |
Additional information
| Model | 220V, 110V |
|---|
