Description
Features:
1. 7-inch touch screen control, friendly interface and convenient operation.
2. Calculated by 95% confidence level(UCL), it can directly display particle concentration(particles/m3) and purification level.
3. 4GB data storage card, data storage management.
4. Stainless steel material.
5. Built-in thermal printer.
6. Famous semiconductor laser tube and famous semiconductor photosensitive receiver tube.
7. Support WIFI to export data directly.
Technical Parameters:

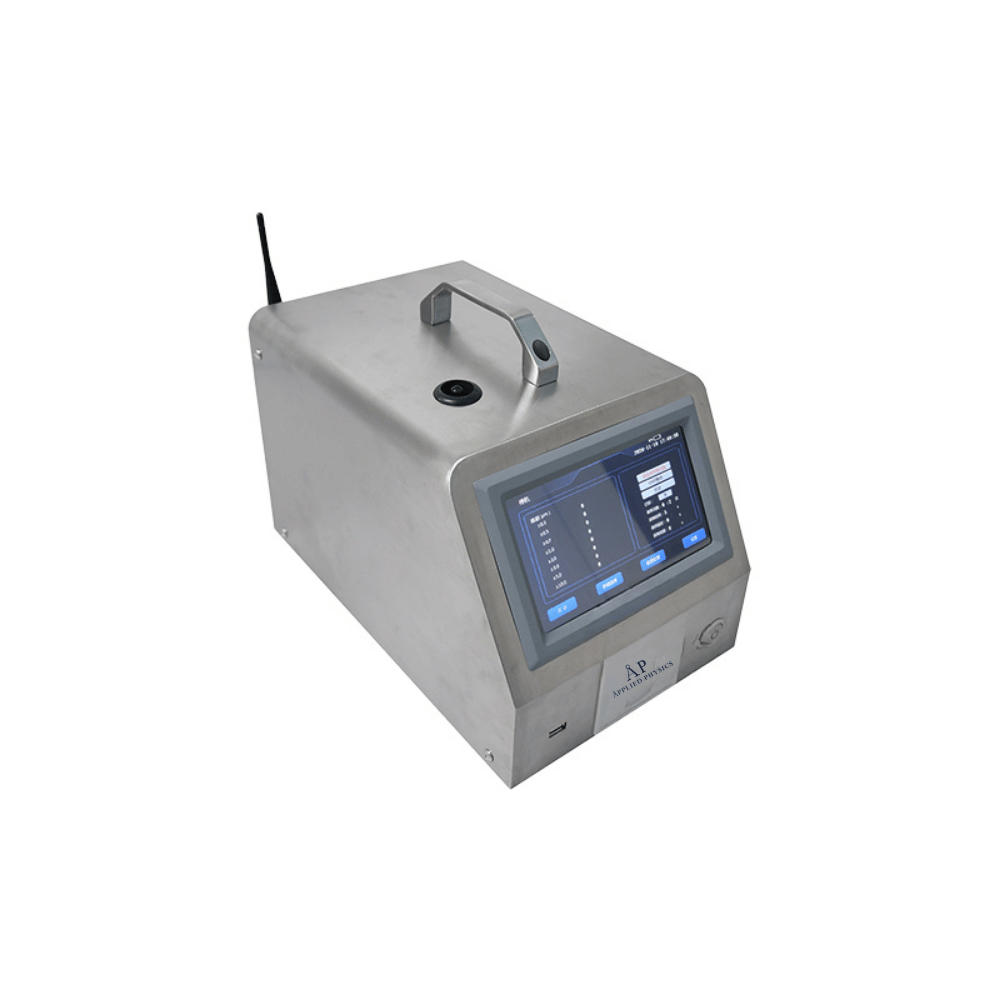

| Model | CLJ-2803 |
| Dimension | 220*350*260mm |
| Sampling Volume | 28.3L/min(1cfm/min) |
| Ambient Temperature | 10~35℃ |
| Ambient Relative Humidity | ≤75% |
| Power | 150W |
| Six Particle Size Channels | 0.3μm, 0.5μm,0.7μm,1μm, 2μm,3μm, 5μm, 10μm |
| Vacuum Source | Built-in air pump, under control flow |
| Light Source | Semi-conductor laser, more than 30,000h |
| Zero Count | Less than 10min |
| Communication Interface | USB, RS485, ethernet communication |
| Cleanliness Level Range | ISO5~ISO8 |
| Main Body Material | Stainless steel |
| Voltage | Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz(internal transformer) |
| Optional Parts | Temperature sensor, humidity sensor, battery |
| Packing Size | Carton: 480*430*370mm; Wood: 570*520*400mm |
| Gross Weight | Carton: 14kg; Wood: 17kg |
