Lighting Incubator BJPX-L200BK BJPX-L200BKII

Description

Lighting Incubator BJPX-L200BK BJPX-L200BKII

Features:

1. The incubator is designed with circular arc structure for easy cleaning.

2. LED light plate cold light source lighting, irradiation surface more uniform, less heat, making the box temperature more stable.

3. The illumination grade is adjustable, it can be adjusted by controlling the on and off of different light lines to simulate day and night.

4. Large screen LCD display, multiple groups of data display in one screen, menu type operation interface, simple and easy to understand, easy to operate.

5. The operation interface has automatic lock function to ensure the safety of operation.

6. Imported compressor, CFC-free refrigerant,eco-friendly and highly efficient.

7. Pull-out movable shelf, adjustable spacing, equipped with casters, easy to move.

8. Non-slip off shelf design, prevent the petri dish slip, more secure.

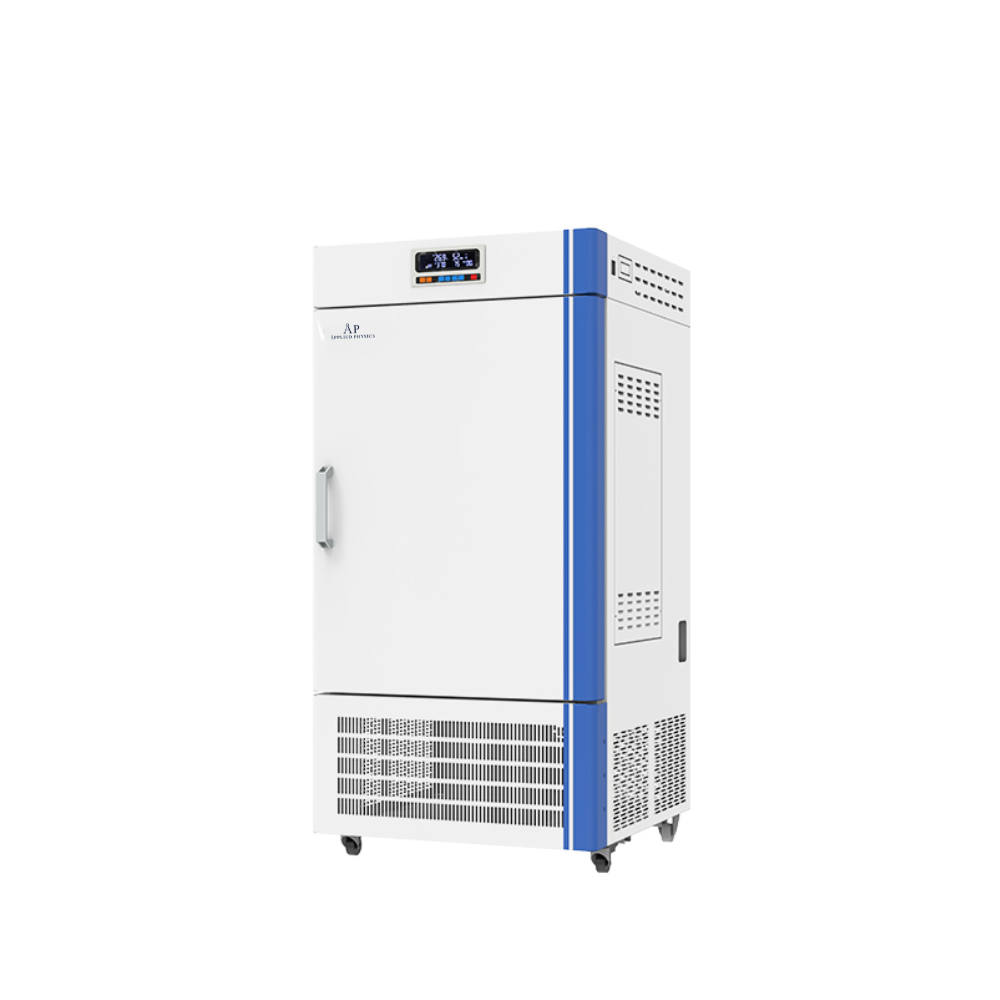

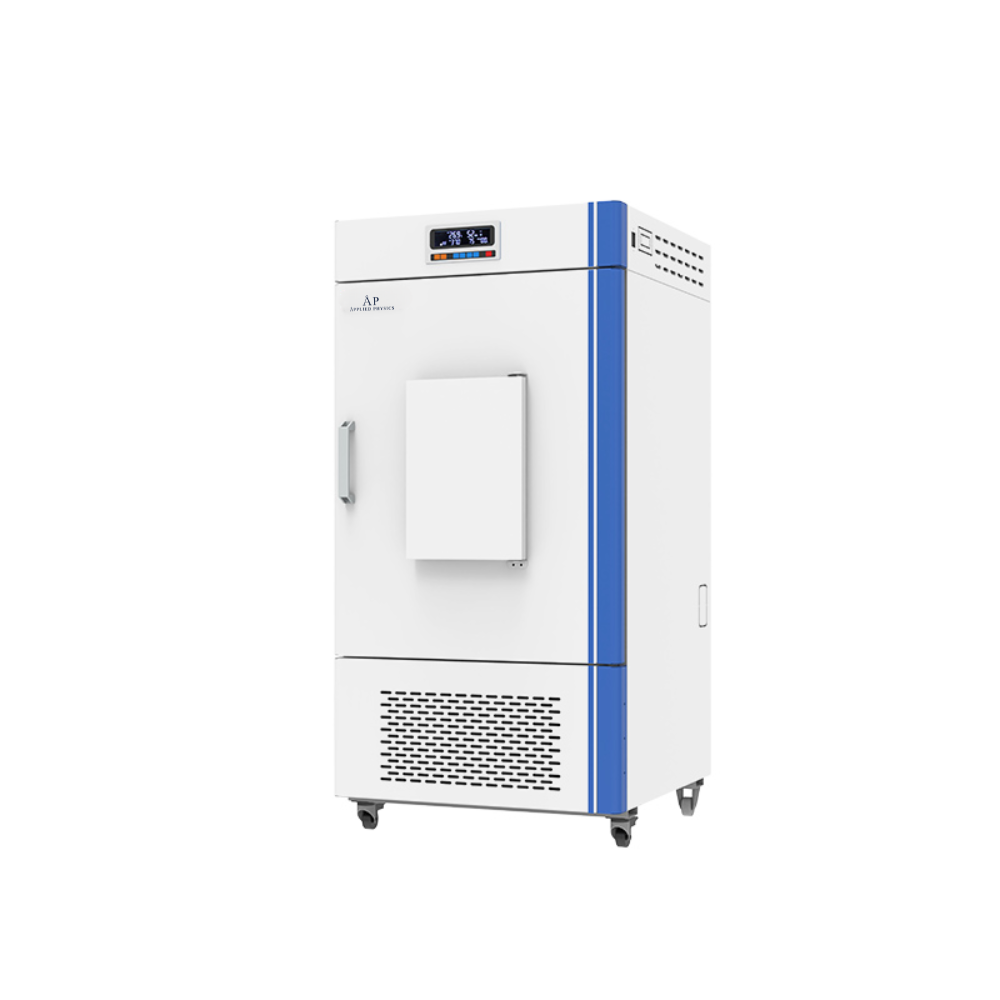

9. Small front door design, both thermal insulation and can prevent the loss of light(BJPX-L200BK).

10. There is a door on the front, left and right, and each door has lamp tubes(BJPX-L200BKII).

Technical Parameters:

Model

BJPX-L200BK

BJPX-L200BKII

Capacity

200L

Temperature Control Range

With illumination: 10~60℃; Without illumination: 0~60℃

Temperature Display Resolution

0.1℃

Temperature Fluctuation

±0.5℃

Temperature Uniformity

±1.0℃

Ambient Temperature

5~30℃, 25±2℃ is recommended

Timing Range

0~9999min/h or continuous

Temperature Controller

PID controller, 30-segment program

Display

LCD display

Lighting Type

Top lighting

Three-sided illumination

Intensity of Illumination

Top vertical LED cold light source: 0~20000Lux

Three side(Left, right and front) LED cold light source: 0~20000Lux

Illumination Adjustment Grade

10-grade adjustable

5-grade adjustable

Refrigerant

R134a/250g

Circulation Mode

Forced convection

Alarm

Independent temperature limit alarm system, leakage current and over voltage protector, Over-temperature alarm(＞2℃)

Material

External material: cold rolled steel;

Internal material: 304 stainless steel

Power Supply

AC220V, 50Hz(Standard); 110V, 60Hz(Optional)

Consumption

1200W

Shelves

521*435mm, 2pcs(One with LED cold light source, one without), can be optional

515*435mm, 2pcs, can be optional

Standard Accessories

Shelf*2, mechanical lock

Optional Accessories

Shelf, test port, RS485 interface, USB interface, printer(USB must also be optional)

Internal Size(W*D*H)

548*476*778mm

External Size(W*D*H)

750*760*1500mm

750*760*1530mm

Package Size(W*D*H)

870*885*1700mm

Net Weight

135kg

175kg

Gross Weight

160kg

200kg
