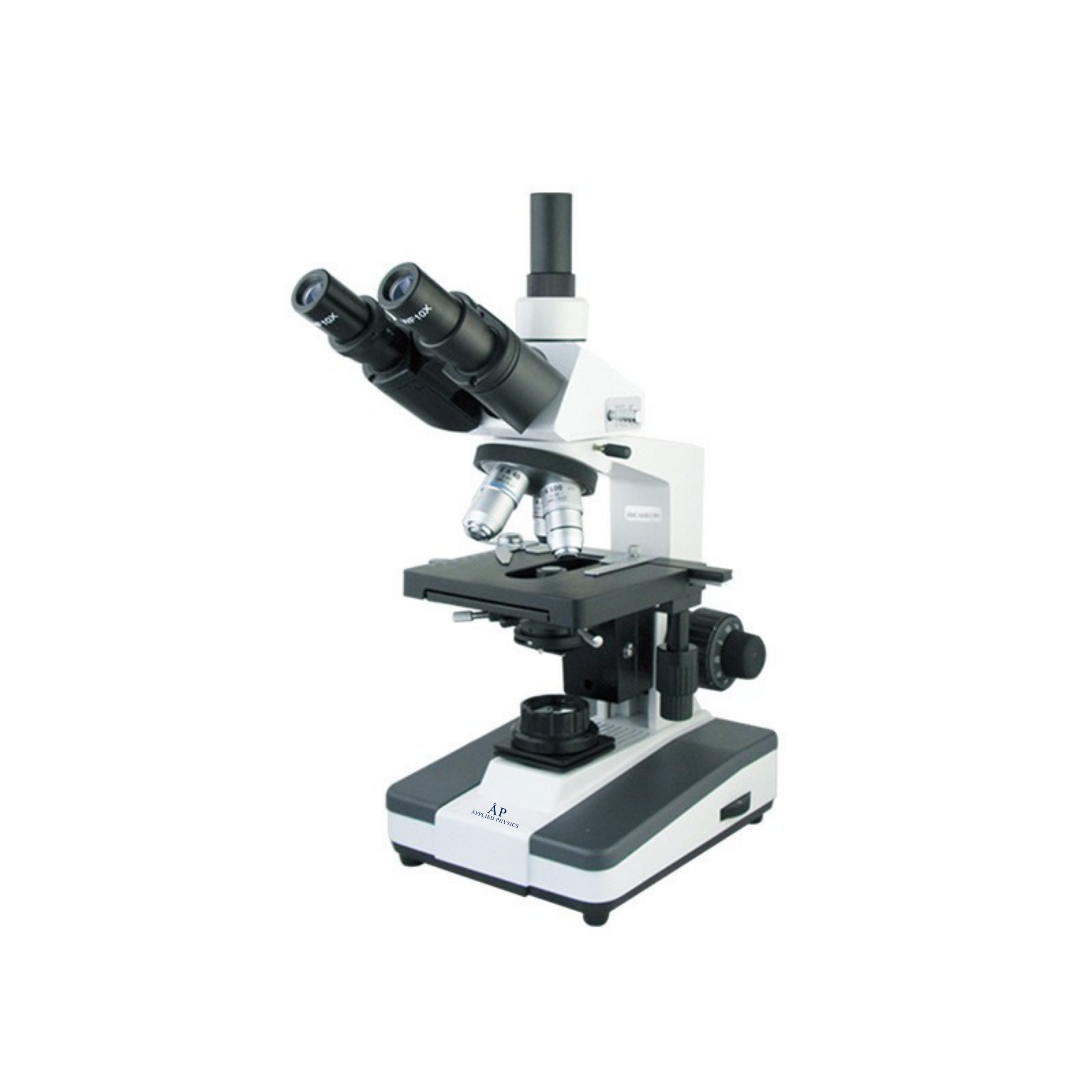

Medical Trinocular Biological Microscope BM-8CA

Medical Trinocular Biological Microscope BM-8CA

$0.00

The Biological Microscope is a versatile and high-precision instrument designed for observing biological specimens in educational, research, clinical, and laboratory settings.

ELGA MEDICA · CLINICAL ANALYZER WATER

Match the water system to the connected analyzer requirement

MEDICA is selected around clinical diagnostic analyzer requirements. Confirm analyzer manufacturer/model, required water quality, production demand, instantaneous flow, operating schedule, storage, redundancy and service expectations before quoting.

Clinical diagnostic analyzersAnalyzer compatibility firstProduction + peak-flow sizingRedundancy can be application-critical
MEDICA application guideCompare systemsReview analyzer requirements
SKU: AP-Medical-Trinocular-Biological-Microscope Categories: , Catalog relationship: Available Through Applied Physics
Related Applied Physics resources

Continue through the Medical portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Applied Physics Medical Clinical & Sterile Processing

Description

Medical Trinocular Biological Microscope BM-8CA

Technical Parameters:

Model

BM-8CA

View Head

Compensation free trinocular head, Inclined at 30°,  360° rotatable, Interpupillary 55~75mm

Eyepiece

P10X/18mm, P16X/11mm

Achromatic
Objective

4X  N.A=0.10  WD=37.50mm

10X  N.A=0.25  WD=7.31mm

40X  N.A=0.65  WD=0.63mm

100X(Oil)  N.A=1.25  WD=0.18mm

Focusing

Coaxial Coarse＆Fine Adjustable System, Range 30mm, Fine Division 0.002mm

Stage

Mechanical Stage 140*140mm, Moving Range 75*50mm, Vernier 0.1mm

Condenser

Abbe NA1.25 condenser with Iris Diaphragm＆Filter

Illumination

Halogen lamp 6V/20W, Kohler illumination, brightness adjustable

Filter

Blue, yellow, green

Power Supply

AC85~240V, 50/60Hz

Package Size

355*265*495mm

Gross Weight

7.5kg

Additional information

Model

BM-8CA
