Multi-Channel Anemometer – 1550/1560Series

Multi-Channel Anemometer – 1550/1560Series

Shipping calculated at checkout.
View full details

Description

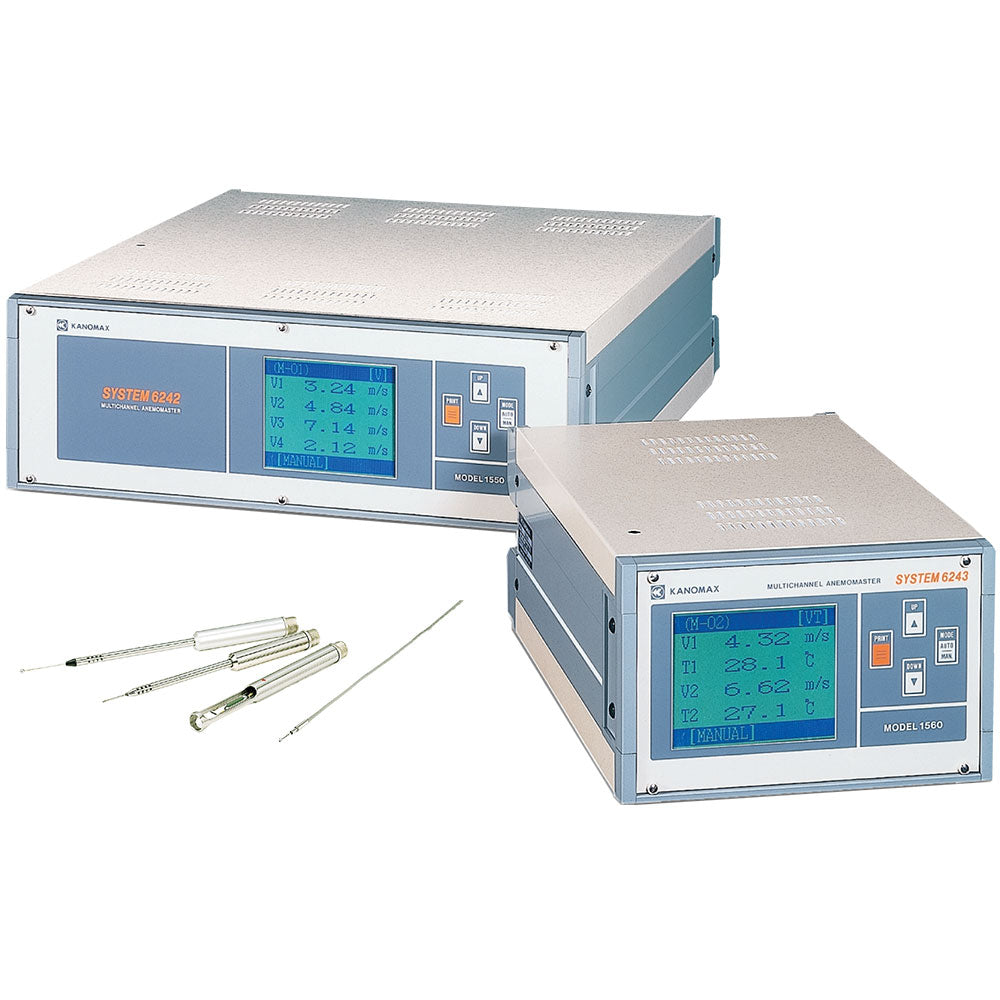

Kanomax Multi-Channel Anemometers are research-grade airflow measuring instruments designed for high performance and precision. When coupled with our highly accurate probes this four-channel anemometer provides highly accurate and reliable data readings. It features a LCD display that displays the data from each channel. The Our 1550 & 1560 models house module bays for the connection of up to 24 channels (model 1560) or 64 channels (model 1550) of simultaneous air velocity measurements. Each bay accepts one of five unique modules allowing for a wide variety of custom configurations for air velocity, temperature, and humidity measurement. For a larger system, you can connect up to 5 units in a cascade for up to 320 air velocity channels and transfer the data to your company computer.

Features & Benefits

  • 1550/1560 Anemometer is a research-grade instrument designed for high performance precise measurements
  • When coupled with our highly accurate probes this multi-channel anemometer deliver a scalable system
  • The Kanomax 1550 & 1560 house modules bays for the connection of up to 24 channels (model 1560) or 64 channels (model 1550) of simultaneous air velocity measurements
  • Each bay accepts one of five unique modules allowing for a wide variety of custom configurations for air velocity, temperature, and humidity measurement
  • Multiple probes (Air Velocity, Temperature & Humidity) are available
  • For a larger system, you can connect up to 5 units in a cascade for up to 320 air velocity channels and transfer the data to your company computer
  • Both units feature a bright LCD display that reveals the data from each channel
  • Burst mode allows you to output the data of all channels at high speed and and decide which probe to query and send data from

Applications

  • Ventilation monitoring for energy efficient building
  • Evaluate cooling efficiency in the electronic device
  • Aerodynamics Research
  • Production Control
  • Product Development

Specifications

Main Unit and Probe Specifications



Main Unit Specifications
Model 1550 1560
Display Resolution 0.01 m/s (@ range of 0 to 9.99m/s)
0.1 m/s (@ 10 m/s or more)
0.1°C (Temperature)
0.1% (Relative Humidity)
Number of Module Slots 16 6
Analog Output 0 to 5 V (with optional module)
Interface RS-232C
Operation Temperature 41 to 104°F (5 to 40°C) with no condensation
Storage Temperature Range 14 to 122°F (-10 to 50°C) with no condensation
Dimensions 16.9″ x 19.6″ x 5.5″ (430 x 500 x 140 mm) 8.9″ x 12.8″ x 5.5″ (226 x 325 x 140mm)
Weight 22lbs (10kg) 11lbs (5kg)
Power AC 100V (50/60 Hz)
Warranty 1 year
Standard Accessory Meter, Operation Manual, RS-232C Cable, Power Cord, Fuse



Optional Probe Specifications
Air Velocity
Ranges 0.1 to 25.0 m/s
0.1 to 50.0 m/s
Accuracy +/- (3% of READING +/- 0.1) m/s
Operating Temperature Range -4 to 158°F (-20 to 70°C) with no condensation
Storage Temperature Range 14 to 122°F (-10 to 50°C) with no condensation
Warranty 1 year
Standard Accessory Probe, Data ROM, NIST Certificate



Model 0962-00 0963-00 0965-00 0965-01 0965-03 0965-04 0965-07 0965-08 0965-09 0965-10
Air Velocity Range (m/s) 0.1 to 50.0 0.1 to 50.0 0.1 to 25.0 0.1 to 25.0 0.1 to 25.0 0.1 to 25.0 0.1 to 25.0 0.1 to 25.0 0.1 to 50.0 0.1 to 50.0
Airflow Directivity Mono Mono Omni Omni Omni Omni Omni Omni Omni Omni
Probe Type Rod Rod Spherical Spherical Miniature Miniature Miniature Miniature Spherical Spherical
Air Velocity O O O O O O O O O O
Acclimation Time (sec) 1 1 7 7 7 7 7 7 7 7



Air and Temperature Probe Specifications



Air Velocity
Ranges 0.1 to 25.0 m/s
0.1 to 50.0 m/s
Accuracy +/- (3% of READING +/- 0.1) m/s
Temperature
Ranges 0 to 100 °C
Accuracy +/- 1 °C
Operating Temperature Range -4 to 158°F (-20 to 70°C) with no condensation
Storage Temperature Range 14 to 122°F (-10 to 50°C) with no condensation
Warranty 1 year
Standard Accessory Probe, Data ROM, NIST Certificate



Model 0962-21 0963-21 0965-21
Air Velocity Range (m/s) 0.1 to 50.0 0.1 to 50.0 0.1 to 25.0
Airflow Directivity Mono Mono Omni
Probe Type Rod Rod Spherical
Air Velocity O O O
Air Temperature O O O
Acclimation time (sec) 1 1 7



Air, Temperature, and Relative Humidity Probe Specifications



Air Velocity
Ranges 0.1 to 25.0 m/s
0.1 to 50.0 m/s
Accuracy +/- (3% of READING +/- 0.1) m/s
Temperature
Ranges 0 to 60 °C
Accuracy +/- 1 °C
Relative Humidity
Ranges 5 to 95 %RH
Accuracy +/- 3% (@ 5 to 80%RH)
+/- 5% (@ 80 to 95 %RH)
Operating Temperature Range -4 to 158°F (-20 to 70°C) with no condensation
Storage Temperature Range 14 to 122°F (-10 to 50°C) with no condensation
Warranty 1 year
Standard Accessory Probe, Data ROM, NIST Certificate



Model 0963-31 0965-31
Air Velocity Range (m/s) 0.1 to 50.0 0.1 to 25.0
Airflow Directivity Mono Omni
Probe Type Rod Spherical
Air Velocity O O
Air Temperature O O
Relative Humidity O O
Acclimation time (sec) 1 7

Resources

User Manual

DOWNLOAD

Data Sheet - English

DOWNLOAD

Data Sheet - Espanol

DOWNLOAD

Application Note

DOWNLOAD

Engineering Drawings

DOWNLOAD

Software Manual

DOWNLOAD

Accessories

  • Uni-Directional Probe (V): Model 0962-00
  • Uni-Directional Probe (V): Model 0963-00
  • Omni-Directional Probe (V): Model 0965-00
  • Omni-Directional Probe (V): Model 0965-01
  • Miniature Omni-Directional Probe (V): Model 0965-03
  • Miniature Omni-Directional Probe (V): Model 0965-04
  • Miniature Omni-Directional Probe (V): Model 0965-07
  • Miniature Omni-Directional Probe (V): Model 0965-08
  • Omni-Directional Probe (V): Model 0965-09
  • Omni-Directional Probe (V): Model 0965-10
  • Uni-Directional Probe (V/T): Model 0962-21
  • Uni-Directional Probe (V/T): Model 0963-21
  • Omni-Directional Probe (V/T): Model 0965-21
  • Omni-Directional Probe (V/T/H): Model 0963-31
  • V/T/H Module: Model 1512
  • V Module: Model 1504
  • V/T Module: Model 1511
  • Analog Module: Model 1510
  • Blank Module Panel: Model 1500
  • AC Adapter: Model 6332-02
  • 11mm Probe Protector: Model 6521-30
  • 4.6mm Probe Protector: Model 1500-03
  • 2M 1-Channel Probe Cable (V): Model 1504-02
  • 5M 1-Channel Probe Cable (V): Model 1504-03
  • 10M 1-Channel Probe Cable (V): Model 1504-04
  • 20M 1-Channel Probe Cable (V): Model 1504-05
  • 30M 1-Channel Probe Cable (V): Model 1504-06
  • DPS for Multi-channel: Model S620-00

FAQ

They measure the air speed by calculating how fast the probe sensor is being cooled by the airflow.

Yes, all our instruments come with a calibration certificate.

Annual calibration is recommended to ensure accuracy. However, this can vary based on how often the anemometer is used and the environments it’s used in. Also, some companies have an SOP in place that specifies how often the instrument will need to be serviced. More specifically, regulatory compliance may dictate the calibration interval.

You can measure clean air between -4 and 158°F (-20 to 70°C) in an environment with no visible condensation. (Please note: the temperature range given is for the probes)

No, these are thermal anemometers that generate heat when in operation; if you expose them to a flammable gas it could cause a fire or explosion. Corrosive or caustic gases, such a chlorine, will damage the sensor on contact. While it is possible to use the instrument in a non-flammable, non-caustic gases the instrument is not calibrated for these gases and it will not measure airflow accurately.

We have three multi-channel anemometers: The 1570 is a 4-channel anemometer that just measure air velocity. The 1550 and 1560 have more channels (16 and 6 respectively) and can also measure temperature and relative humidity. These two units can be operated in a cascade configuration where multiple units can be chained together to create more channels.

These systems are designed for flexibility so you can buy exactly what you need for your specific application. The 4-channel 1570 is easy to order as it requires only the main unit and then whichever probes and cables suit your application. The 1550 and 1560 are a bit more complex as these instruments are composed of the chassis, modules, cables and probes. Each probe must have the correct corresponding module installed in the chassis to plug into. We suggest calling your distributor or Kanomax to get assistance with ordering these systems.

Data processing software, RS232C cable, power cable and 2 pcs. fuse.
