Introduction：
The multifunctional electric bed is a device that changes the position of the bed through an electrical control system. The multifunctional electric bed provides complex postures for clinical needs such as back, bent legs, full lift, full forward tilt, full back tilt, etc., which is convenient for nursing staff to operate and can effectively reduce the labor intensity of nursing staff.
$0.00

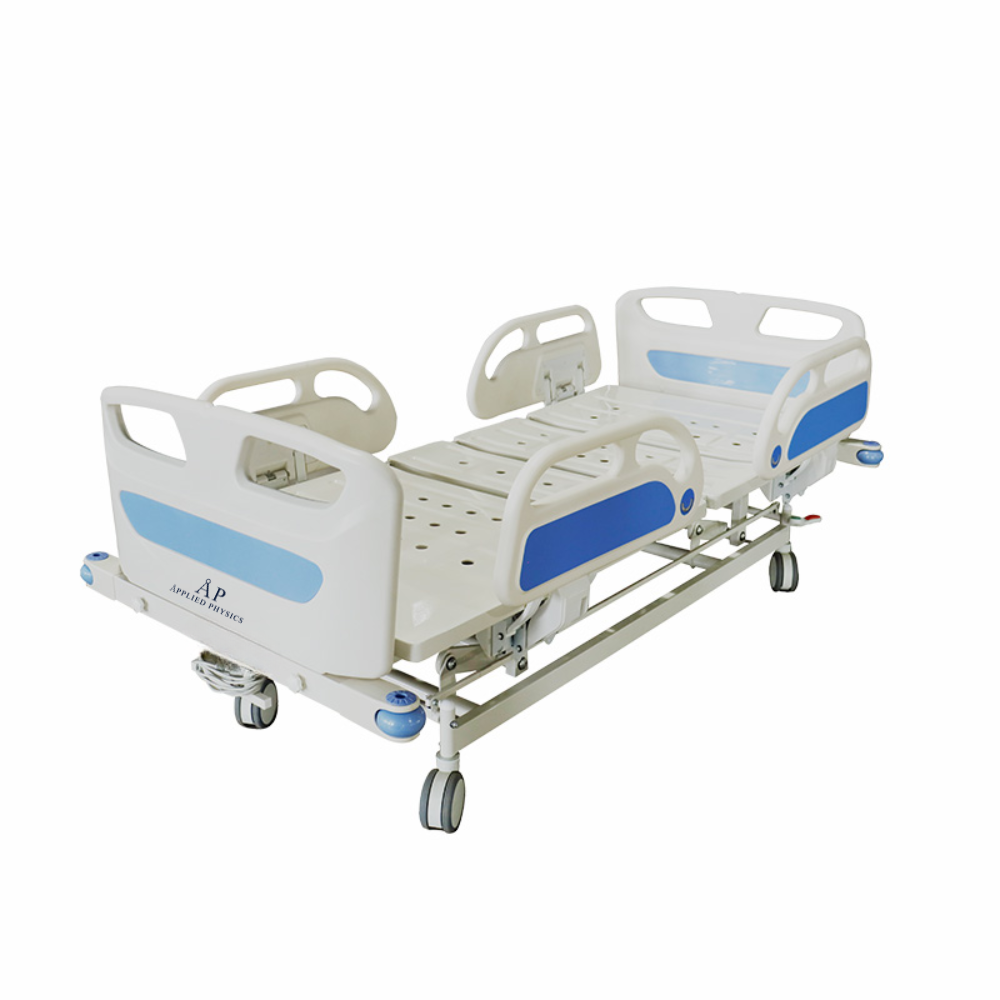

Multifunctional Electric Bed MF301DS-22
Features:
1. Use high-quality materials: the bed frame and the bed board are made of high-quality steel plate, and the surface is electrostatically sprayed. The head and foot of the bed are made of ABS high-quality engineering plastics for one-time molding.
2. Casters: 125mm central control casters, flexible rotation, one-foot brake, four-wheel brake, safety, stability, high wear resistance, no noise.
3. Guardrails: butterfly-shaped lifting guardrails are used on both sides to keep up and down synchronously with the bed board. The angle display accurately displays the angle of each part and can be easily lifted.
4. Electronic control system: using high-quality motors and control systems, the system runs stably and has high safety.
5. Trendelenburg position：with a posterior tilt angle of ≥12° and manual adjustment, it helps improve patients’ blood circulation, enhance postural comfort, or meet specific medical scenario requirements.
Technical Parameters:
Model
MF301DS-22
Instrument Size
2165*1115*530~770(±10)mm
Back Panel Adjustable Angle Range
0°~70°
Thigh Plate Adjustable Angle Range
0°~30°
Calf Panel Adjustable Angle Range
0°~10°
Trendelenburg Position
≥12°(manual)
Lifting Range
520~770mm
Guardrail Height(above the bed)
380mm(±10mm)
Safe Load
175kg
Power Supply
110~220V, 50/60Hz
Net Weight
145kg
Package Size
2200*1200*730mm
Gross Weight
205kg
| Model | MF301DS-22 |
|---|
