Open-Cup Flash Point Tester

Description

Open-Cup Flash Point Tester

Features:

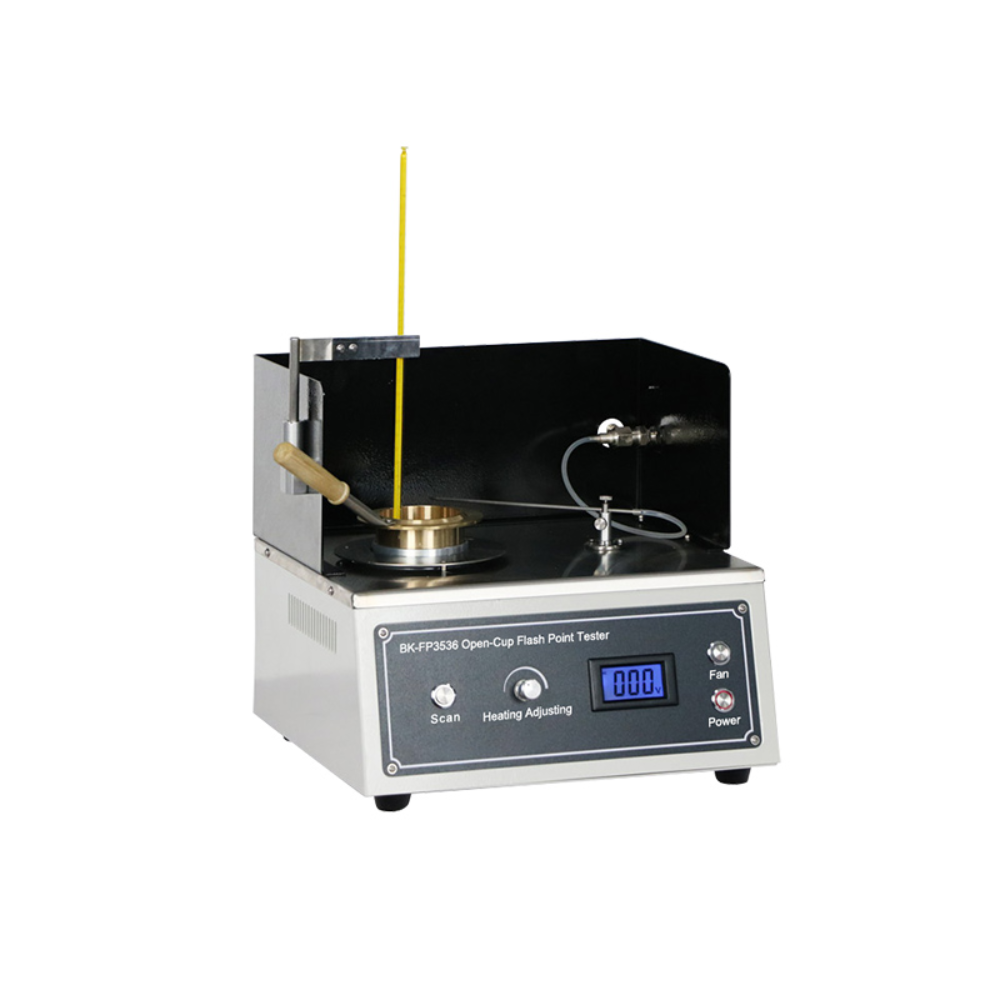

BK-FP3536:

1. It adopts special heating furnace to ensure the safety of test.

2. The heating power is continuously adjustable. It can meet requirements of test.

3. The instrument is fully self-contained complete. The operator can do determination as long as connecting with coal gas or other civil gas.

4. With fast cooling function, it can improve test efficiency.

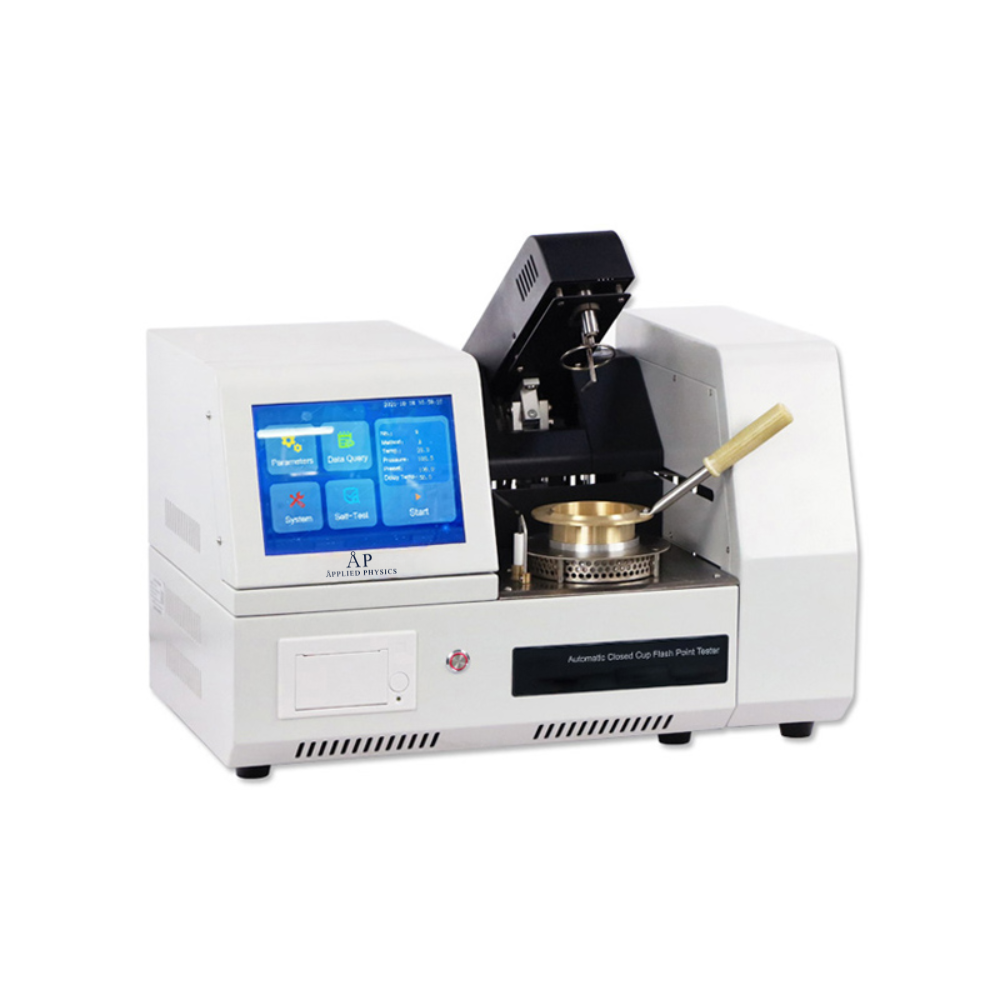

BK-FP3536D:

1. 8-inch IPS high-definition capacitive screen, the test data and parameters are displayed by curve in real time.

2. Automatic measurement of atmospheric pressure, automatic correction of flash point value.

3. Equipped with Bluetooth interface. The user can query test data anytime.

4. Electronic ignition, gas flame.

5. Remote automatic upgrade to obtain the latest version, remote prediction, abnormal early warning, comprehensive evaluation and maintenance of instrument operation status.

Technical Parameters:

Model

BK-FP3536

BK-FP3536D

Thermometer

-6°C~400°C. It is the same as thermometer ASTM 11C

Ambient Temperature

15°C~35°C

Relative Humidity

≤85%

Consumption

≤650W

≤750W

Test Flame Applicator

It applies the test flash automatically

Heating Device

Furnace heating, no naked fire, explosion prevented. The power is adjustable from 0W to 600W

1. Initial heating: (14~17)°C/min

2. It is (5~6)°C/min after reaching the preset flash point 20 °C

Igniting Device

(1) Ignition source: coal gas(or civil gas)

(2) Nozzle aperture: about 0.8mm

Electric ignition

Diameter of igniter: 0.7mm~0.8mm

Flash Point Determination

Range: Ambient to 400°C

Accuracy: 0.1°C

Power Supply

AC220V, 50Hz

Dimension(W*D*H)

350*290*350mm

510*320*330mm

Package Size(W*D*H)

650*450*420mm

690*500*610mm

Gross Weight

20kg

35kg
