Piezobalance Dust Monitor – 3520 Series

Piezobalance Dust Monitor – 3520 Series

Shipping calculated at checkout.
View full details

Description

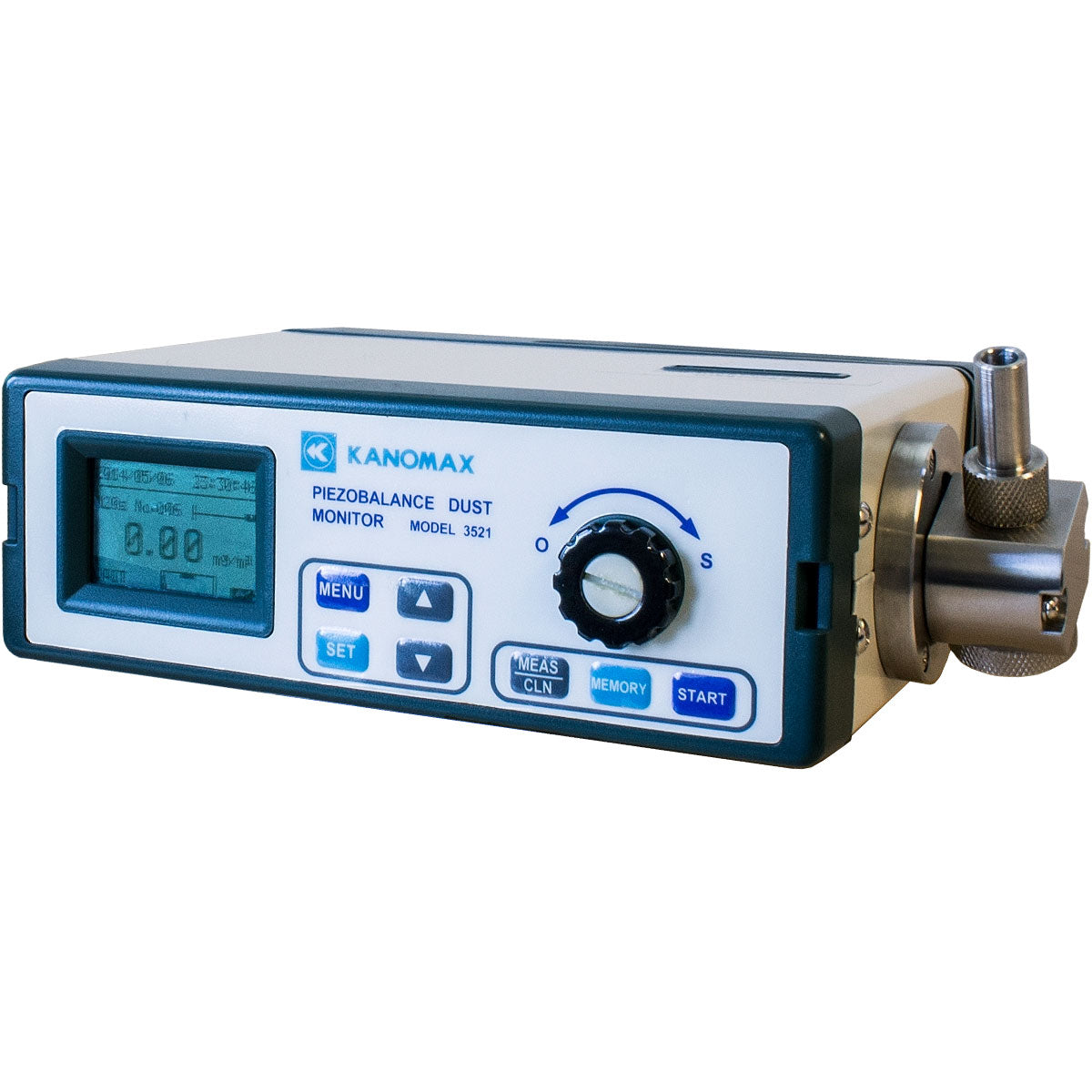

The Kanomax Piezobalance Dust Monitor 3521/3522 is a unique respirable aerosol monitor, providing direct mass concentration of particulates using PIEZOBALANCE technology; ideal especially for oil mist monitoring. The Kanomax 3521 is equipped with 4 and 10µm impactors while the 3522 is equipped with a 2.5µm impactor. Unlike conventional dust meters, which count particles, a piezobalance dust meter like the 3521 or 3522 “weighs” mass concentration of particulates. As an air sample enters the system, it travels through the impactor, which captures and removes larger particulates away from the sample. Smaller particulates become electrically charged and deposited on the piezo-crystal. The total mass of the deposited particulates affects the piezo-crystal’s frequency. Since the change in frequency is proportional to the mass of the particulates, the actual weight of the particulates is obtained.

Features & Benefits

  • Measures PM 10, Respirable, or PM 2.5 particle matters
  • Real-time measurements of dust concentration
  • Data logging up to 500 measurements
  • Simple cleaning mechanism for easy maintenance
  • Complete with data processing software, RS 232C cable, cleaning kit, Ni-MH battery pack, AC adapter, carrying case and calibration certificate

Applications

  • Oil Mist Monitoring
  • Automotive Engineering Area Monitoring

Specifications

Main Unit Specifications
Model 3521
Measuring Object Airborne Particle Matter 0.1 to 10 µm
Impactor 10 µm, 4 µm
Measuring Range 0.01 to 10 mg/m3
Accuracy +/- 10% of reading +/- 1 digit (0 to 5 mg/m3)
+/- 20% of reading +/- 1 digit (5 to 10 mg/m3)
Model 3522
Measuring Object Airborne Particle Matter 0.1 to 2.5 µm
Impactor 2.5 µm
Measuring Range 0.01 to 10 mg/m3
Accuracy +/- 10% of reading +/- 1 digit
General Specifications
Sampling Flow Rate 1 L/min
Datalogging 500 data and time stamped measurements
Interface RS-232C
Power Supply Ni-MH battery or AC adapter
Dimensions H7.0″ x D5.9″ x W2.7″ (180 x 150 x 65mm)
Weight (with batteries) 4.4 lbs. (2 kg)
Warranty 1 year
What’s Included Meter, Operation manual, Software, RS232C cable, AC adapter, NiMH battery pack, Cleaning kit, Impactor(s), Carrying case, Calibration certificate

Resources

User Manual

DOWNLOAD

Data Sheet - English

DOWNLOAD

Data Sheet - Espanol

DOWNLOAD

Application Note - Dust Monitoring Methods

DOWNLOAD

Software Manual

DOWNLOAD

Accessories

Videos

Kanomax Piezobalance Dust Monitor - Overview

VIEW VIDEO


FAQ

When our laser hits the PM, light scattering occurs. The 3443 collects the amount of scattering light and calculates the mass concentration in proportion to the luminescence. The mass concentration is based on the density of PM, thus gravimetric sampling is required if the density is unknown.

PM stands for particulate matter (also called particle pollution): the term for a mixture of solid particles and liquid droplets found in the air. Some particles, such as dust, dirt, soot, or smoke, are large or dark enough to be seen with the naked eye. Others are so small they can only be detected using an electron microscope. Particle pollution includes:

  • PM10: inhalable particles, with diameters that are generally 10 micrometers and smaller; and
  • PM2.5: fine inhalable particles, with diameters that are generally 2.5 micrometers and smaller.
    • How small is 2.5 micrometers? Think about a single hair from your head. The average human hair is about 70 micrometers in diameter – making it 30 times larger than the largest fine particle.

Sources of PM

These particles come in many sizes and shapes and can be made up of hundreds of different chemicals. Some are emitted directly from a source, such as construction sites, unpaved roads, fields, smokestacks or fires. Most particles form in the atmosphere as a result of complex reactions of chemicals such as sulfur dioxide and nitrogen oxides, which are pollutants emitted from power plants, industries and automobiles.

A dust monitor measures the mass concentration of particulates in the air. This is typically expressed in milligrams of particulates per cubic meter of air. This makes the dust monitor very useful for monitoring substances that could negatively impact a person’s health.

We have two different types: a light-scattering monitor model 3443 (the industry standard) and a piezobalance monitor model 3521.

There are two key differences between the units. The first is that the light scattering model 3443 requires a K-factor to accurately report the mass concentration of particulates, while the piezobalance model 3521 does not. The second key difference is that model 3443 is suitable for long-term monitoring while the piezobalance model 3521 needs to be cleaned every hour to function correctly. The piezobalance monitor is also capable of measuring oil mist for specialized applications.

In order to accurately report on the mass concentration of particulates that it has measured a light-scattering particle counter needs to know the density of the particulates at the measuring site. Without this the unit will still count particulates, but it cannot accurately gauge the concentration in the air. To obtain the factor it is necessary to obtain a gravimetric sampling of the particulates at the measurement site. This is done by collecting particulates in a special sample container and then sending it to a lab for analysis.

Yes, all our instruments come with a NIST TRACEABLE CALIBRATION certificate.

Annual calibration is recommended to ensure accuracy. However, this can vary based on how often the dust monitor is used and the environments it’s used it. Also, some companies have an SOP in place that specifies how often the instrument will need to be serviced. More specifically, regulatory compliances may dictate the calibration interval.
