With advanced control features, precise temperature regulation, and robust construction, this freeze dryer ensures high-quality drying outcomes and efficient process scaling from the lab to production levels.
$0.00

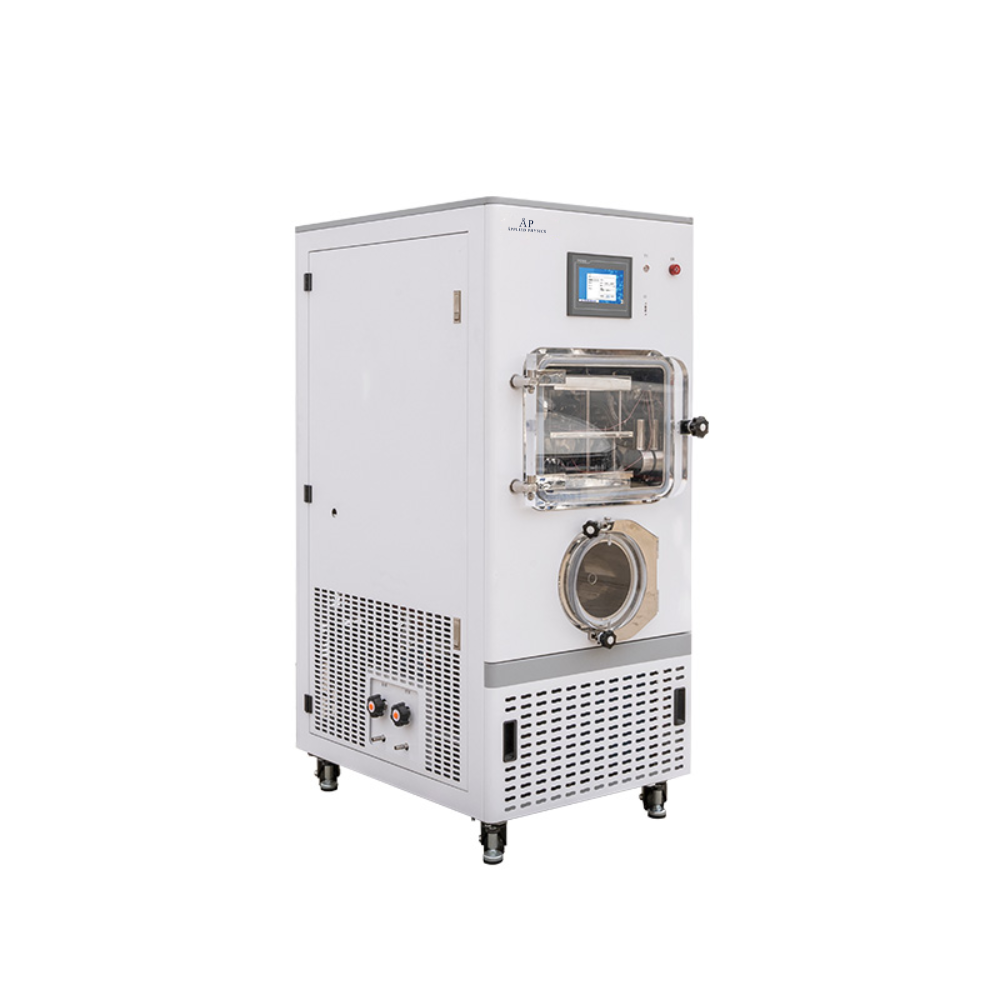

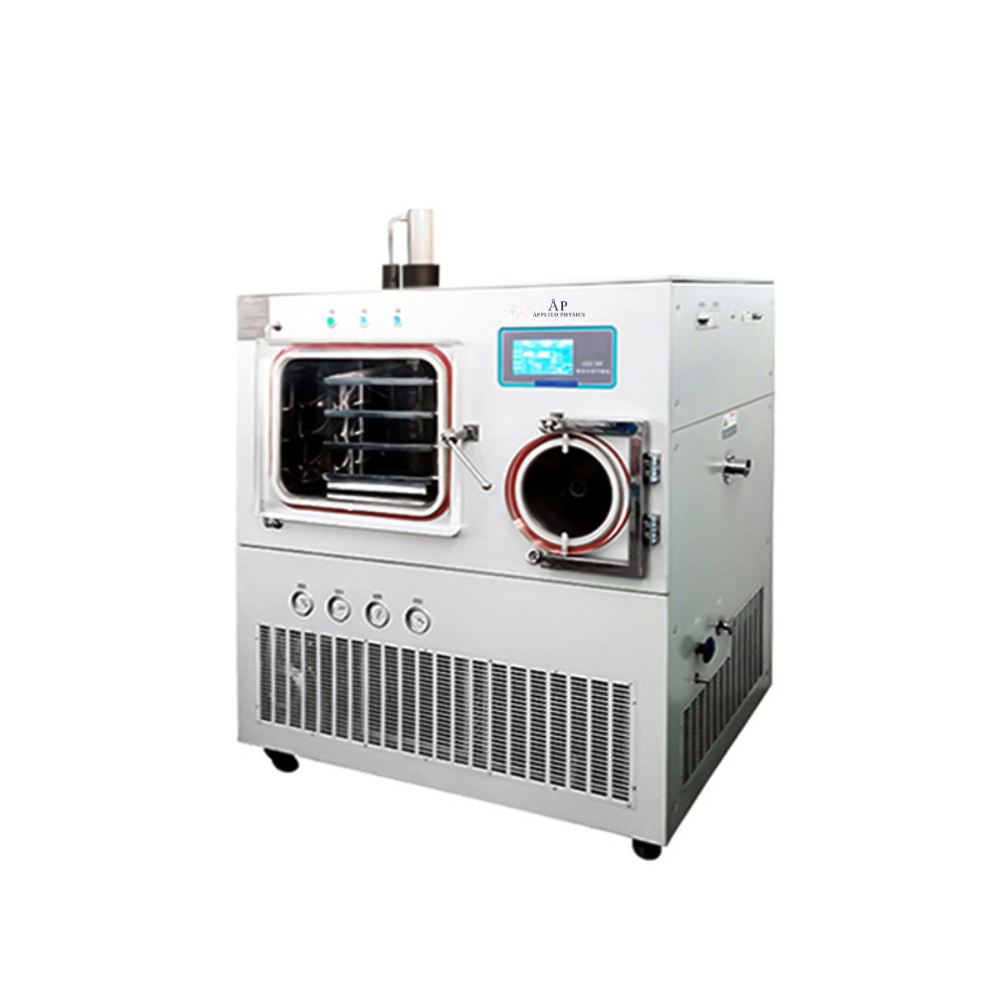

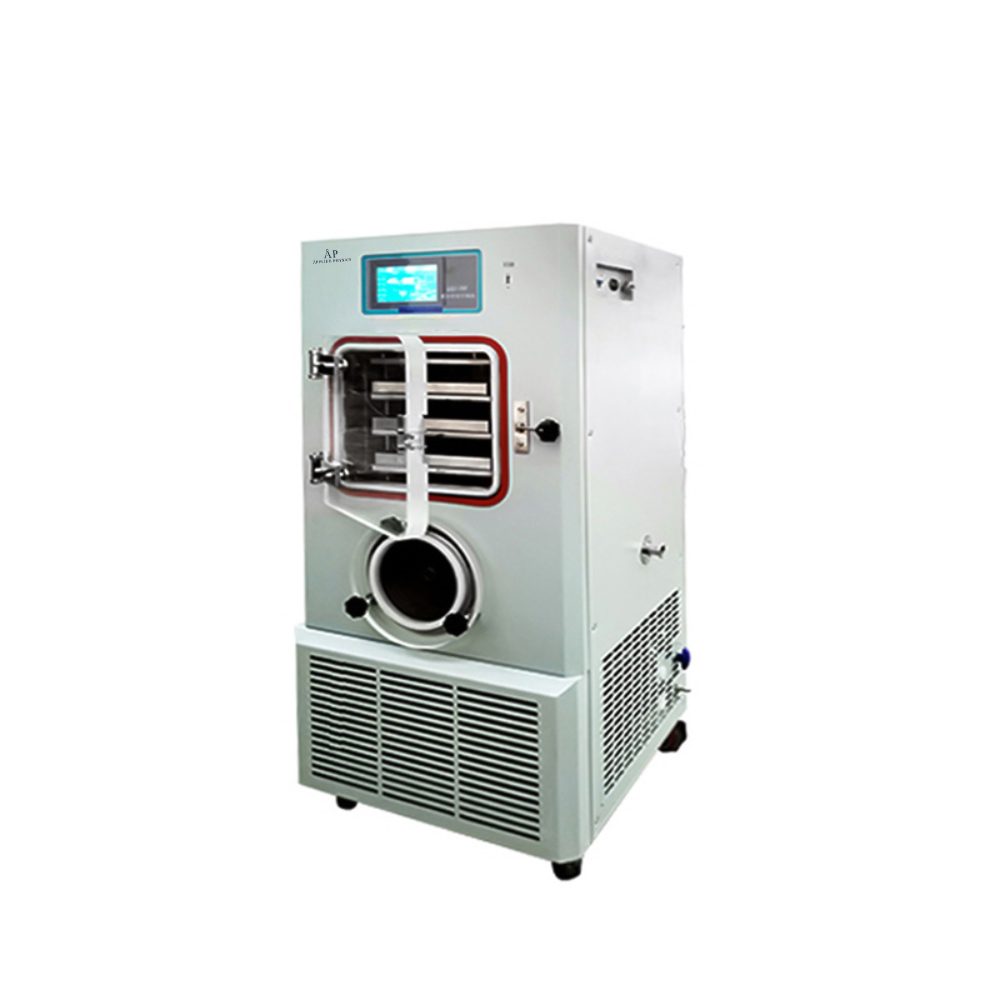

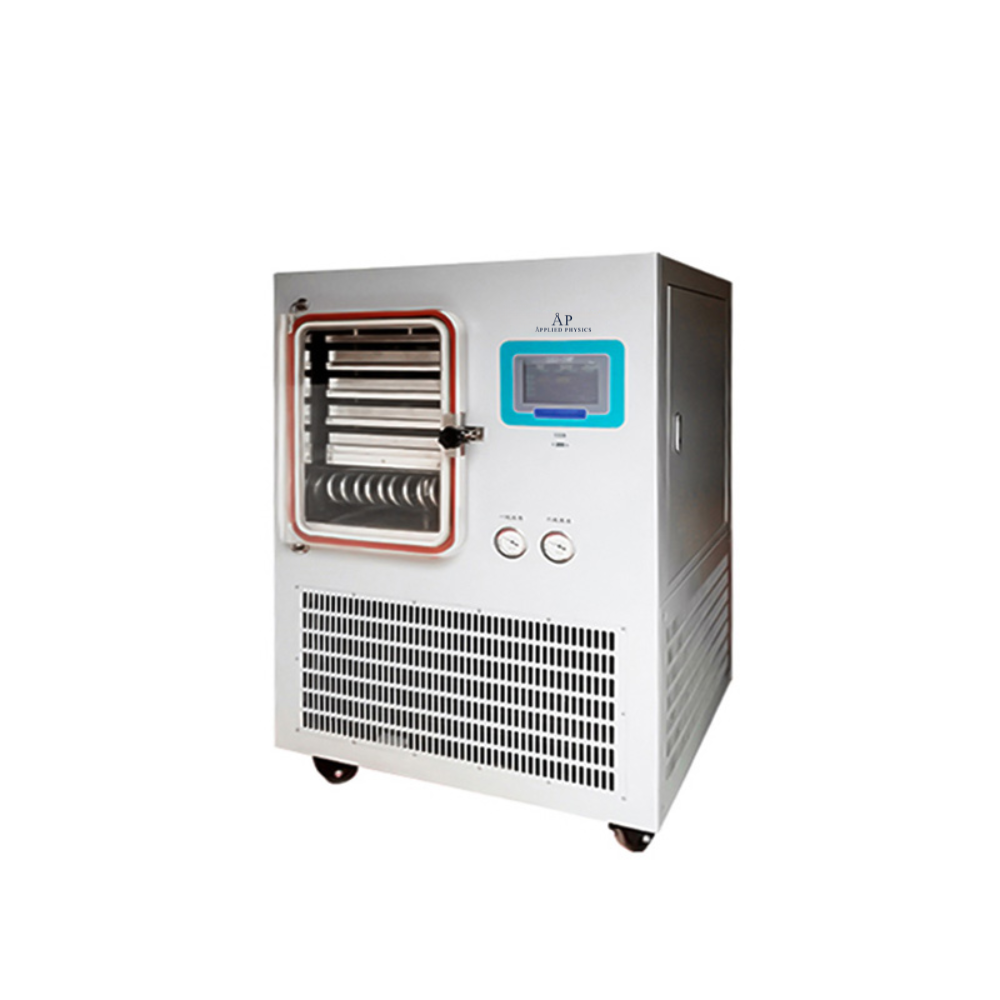

Pilot Freeze Dryer Large Freeze Dryer BK-FD20S, BK-FD20T, BK-FD30S, BK-FD30T
Technical Parameters:
Model
BK-FD20S(Standard)
BK-FD20T(Stoppering)
BK-FD30S(Standard)
BK-FD30T(Stoppering)
Freeze Drying Area
0.3m²
0.2m²
0.4m²
0.3m²
Shelf Temperature
-55℃~+70℃(no-loading)
Cold Trap Temperature
<-80℃(no-loading)
Vacuum Degree
≤1Pa(no-loading)
Water Capture Capacity
≥6
≥8
Cold Trap Volume
14L
/
26L
Cold Trap Size(Diameter*H)
Φ200*460mm
/
Φ320*520mm
Drying Chamber Size(W*D*H)
330*325*470mm
340*500*420mm
480*380*540mm
Shelf&Tray Size(W*D*H)
Shelf: 400*270*18mm
Tray: 395*265*25mm
Shelf: 300*340*18mm
Tray: 295*335*25mm
Qty. of Shelf&Tray
Shelf: 3+1; Tray: 3
Shelf: 2+1; Tray: 2
Shelf: 4+1; Tray: 4
Shelf: 3+1; Tray: 3
Sample Loading Capacity(Liquid)
3L
2L
4L
3L
Height Between Trays
70mm
100mm
50mm
70mm
Tray Temperature Difference
±1℃
Refrigerant
R404A+R23
Condenser Cooling Mode
Air cooling
Defrost Mode
Electric defrosting
Natural defrosting(optional electric defrosting)
Electric defrosting
Stoppering Mode
/
Automatic
/
Automatic
Total Qty. of Vial
Φ22mm
/
440
/
654
Φ16mm
/
868
/
1200
Φ12mm
/
1554
/
2187
Vacuum Pump
4L/S(14.4m³/h)
6L/S(22m³/h)
Electric Defrosting Consumption
800W
800W
/
1000W
Silicone Oil Heating Rods Consumption
800W
800W
1000W
1000W
Hydraulic Pressure Station Consumption
/
500W
/
1000W
Total Consumption
3KW
4KW
4.5KW
5.5KW
Power Supply
AC220V, 50Hz/60Hz(single phase)
Main Body Weight
300kg
400kg
External Size(W*D*H)
1033*781*1580mm
928*825*1366mm
1272*853*1679mm
Packing Size(W*D*H)/Gross Weight
Main Body
1150*900*1780mm/400kg
1150*900*1905mm/400kg
1050*945*1570mm/450kg
1392*995*1880mm/651kg
Vacuum Pump
950*420*500mm(37kg)
790*340*460mm(57kg)
790*300*470(52kg)
Optional: Import vacuum pump, Vacuum pump anti-return value, Eutectic point tester, Oil mist filtration system, Vacuum adjustment device.
Standard: USB port.
