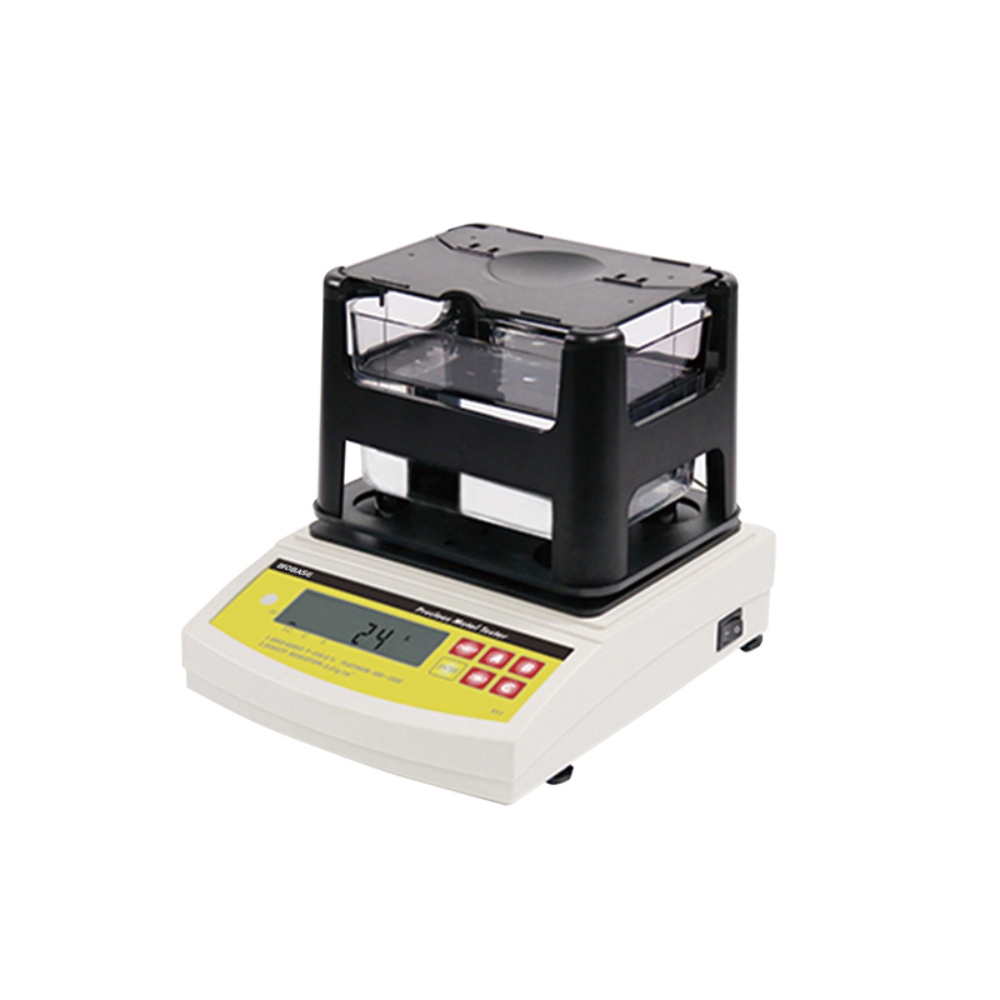

Precious Metal Tester

Description

Precious Metal Tester

Features:

1. Multi-mode, gold mode, platinum mode, other precious metals mode can be switched.

2. Top and bottom limitation of K value, purity and density of gold. And prompt alarm.

3. Automatic zero tracking, buzzer warning, andoverload warning.

4. No damage testing, cleaning and environmental protection.

5. Could be used as precision balance.

6. Function of solution compensation: necessary if liquid other than water is used as a medium for measuring.

7. RS-232C is included.

Technical Parameters:

Model

BK-DMG300K

BK-DMG600K

BK-DMG900K

BK-DMG1200K

BK-DMG2000K

Capacity

0.005~300g

0.005~600g

0.01~900g

0.01~1200g

0.01~2000g

Density Resolution

0.001g/cm3

Measuring Time

5~20s

Measuring Principle

Archimedes principle

Testing Board

Unibody high-capacity plastic testing board

Gold

Mode

Display K Value

The K value of mixture of gold, silver, and copper; mixture of gold and copper; mixture of gold and silver

Display Purity

Percentage

The purity content of mixture of gold, silver and copper; mixture of gold and copper; mixture of gold and silver

K Value Range

9K~24K

Copper and Silver

Proportion Setting

Cycle setting depends on user’s preference(default 7:3)

Platinum

Display Value

PT percentage, density value, volume

PT Value Range

PT600~PT1000

Silver

Display Value

S value, % content, density value

PT Value Range

S600~S1000

Measuring Tank

Unibody injection forming transparent professional measurement tank.

Size: 153*107*93mm(L*W*H)

Calibration Mode

Auto correction, auto detection

Standard Accessories

Tank, testing board, tweezer, thermometer, weight, windshield, power transformer, a set of gold particle measuring assembly

Optional Accessories

DE-40 printer

Power Supply

AC100~240V, 50/60Hz

External Size(W*D*H)

195*230*197mm

Package Size(W*D*H)

440*180*345mm

Net Weight

1.78kg

1.79kg

1.8kg

1.8kg

1.82kg

Gross Weight

4.5kg

4.5kg

4.9kg

4.8kg

5.3kg
