Application:
Thermogravimetric analysis(TG, TGA) monitors changes in sample mass over time and temperature during heating, temperature control, or cooling processes. Its purpose is to investigate the thermal stability and composition of materials.
It is widely used in research and development, process optimization, and quality control in various fields, including plastics, rubber, coatings, catalysts, inorganic materials, metal materials, and composite materials.
$0.00

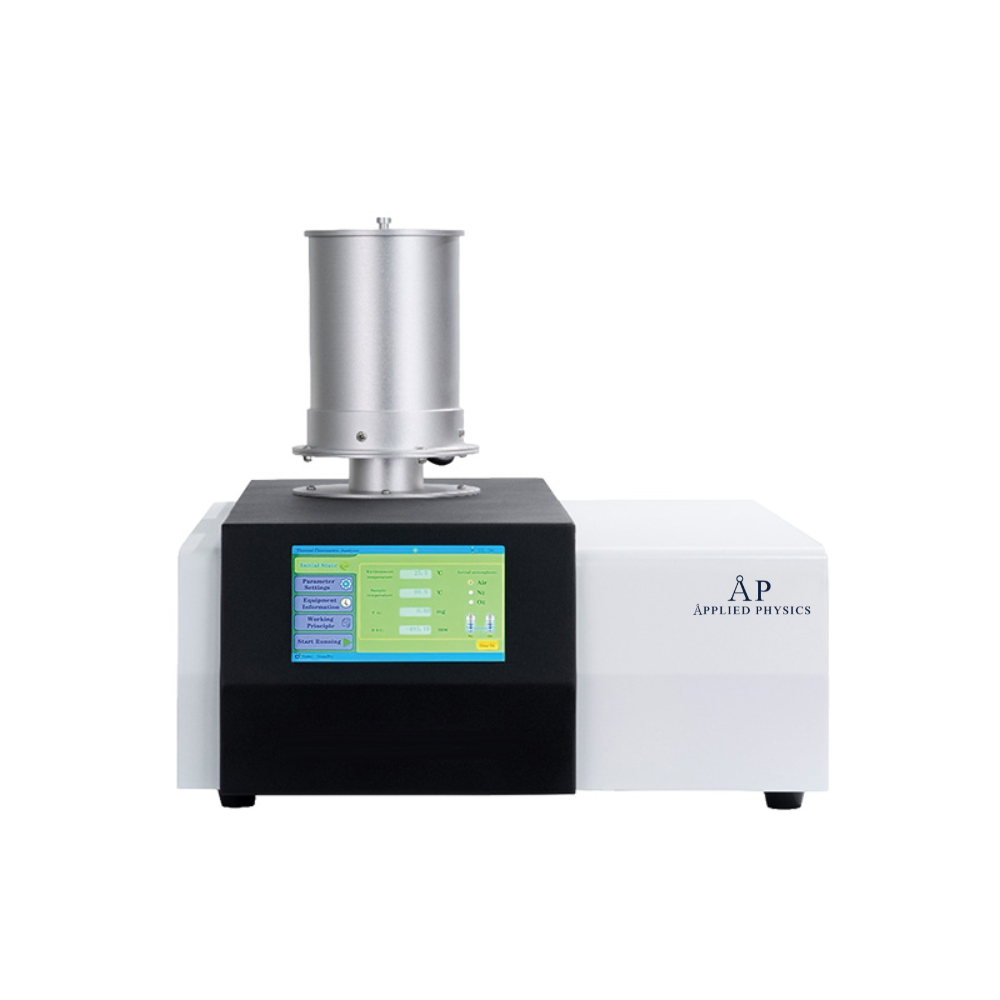

Thermal Gravimetric Analyzer BK-TGA101
Features:
1. The furnace heating system utilizes double-row precious metal alloy wire.
2. The tray sensor is heat-resistant and corrosion-resistant.
3. The power supply and heat dissipation components are separated from the main unit.
4. The top-opening lid design provides easy operation.
5. The furnace body features a double thermal insulation design for improved linearity.
Technical Parameters:
Model
BK-TGA101
Temperature Range
RT~1150℃
Temperature Resolution
0.01℃
Temperature Fluctuation
±0.1℃
Heating Rate
0.1~100℃/min
Temperature Control Method
PID algorithm control, heating and constant temperature
Constant Temperature Time
0~300min, arbitrarily set
TG Measurement Range
0.01mg~3g, can be expanded to 30g
Weighing System Accuracy
0.01mg
Power Supply
Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz
External Size(L*W*H)
460*512*430mm
Net Weight
26.5kg
Packing Size(L*W*H)
660*590*500mm
Gross Weight
42.1kg
| Model | BK-TGA101 |
|---|
