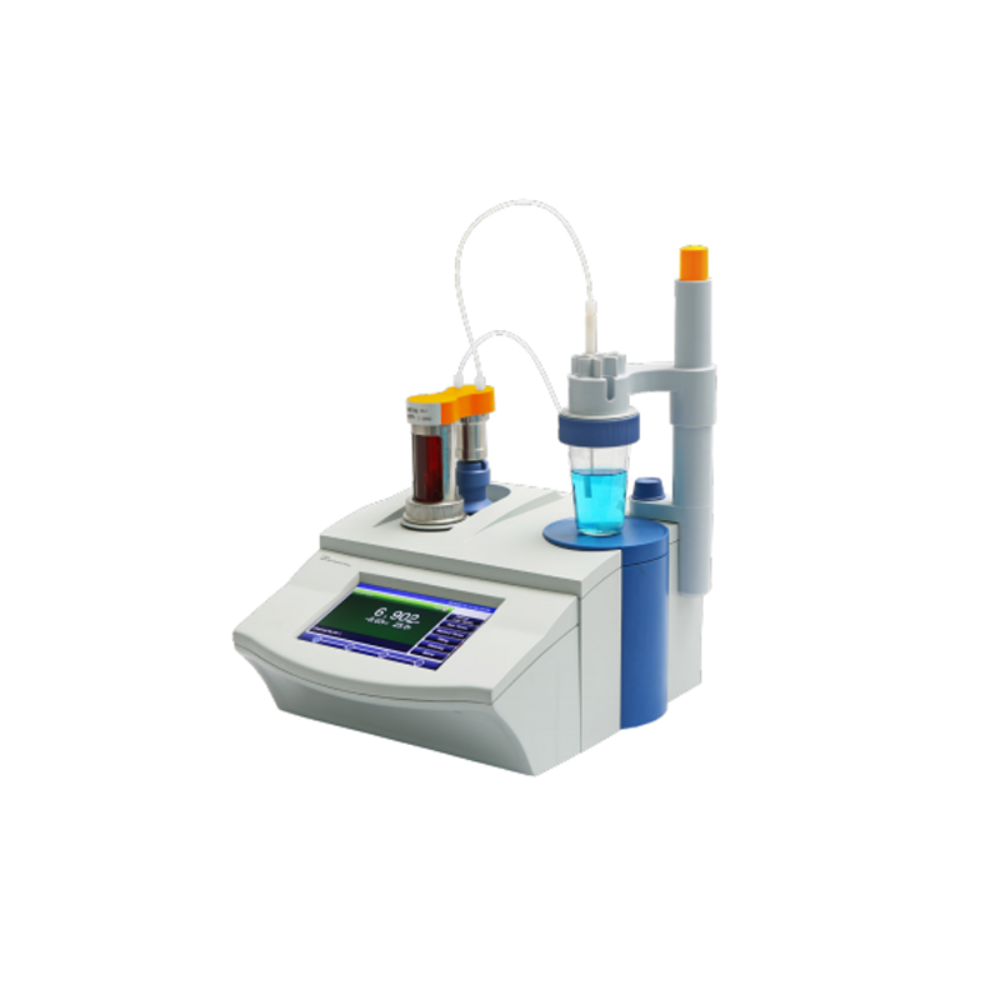

Ti-50-G Automatic Potential Titrator (Customized)

Description

Ti-50-G Automatic Potential Titrator (Customized)

Features:

1. 7″ colorful touchscreen and smart guide system.

2. Potential and Photometric Titration Analysis.

3. Titration methods, curves and results are displayed in detail.

4. 1 extra burette driver can be installed(optional).

5. Replaceable burette with high-accuracy(10 mL or 20 mL selectable).

6. Intelligent operation system provides features including user management, method management, sensor management, titrant management, data management, etc.

7. Potential Module: DET(dynamic equivalence point titration), MET(monotone equivalence point titration), SET (Preset Endpoint Titration), constant pH titration, and MAT(manual titration).

8. Photometric Module: DET(dynamic equivalence point titration), MET(monotone equivalence point titration).

9. pH calibration and measurement are supported.

10. Up to 100 user-defined methods and 10 user-defined shortcuts.

11. Auto calculation with pre-defined formula.

12. Store up to 200 titration data sets(GLP-compliant).

13. Data analysis feature helps user review, compare and recalculate results.

14. Data can be easily transferred to printer via RS-232 communication interface.

15. Titrator can be controlled by computer via USB or RS-232 communication interface.

16. Automatic sampler is supported.

Technical Parameters:

Model

Ti-50-G

Burette

Accuracy

10mL Burette: ±0.020mL; 20mL Burette: ±0.030mL

Resolution

1/30000

Potential Titration Module

Titration Repeatability

≤0.2%

Range

(0.000~20.000)pH; (-2000.00~2000.00)mV

Resolution

pH: 0.001pH; mV: 0.01mV

Accuracy

pH: ±0.002pH; mV: ±0.03% or ±0.2mV

Fluctuation

±0.3mV/3h

Photometric Titration Module

Titration Repeatability

≤0.2%

Range and Resolution

(0.00~1500.00)mV, 0.01mV

Wavelength

520nm, 570nm, 620nm

Wavelength Accuracy

±10nm

Temperature

Range

(-20~130) ºC

Resolution

0.1ºC

Accuracy

±0.2ºC

General

Power Supply

AC adapter(Input: 100~240V AC; Output: 24V DC)

Dimensions

340*400*400mm

Net Weight

10kg
