By simulating the growth environment of microorganisms, tissues and cells, the three-gas incubator provides stable temperature and humidity, carbon dioxide concentration and oxygen concentration, and is widely used for the propagation and cultivation of cells, tissue cultures and some special microorganisms.
$0.00

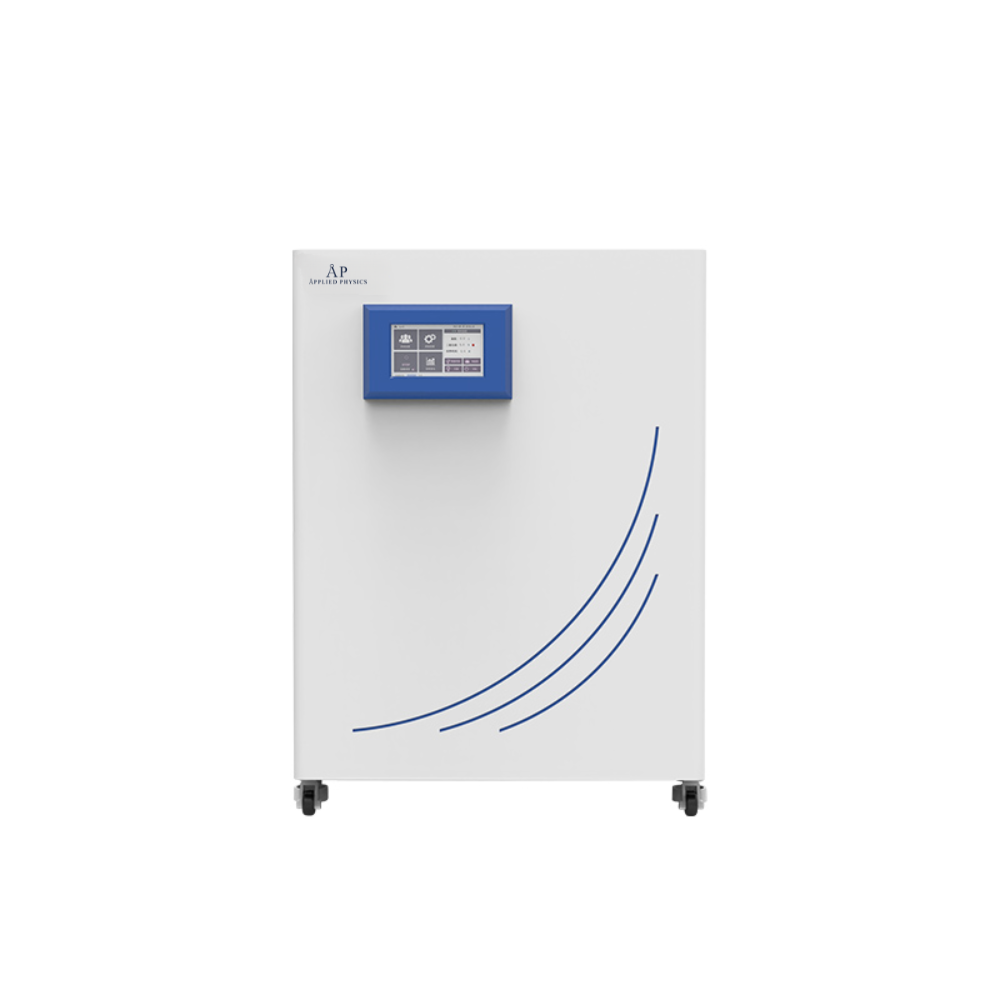

Tri-Gas CO2 Incubator 80L 160L
Application:
Tri-gas incubator is commonly used in microbial culture, cell dynamics research, collection of mammalian cell secretions, carcinogenic or toxicological effects of various physical and chemical factors, research and production of antigens, cultivation of hybridoma cells to produce antibodies, in vitro fertilization(IVF), stem cells, tissue engineering and other research fields.
Features:
1. IR infrared sensor, using dual-channel dual-filter infrared technology.
2. ZrO2 sensor was used for oxygen concentration information acquisition.
3. The inner tank is designed with fully rounded corners and the surface is made of 304 stainless steel with electrochemical treatment.
4. The bottom water reservoir design eliminates the need for repeated water replenishment, saving time.
5. The water level alarm design alerts the operator to refill water in time, providing more comprehensive protection for the samples.
6. Equipped with a gas switching function, it can connect to two bottles of carbon dioxide gas simultaneously.
7. Equipped with leakage current and over-voltage protectors. Features over-temperature, under-temperature, over-concentration and under-concentration alarms.
Technical Parameters:
Model
BJPX-C80T
BJPX-C160T
Type
Tri-gas series, air jacket
Sterilization Type
90℃ moist heat sterilization
Capacity
80L
160L
Temp. Sensor
PT100
Temp. Range
RT+5~60℃
Temp. Fluctuation
±0.3℃(@37℃)
Temp. Uniformity
±0.5℃(@37℃)
Temp. Precision
0.1℃
Timing Range
0~999h or continuous
Display
7-inch touch screen
CO2 Control
IR infrared sensor with calibration certificate
CO2 Range
0~20vol%
CO2 Uniformity
0.2vol%
CO2 Control Resolution
0.1vol%
O2 Sensor
ZrO2 sensor
O2 Concentration Control Range
3~20vol%/22~85vol%
Ambient Temperature and Humidity
Ambient temperature: 5~30℃(Recommendation: 25±2℃)
Ambient humidity: ≤80%
Filter
CO2 gas filter
Power Supply
AC220V, 50/60Hz(Standard)
110V, 50/60Hz(Optional)( External transformer)
Wiring method: plug
Consumption
750W
800W
Shelves
3pcs, adjustable
Standard Accessories
Shelves, USB interface, CO2 relief valve, O2 relief valve, 24V direct-flow water pump, CO2 gas filter*3
Optional Accessory
Three-way connector
Internal Size(W*D*H)
410*387*505mm
492*497*662mm
External Size(W*D*H)
608*707*785mm
688*797*955mm
Package Size(W*D*H)
732*811*937mm
841*1103*1141mm
Net Weight
65kg
85kg
Gross Weight 85kg 120kg
| Model | BJPX-C160T, BJPX-C80T |
|---|
