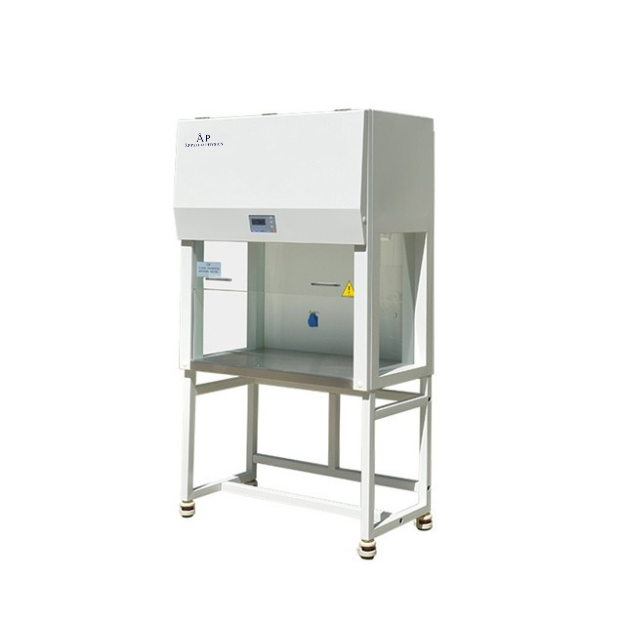

Laminar flow cabinet is an equipment which creates partial particles-free environment. Air flow pattern includes horizontal and vertical type, this laminar flow cabinet is vertical type.
Parameter…
Laminar flow cabinet is an equipment which creates partial particles-free environment. Air flow pattern includes horizontal and vertical type, this laminar flow cabinet is vertical type.
| Parameter | Specification |
|---|---|
| External Size (WDH) | 1460 * 620 * 1850 mm |
| Internal Size (WDH) | 1335 * 530 * 650 mm |
| Work Surface Height | 750 mm |
| Display | LCD display |
| Airflow Velocity | Average of 0.3 ~ 0.45 m/s, air speed adjustable |
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating Work Table: 304 stainless steel |
| Pre-filter | Polyester fiber, washable |
| HEPA Filter | 99.995% efficiency at 0.3 μm |
| Noise | <65 dB |
| Front Window | Manual, 5 mm toughened glass, anti-UV |
| Max Opening | 400 mm |
| Illuminating Lamp | LED lamp 16W * 1 |
| UV Lamp | 40W * 1 Emission of 253.7 nanometers |
| Consumption | 250W |
| Standard Accessory | LED lamp, UV lamp * 2, Base stand |
| Optional Accessory | Electric height adjustable base stand, Caster (Universal wheel with leveling feet) |
| Power Supply | AC220V ±10%, 50/60Hz; 110V ±10%, 60Hz |
| Gross Weight | 224 kg |
| Package Size (WDH) | 1635 * 920 * 1355 mm |
