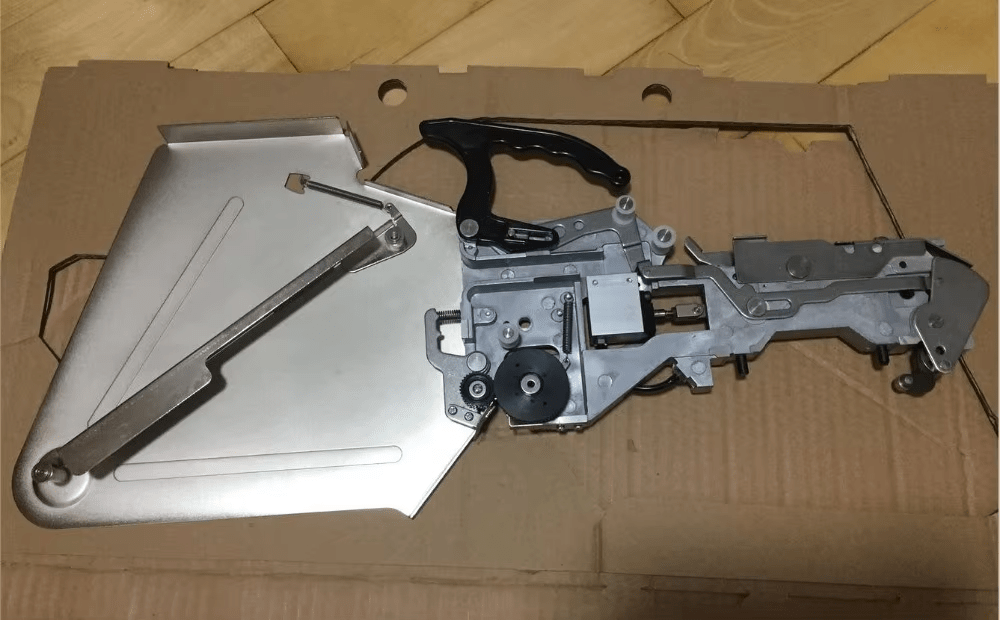

Yamaha Pneumatic Feeders(CL 12MM) for AP Machine

Yamaha Pneumatic Feeders(CL 12MM) for AP Machine

$0.00

Category

Description

Applied Physics Semiconductor offers a full range of pneumatic tape feeders compatible with Yamaha CL series interfaces, designed for high-speed, high-accuracy component delivery in automated SMT assembly lines.

Our feeders support tape widths from 8mm to 72mm, accommodating everything from ultra-small 0201 passives to large ICs and LED packages. These feeders are ideal for high-mix, high-volume, and prototype production environments, ensuring maximum flexibility and uptime.



Product Lineup and Technical Specifications

Below is a detailed table of our Yamaha-compatible pneumatic feeders, including part numbers, supported tape widths, and typical applications. This format allows for easy comparison and selection based on your specific production requirements.

Feeder Model  Part Number  Tape Width  Typical Applications / Supported Components  Adjustable Specifications
CL 8×2mm Feeder  KW1-M1500-030  8mm  0201 SMDs  –
CL 8×2mm Feeder  KW1-M1400-00X  8mm  0402 SMDs  –
CL 8×4mm Feeder  KW1-M1100-000  8mm  0603, 0805, 1206, 3014, 3528, 4148, SOT23, 1210, LED3258  –
CL 12mm Feeder  KW1-M2200-300  12mm  5050, 5730, 5630, 4014 LEDs, other 12mm tape SMDs  12×4mm, 12×8mm, 12×12mm adjustable
CL 16mm Feeder  KW1-M3200-10X  16mm  16mm tape SMDs, larger ICs  –
CL 24mm Feeder  KW1-M4500-015  24mm  24mm tape SMDs, connectors, relays  –
CL 32mm Feeder  KW1-M5500-010  32mm  32mm tape SMDs, large ICs  –
CL 44mm Feeder  KW1-M6500-000  44mm  44mm tape SMDs, power modules  –
CL 56mm Feeder  KW1-M7500-000  56mm  56mm tape SMDs, specialty components  –
CL 72mm Feeder  KW1-M8500-000  72mm  72mm tape SMDs, large modules  –



Note: All feeders are designed for compatibility with Yamaha CL series interfaces and are suitable for integration with Applied Physics Semiconductor’s SMT pick and place platforms as well as other compatible systems.

Key Features and Benefits

  • Wide Compatibility: Supports a full spectrum of tape widths (8mm–72mm), enabling placement of the smallest passives to the largest LED and IC packages.
  • High Precision: Engineered for ±0.015mm to ±0.025mm placement accuracy, ensuring reliable component delivery for advanced PCB designs.
  • Pneumatic Operation: Utilizes clean, dry compressed air (0.45–0.5 MPa) for smooth, consistent tape advancement and minimal maintenance.
  • Quick Changeover: Tool-free, rapid feeder changeover reduces downtime and supports high-mix, low-volume manufacturing.
  • Component Detection: Integrated vacuum and visual detection systems minimize pick errors and improve yield.
  • Robust Construction: Built for 24/7 operation in demanding production environments.



Applications

Our Yamaha-compatible pneumatic feeders are ideal for:

  • High-Speed PCB Assembly: Supporting mass production of consumer electronics, automotive modules, and industrial controls.
  • Prototyping and R&D: Flexible enough for small-batch runs and frequent product changes.
  • High-Mix, Low-Volume Manufacturing: Load up to 30–60 feeders per machine (model dependent) for agile, just-in-time production.
  • Advanced Component Handling: Capable of feeding fine-pitch ICs, LEDs, and specialty SMDs.



Why Choose Applied Physics Semiconductor?

  • US-Based Support: Local technical support, fast delivery, and service coverage for North American customers.
  • Industry Expertise: Over a decade of experience in SMT automation and semiconductor equipment.
  • Customer-First Philosophy: Solutions tailored to your production needs, with a focus on innovation and reliability.
  • Comprehensive Product Range: From feeders to full SMT lines, we offer end-to-end solutions for electronics manufacturing.
