Advanced Troubleshooting for Misalignment Defects in Lithography Tools

In the world of semiconductor manufacturing, precision isn’t just a goal; it is the baseline.

As the industry pushes toward increasingly smaller nodes, the tolerance for overlay error (the misalignment between successive circuit layers) has shrunk to just a few nanometers.

Even a microscopic shift can result in catastrophic electrical shorts, opens, and significant yield loss.

Troubleshooting these defects requires a transition from basic calibration to a systematic, data-driven approach.

This guide explores advanced strategies for identifying and correcting misalignment in modern lithography steppers and scanners.

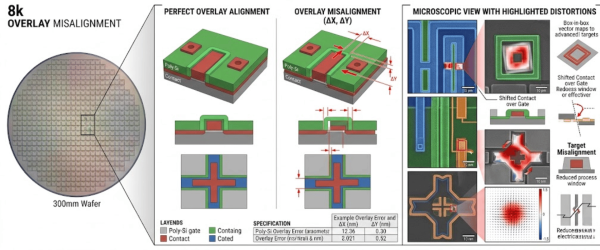

Understanding the Anatomy of Misalignment (Overlay Error)

Before diving into repairs, it is essential to distinguish between the types of errors appearing on the wafer.

Misalignment is rarely a single-source problem; it is often a combination of linear and non-linear distortions.

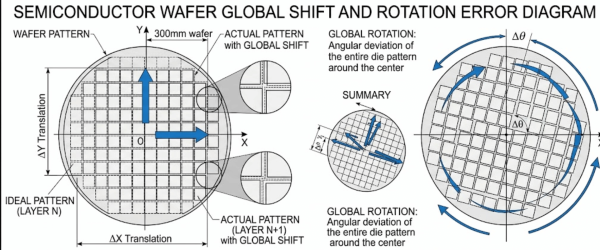

1) Translation and Rotation Errors

These are global errors where the entire pattern is shifted (X or Y axis) or rotated relative to the previous layer.

These are typically the easiest to correct using software offsets, but often point to issues with wafer-stage initialization.

2) Scaling and Magnification Errors

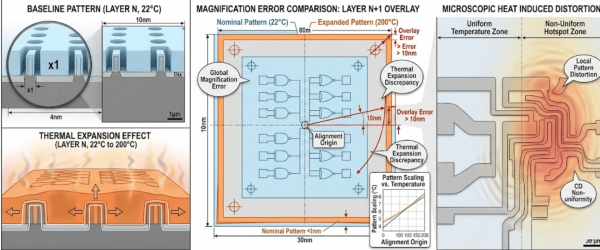

If the pattern size doesn’t match the underlying layer, you likely have a magnification issue.

This often stems from wafer or lens thermal expansion or from lens heating during high-volume production runs.

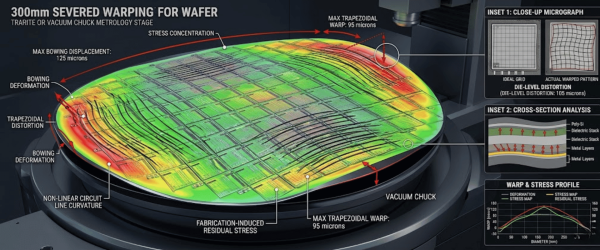

3) Higher-Order Distortions

In advanced nodes, trapezoid or bowing effects occur.

These non-linear errors are frequently caused by wafer warpage or mechanical stresses introduced during previous deposition or annealing steps.

Systematic Troubleshooting Framework

When an overlay excursion occurs, follow this tiered diagnostic path to isolate the root cause.

Phase 1: Metrology and Data Analysis

Don’t touch the hardware until you’ve analyzed the Overlay Vector Map.

Common Signature: If all vectors point in one direction, the issue is likely a Global Alignment offset.
Rotational Signature: If vectors spiral around the center, check the Wafer Chuck rotation or reticle alignment.
Randomized Vectors: This suggests a noise issue, potentially caused by vibration or contaminated alignment marks.

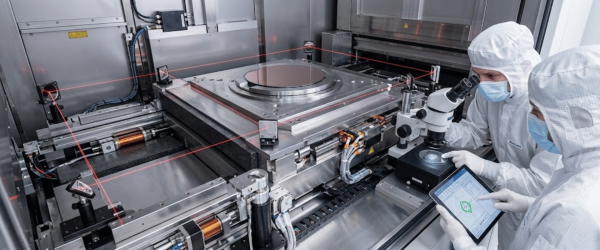

Phase 2: Mechanical and Stage Calibration

The wafer stage must move with atomic-level repeatability. Troubleshooting should focus.

Laser Interferometer Health: Ensure the laser paths for stage positioning are clear of any debris or air turbulence.
Chuck Cleanliness: A single micron-sized particle under the wafer (backside contamination) can cause local hot spots or defocus/misalignment defects.
Z-Sensors: Verify that the level-sense system is accurately mapping the wafer topography before exposure.

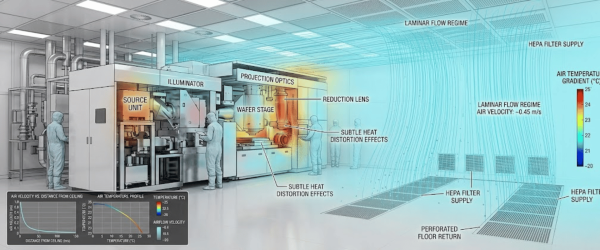

Phase 3: Environmental and Thermal Stability

Lithography tools are incredibly sensitive to their surroundings.

Laminar Flow: Fluctuations in cleanroom air temperature by even 0.1°C can cause refractive index changes in the air, leading to alignment drift.
Chiller Performance: Monitor the cooling fluid temperatures for the lens assembly and the stage motors.
Lens Heating: During long runs, the energy from the DUV/EUV source can heat the projection optics, causing subtle magnification shifts.

Advanced Corrective Actions

Once the source is identified, apply these high-level corrections.

Error Type	Likely Root Cause	Advanced Correction
Grid Non‑Orthogonality	Stage mirror misalignment	Re‑calibrate stage X/Y orthogonality constants
Intra‑field Rotation	Reticle stage error	Synchronize reticle and wafer stage scan speeds
Local Overlay Shift	Wafer stress/warpage	Implement feed‑forward correction based on pre‑exposure wafer mapping
Consistent X/Y Offset	Pre‑alignment sensor drift	Re‑zero the Off‑Axis Alignment (OAA) sensors

Proactive Prevention Strategies

Advanced troubleshooting is most effective when paired with a robust preventative maintenance (PM) schedule.

Alignment Mark Optimization: Ensure that the alignment marks used in the CAD design are robust enough to survive chemical mechanical polishing (CMP) and etching. Ghosting or degraded marks are a primary cause of sensor failure.
Regular Reference Wafer Runs: Periodically run a golden wafer to distinguish between tool-induced errors and process-induced errors (like wafer stress from thin films).
Real-time Monitoring: Use Statistical Process Control (SPC) to track overlay trends. If you see a gradual drift over 24 hours, it is almost certainly a thermal or environmental issue.

Conclusion

Mastering misalignment defects requires a blend of mechanical intuition and rigorous data science. By categorizing errors into global and local distortions and utilizing a phased troubleshooting approach, fabs can maintain high yield even at the most demanding process nodes.

Frequently Asked Questions (FAQs)

1. What are the most common causes of misalignment in lithography?

Misalignment, or overlay error, is typically caused by mechanical issues like wafer stage initialization failures, thermal expansion from lens heating, or microscopic contamination on the wafer chuck. Even a 0.1°C change in cleanroom temperature can shift the alignment.

2. How can I distinguish between global and local overlay errors?

Engineers use Overlay Vector Maps to identify the pattern. If all vectors point in one direction, it is a global translation error. If the vectors spiral or appear trapezoidal, it indicates a local distortion caused by wafer warpage or reticle stage synchronization issues.

3. What is the best way to prevent alignment defects during long runs?

The most effective prevention is a combination of regular stage calibration and real-time monitoring. Implementing feed-forward corrections and ensuring alignment marks are not degraded by previous etching or polishing steps will significantly reduce drift during high-volume production.
