Developing a reliable lateral flow assay requires more than selecting a capture reagent and detection label.
The membrane, sample pad, conjugate pad, absorbent pad, and backing material can all affect flow rate, sensitivity, background, and result consistency.
The BioReady Material Starter Kit for Lateral Flow gives assay developers access to different grades of essential strip materials in one package.
Instead of purchasing large quantities from several suppliers, researchers can compare materials during early development and identify combinations suitable for further optimization.
The kit is intended for professional laboratory research and assay development. It is for research use only and is not intended for use in diagnostic procedures.

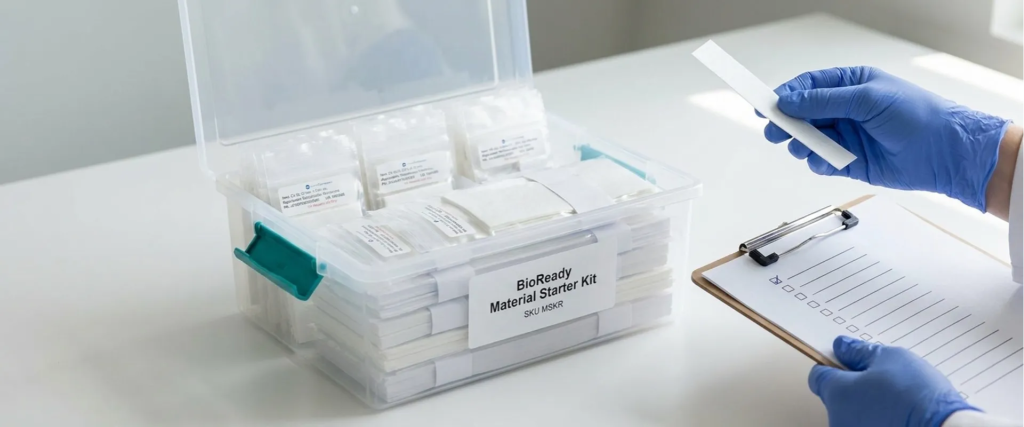

The BioReady Material Starter Kit is a collection of pre-selected materials used to make and evaluate lateral flow assay strips. It is listed by the manufacturer under SKU MSKR and is designed to help researchers screen different material combinations before moving into large-scale development or production.
It can be useful when developing lateral flow tests for research applications involving biological, environmental, food, veterinary, or other sample types. However, the suitability of each material depends on the assay design, analyte, reagents, sample matrix, and required performance.
Every component of a lateral flow strip has a specific function. A material that performs well in one assay may not produce the same results with another sample type or detection system.
The nitrocellulose membrane affects capillary flow, reagent binding, reaction time, and signal development.
A faster-flowing membrane may reduce total test time, while a slower membrane can provide more time for the target and reagents to interact.
The preferred membrane cannot be selected based on flow rate alone. It should be tested with the actual reagents and sample matrix intended for the assay.

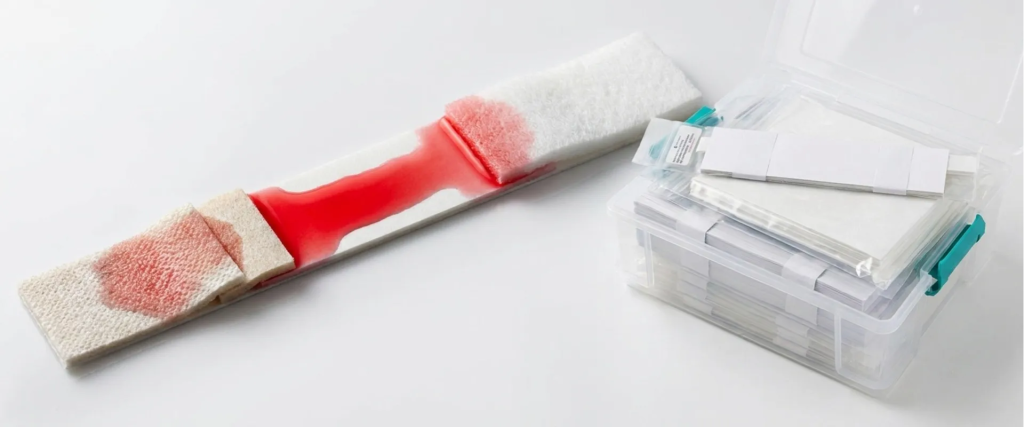

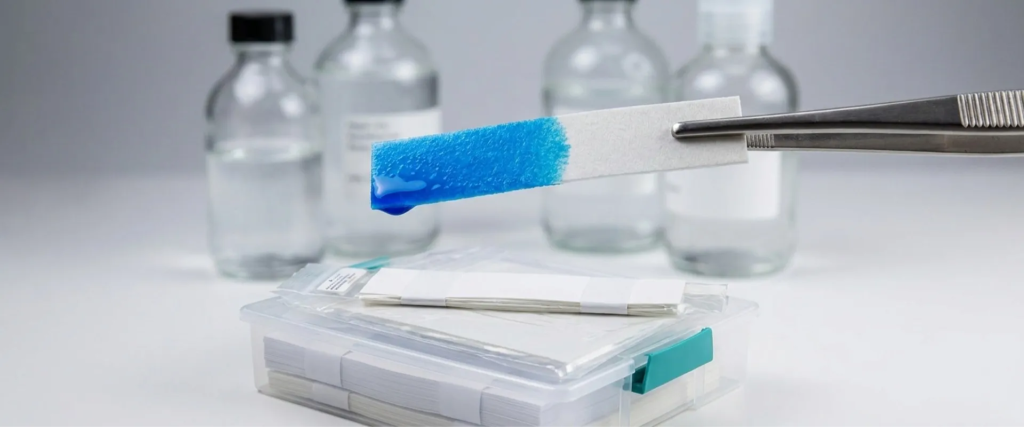

The sample pad receives the specimen and transfers it to the conjugate pad or membrane. Its composition can affect sample distribution, filtration, pH, and the release of interfering substances.

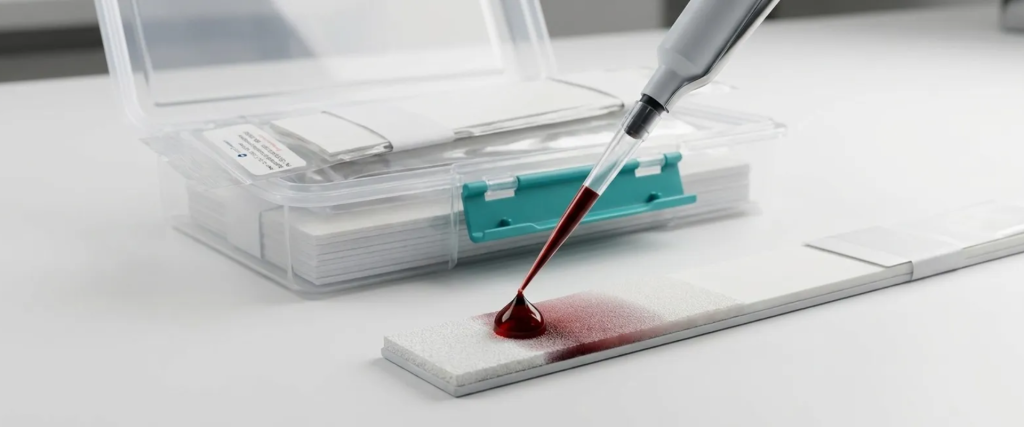

When working with whole blood, a suitable blood-separation material may also be required. Developers should verify that the selected pad provides adequate sample flow without retaining too much target analyte.
The conjugate pad stores the labeled detection reagent until the sample enters the strip. Poor release can cause weak signals, uneven flow, or inconsistent results.
During screening, developers should consider

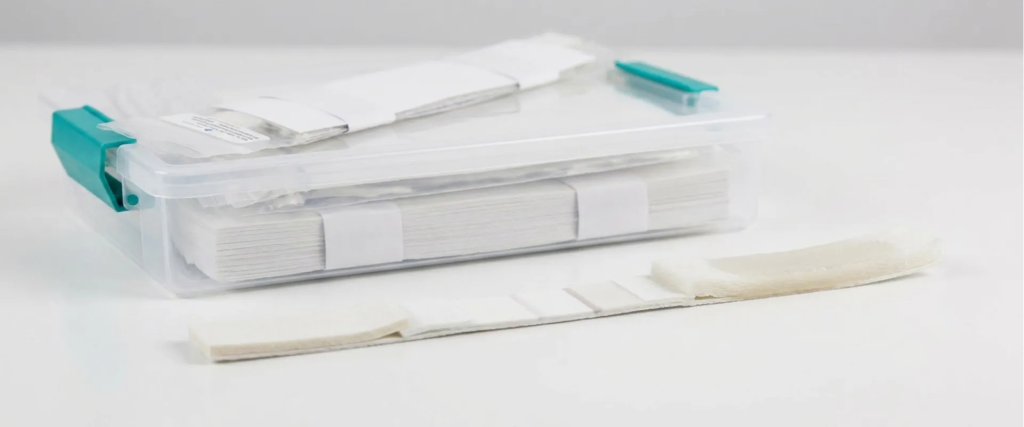

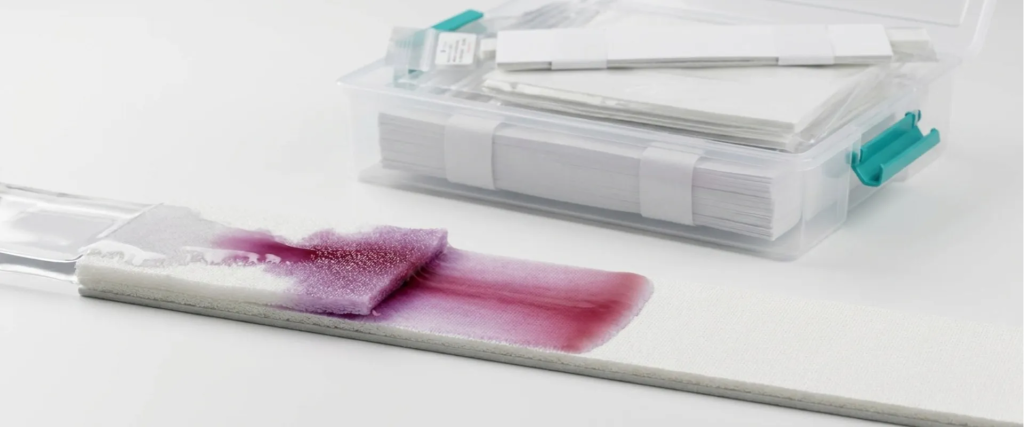

The wick pad, also called the absorbent pad, draws liquid across the membrane. Its absorption capacity should be sufficient for the expected sample and buffer volume.
If the pad reaches capacity too early, flow may stop before the assay is complete. Material dimensions, overlap, and absorption capacity should therefore be evaluated together.
A structured screening process produces more useful results than testing combinations without a defined plan.
Begin with a preliminary strip configuration based on the intended sample type, detection chemistry, target concentration, and required test time.

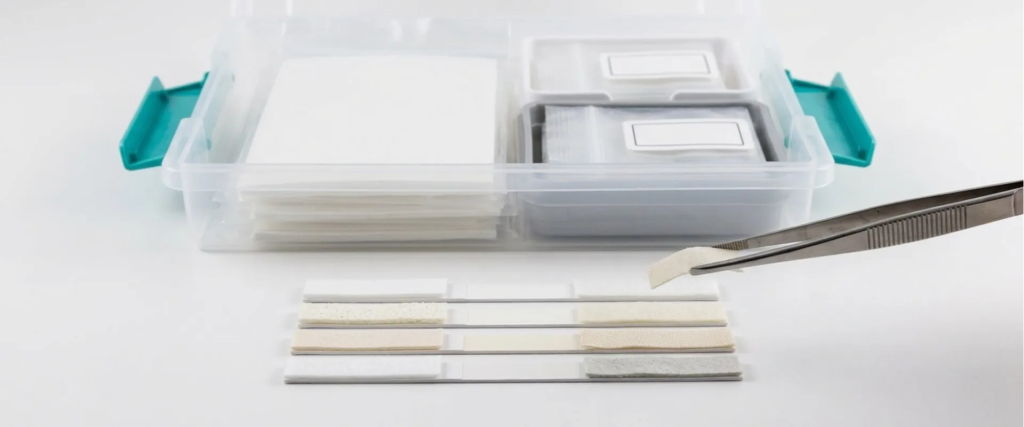

Keep the remaining components and test conditions consistent while comparing different membrane or pad grades. This makes it easier to identify which change affected performance.

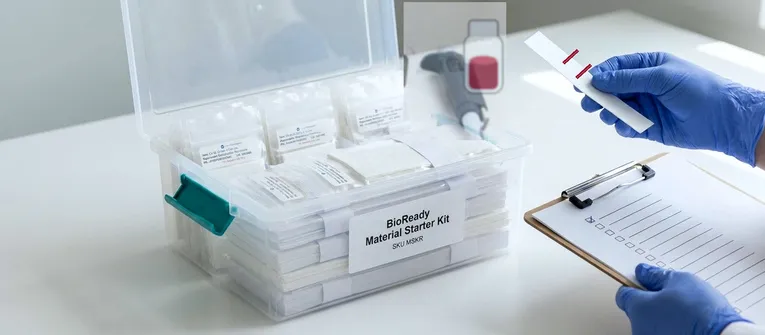

For each strip configuration, document.

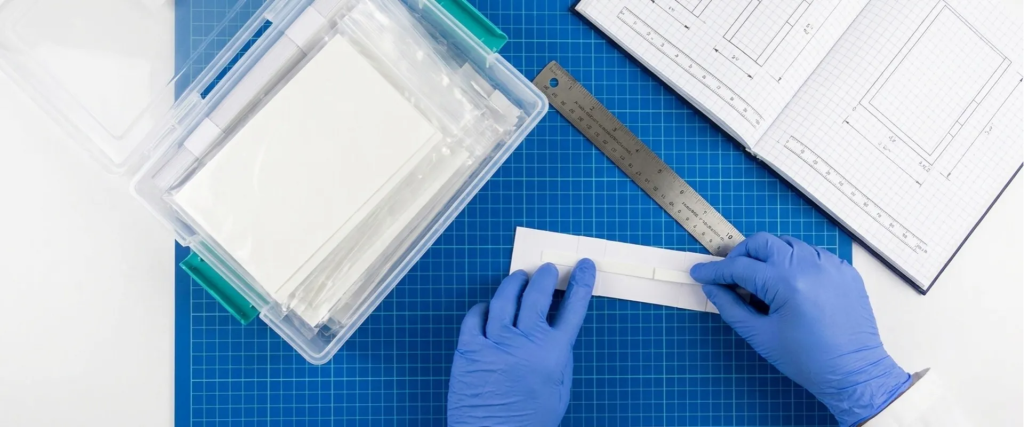

After identifying promising individual components, test them together in complete strip assemblies. Interactions between the sample pad, conjugate pad, membrane, and wick pad can change overall performance.

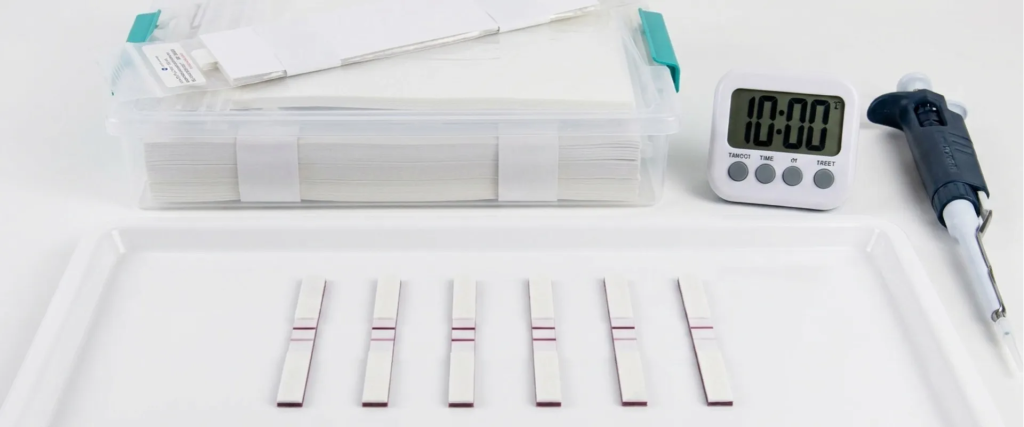

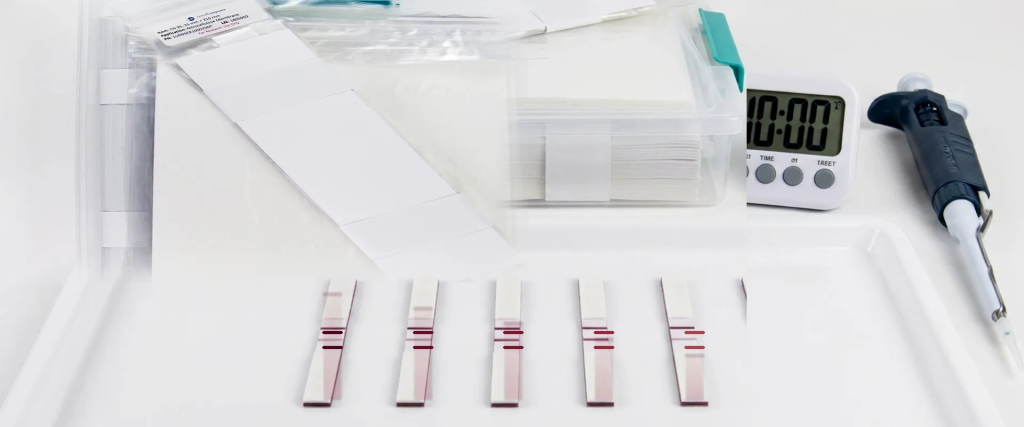

A single successful strip is not enough to establish a suitable design. Repeat the test under consistent conditions and evaluate variation between strips, reagent preparations, and sample concentrations.
Sourcing lateral flow materials individually can slow down an assay-development project. Suppliers may have different minimum order quantities, lead times, specifications, and purchasing requirements.
The BioReady starter kit helps address these issues by providing multiple material types in a single package.
Researchers can test different materials without immediately purchasing production-scale quantities. This is particularly useful during feasibility studies, when the final strip design has not yet been selected.
Using multiple material grades makes it easier to build controlled comparisons. Developers can change one component at a time and observe its effect on flow, signal strength, background, and repeatability.
Receiving commonly used material categories in one kit reduces the need to contact several suppliers during early-stage research.
Once a suitable configuration has been identified, the selected materials can be sourced in the quantities required for continued development.
Material screening can reveal issues such as.
Finding these problems during initial testing can reduce unnecessary reagent use and repeated prototype builds.
The kit is suitable for
It is most useful during feasibility testing and material optimization. Laboratories that have already validated their strip construction may prefer to purchase the selected components directly in larger quantities.
The BioReady Material Starter Kit is intended for research and assay-development work. It is not a finished diagnostic product, and it should not be presented or used as a clinical test without the required development, validation, quality controls, and regulatory authorization.
The manufacturer states that the product is for research use only and not for use in diagnostic procedures.
The BioReady Material Starter Kit provides a practical way to compare essential lateral flow strip materials during early assay development.

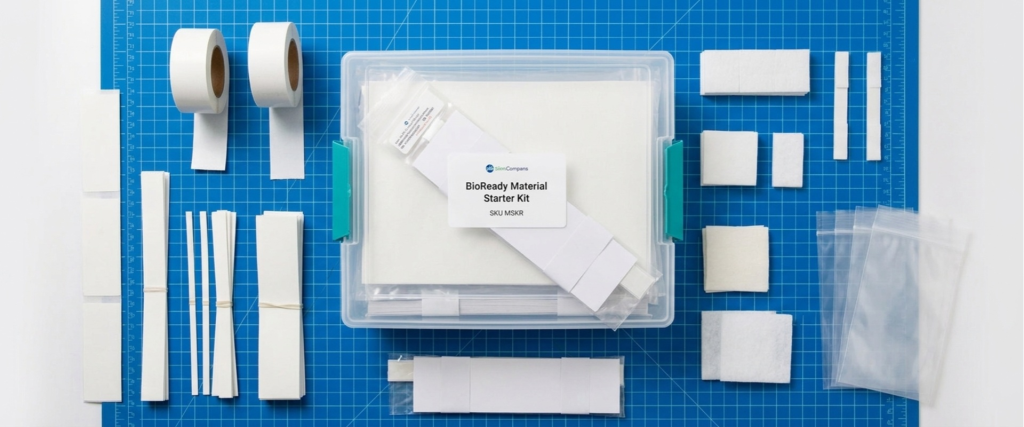

By combining different grades of nitrocellulose membranes, sample pads, conjugate pads, wick pads, backing cards, and packaging materials, it reduces the need to source each component separately.
The kit is most valuable when used in a controlled screening process.
Testing one variable at a time, recording measurable results, and confirming performance across replicate strips can help developers select a reliable material combination before purchasing larger quantities.
For laboratories building or optimizing a lateral flow assay, the BioReady starter kit can shorten the material-selection process while reducing unnecessary purchasing and development delays.
It is used to screen and compare membranes, sample pads, conjugate pads, wick pads, and other materials during lateral flow assay development.
No. It supplies key strip-construction materials, but assay-specific reagents, detection labels, buffers, equipment, and biological samples may need to be purchased separately.
Yes. The manufacturer lists sample pads, including blood-separation pads, among the supplied material categories.
No. It is intended for research use only and is not for use in diagnostic procedures.
