The Ultimate Guide to Using Yamaha CL 12mm Pneumatic Feeders

Yamaha CL 12mm pneumatic feeders are a reliable choice for SMT lines that handle medium-sized components, especially LEDs and larger SMDs.

They deliver consistent tape advancement through clean, dry compressed air and integrate well with Yamaha CL-series interfaces and compatible pick-and-place platforms.

This guide covers everything you need to know about the Yamaha CL 12mm pneumatic feeder (part number KW1-M2200-300), including specifications, setup, best practices, troubleshooting, and maintenance.

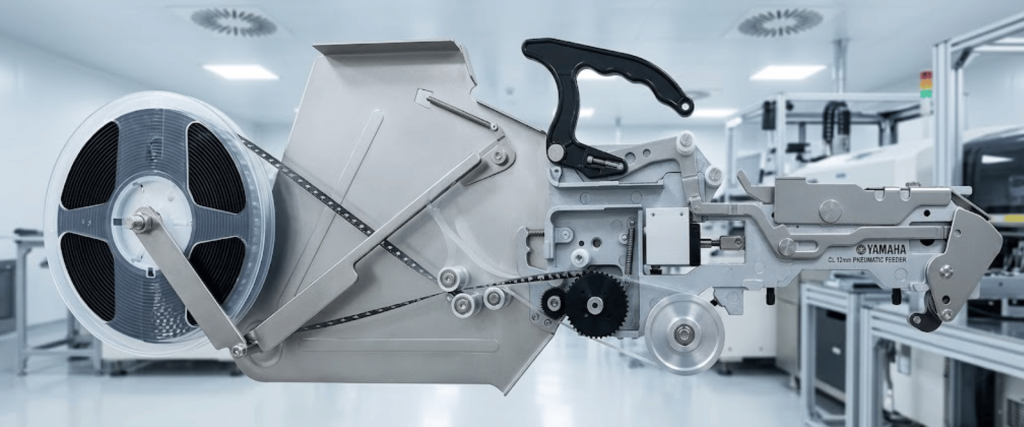

What are Yamaha CL 12mm Pneumatic Feeders?

The Yamaha CL series uses pneumatic drive technology for tape feeding. The 12mm model advances component tape in precise increments while peeling the cover tape. It supports multiple pitch settings, making it suitable for both high-volume production and high-mix environments.

These feeders work with 12mm-wide embossed or paper tapes. Common components include various LED packages (5050, 5730, 5630, 4014) and other SMDs that fit 12mm tape. The design emphasizes durability for continuous operation and quick changeovers between jobs.

Key Specifications

Here are the main technical details for the Yamaha CL 12mm pneumatic feeder.

Specification	Details
Part Number	KW1-M2200-300
Tape Width	12 mm
Feeding Pitch	4 mm, 8 mm, or 12 mm (adjustable)
Air Pressure Required	0.45 – 0.5 MPa (clean, dry compressed air)
Placement Accuracy	±0.015 mm to ±0.025 mm
Typical Components	5050, 5730, 5630, 4014 LEDs and similar SMDs
Detection System	Integrated vacuum and visual sensors
Changeover	Tool-free, rapid feeder exchange
Duty Cycle	Designed for 24/7 production use

How to Set Up and Use Yamaha CL 12mm Feeders

Proper setup directly affects placement accuracy and uptime.

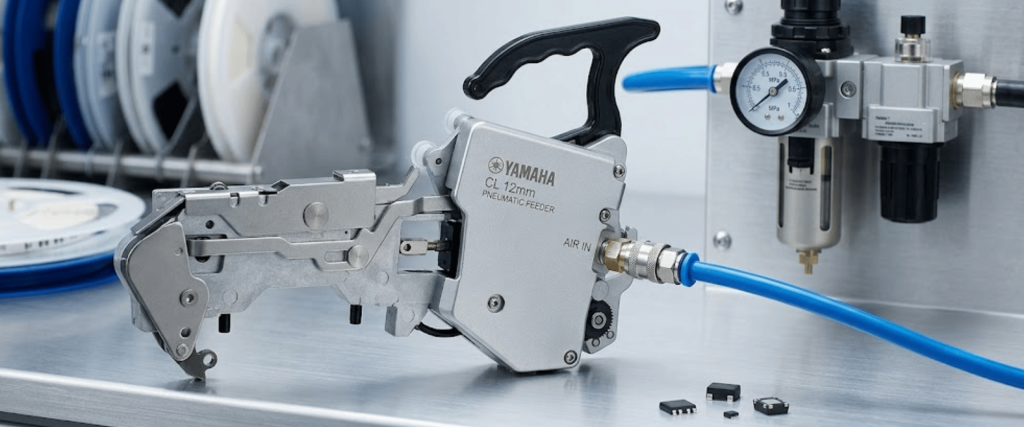

Prepare the Air Supply

Connect the feeder to a clean, dry compressed air source regulated to 0.45–0.5 MPa. Install an air filter and dryer upstream to prevent moisture or particles from entering the pneumatic system. Inconsistent air quality is one of the leading causes of feeding problems.

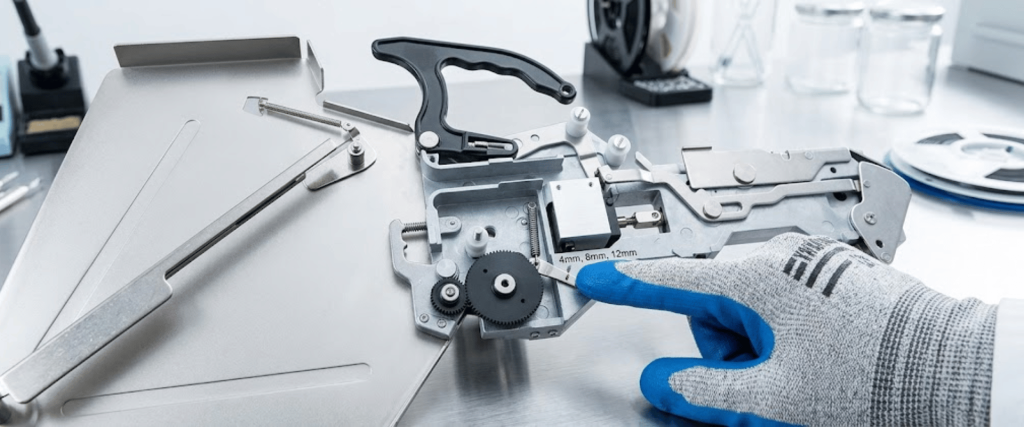

Adjust the Feeding Pitch

Set the pitch selector to match your component tape (4 mm, 8 mm, or 12 mm). Incorrect pitch settings cause missed picks or component damage. Always double-check this adjustment before loading tape.

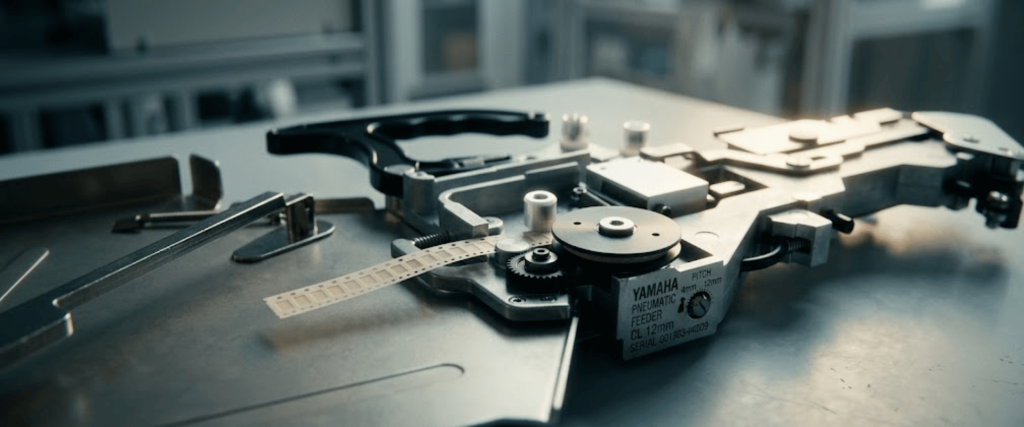

Load the Component Tape

Place the reel on the feeder reel holder.
Thread the tape through the guide path.
Peel back a short section of cover tape and secure it to the take-up spool.
Ensure components sit correctly in the pockets and the tape advances smoothly by hand.

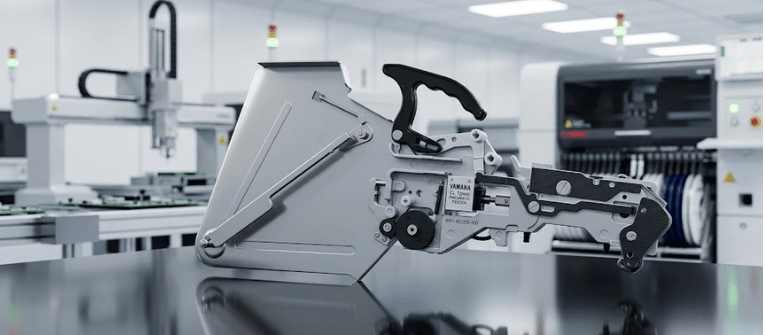

Mount the Feeder on the Machine

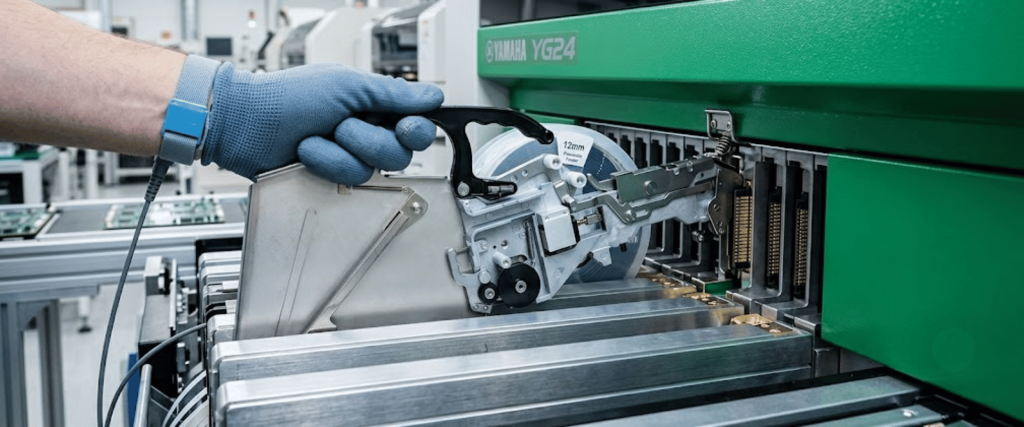

Slide the feeder into the feeder bank until it locks in place. Connect any required signal cables if your machine uses them. Most CL-compatible machines recognize the feeder automatically.

Test and Calibrate

Run a dry cycle or place a small number of components. Check for consistent advancement and accurate pickup. Use the machine’s feeder calibration or vision teach function if needed for best results.

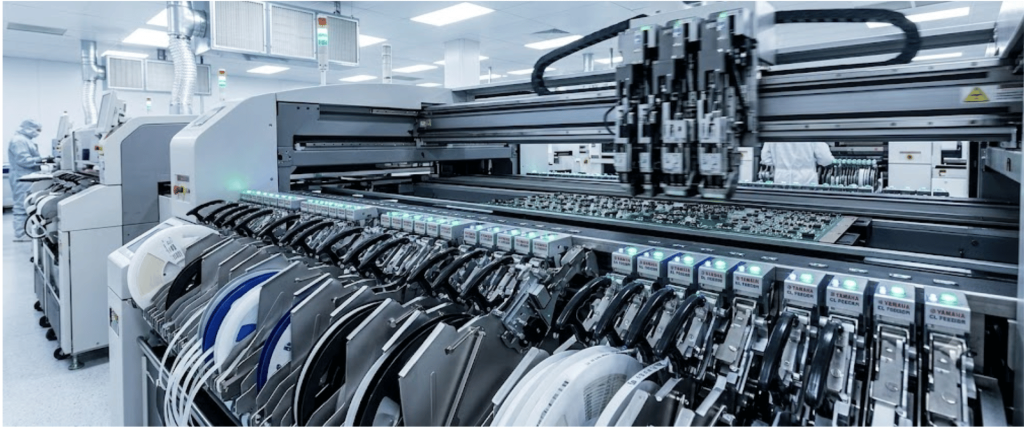

Compatible Machines and Applications

The CL 12mm feeder uses the standard Yamaha CL interface. It works directly with Yamaha YV and YG series machines and many compatible SMT platforms that accept CL feeders.

Common applications include

LED lighting and display module assembly
Automotive electronics with medium-sized components
Industrial control boards
Consumer electronics requiring 12mm tape components
High-mix, low-to-medium volume production where frequent changeovers occur

Many manufacturers use these feeders when they need reliable feeding of LED packages without the complexity of electric feeders.

Troubleshooting Common Problems

Problem	Likely Cause	Recommended Action
Inconsistent tape advance	Low air pressure or moisture in the line	Check the regulator and air dryer; increase pressure slightly within spec
Frequent pick errors	Wrong pitch setting or sensor blockage	Verify pitch; clean vacuum and optical sensors
Tape jamming	Improper loading or damaged tape	Reload tape carefully; inspect for bent pockets or debris
Feeder not recognized	Poor connection or dirty contacts	Clean contacts and reseat feeder firmly
Uneven component pickup	Worn drive components or misalignment	Inspect feeder mechanism; replace if necessary

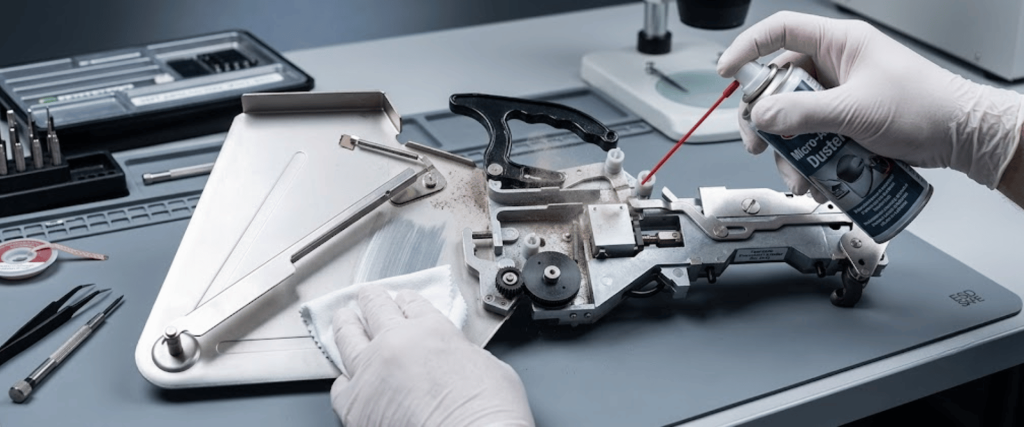

Maintenance Recommendations

Regular maintenance extends feeder life and protects placement accuracy.

Clean the tape path, sensors, and drive area daily or at shift change.
Inspect the cover tape take-up mechanism for smooth operation.
Check air lines and fittings for leaks or contamination weekly.
Lubricate moving parts only according to the manufacturer’s guidelines.
Store unused feeders in a clean, dry area with protective covers.
Schedule periodic professional servicing for high-volume lines.

Keep basic spare parts (belts, sensors, or drive components) on hand if your production volume justifies it.

Conclusion

The Yamaha CL 12mm pneumatic feeder offers a practical balance of precision, durability, and ease of use for SMT lines working with 12mm tape components.

When properly set up with clean air, correct pitch selection, and good loading practices, it delivers consistent performance in both LED-focused and general electronics assembly.

Understanding its specifications, following structured setup steps, and applying regular maintenance will help you achieve higher yields and fewer stoppages.

Whether you run high-mix prototype work or steady production, these feeders remain a dependable choice when matched with compatible Yamaha-style platforms.

Frequently Asked Questions (FAQs)

1. What components work best with the Yamaha CL 12mm feeder?

It performs well with 12mm tape components such as 5050, 5730, 5630, and 4014 LEDs, as well as other medium-sized SMDs that fit the 12mm format.

2. How do I change the feeding pitch on a CL 12mm feeder?

Use the pitch adjustment mechanism on the feeder body to select 4 mm, 8 mm, or 12 mm according to your component tape specification.

3. Can I use Yamaha CL 12mm feeders on non-Yamaha machines?

They work on any pick-and-place platform that supports the Yamaha CL feeder interface. Confirm compatibility with your specific machine model before purchasing.

4. What air quality is required?

You need clean, dry compressed air regulated between 0.45 and 0.5 MPa. Moisture or particles in the air line are a common cause of feeding issues.
