How to Validate Remote Particle Sensors for Daily GMP Monitoring

Remote particle sensors play a critical role in continuous environmental monitoring inside pharmaceutical cleanrooms.

Under GMP requirements, especially EU GMP Annex 1, these sensors provide real-time data on airborne particles in Grade A and B areas without the need for constant human presence.

However, the data is only reliable if the sensors themselves are properly validated on a daily basis.

This article explains how to validate remote particle sensors effectively for daily GMP monitoring.

Why Daily Validation of Remote Particle Sensors Matters

Remote particle sensors are installed permanently and run continuously. Over time, factors such as tubing blockages, sensor drift, flow rate changes, or filter saturation can affect accuracy.

Daily validation helps confirm that each sensor is functioning correctly before and during production activities. It supports data integrity, reduces false alarms or missed excursions, and demonstrates compliance during audits. Skipping or rushing these checks can lead to unreliable monitoring data and potential regulatory observations.

Understanding the Role of Zero Count Verification

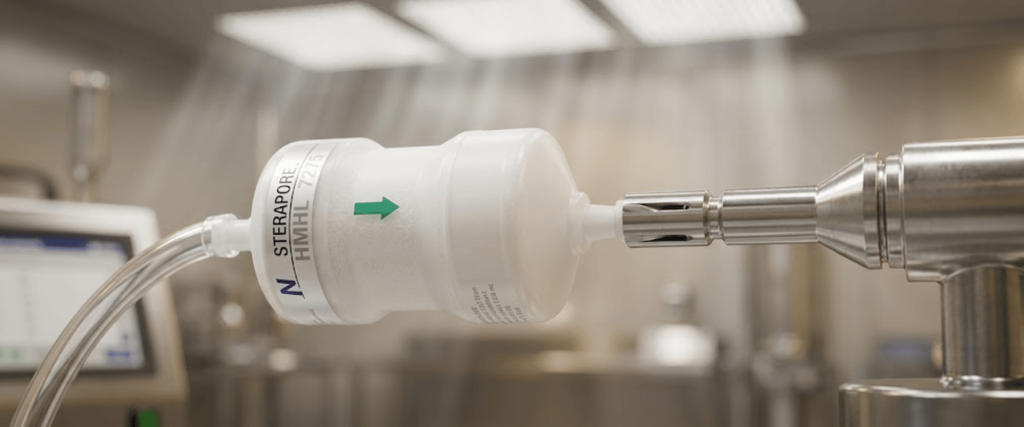

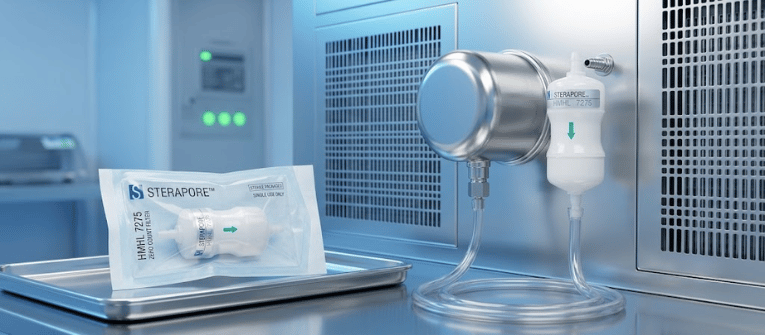

One of the most important daily checks is the zero count verification. This test confirms that the sensor reads zero particles when sampling clean, filtered air. A certified zero filter (also called a zero-count filter) is attached to the sensor inlet or isokinetic probe.

The sensor should show no particles above the minimum detectable size (usually 0.5 µm and 5.0 µm channels) during the test. Any reading above zero indicates a problem with the sensor, tubing, or the filter itself. Using a high-quality spare zero filter regularly is essential because degraded or contaminated filters can give false results and compromise the entire validation process.

Step-by-Step Process to Validate Remote Particle Sensors Daily

Follow a consistent routine every day before production starts. Here is a practical approach used in many GMP facilities.

1) Visual Inspection

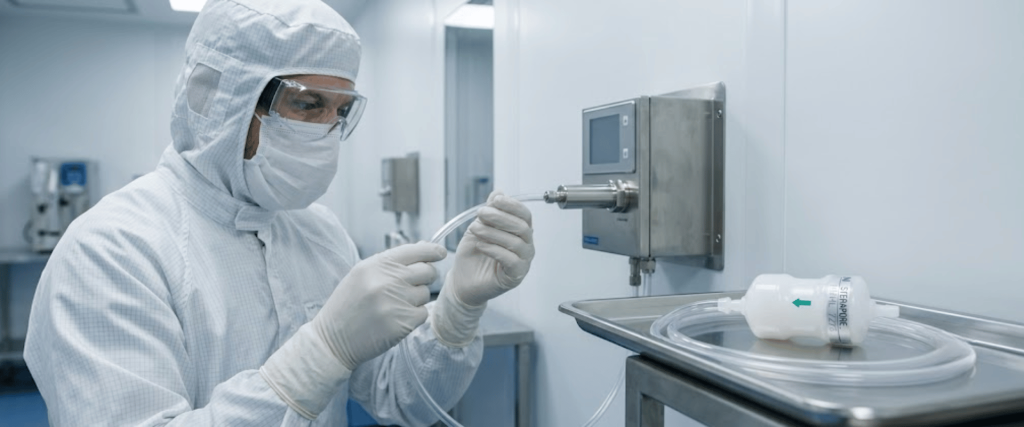

Check the sensor unit, tubing, and isokinetic probe for physical damage, loose connections, or visible contamination. Replace any damaged tubing immediately.

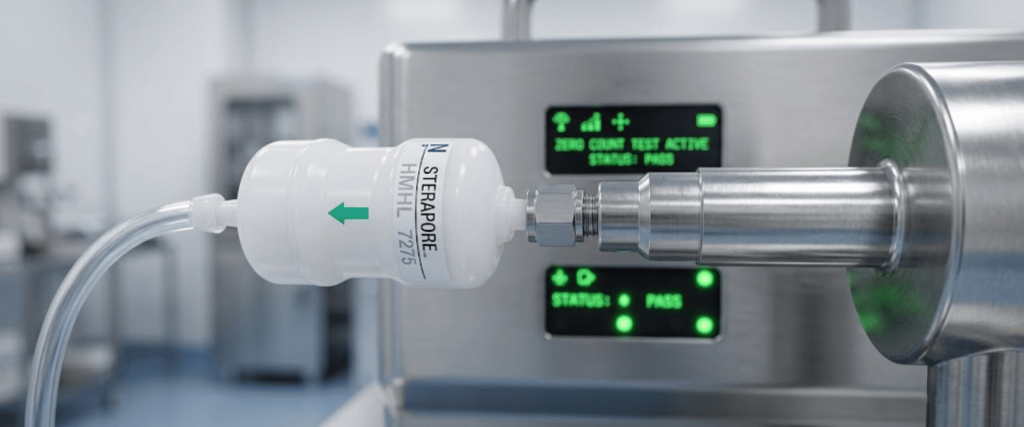

2) Zero Count Verification

Connect a certified zero filter to the sampling point. Run the sensor for the manufacturer-recommended duration (often 1–5 minutes). Record the particle counts in all channels, acceptable result: zero or near-zero counts.

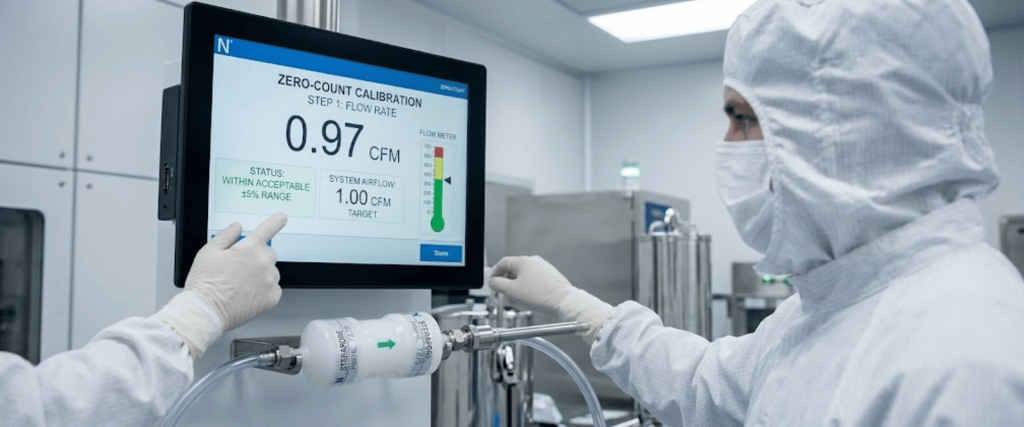

3) Flow Rate Verification

Confirm that the actual sample flow rate matches the calibrated or set value. Many remote sensors have built-in flow monitoring. Deviations beyond ±5% usually require investigation or recalibration.

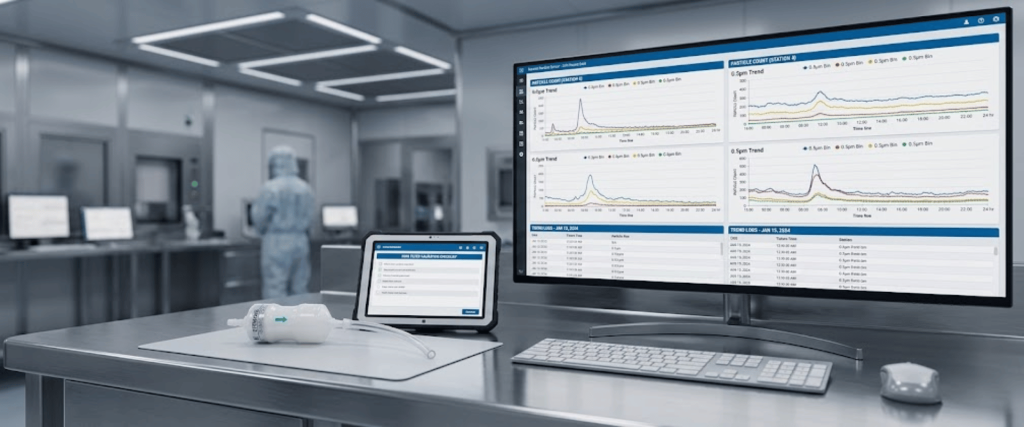

4) Review Historical Data and Alarms

Check the previous 24 hours of data for unusual trends or unexplained alarms. Investigate any excursions that occurred without a clear root cause.

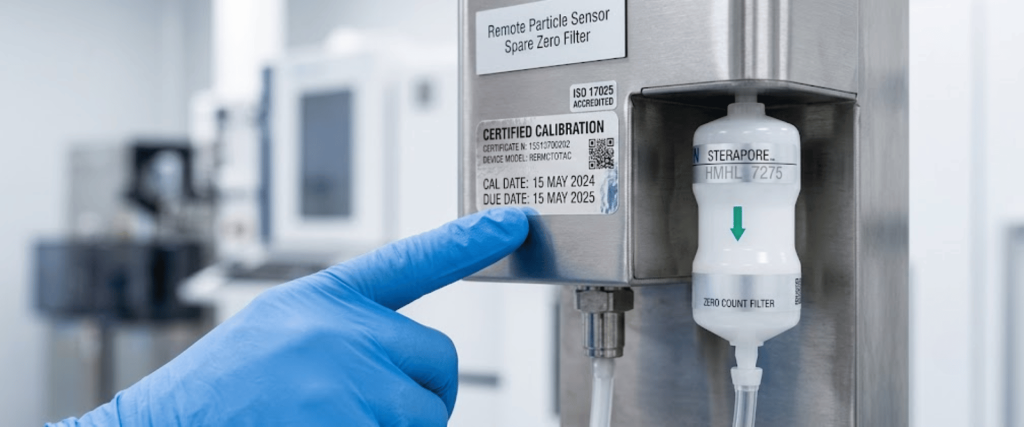

5) Check Calibration Status

Verify that the sensor is within its valid calibration period. Most remote sensors require annual calibration, though some facilities perform interim checks more frequently.

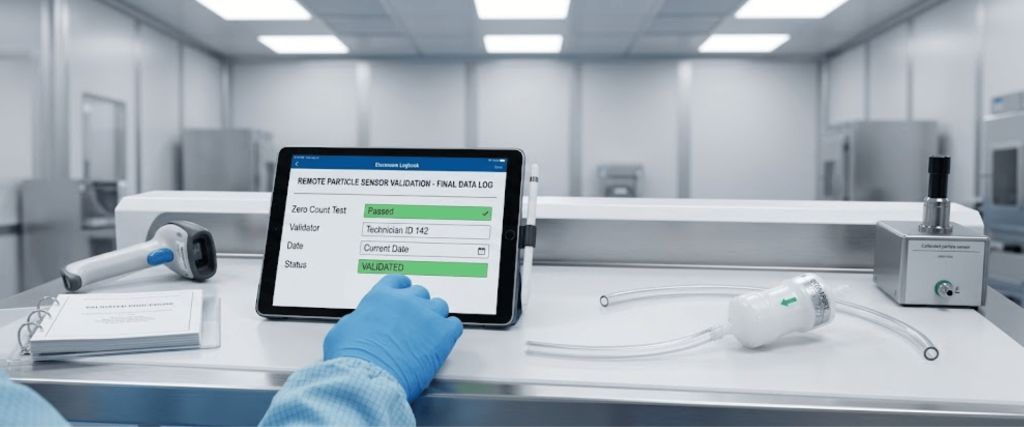

6) Document Everything

Record all results in the environmental monitoring log or electronic system with date, time, operator name, and any observations. This creates an audit-ready trail.

Daily Remote Particle Sensor Validation Checklist

Step	Check Item	Acceptance Criteria	Frequency	Record Required
1	Visual inspection of sensor, probe & tubing	No damage, contamination, or loose connections	Daily	Yes
2	Zero count verification	Zero particles in relevant channels	Daily	Yes
3	Sample flow rate	Within ±5% of the set value	Daily	Yes
4	Review of previous 24h data & alarms	No unexplained excursions	Daily	Yes
5	Calibration status	Within valid period	Daily	Yes
6	Tubing integrity	No kinks, blockages, or leaks	Daily	Yes

Common Issues Found During Daily Validation

Several problems appear frequently during routine checks.

False zero count failures: Often caused by a saturated or damaged zero filter rather than the sensor itself. Always use fresh, certified spare zero filters.
Flow rate deviations: Usually due to clogged tubing, pinched lines, or failing internal pumps.
Drifting readings: Can result from sensor contamination or approaching the end of calibration validity.
Communication failures: Network or power issues that prevent data from reaching the monitoring system.

Conclusion

Validating remote particle sensors every day is a fundamental part of maintaining GMP compliance in pharmaceutical cleanrooms.

A structured approach that includes zero count verification, flow rate checks, and proper documentation helps ensure that monitoring data remains accurate and trustworthy.

Facilities that treat these daily checks as a routine discipline rather than a checkbox activity are better positioned to detect issues early, protect product quality, and meet regulatory expectations consistently.

Using reliable spare zero filters and following clear procedures makes the validation process faster and more dependable over time.

Frequently Asked Questions (FAQs)

1. How often should remote particle sensors be validated in GMP areas?

Daily checks are standard practice for continuous monitoring systems in Grade A and B zones. Some facilities also perform more detailed weekly or monthly verifications.

2. What happens if a zero-count test fails?

Stop using the sensor for monitoring until the issue is resolved. Investigate whether the problem lies with the zero filter, tubing, or the sensor itself. Document the failure and corrective action.

3. Can portable particle counters replace remote sensors for daily monitoring?

In most Grade A areas, remote sensors are preferred because they eliminate the risk of contamination from human intervention during continuous monitoring.

4. How long should a zero-count verification run?

Follow the sensor manufacturer’s recommendation, typically between 1 and 5 minutes, depending on the model and cleanroom grade.

5. Do remote particle sensors need annual calibration even with daily checks?

Yes. Daily validation confirms operational status but does not replace periodic full calibration by an accredited service provider.
