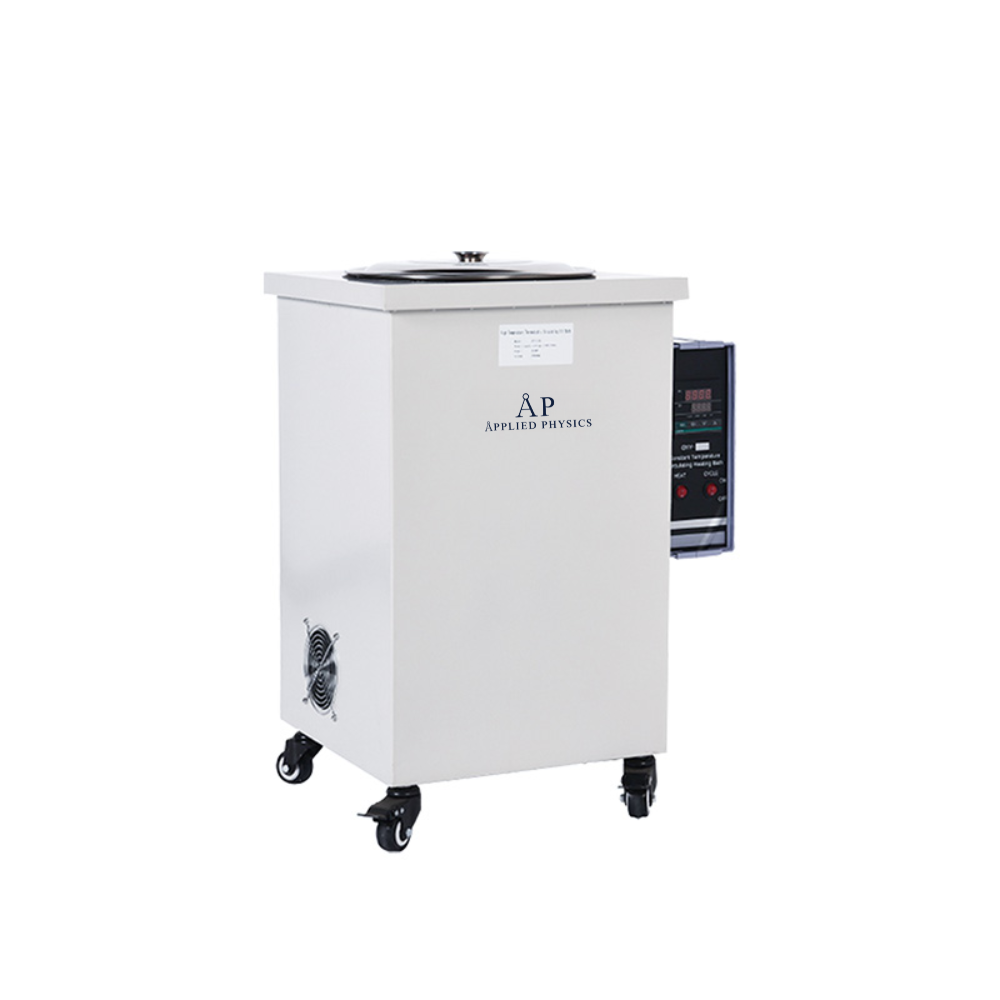

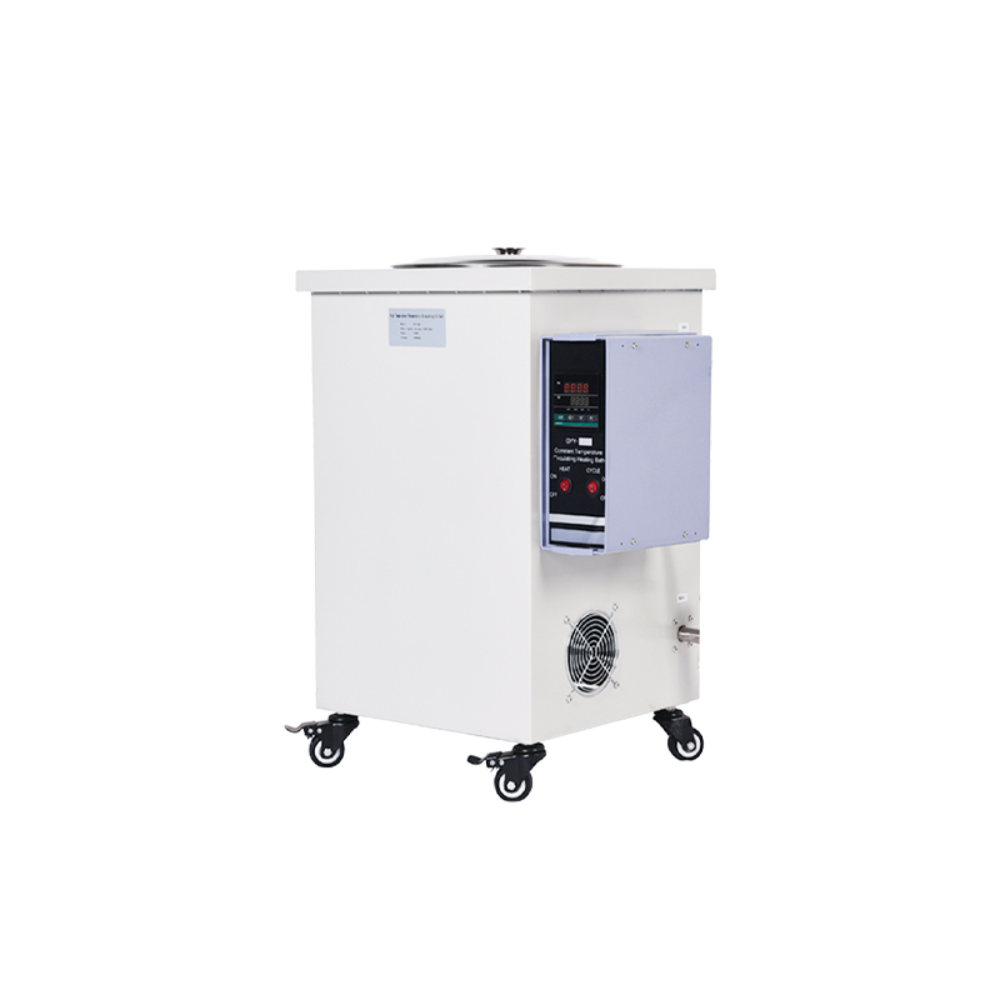

High Temperature Thermostatic Circulating Oil/Water Bath

Description

High Temperature Thermostatic Circulating Oil/Water Bath

Features:

1. The structure is compact and reasonable, the stainless steel inner tank and the outer shell are made of high-quality steel plate electrostatic spraying.

2. Easy to use and simple to operate.

3. Accurate temperature control, controllable output flow, energy saving.

4. The outer circulation interface adopts high-quality copper material, which is anti-corrosion and corrosion-resistant and durable.

Technical Parameters:

Model

OB-5L

OB-10L

OB-20L

OB-30L

OB-50L

OB-100L

Liquid Storage Volume(L)

5

10

20

30

50

100

No-load Max Temperature(℃)

200

Heating Power(kw)

2

2.8

3.5

4

5

9

Pressure

1.45MPa

Cycle Way

Sealed magnetic pump cycles

Flow Rate(L/min)

15~20

20~25

Temperature Control Range(℃)

Water Bath: RT-100; Oil Bath: RT-200

Temperature Error

≤2.50%

HTF Viscosity(c℃st)

Below 500

Optional Parts

Explosion-proof motor and electricals

No. of Heating Tube(pc)

1

2

3

Power Supply

AC220V, 50/60Hz(Standard)(Plug or air switch);

AC110V, 50/60Hz(Optional);

Air switch

AC220V, 50/60Hz(Standard);

AC110V, 50/60Hz(Optional);

Air switch

AC380V, 50/60Hz(Standard);

AC220V, 50/60Hz(Optional);

Air switch

AC380V, 50/60Hz;

Air switch

Packing Size(mm)

530*460*800

580*480*740

530*440*870

550*680*850

670*570*910

740*640*1040

Gross Weight(kg)

36

38

42

48

52

63
