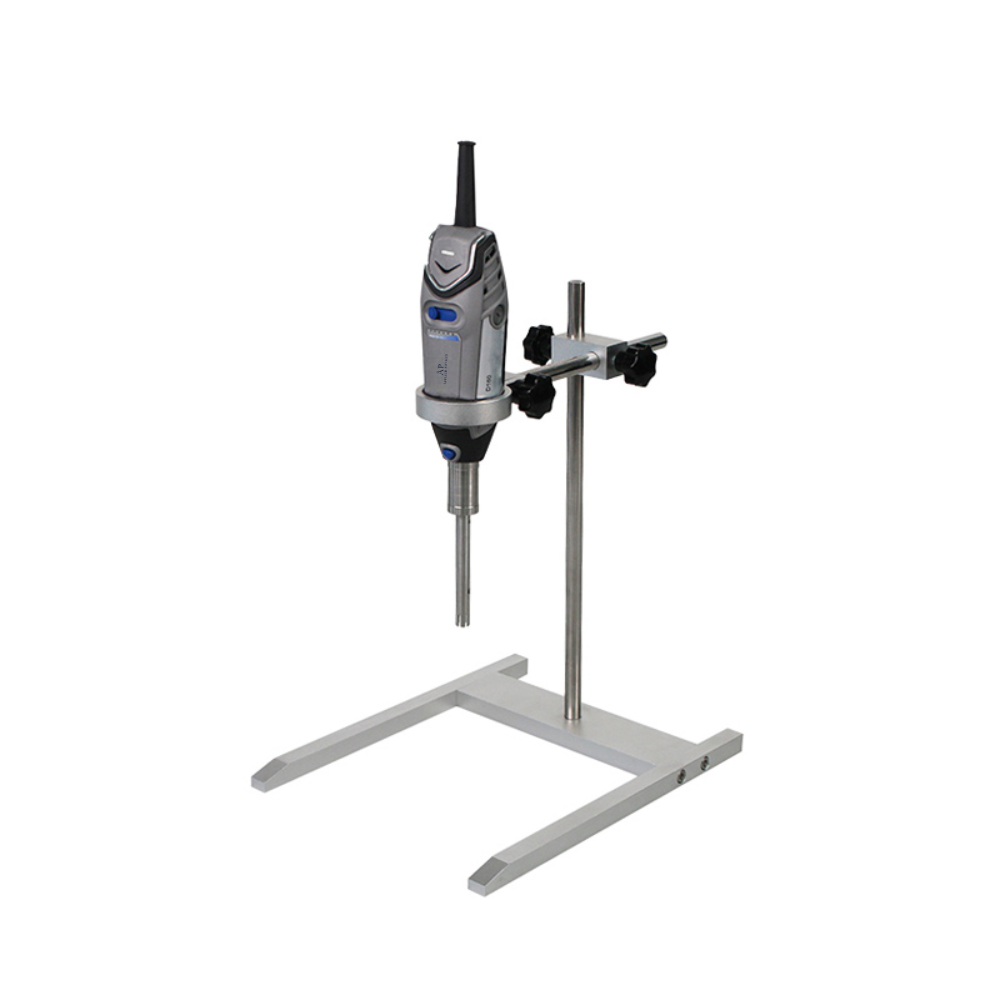

Homogenizer D-160

Description

Homogenizer D-160

Features:

1. Lightweight design, handheld and can be operated with one hand.

2. The application of different dispersing heads is suitable for liquid samples of 0.1~250ml.

3. High-quality 316L stainless steel dispersing head, corrosion-resistant, high-temperature sterilization.

4. The dispersing head is easy to disassemble and clean; high-speed and high-efficiency motor.

5. The speed is adjustable in 10 APM, and the speed range: 8000~32000rpm.

Technical Parameters:

Model

D-160/5

D-160/10

Item No.

8014111000

8014121000

Recommended Configuration

D160 drive, H370 stand, DS-160/5 shaft, volumes from 0.1~50ml

D160 drive, H370 stand, DS-160/10 shaft, volumes from 1~250ml

Speed Range

8000~32000rpm

Max. Circum. Speed

6.3~14m/s

Speed Control

10 stage

Working Volume(H2O)

0.1~50ml(Dispersing shaft DS-160/5)

1~250ml(Dispersing shaft DS-160/10)

Max. Viscosity

5000mPa·s

Material of Dispersing Shaft

SS316&PTFE seal ring

Noise

≤72dB

Ambient Temp.

0~40°C

Relative Humidity

85%RH

Protection Type

IP20

Consumption

160W

Motor Type

AC carbon brush motor

Power Supply

AC110/220V±10%, 50/60Hz(Customizable)

Standard Accessory

Base stand+DS-160/5 dispersing shaft

Base stand+DS-160/10 dispersing shaft

External Size(W*D*H)

45*55*190mm

Package Size(W*D*H)

470*240*250mm

Gross Weight

4kg

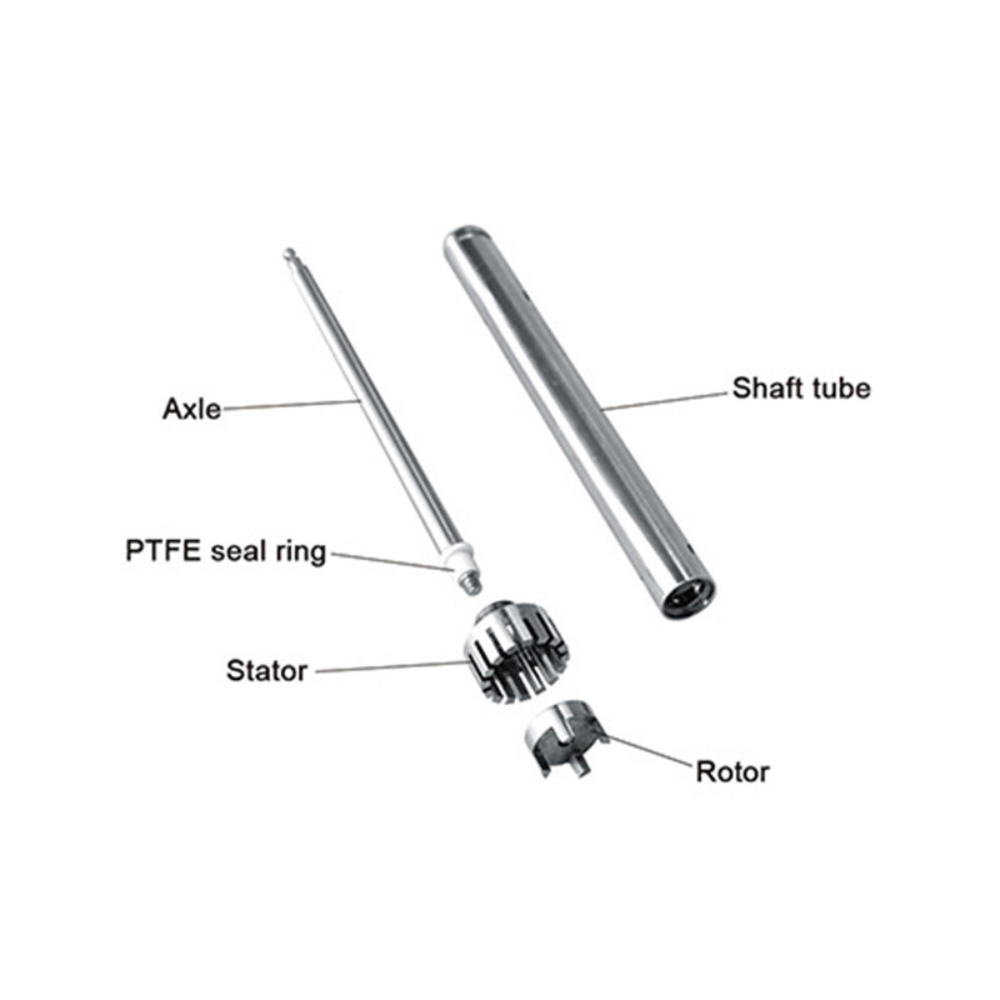

Accessories Description:

Cat. No.

Combination Stator+Rotor

Model

Working Volume(ml)

Diameter of Stator

Diameter of Rotor

Min./Max. Immersion Depth

Application

18900543

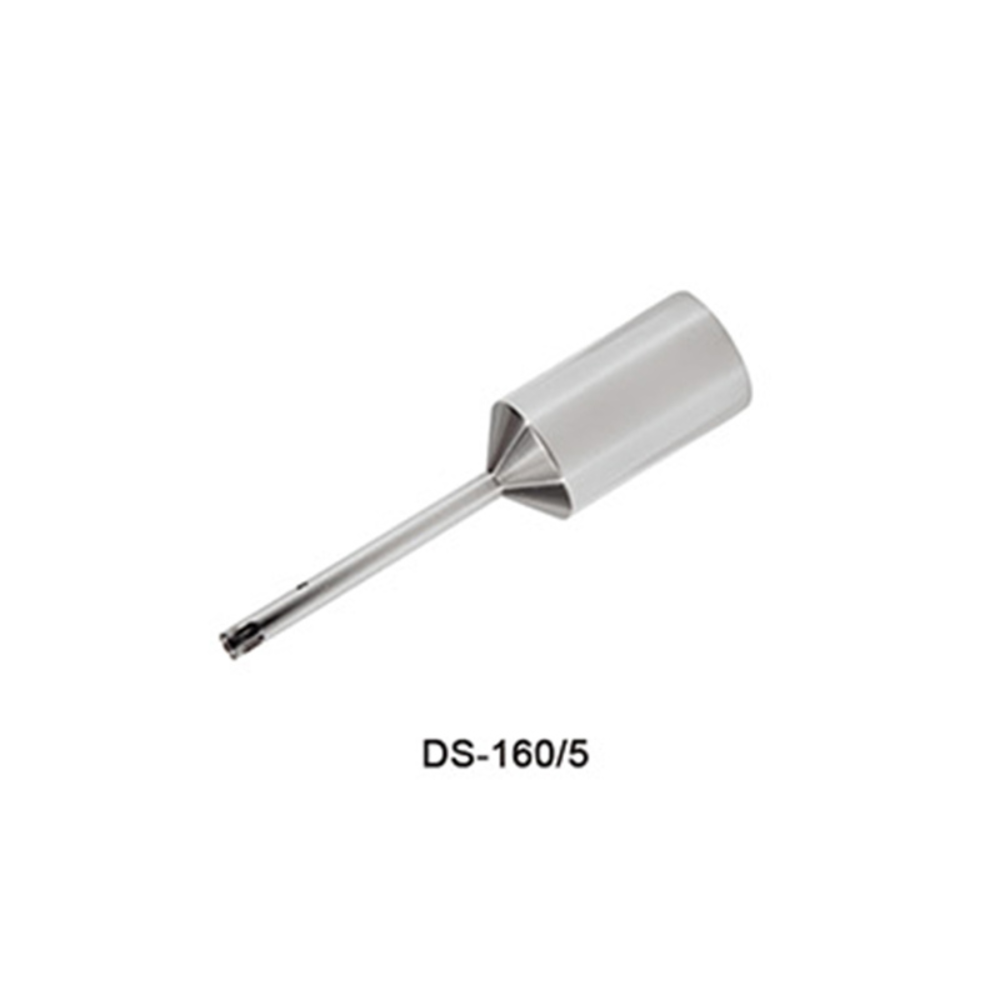

DS-160/5

D-160/5

0.1~50

5mm

3mm

7/50mm

Small amounts of solid-liquid mixtures

18900544

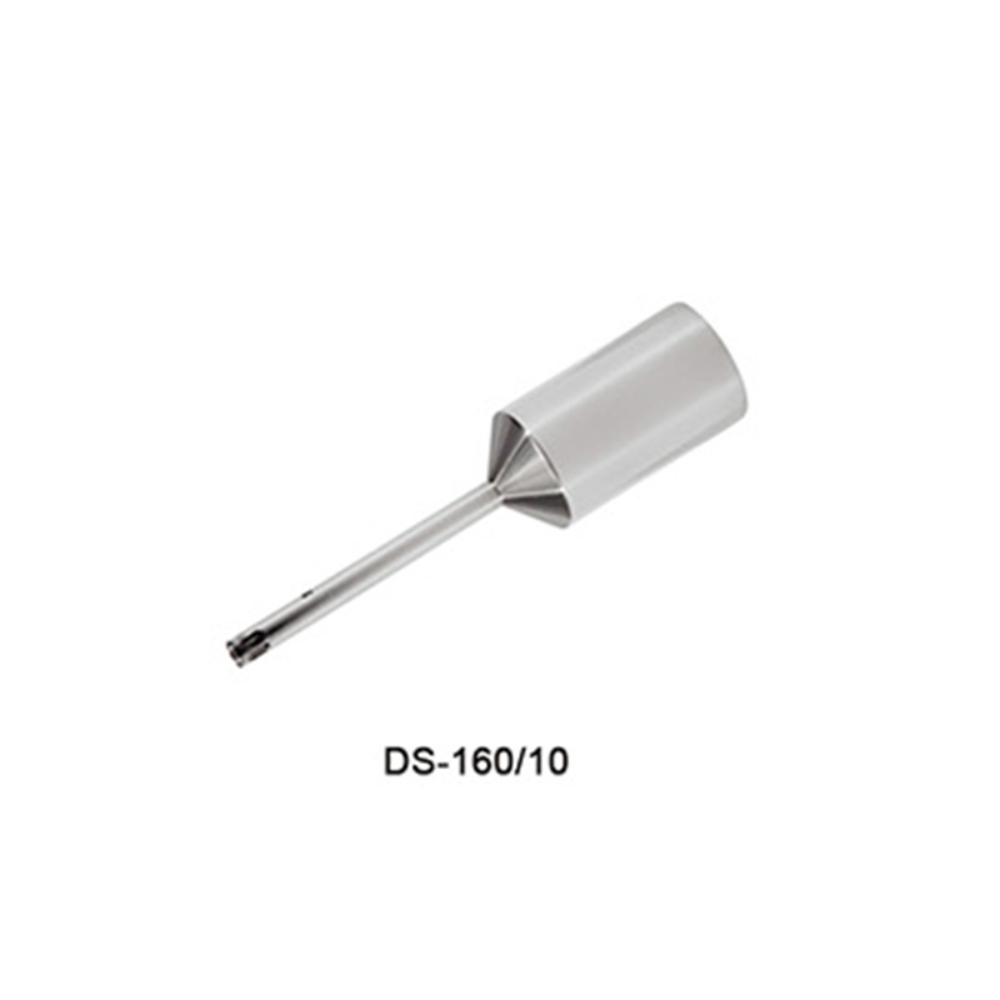

DS-160/10

D-160/10

1~250

10mm

6mm

10/120mm
