Application:
Organic synthetic chemistry, inorganic chemical synthesis, pharmaceutical chemistry, food science, quarantine and epidemic prevention, military chemistry, molecular biology, analytical chemistry, petrochemical industry, materials science, biomedicine, food, solvent extraction and solvent-free extraction of natural products and minerals, concentration, and drying, as well as other physical processes
$0.00

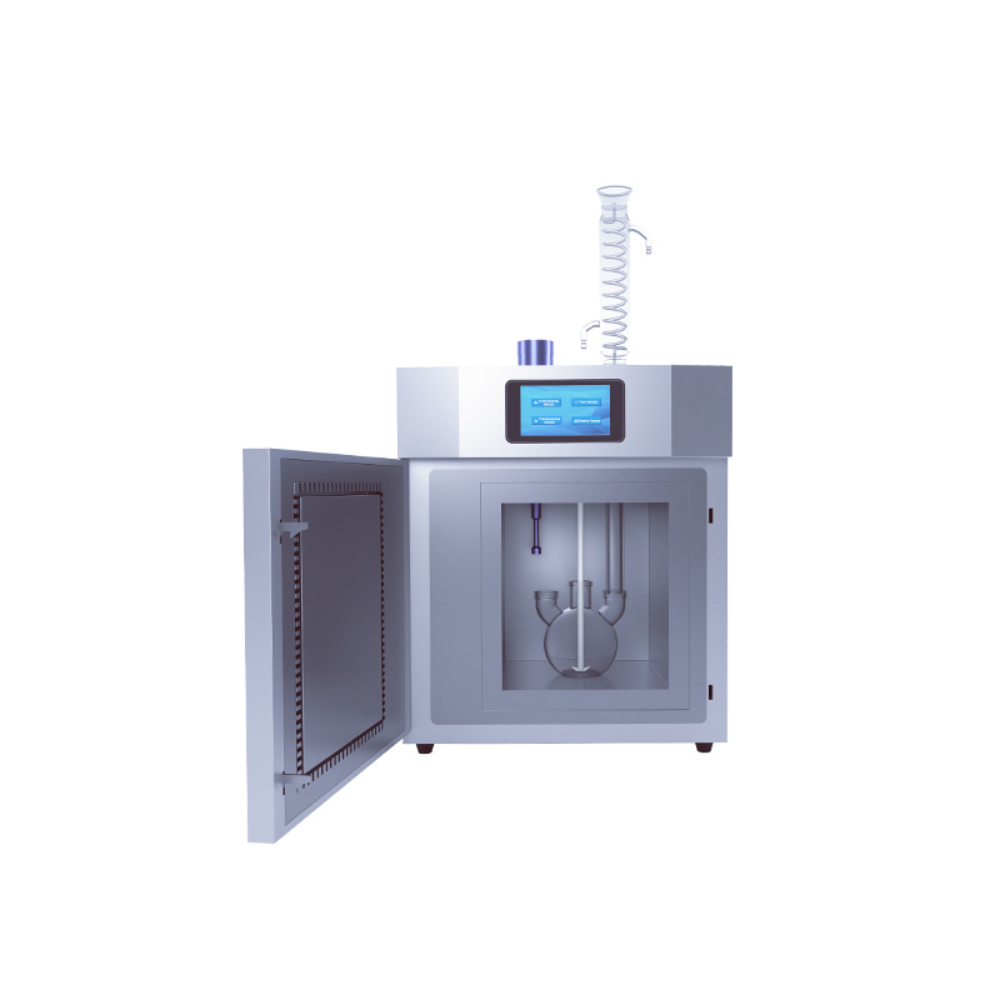

Microwave Ultrasonic Ultraviolet Synthesis and Extraction System
Microwave chemistry is an emerging and cutting-edge interdisciplinary discipline that has found extensive practical applications. The rate of organic reactions under microwave irradiation can be several to several thousand times faster than that of traditional heating methods, and it boasts the merits of convenient operation, high yield, and ease of product purification.
It employs a PLC color touchscreen, offering straightforward and convenient operation. Information such as reaction temperature, microwave power, and reaction time can be displayed in real time. The chemical reaction process is visually transparent, and reaction parameters can be adjusted at any moment.
Features:
1. High-precision Temperature Measurement Approach
Either the insertion-type contact thermocouple for temperature measurement or the advanced infrared temperature sensor for infrared temperature sensing is utilized. The control accuracy stands at ±1℃, and the display accuracy is ±1℃. It can monitor and control the reaction temperature in real time and communicate with the PLC to precisely control the reaction process as per the preset procedures.
2. Stirring Mode
Magnetic stirring mode; the stirring speed is independently and continuously adjustable.
3. Multiple Interlock Protections
Automatic power-off protection is initiated when there is abnormal temperature, sensor failure, or the furnace door is opened. The industrial-grade robust furnace cavity is coated with multiple layers of chemical-resistant coatings. It is not only strong and impact-resistant but also takes into account the efficient professional microwave-focused heating and has an exceptionally long service life. The pull-down buffered and safe explosion-proof furnace door possesses a locking self-check function and interlock protection to prevent microwave leakage and can also withstand unexpected explosions. The microwave leakage of the entire machine is significantly lower than the national standard.
4. Diversified Configurable Reaction Conditions
Reaction vessels can be configured based on experimental requirements, with a volume ranging from 20 to 1000 ml. Beakers, flasks, and three-necked flasks are all applicable. Gas inlets can be created and devices such as condensation reflux, dropping, fluid replenishment, and water separation can be installed to fulfill the requirements of chemical reactions under complex conditions.
Technical Parameters:
Model
BMS-U16E
Microwave System
Microwave Frequency: 2450 MHz(Industrial-Grade Microwave)
Microwave Power: 1000W(High-Frequency Closed-Loop Feedback PID)
Microwave Ratio: Non-pulsed microwave linear output, with a control accuracy of ±1 W
Adjustment Mode: Non-pulsed and continuously adjustable
Microwave Simulation: 3D Stereoscopic Simulation of the Microwave Field
Microwave Self-Tuning: Capable of automatically adjusting the process proportion
Patented direct-coupled microwave excitation and waveguide design for enhancing microwave efficiency
Microwave Impedance Adaptive Matching to Improve Microwave Transmission Efficiency
Microwave Oven Cavity
316L industrial-grade stainless steel, integrally formed, without any welding marks, and with 6 layers of PFA anti-corrosion coating
Temperature
Control System
Temperature Range: 0~300℃
Temperature Control Accuracy: ±1℃
Temperature Measurement Method: Contact temperature measurement with PT100 thermocouple
Ultrasonic System
Ultrasonic Power/Frequency: 50W/40KHz
Ultrasonic Frequency: 25KHz. The ultrasonic probe can either be inserted into or remain outside the sample, and exert its effect on the sample through the cavitation effect or air transmission.
Ultraviolet Module
Can be matched with LED ultraviolet light source.
Power: 0~100W, Adjustable
Main Wavelength: 365nm
Stirring System
Stirring Mode: Magnetic Stirring
Stirring Speed: 0~5V, infinitely and continuously adjustable
Air-Cooling System
Once the synthesis is completed, it automatically initiates turbine air-cooling. In conjunction with a high-power centrifugal fan, a vigorous wind convection is established within the cavity, enabling rapid cooling.
Original Wavefront Distribution System
Ainikesi*1
Matched Molded Feed Waveguide
Ainikesi*1
Precise Temperature Processing System
Ainikesi*1
Coupled Inner Chamber
Austenitic Inner Chamber
Control System
Ainikesi-pro System
Display Method: Touch screen and embedded human-machine interaction system
Functional Configuration
Coud-based automatic storage, real-time displays of power, current and temperature with control, real-time curves, USB cloud data export. Equipped with a 485 converter, enables CP connection. Offers 60 sets of process storage, each with 5 sections. Includes old-new process replacement mode and multiple working modes like manual, automatic and constant temperature. Automatically stops in case of instrument failure.
Protection Functions
Over-temperature alarm, over-current alarm, component self-check, automatic power-off protection in case of abnormal temperature or abnormal sensor.
Standard Accessories
1000ml high-borosilicate glass three-neck flask, Flask base, Condensation reflux apparatus
Power Supply
AC220V, 50/60Hz(Standard);110V, 50/60Hz(Optional)
Consumption
2100W
Package Size(W*D*H)
700*500*700mm
Gross Weight
50kg
| Model | BMS-U16E |
|---|
