If your production demands a high-speed, high-precision, and stable pick and place machine, the LS08 from Applied Physics Semiconductor is your ideal solution. Designed for cost-effectiveness and intelligent automation, the LS08 is engineered to optimize your SMT production line—whether for LED, DOB, or general PCB assembly.

Key Advantages:

  • Automatic Nozzle Change (ANC): 20-hole nozzle library enables the system to automatically allocate and change nozzles based on component type, making SMT production smarter and more efficient.
  • Universal High-Precision Mounting Head: One machine meets the mounting needs of a wide range of components with exceptional stability.
  • Cast Iron Base Structure: Ensures smooth, vibration-free operation at high speeds.
  • Dual Servo Motor Drive: Guarantees mounting accuracy and long-term reliability.
  • Advanced Vision System: High-definition IC camera and high-speed fly cameras for precise component recognition and placement verification.



Why Choose Applied Physics Semiconductor?

  • Trusted by Industry Leaders: Serving customers across North America and globally.
  • Comprehensive SMT Solutions: From pick and place machines to solder paste printers and reflow ovens, plus one-stop SMT services.
  • Expert Technical Support: Professional after-sales service and technical guidance.
  • Customizable Production Lines: Tailored solutions for your unique manufacturing needs.
  • Fast Delivery: Most products ship within 15 days of order confirmation.



LS08 Technical Specifications

Parameter Specification
Dimensions 1280mm (L) × 1580mm (W) × 1500mm (H)
Weight 1400 kg
Power Supply AC220V (50Hz, single phase), 3.5kW
Air Supply 0.5 MPa ~ 0.7 MPa

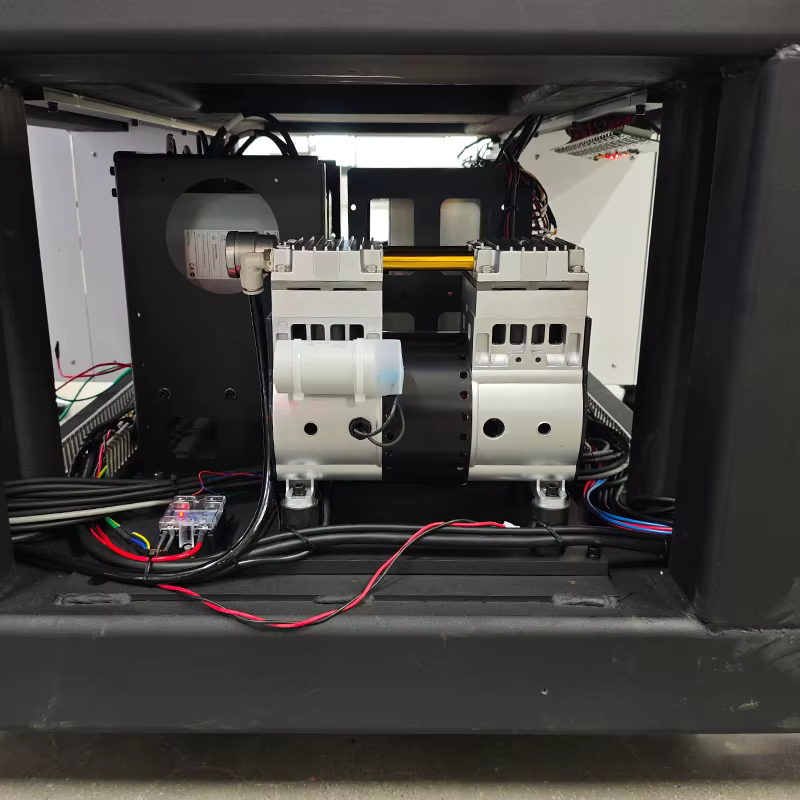

Vacuum Generation Built-in vacuum pump
Mounting Head Quantity 8
Optimal Mounting Speed 35,000 components per hour (CPH)
Mounting Accuracy (XY) ±0.035mm
Component Height ≤20mm
Component Types Supported 01005, 0201, 0402, 0603 up to 5050, SOT, SOP, QFP, QFN, BGA, resistors, capacitors, diodes, transistors, LEDs, ICs, etc.
PCB Thickness 0.6mm ~ 3.5mm
PCB Size (Standard) 450mm (L) × 350mm (W)
PCB Size (Optional) 1200mm (L) × 350mm (W)

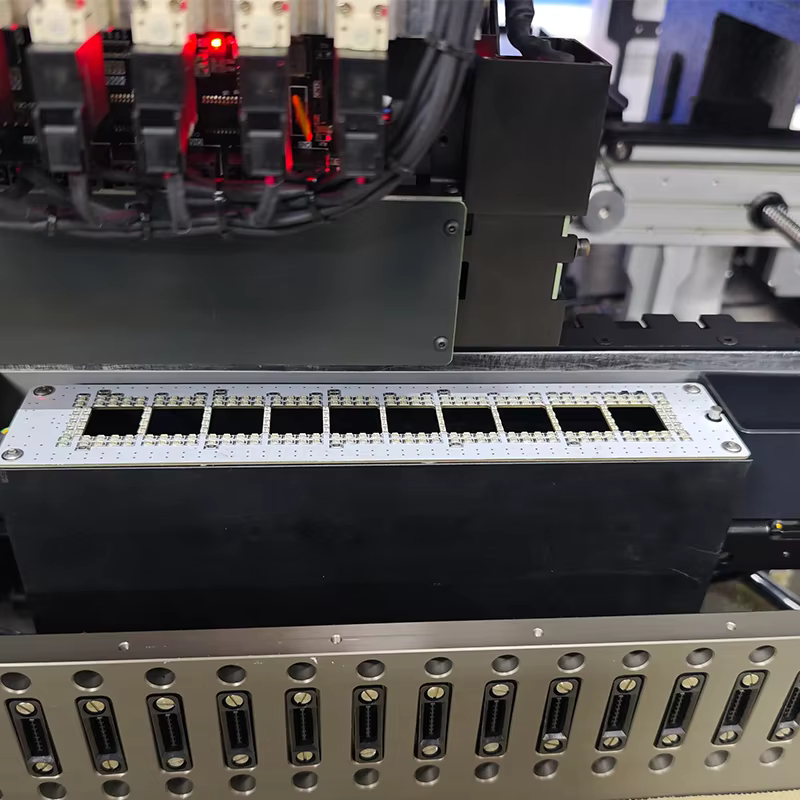

PCB Conveying 3-section rail, automatic conveying, PCB support device
Nozzle Change Automatic, 20-hole nozzle library
Control System Built-in industrial computer (Windows 7), monitor, keyboard, mouse

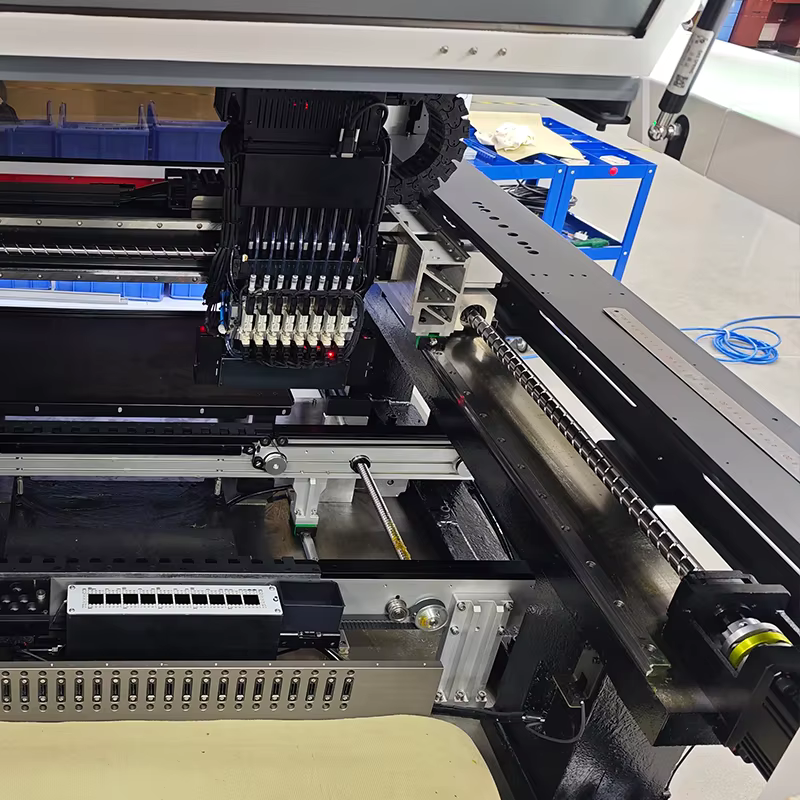

Drive System X & Y axes: servo motors (Y axis dual motors), S-curve acceleration
Transmission System X & Y axes: ground screw and silent linear guides (Y axis dual screws)
Feeding System 25 NXT 8mm standard feeder stacks (supports IC tray and stick feeder)

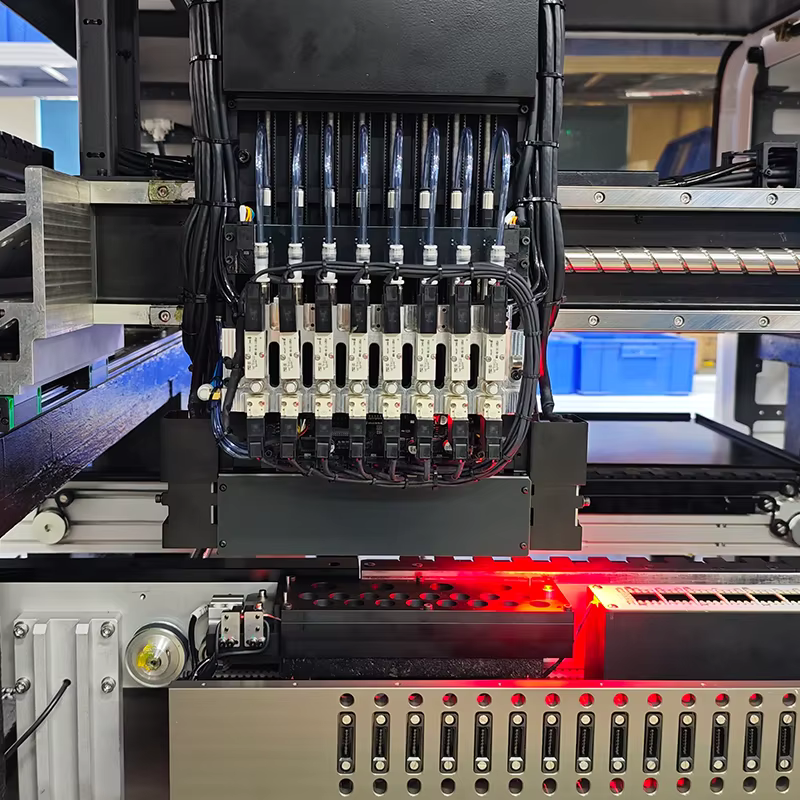

Vision System 8 fly cameras (up to 16mm × 16mm components), 1 IC camera (up to 36mm × 36mm), 2 mark cameras

Export as CSV



Intelligent Automation & Advanced Features

  • Automatic Nozzle Change (ANC): The LS08’s 20-hole nozzle library allows for seamless, automated nozzle changes, boosting efficiency and reducing manual intervention.
  • Universal Mounting Head: Supports a wide range of component sizes (0201–16mm x 16mm and larger), eliminating the need for head replacement.
  • Dual Servo Motor Y-Axis Drive: Ensures high-speed stability and accuracy, minimizing wear and maximizing uptime.
  • Robust Frame Structure: Integrally cast iron base and Y-axis gantry provide superior impact resistance and long-term durability.
  • Advanced Vision System: High-definition IC camera and high-speed fly cameras enable real-time, high-precision component recognition and placement verification.
  • Flexible Feeding Options: Electric feeders with ±0.03mm accuracy, vibration feeders for tubular components, and IC tray support for bulk and tray-fed components.



Complete SMT Line Integration

Applied Physics Semiconductor offers a full suite of SMT production equipment, including:

  • PCB Loaders & Unloaders: Automated board handling for seamless line integration.
  • Solder Paste Printers: High-precision paste application for reliable solder joints.
  • SMT Conveyors: Efficient board transfer between line segments.
  • AOI (Automatic Optical Inspection): High-speed, high-precision inspection for mounting and soldering defects.
  • Reflow Ovens: 8-zone temperature control for optimal soldering profiles.
  • Feeders: Tape, tube, and tray feeders for all packaging types.
