Description
non-woven fabric, composite paper, cleaning appliances, tableware, towels, clothes, shoes, packaging materials and other products.
The use of three-sided high intensity sterilization, the use of ultraviolet and ozone synergistic sterilization, ozone disinfects areas
not exposed to UV rays, kill the surface of the virus or bacteria.

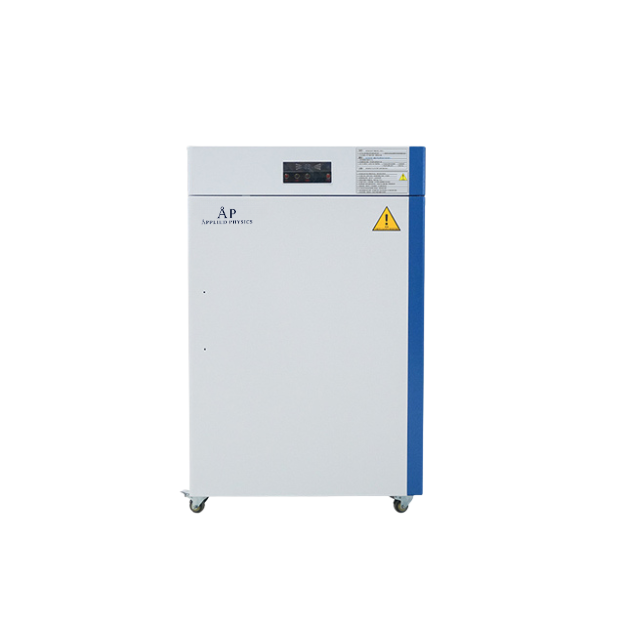

UV Sterilization Cabinet – 200 L (Model: BJPX‑SV200)
Overview
The Applied Physics UV Sterilization Cabinet (200 L) offers reliable, mid-temperature disinfection for laboratory materials and tools that are sensitive to high-heat sterilization. This model is ideal for environments that require consistent, residue-free sterilization without compromising material integrity.
Ideal For:
-
Glassware, ceramics, porcelain
-
Sugar cups, non-woven polypropylene fabrics
-
Composite paper, cleaning tools, packaging
-
Currency, clothing, towels, and shoes
Key Feature
-
Three-sided high-intensity disinfection using dual-mode UV light (253.7 nm and 184.9 nm) combined with ozone generation for thorough sterilization—even in shadowed areas.
Technical Specifications
-
Capacity: 200 L
-
UV Power: 120 W (quartz-glass UV lamps)
-
UV Wavelengths: 253.7 nm and 184.9 nm with ozone mode; 253.7 nm only with UV-only mode
-
Sterilization Modes:
-
UV + ozone (2 UV sides + 1 ozone side)
-
3-sided UV-only mode
-
-
Voltage: 220 V, 50/60 Hz (110 V optional)
-
Shelving: 2 shelves included (adjustable, supports up to 3)
-
Interior Dimensions (W×D×H): 518 × 523 × 778 mm
-
Exterior Dimensions (W×D×H): 750 × 663 × 1200 mm
-
Weight: ~100 kg
Design Highlights
-
User-Friendly Operation – Digital control panel with automated cycle settings
-
Adjustable Shelving – Flexible layout to accommodate a wide variety of tools and materials
-
Ozone Disinfection Capability – Generates approx. 60 mg ozone concentration for coverage of areas UV light cannot reach
-
Automatic Shutoff – Programmable cycle timing with automatic power-off after completion
Benefits for Your Lab
-
Safe for Heat-Sensitive Items – No thermal degradation of delicate instruments
-
Enhanced Disinfection Coverage – Combines the power of UV and ozone for complete microbial inactivation
-
Flexible Modes – Easily switch between UV-only and UV + ozone based on your use case
-
Increased Efficiency – Automate sterilization while maintaining consistent, high-level disinfection
-
Spacious and Scalable – 200 L capacity with modular shelving for multiple item types
Applications
This unit is suited for biolabs, pharmaceutical environments, clinical research, cleanrooms, and other scientific or industrial settings that require non-thermal sterilization of labware, instruments, PPE, and other materials.
Contact Us Today
Discover how the Applied Physics UV Sterilization Cabinet (200 L) can optimize your sterilization workflow.
-
Request a quote or demo
-
Speak with a product specialist
-
Explore technical support and setup recommendations
Achieve laboratory-grade sterilization—safely, efficiently, and reliably.
