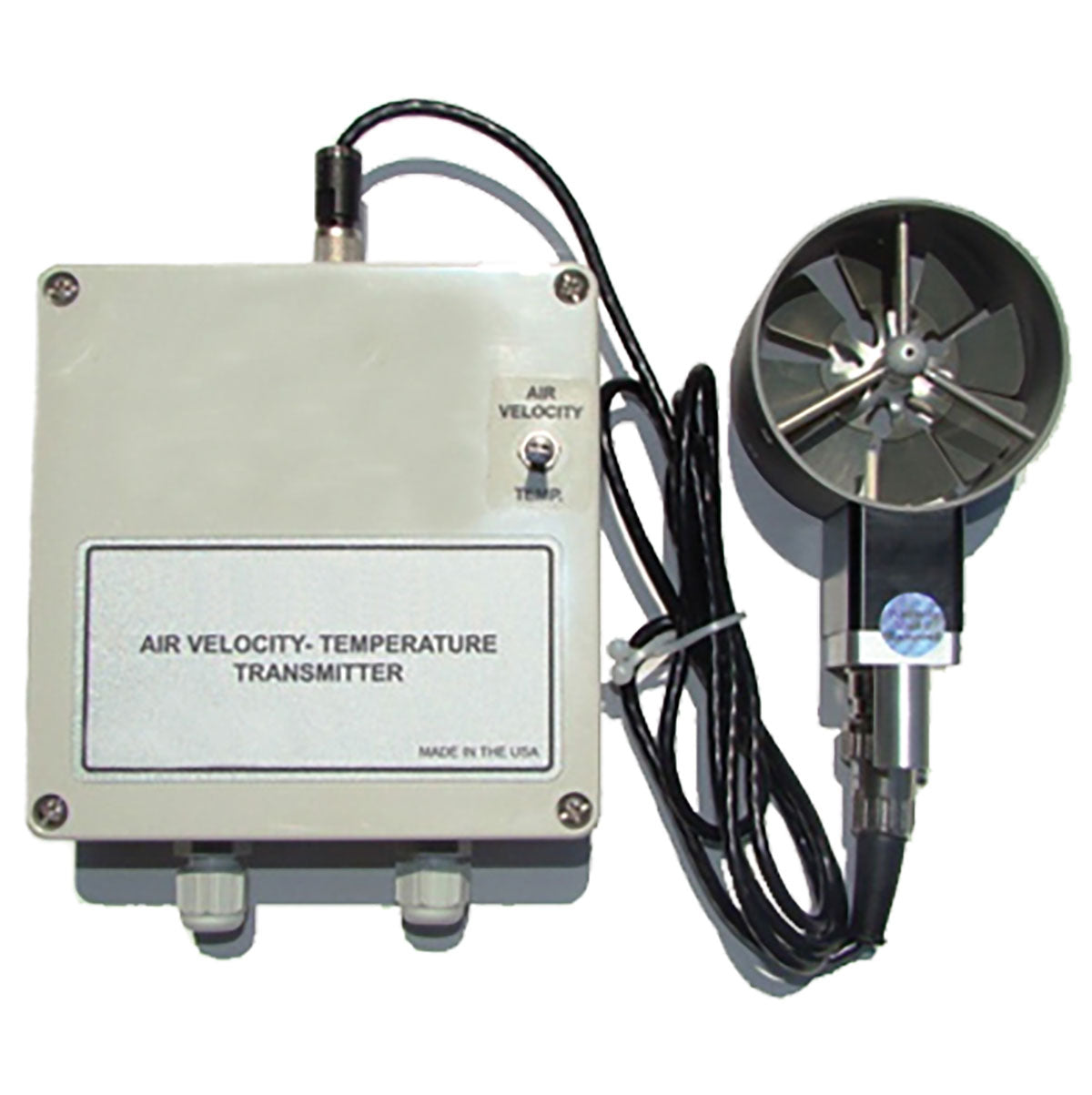

Vane Type Airflow Transmitter – Models AT400 and TAT420
The AT400 and TAT420 air velocity transmitters supply accurate air velocity and (TAT420) temperature data from a building or process airflow on a continuous basis to a computer, chart recorder, printe…
The AT400 and TAT420 air velocity transmitters supply accurate air velocity and (TAT420) temperature data from a building or process airflow on a continuous basis to a computer, chart recorder, printer and meter or control circuit.
The THT500 humidity-temperature transmitters supply accurate humidity and temperature data from a room or process air source on a continuous basis to a computer, chart recorder, printer, meter or control circuit.
Every instrument has terminals for both DC and AC power and 0-1 V, 0-5V and 4-20mA output.
| Range | APT Probe: -4 to 176 F (-20 to 80C) | |
| Accuracy | ±0.5°C | |
| Resolution | 0.1°F or 0.1°C | |
| General Specifications | ||
| Analog Output | Current output: DC 4~20mA Voltage output: DC 0~1V or 0~5V | |
| Operating Temperature | Transmitter: -4 to 176F (-20 to 80°C) Probe: -22 to 212F (-30 to 100°C) | |
| Power Supply | 120 or 220 VAC (50-60 Hz) 10 to 30 VDC | |
| Dimensions | Transmitter Housing | W 4.8 x D 2.2 x H 4.8 inches (12.2 x 5.6 x 12.2 cm) |
| Warranty | 1 year | 1 x Rotating Vane Probe Head, Probe cable, Operation Manual, NIST Certificate |
| TAT420 | 1 x Rotating Vane Probe Head, Probe cable, Operation Manual, NIST Certificate | |
