Description
Features:
1. Steam water internal circulation.
2. Pulse vacuum exhaust to ensure the effect of steam sterilization.
3. Mobile probe detects to ensure the internal temperature of liquid directly, to ensure the sterilization effect of liquid program.

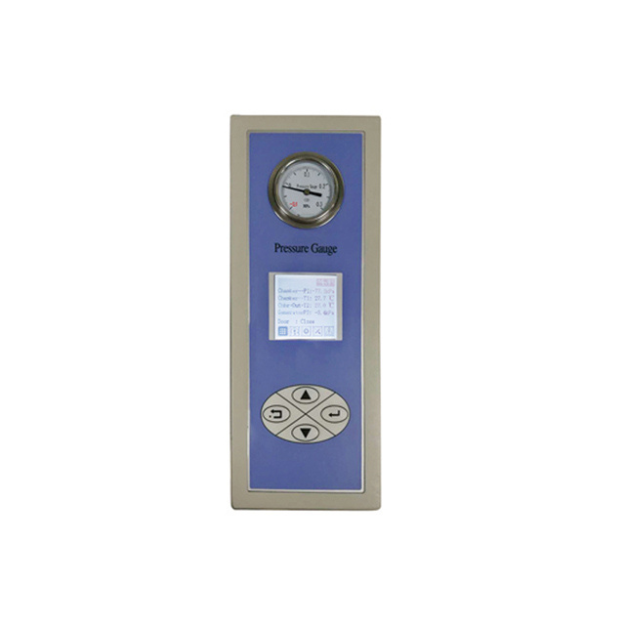

4. LCD screen display shows pressure, temperature, time and error codes.
5. Selectable programs for packed, unpacked, dressings, rubber, liquid, liquid custom, solid custom, sterilization of medium, dissolution of medium, B&D testing and vacuum testing etc.
6. Complete process of preheating, replacement, pulse exhaust, heating, sterilizing and drying run automatically.
7. 0.22μm Sterilization high efficiency air filter, ensuring that the vacuum-depleted air is sterile air to prevent re-pollution of sterile materials.

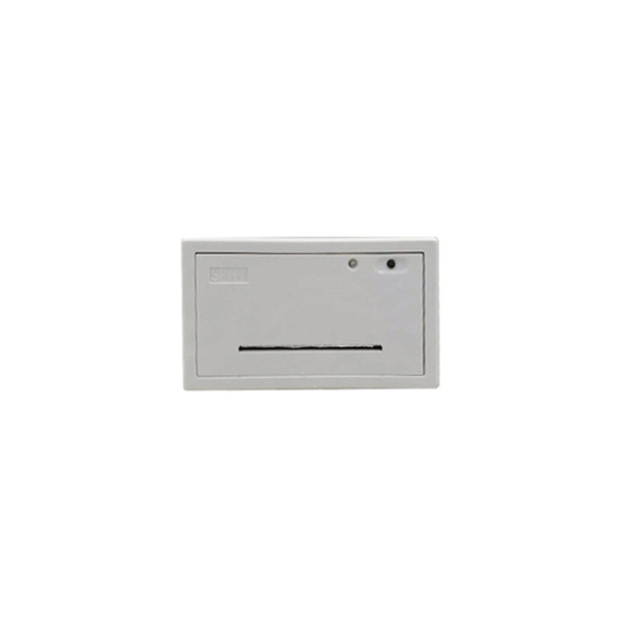

8. Standard built-in printer for recording the information during the entire sterilization process.
Technical Parameters:
|
Model |
BKQ-B50V |
BKQ-B75V |
|
Capacity |
50L |
75L |
|
Designed Pressure |
-0.1/0.28MPa |
|
|
Working pressure |
0.23MPa |
|
|
Designed Temp. |
150℃ |
|
|
Working Temp. |
105~134℃ |
|
|
Temp. Precision |
0.1℃ |
|
|
Chamber Material |
S30408 |
|
|
Chamber Size |
φ386*490mm |
φ386*670mm |
|

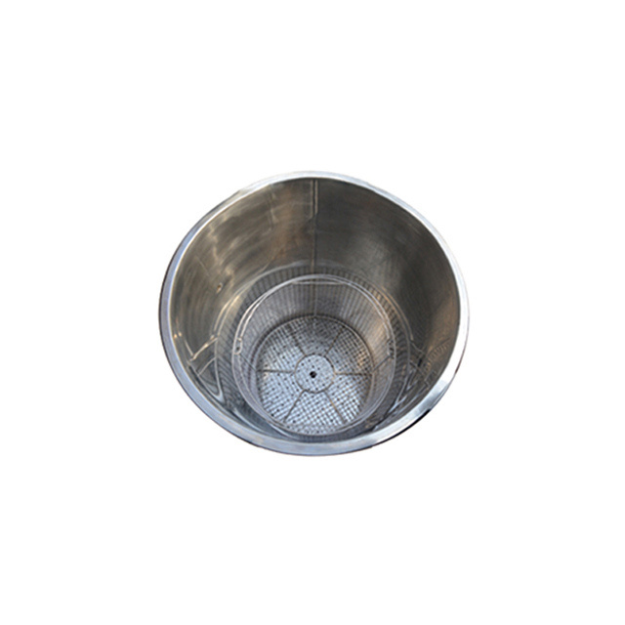

Basket |
φ360*260mm, 1pc |
φ360*360mm, 1pc |
|
Vacuum System |
Eject vacuum system |
|
|
Noise |
≤65dB(A) |
|
|
Altitude |
≤2000m, could be customized at 2000~3000m |
|
|
Standard Accessories |
Printer, basket |
|
|
Consumption |
5.5KW |
|
|
Power Supply |
AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) |
|
|
External Size(W*D*H) |
700*610*1070mm |
|
|
Net Weight |
127kg |
130kg |
|
Package Size(W*D*H) |
820*740*1380mm |
|
|
Gross Weight |
142kg |
145kg |
