Selecting the Right -150°C Cryogenic Freezer: 138L vs 226L

Biological samples are stored at $-150^{\circ }C$ for long-term preservation, where metabolic and enzymatic activity becomes extremely low.

Mechanical cryogenic freezers reduce the need for LN2 supply and handling, while also lowering safety risks.

The 138L model is suitable for smaller laboratories, while the 226L model is better suited to laboratories and biobanks with larger sample storage needs.

Why Choose a Mechanical, 150°C Freezer Over Liquid Nitrogen?

Before comparing capacities, it helps to understand why facilities choose mechanical cryogenic freezers over standard LN2 tanks.

• Zero Liquid Contamination: Samples remain in a dry, uniform, cold-air space, preventing cross-contamination by viruses or bacteria suspended in liquid nitrogen.
• Stable Thermal Environment: Microprocessor-controlled cascade refrigeration maintains consistent temperatures throughout the cabinet, avoiding temperature gradients common in LN2 vapor phase freezers.
• Reduced Operating Overhead: Mechanical freezers run on standard electrical infrastructure, removing the recurring logistics and budget demands of weekly bulk LN2 deliveries.
• Enhanced Operator Safety: Eliminates worker exposure to liquid nitrogen burn risks and the threat of asphyxiation in confined spaces.

Key Factors to Evaluate Before Choosing Your Capacity

Selecting between a 138L and a 226L cryogenic freezer depends on three primary factors: current and projected sample density, physical floor space, and power infrastructure.

1) Storage Density and Sample Volume

The most obvious difference between the two units is usable interior volume.

• 138L Capacity: Best suited for targeted research projects, specialized clinical trial archives, or laboratories with fixed sample volumes.
• 226L Capacity: Ideal for growing biobanks, core research facilities, and central repositories that store large quantities of 2mL cryovials or microplates.

2) Lab Footprint and Layout

Both sizes utilize a chest freezer configuration to minimize cold air loss during lid openings. Because cold air is denser than warm air, chest units retain their temperature far better than upright units when opened.

However, chest freezers occupy significant floor space. Measuring door clearances, hallway turns, and designated floor areas is essential before installation.

3) Energy Consumption and Thermal Load

A –150°C freezer requires robust cascade refrigeration compressors to reach and hold deep cryogenic temperatures. A larger chamber (226L) requires slightly higher power draw and generates more heat output into the room than a 138L unit.

Your HVAC system must be capable of dissipating this heat load to maintain optimal ambient operating conditions (typically 15°C to 25°C).

Deep Dive: The 138L -150°C Freezer

The 138L model is a compact cryogenic storage solution designed for specialized workflows that prioritize precise sample grouping or limited footprint over raw storage volume.

Ideal Use Cases

• Academic & Clinical Research Labs: Designed for departments holding distinct cohorts of high-value samples.
• Satellite Biobanks: Perfect for regional clinics that collect and hold specimens before transferring them to central facilities.
• Space-Constrained Suites: Fits more comfortably into rooms with limited square footage or tighter doorways.

Advantages

• Lower initial capital investment.
• Slightly lower power consumption and reduced HVAC room load.
• Faster recovery times during routine sample retrievals.

Deep Dive: The 226L -150°C Freezer

The 226L model provides maximum volumetric efficiency for facilities managing large-scale archival projects.

By offering roughly 60% more internal storage space on a moderately larger footprint, it significantly lowers the cost per sample stored.

Ideal Use Cases

• Central Biobanks & Biorepositories: Built for long-term archival of stem cell lines, tissue banks, and genomic libraries.
• Pharmaceutical Manufacturing: Used for long-term stability testing and holding critical active biological ingredients (APIs).
• Core Facilities: Designed to support multi-departmental research groups sharing centralized storage infrastructure.

Advantages

• Superior storage density per square foot of floor space.
• Lower long-term operational cost per vial stored.
• Reduces the total number of freezers needed in expanding laboratories.

138L vs 226L Model Comparison

The following table highlights the core physical and functional specifications of both models.

Specification	138 Liters Model	226 Liters Model
Internal Volume	138 Liters (~4.87 cu. ft.)	226 Liters (~7.98 cu. ft.)
Temperature Range	-40°C to -150°C	-40°C to -150°C
Cabinet Style	Heavy-duty Chest Type	Heavy-duty Chest Type
Interior Material	304 Grade Stainless Steel	304 Grade Stainless Steel
Approx. 2 mL Vial Capacity	~9,000 to 10,000 vials	~15,000 to 16,000 vials
Insulation Type	Vacuum Insulation Panels + Polyurethane	Vacuum Insulation Panels + Polyurethane
Control System	Microprocessor with Digital Touchscreen	Microprocessor with Digital Touchscreen
Primary Application	Specialized research, clinical trials, medium biobanking	Central repositories, core labs, large-scale biobanks
LN₂ Backup System	Compatible (Optional)	Compatible (Optional)

Conclusion

Choosing between a 138L and a 226L -150°C cryogenic freezer comes down to your current sample inventory, expected growth, and available floor space.

If your facility requires a lower footprint, manages distinct smaller project batches, or operates with limited room, the 138L model provides exceptional performance and stability.

Conversely, if your goal is to maximize storage density, reduce cost-per-vial, and accommodate future biological archive expansion, the 226L model offers the best long-term value.

Assessing your lab’s infrastructure, door dimensions, and storage rack configurations today will ensure a smooth deployment and reliable operation for years to come.

Frequently Asked Questions (FAQs)

1. What is the difference between a -86°C ULT freezer and a -150°C cryogenic freezer?

A -86°C freezer is designed for short- to medium-term sample storage. A -150°C cryogenic freezer drops below the biological activity threshold (-135°C), making it suitable for indefinite, multi-year preservation without sample degradation.

2. Can a -150°C mechanical freezer operate without liquid nitrogen?

Yes. These units use mechanical cascade refrigeration systems powered entirely by electricity. Liquid nitrogen is only required if you choose to install an optional emergency backup system for power outages.

3. How many 2mL cryovials can fit into these freezers?

Depending on the rack setup and box configurations, the 138L model holds approximately 9,000 to 10,000 standard 2mL vials, while the 226L model accommodates up to 15,000 to 16,000 vials.

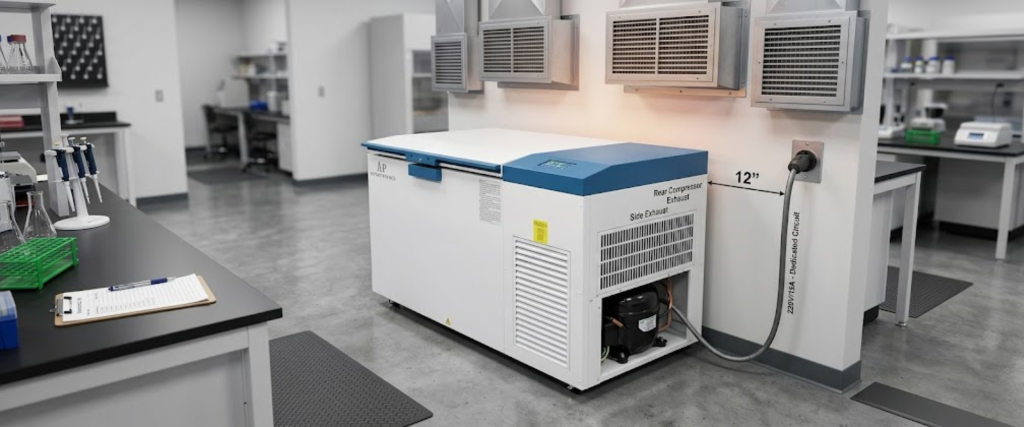

4. What are the room requirements for installing a chest cryogenic freezer?

The room must have adequate ventilation or air conditioning to handle ambient heat output, a stable ambient temperature between 15°C and 25°C, dedicated electrical circuits, and sufficient clearance around the freezer walls (at least 12 inches) for airflow.
