Semiconductor fabrication and pharmaceutical manufacturing, water is not just a utility; it is a critical raw material.
The requirement for Ultrapure Water (UPW) with a resistivity of 18.2 MΩ.cm is absolute.
However, producing this water is only half the battle; the real challenge lies in distributing it across a facility without compromising its integrity.
Traditionally, facilities have relied on standard circulation loops.
Today, the shift toward the Liquid Distribution and Inline Recovery System (LDIRS) is redefining how high-tech industries manage their most precious liquid asset.

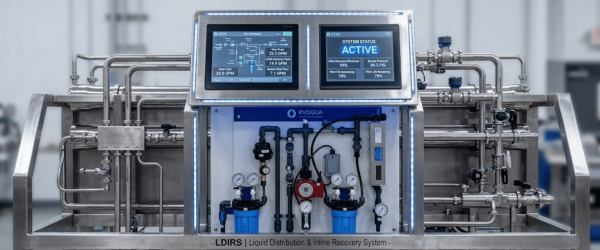

LDIRS represents a fundamental change in fluid management. It is an integrated solution we developed, designed to maintain water’s kinetic energy and chemical purity from the moment it leaves the polisher until it reaches the tool.
Unlike traditional systems that only push water, LDIRS creates a dynamic environment where water is continuously monitored and recovered in line, ensuring that stagnant pockets never form.
Traditional high-purity water systems typically use a centralized purification unit that pumps water through a dead-end or basic recirculating loop. While functional, these systems face three significant hurdles.
In traditional piping, any section where water flow slows down or stops (known as a dead leg) becomes a breeding ground for bacteria.
Biofilms can form rapidly, leading to organic contamination that is notoriously difficult to eradicate without a full system shutdown.
Ultrapure water is an aggressive solvent.
As it sits or moves slowly through traditional loops, it leaches ions from piping materials and absorbs CO2 from the atmosphere, causing the resistivity to drop below the critical 18.2 MΩ.cm threshold.
Traditional systems often dump water that doesn’t meet immediate spec at the point of use or fail to recover water during low-demand periods, leading to high operational costs and environmental impact.
The primary goal of LDIRS is the preservation of water quality. By using advanced materials and a specific hydraulic design, LDIRS ensures that the water reaching a semiconductor lithography tool or a pharmaceutical vial-filler is as pure as the water at the source.
This is achieved through constant velocity management that prevents ionic leaching.

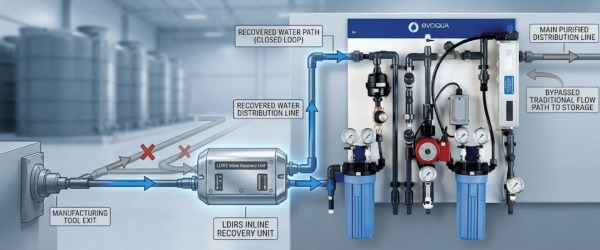

The Recovery in LDIRS is its most innovative feature. Instead of allowing unused ultrapure water to be wasted or sent back to a massive pre-treatment tank (which requires re-purification from scratch), LDIRS recovers the water in-line.
This maintains the water’s purified state, drastically reducing the load on the primary polishing system and lowering energy consumption.
LDIRS eliminates the concept of stagnant loops. The system is designed to facilitate a continuous, turbulent flow that prevents the attachment of microorganisms to pipe walls.

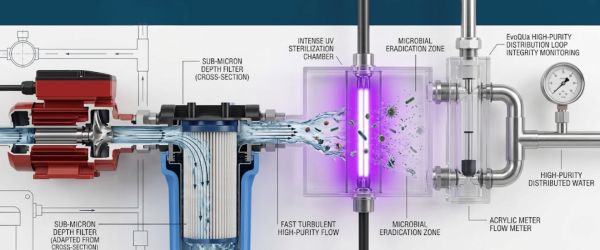

When integrated with UV sterilization and sub-micron filtration, LDIRS offers a nearly sterile distribution path.
As the industry moves toward 1nm and sub-1nm nodes, the sensitivity to particle contamination is at an all-time high.
LDIRS provides the stable, ultra-clean environment necessary for high-yield wafer production, where even a slight dip in water resistivity can result in millions of dollars in lost product.
For labs following USP <797> or <800> standards, water purity is a matter of regulatory compliance.
LDIRS simplifies the validation process by providing consistent, measurable water quality data across all distribution points, ensuring that every drop meets the required monograph standards.
The transition from traditional distribution to LDIRS is not merely a technical upgrade; it is a strategic necessity for facilities aiming for Zero-Defect manufacturing.
By solving the age-old problems of biofilm growth, energy waste, and purity degradation, the Liquid Distribution and Inline Recovery System has set a new benchmark for high-purity water management.
For engineers and facility managers, the choice is clear: to maintain the future of high-tech production, the distribution system must be as advanced as the purification technology itself.
Unlike traditional systems that simply circulate water, LDIRS uses an active inline recovery mechanism. This ensures constant velocity and prevents dead legs, maintaining a consistent 18.2 MΩ.cm resistivity throughout the entire distribution path.
Yes. LDIRS is designed to eliminate stagnant zones where bacteria thrive. Maintaining a continuous, turbulent flow and using high-purity materials, it prevents the attachment of microorganisms, drastically reducing the risk of biofilm growth.
Absolutely. By recovering and recirculating ultrapure water inline instead of dumping it or sending it back to pre-treatment, LDIRS reduces the operational load on your primary purification unit, saving both energy and water costs.
