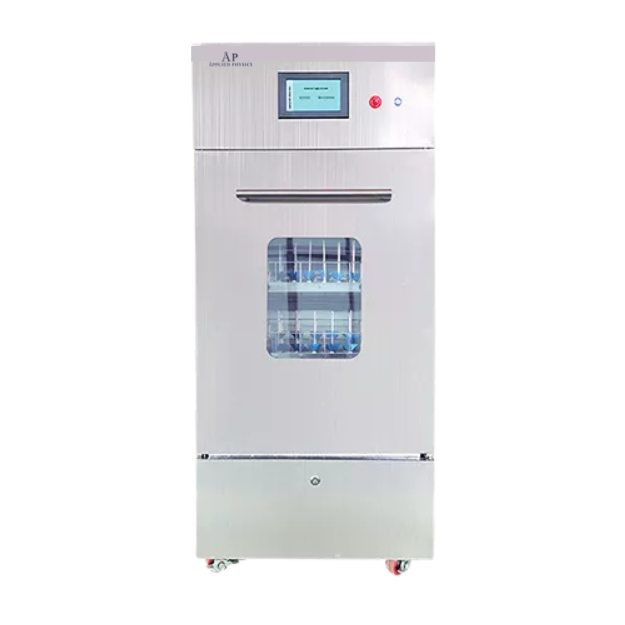

Washer Disinfector (Lab Automatic Glassware Washer)
Lab Automatic Glassware Washer provides standard and automatic cleaning and disinfection for most of medical equipment, so as to eliminate the possibility of infection in cleaning and disinfecting.
Fe…
Lab Automatic Glassware Washer provides standard and automatic cleaning and disinfection for most of medical equipment, so as to eliminate the possibility of infection in cleaning and disinfecting.
Features:
1. 7.1 inch color LCD touch screen, easy to operate.
2. Provides 12 custom changeable program groups, cleaning programs can be combined at will.
3. With automatic fault diagnosis program.
4. Three-level password permission management for easy supervision.
5. The exterior is made of 304 brushed stainless steel, resistant to corrosion.
6. Standard HEPA filter with filtration efficiency >99.99%.
Technical Parameters:
Model | BK-LW100P | BK-LW200Pro | BK-LW300P | BK-LW360 | ||||
Cleaning | Capacity | 120L | 206L | 308L | 380L | |||
Washer Load Level | 1 | 2 | 2 | 3 | ||||
Water Wash Power | 0.75KW | 0.75KW | 1.5KW | 1.5KW | ||||
Water Heater Power | 2KW | 4KW | 6KW | 6KW | ||||
MAX. Power | 4KW | 5KW | 7.5KW | 7.5KW | ||||
Water Consumption/Step | 18~24L | 38~45L | 50-55L | |||||
Tank Internal Temperature | 0~95℃ | |||||||
Water Supply Pressure | ＞0.2Mpa | |||||||
Peristaltic Pump for Cleaning Agent | 2 | |||||||
Cleaning Agent Level Sensor | YES | |||||||
Washing Pump | Sweden 275L/min | Sweden 430L/min | Sweden 950L/min | Sweden 950L/min | ||||
Cleaning Racks | Optional | |||||||
Drying | Drying Function | YES | ||||||
Steam Condenser | YES | |||||||
Dry Power | 2.4KW | 2.4KW | 3.6KW | 3.6KW | ||||
Control System and Traceability | Control System | 7" color LCD touch screen display, MCU | 7" color LCD touch screen display, PLC | |||||
Cleaning Program | 7 pre-set programs+12 MCU free programming | 7 pre-set programs+6 PLC free programming | ||||||
Password Protection | 3 levels password | |||||||
Safety Emergency Button | YES | |||||||
USB Port | Optional | |||||||
Integrated Printer | Optional | |||||||
Online Monitor Performance of Washing | NO | Optional | ||||||
Dimensions&Weight | Chamber Dimension(W*D*H) | 552*565*500mm | 552*565*653mm | 690*670*966mm | 632*680*1260mm | |||
Exterior Dimension(W*D*H) | 908*716*800mm | 909*715*998mm | 701*845*1655mm | 701*845*1880mm | ||||
Package Dimension(W*D*H) | 1000*1100*1100mm | 1000*1150*1300mm | 950*1100*2000mm | 950*1100*2000mm | ||||
Net Weight(Host only) | 135kg | 155kg | 230kg | 270kg | ||||
Gross Weight(Host with rack) | 186kg | 210kg | 280kg | 321kg | ||||
Others | Door | 304 stainless steel | ||||||
Safety Door Lock | YES | |||||||
Built-in RO Water Pump | YES | |||||||
Noise | <65dB | |||||||
Power Supply | AC220V, 50Hz(Standard); AC110V, 50/60Hz; 220V, 60Hz(External transformer)(Optional) | AC220V, 50Hz(Standard); AC110V, 50/60Hz; 220V, 60Hz(External transformer)(Optional) | AC380V, 50Hz(Standard); AC110V, 50/60Hz; 220V, 50/60Hz; 380V, 60Hz(External transformer)(Optional) | AC380V, 50Hz(Standard); AC110V, 50/60Hz; 220V, 50/60Hz; 380V, 60Hz(External transformer)(Optional) | ||||
Additional information
| Model | BK-LW100P（110V，50HZ）, BK-LW100P（110V，60HZ）, BK-LW100P（220V，50HZ）, BK-LW100P（220V，50HZ）, BK-LW100P（220V，60HZ）, BK-LW100P（110V，50HZ）, BK-LW100P（110V，60HZ）, BK-LW200Pro（220V，50HZ）, BK-LW200Pro（220V，60HZ）, BK-LW200Pro（110V，50HZ）, BK-LW200Pro（110V，60HZ）, BK-LW100P（220V，60HZ）, BK-LW200Pro（110V，50HZ）, BK-LW200Pro（110V，60HZ）, BK-LW200Pro（220V，50HZ）, BK-LW200Pro（220V，60HZ） |
|---|
