In sterile pharmaceutical manufacturing, maintaining air quality is a strict regulatory mandate.
The updated guidance in EU GMP Annex 1 places substantial focus on continuous environmental monitoring, data governance, and the stringent control of viable particulates.
To satisfy these compliance standards, manufacturing facilities require reliable, accurate, and portable monitoring hardware.

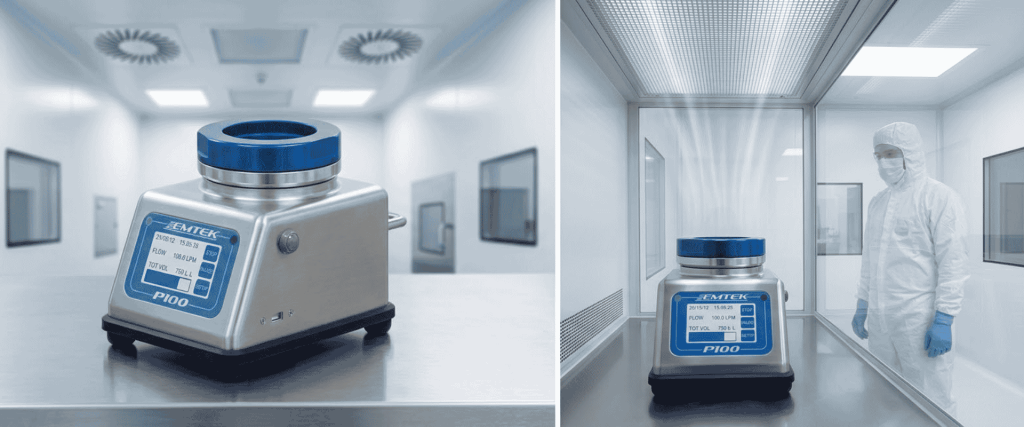

The P100 Portable Microbial Air Sampler is engineered specifically for these demands, ensuring Grade A and Grade B cleanroom environments operate within their validated microbial limits.
Understanding EU GMP Annex 1 Requirements
EU GMP Annex 1 dictates regulatory criteria for manufacturing sterile medicinal products.
Central to this framework is the Contamination Control Strategy (CCS), which requires facilities to define, validate, and execute risk-based microbiological control protocols.
- Grade A: Critical aseptic processing zones, laminar airflow workbenches, and isolator lines require a threshold of $< 1\text{ CFU/m}^3$.
- Grade B: Outer background zones supporting aseptic preparation require proactive trending to detect microbiological shifts before cross-contamination reaches critical pathways.
Meeting these thresholds requires air sampling systems that capture ambient microorganisms from validated air volumes without introducing secondary mechanical contamination or disrupting laminar airflow patterns.
Key Features of the P100 Microbial Air Sampler
Engineered for mission-critical aseptic environments, the P100 emphasizes physical collection recovery, user safety, and digital data integrity.
Calibrated Flow Rates
Dual selectable flow rates of 28.3 LPM and 100 LPM provide adaptability between prolonged continuous monitoring and rapid $1\text{ m}^3$ impaction cycles compliant with ISO 14698.
HEPA-Filtered Exhaust
Standard vacuum exhaust ports can disperse submicron particulates back into the envelope. The P100 integrates internal HEPA filtration to scrub discharged air before returning it to the cleanroom.
Data Integrity & Governance

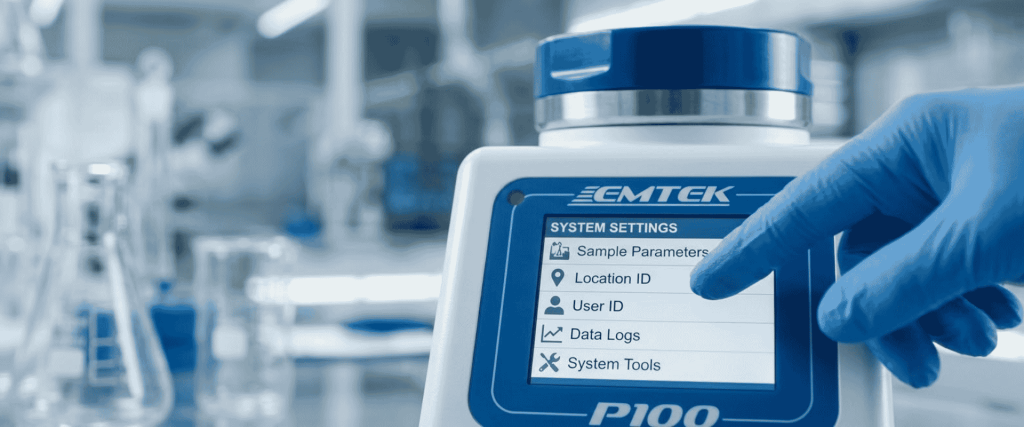

A built-in touchscreen interface enables direct logging of Location IDs, Operator IDs, and sampling parameters, aligning with 21 CFR Part 11 and ALCOA+ data guidelines.

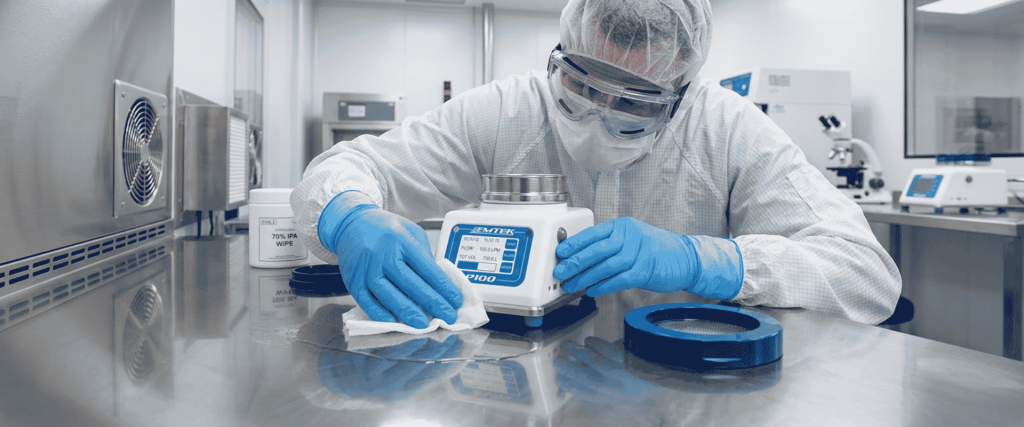

Sterilization-Grade Construction
The sampling enclosure and components are built from autoclavable, high-grade anodized aluminum and stainless steel, designed to withstand frequent exposure to vaporized hydrogen peroxide (VHP) and isopropyl alcohol (IPA).

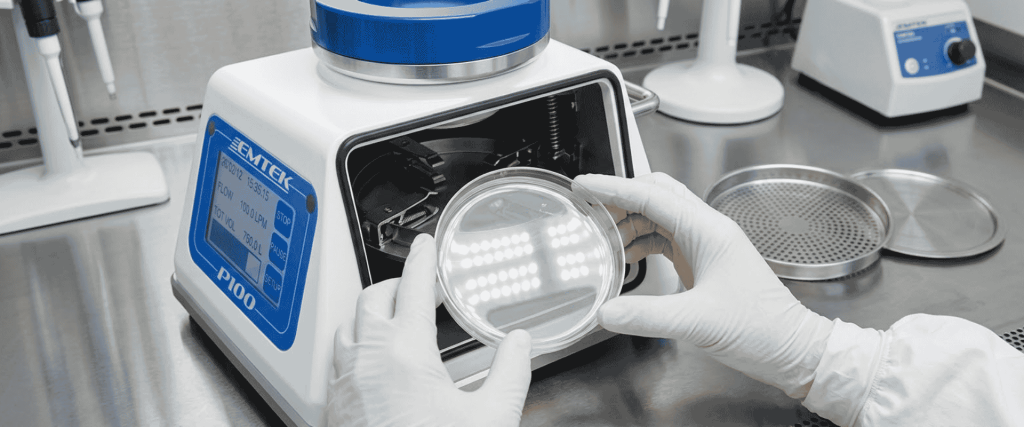

Impaction Velocity and Viable Particle Recovery
An effective microbial impaction air sampler must deliver a validated $d_{50}$ cutoff value, the aerodynamic particle diameter collected at 50% efficiency.

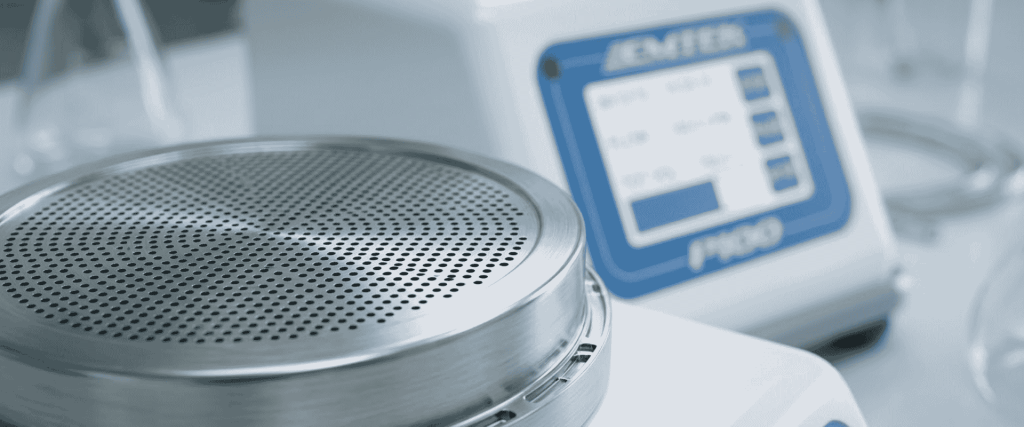

Biological aerosols often measure between 1.0 $\mu\text{m}$ and 5.0 $\mu\text{m}$. The P100 utilizes a precision sieve impactor head that calibrates nozzle velocity to balance two competing physical forces.
- Impaction Force: Sufficient velocity to guarantee viable capture of sub-micron biological particles onto the agar surface.
- Cellular Viability: Regulated airflow to prevent mechanical cell-wall rupture or rapid agar dehydration, preserving microbial culturability for accurate downstream incubation.
Technical Specifications & Regulatory Compliance
| Feature | P100 Specification | Annex 1 / ISO Compliance Impact |
| Flow Rate Accuracy | $\pm 2.5\%$ | Guarantees exact cubic meter volume verification |
| Exhaust Filtration | Integral HEPA Filtration | Mandatory for maintaining laminar airflow integrity in Grade A/B zones |
| Housing Materials | Anodized Aluminum / Stainless Steel | Chemically inert; resistant to VHP, Sporicides, and 70% IPA |
| Data Logging | Internal Flash Memory & Encrypted USB Export | Fully compliant with ALCOA+ principles and 21 CFR Part 11 |
| Sample Capacity | User-programmable (up to 10,000 Liters) | Readily exceeds the standard 1,000-liter ($1\text{ m}^3$) Grade A testing requirement |
Cleanroom Integration & Monitoring Workflow
Integrating the P100 into an active Contamination Control Strategy optimizes daily sampling workflows.

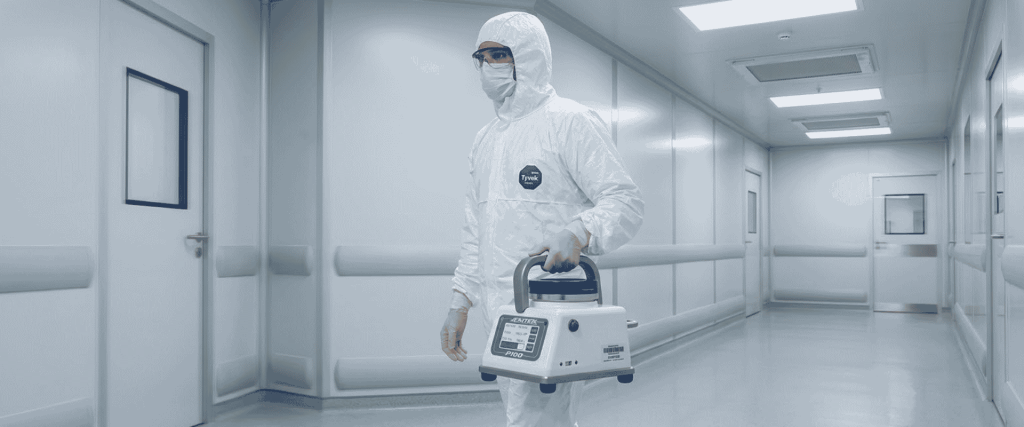

Strategic Portability
The compact, battery-driven footprint allows technicians to navigate sampling coordinates across Grade B suites without tethering to wall utilities or dragging vacuum hoses across critical zones.

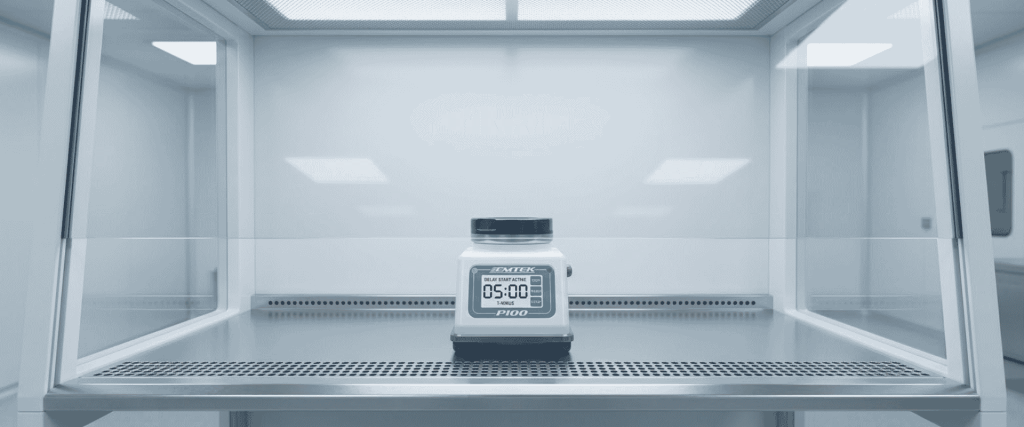

Delayed-Start Automation
Programmable delay cycles permit cleanroom personnel to exit unidirectional airflow hoods prior to sampling initiation, minimizing human interventions and lowering false-positive contamination risks.

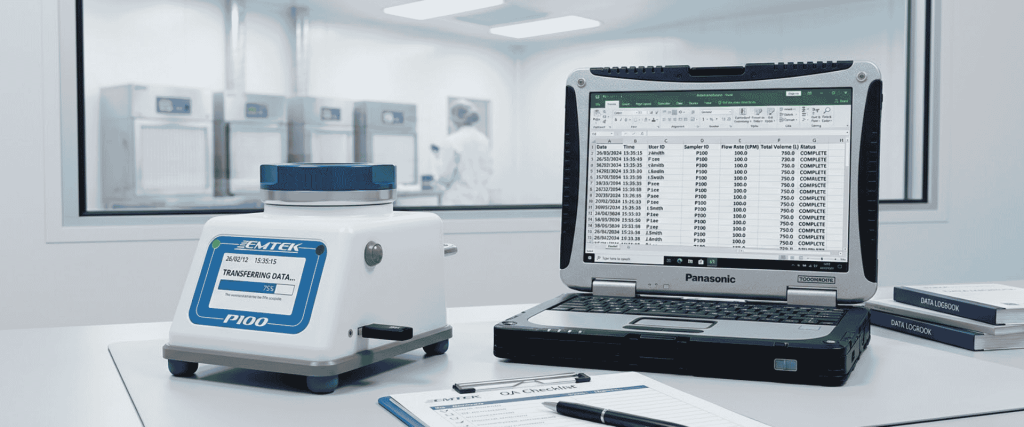

Audit-Ready Data Capture
Stored digital records reduce transcription errors and provide verifiable audit trails during regulatory inspections by national and international health authorities.
Conclusion
Meeting strict EU GMP Annex 1 standards requires precision monitoring that captures viable microbes without disrupting critical cleanroom airflow.
The P100 delivers this balance through calibrated impaction velocities, high biological recovery, and a HEPA-filtered exhaust that prevents secondary contamination.
Integrated digital logging and delayed-start automation drastically reduce manual data entry errors and minimize personnel intervention in Grade A zones.
Deploying this portable solution provides pharmaceutical facilities with an audit-ready, dependable foundation for their overarching Contamination Control Strategy.
Frequently Asked Questions (FAQs)
1. Does the P100 meet ISO 14698-1/2 standards?
Yes. The P100 complies with ISO 14698 standards governing biocontamination control, specifically meeting validation criteria for both physical collection efficiency and biological recovery preservation.
2. Can the sampling head be autoclaved?
Yes. The sieve impactor sampling head is constructed from autoclavable materials, allowing complete steam sterilization cycles between monitoring shifts.
3. What is the operational battery life during active sampling runs?
The unit features a high-density lithium-ion battery pack delivering between 6 and 12 hours of active operation, depending on selected flow rate and cycle intervals.
4. Is the P100 approved for use in Grade A laminar flow benches?
Yes. Due to its HEPA-filtered exhaust system and verified aerodynamic profile, the P100 can sample inside Grade A (ISO 5) critical zones without introducing particulate discharge or turbulence into the laminar air stream.
