Essential Contamination Control Protocols for ISO Class 5 Cleanrooms

Maintaining an ISO Class 5 cleanroom environment equivalent to Class 100 under the older FED-STD-209E standard requires strict adherence to environmental controls.

With a maximum allowable limit of just 3,520 particles per cubic meter for particles $\ge 0.5\mu m$, even a microscopic oversight can lead to catastrophic yield loss in semiconductor fabrication or batch contamination in sterile pharmaceutical compounding.

To preserve the integrity of these critical spaces, facilities must implement rigid operational protocols focused on airflow dynamics, personnel discipline, and precise material handling.

ISO Class 5 Cleanroom Control Protocols

1) Airflow Dynamics and Velocity Monitoring

An ISO Class 5 cleanroom relies on unidirectional, laminar airflow to continuously sweep particles away from critical work zones.

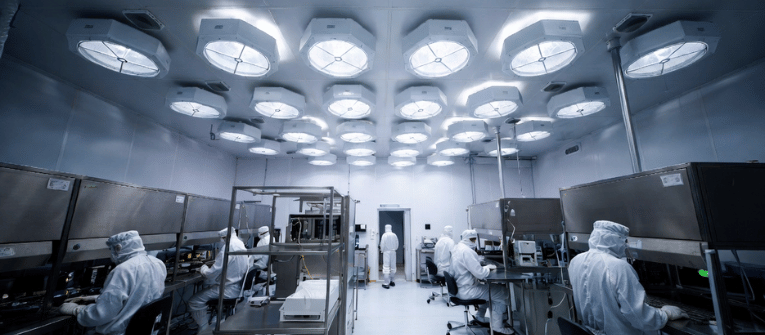

Unidirectional Flow: Air must move vertically or horizontally in parallel lines from High-Efficiency Particulate Air (HEPA) or Ultra-Low Penetration Air (ULPA) filters toward floor or wall return vents.
Air Velocity Maintenance: Velocity must typically be maintained between 0.35 to 0.55 m/s (70 to 110 ft/min). Dropping below this range risks stagnant air pockets, while exceeding it creates turbulent eddies that trap contamination.

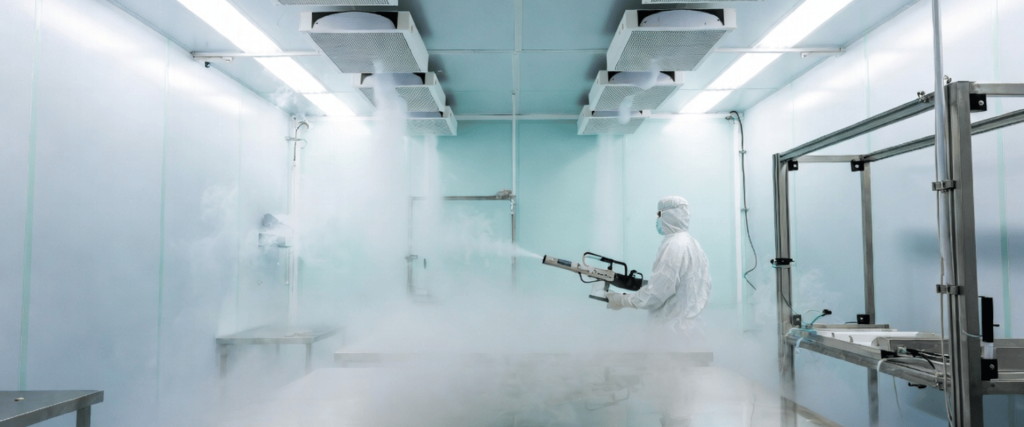

Smoke Study Validation: Regular airflow visualization studies using specialized ultrapure foggers are mandatory. These smoke studies identify dead zones and verify that physical equipment layouts do not disrupt the laminar sweep.

2) Rigid Personnel Gowning and Behavior Discipline

Human operators are the primary source of cleanroom contamination, shedding millions of skin cells and particles every minute. Controlling human behavior is central to ISO Class 5 maintenance.

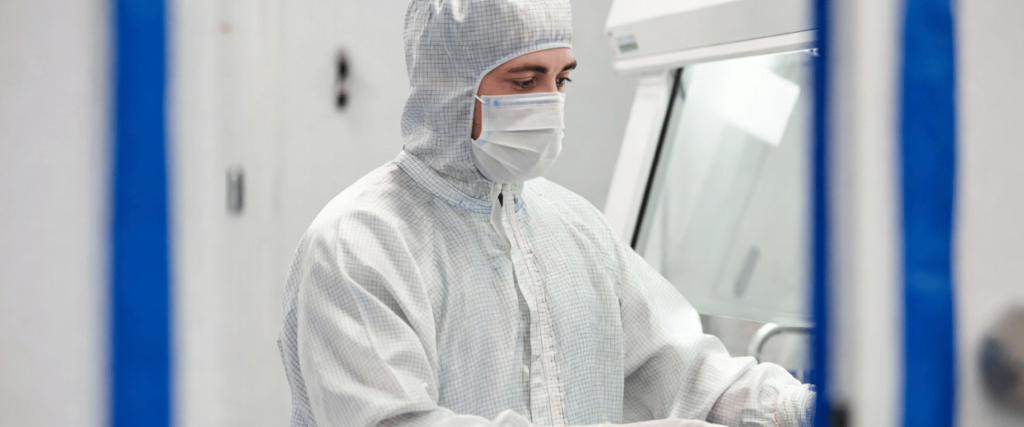

Full-Coverage Gowning Sequence: Operators must follow a strict, top-down gowning protocol inside the anteroom. This includes sterile hoods, facemasks, continuous-filament coveralls (bunny suits), dedicated boots, and double-gowning with sterile gloves. No exposed skin or hair is permitted.
Prohibited Materials: Cosmetics, hairsprays, jewelry, and standard paper notebooks are strictly banned from entering the anteroom or primary cleanroom chamber.
Motion Restrictions: Personnel must move slowly and deliberately. Rapid movements disrupt laminar airflow patterns and accelerate particle shedding from garments.

3) Surface Disinfection and Cleaning Chemistry

Sustaining an ISO Class 5 state of control requires a rigorous cleaning schedule utilizing validated, residue-free chemistries.

Rotational Biocide Regimens: To prevent microbial resistance in pharmaceutical applications, disinfection protocols require alternating between different classes of agents (e.g., rotating a phenolic or quaternary ammonium compound with a sporicide).

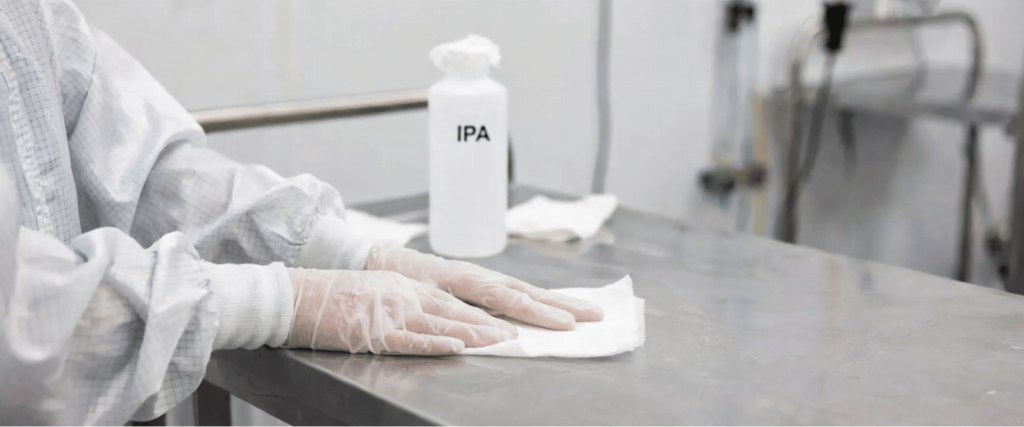

Isopropyl Alcohol (IPA) Utilization: 70% Sterile USP-grade Isopropyl Alcohol filtered to 0.2 microns is used for frequent wiping of stainless steel work surfaces and gloves due to its rapid evaporation and lack of residue.
Wiping Technique: Surfaces must be wiped in unidirectional, overlapping strokes moving from the cleanest areas toward the return air vents. Scrubbing or circular motions must be avoided.

4) Material Entry and Tool Transfer Controls

Every tool, substrate, or raw material container introduced into the cleanroom acts as a potential vehicle for outside contamination.

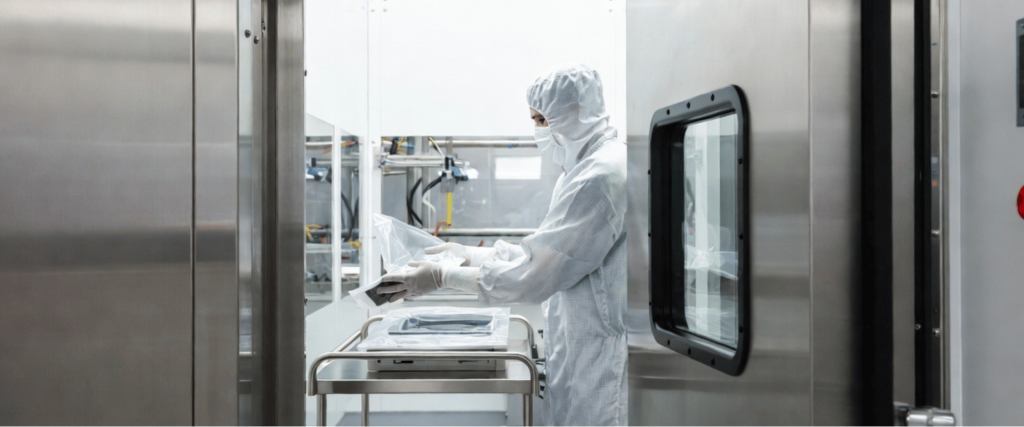

Pass-Through Airlocks: All materials must enter via interlocking pass-through boxes to prevent direct atmospheric exchange between the cleanroom and lower-classification zones.
Multi-Stage Decontamination: Items must be unboxed in outer gray zones, wiped down with IPA or an approved disinfectant, and transferred to cleanroom-compatible carts made of electropolished stainless steel.

Core Metrics for ISO Class 5 Compliance

The table below outlines the foundational environmental baselines that cleanroom managers must continuously monitor and log to verify compliance.

Metric Parameter	ISO Class 5 Requirement Limit	Monitoring / Validation Tool
Max Particle Count (≥0.5μm)	≤3,520 particles/m3	Discrete Airborne Particle Counter
Airflow Architecture	Unidirectional / Laminar Flow	Anemometer & Ultrapure Fogger
Average Air Velocity	0.35 to 0.55 m/s	Thermal Anemometer
Differential Pressure	Minimum +10 to +15 Pascals vs. adjacent cleaner zones	Magnehelic / Digital Pressure Gauges
HEPA / ULPA Coverage	60% to 80% ceiling coverage	Particle Counter Challenge Testing, such as PAO Testing

Routine Environmental Monitoring and Auditing

Protocol enforcement is only effective if backed by continuous data. Facilities must establish automated and manual environmental monitoring loops.

This includes positioning continuous airborne particle counters near the most critical points of operations, conducting regular microbial active air sampling, and running automated differential pressure logs to guarantee that air always flows out of the ISO Class 5 space when doors are momentarily cycled.

If any variance is detected, root-cause analysis must be conducted immediately to restore baseline equilibrium.

Conclusion

Maintaining an ISO Class 5 cleanroom requires a continuous balance of unidirectional airflow, strict gowning discipline, and precise surface disinfection.

By eliminating human error and continuously monitoring air velocity and particle metrics, facilities can prevent costly contamination events.

Ultimately, strict adherence to these protocols is what guarantees product reliability and regulatory compliance.

Frequently Asked Questions (FAQs)

1. What is the maximum particle count allowed in an ISO Class 5 cleanroom?

An ISO Class 5 environment allows a maximum of 3,520 particles per cubic meter for particles sized $0.5\mu m$ or larger. Continuous monitoring with airborne particle counters is required to ensure this limit is never exceeded.

2. Why is laminar airflow critical for ISO Class 5 spaces?

Laminar (unidirectional) airflow moves air in parallel streams at a constant velocity. This uniform movement immediately sweeps airborne contaminants out of the workspace and prevents turbulent air from trapping particles over critical surfaces.

3. Can standard paper be used inside an ISO Class 5 cleanroom?

No, standard paper is strictly prohibited because it sheds thousands of cellulose fibers when handled. Instead, operators must use specialized, low-particulate synthetic cleanroom notebooks or digital logging devices.
