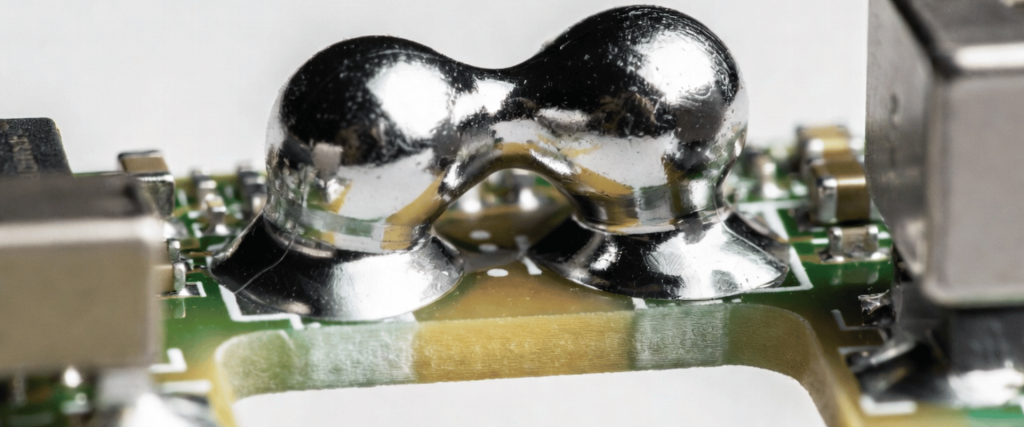

Solder bridging is one of the most common defects in SMT assembly. It happens when excess solder accidentally creates a connection between two nearby pads or component leads, resulting in a short circuit.
On densely populated PCBs, especially those with fine-pitch ICs, even a single bridge can cause the entire board to fail electrical testing.
The frustrating part is that bridging usually does not have just one cause.
In most cases, it happens due to a combination of several factors: too much paste applied to the board, the underside of the stencil not being cleaned properly, a reflow profile that heats the board too quickly, or simply pads being so close together that there is no solder mask dam between them.
This article explains all of these causes in detail.

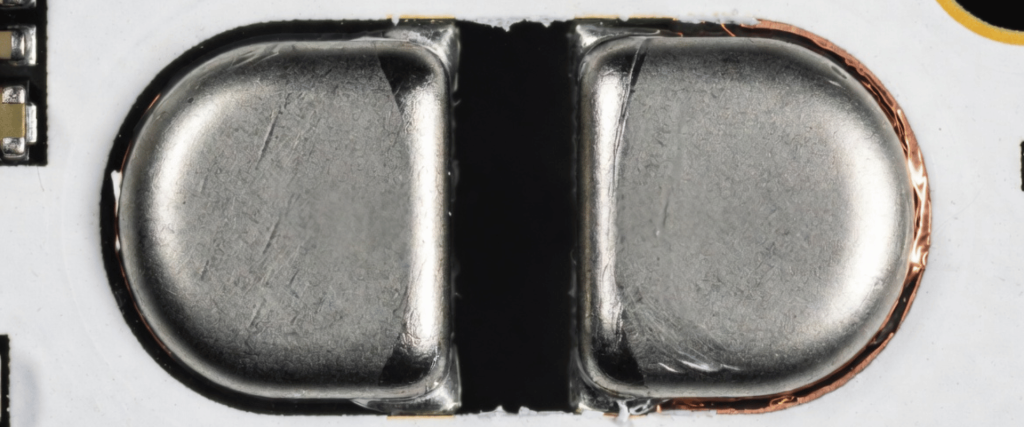

Solder bridging is a printed circuit board (PCB) defect where molten solder spans across adjacent pads, traces, or component pins, creating an unintended electrical short circuit during the reflow process.
When the stencil apertures don’t sit directly over the PCB pads, paste gets deposited partially onto the pad and partially onto the solder mask, the fiducials, or bare copper between pads. During reflow, this mis-deposited paste can flow and bridge.
Alignment errors are common when boards aren’t fixtured properly, when the printer’s registration camera or alignment marks aren’t being used correctly, or when stencil tension has gone slack.

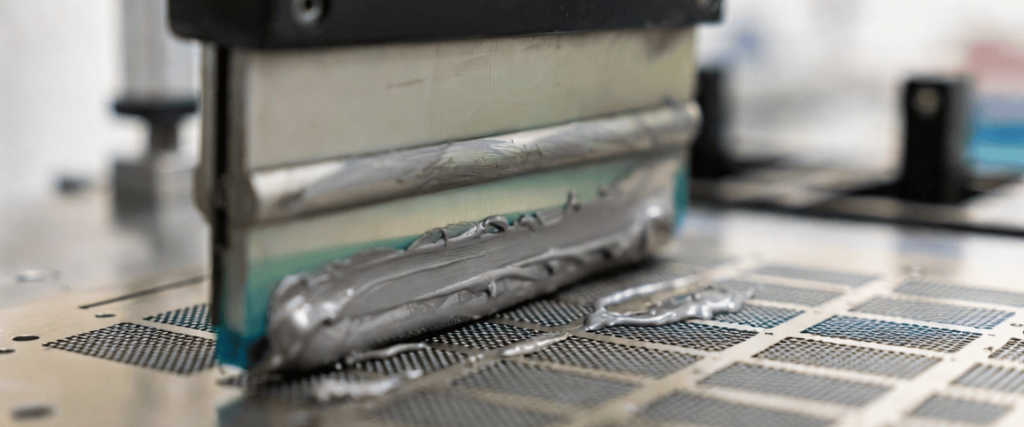

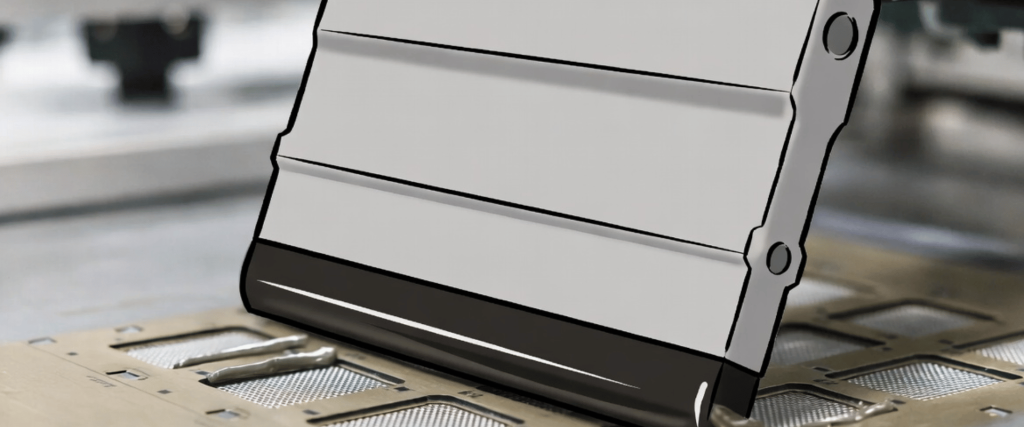

Too much squeegee pressure pushes the blade deep into the stencil apertures and scoops paste out of them, leaving paste smeared across the stencil surface rather than cleanly in the apertures. Too little pressure leaves paste sitting on top of the stencil rather than pressing it through.
Similarly, squeegee speed affects how the paste roll forms and how consistently it fills apertures. Too fast, and the paste doesn’t have time to fill narrow, deep apertures. Too slow, and you may get over-filling on wider apertures.

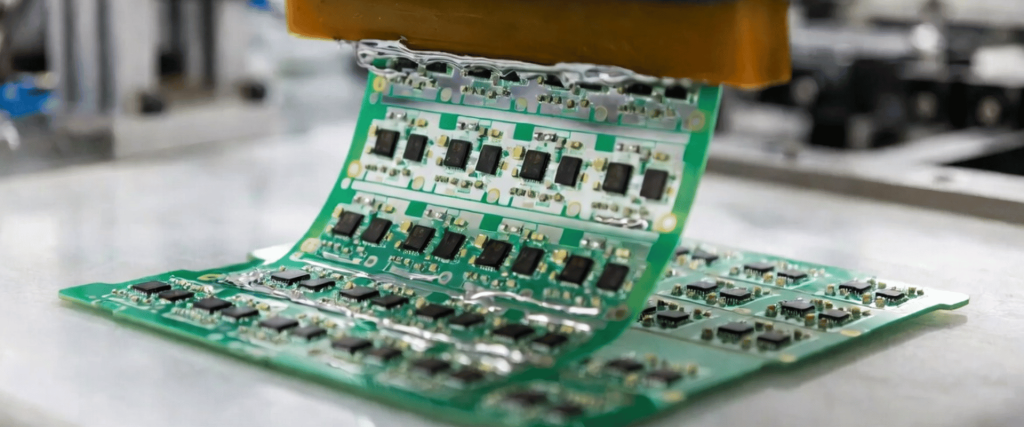

A PCB that flexes or bows during the squeegee stroke will have inconsistent paste deposition.
Where the board dips, the stencil lifts slightly from the pad surface, and paste seeps under the stencil edges, a direct cause of smearing and bridging.
Even when the paste is perfectly printed, a bad reflow profile can cause bridging. If the temperature ramps too steeply through the soak zone, the paste can slump before the flux activates properly and holds the paste in place.
The result is solder that spreads laterally during liquefaction rather than wetting only onto the designated pad.
Pads designed too close together without solder mask dams between them offer no physical barrier against solder flow.
Fine-pitch component footprints without proper mask coverage on the IPC-7351 or manufacturer-recommended pattern are particularly vulnerable.
Approximately 60–70% of SMT defects originate at the solder paste printing stage. That makes the stencil printer the single most important piece of equipment when it comes to preventing bridges downstream.
Stencil apertures control exactly how much paste is deposited on each pad. Two parameters govern whether a stencil is designed correctly.
AR = (L × W) / (2 × (L + W) × T)
IPC-7525 sets the minimum acceptable AR at 0.66. Below that threshold, paste is more likely to stick inside the aperture walls instead of releasing cleanly onto the pad, causing inconsistent deposits that can lead to bridges on adjacent prints.
Stencil thickness typically runs between 0.10 mm and 0.15 mm. Boards with very fine-pitch components often require the thinner end of that range to maintain an acceptable area ratio.
The squeegee should apply the lowest pressure that still achieves a clean wipe across the stencil surface. In practice, this is typically 1 to 1.5 lbs per linear inch of blade.
Dialing pressure too high has two consequences: it drives paste under the stencil edges (causing smear and potential bridging), and it wears the stencil and blade faster. A clean wipe at low pressure is always preferable to a hard wipe at high pressure.

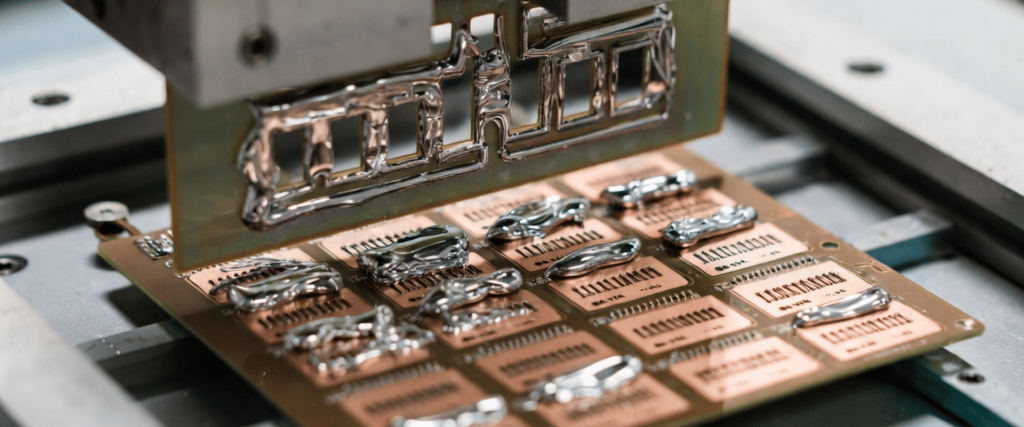

After the squeegee passes, the stencil must separate from the PCB slowly and steadily to allow paste to release cleanly from the apertures. A separation speed of around 2 mm/s is a standard starting point for most applications.

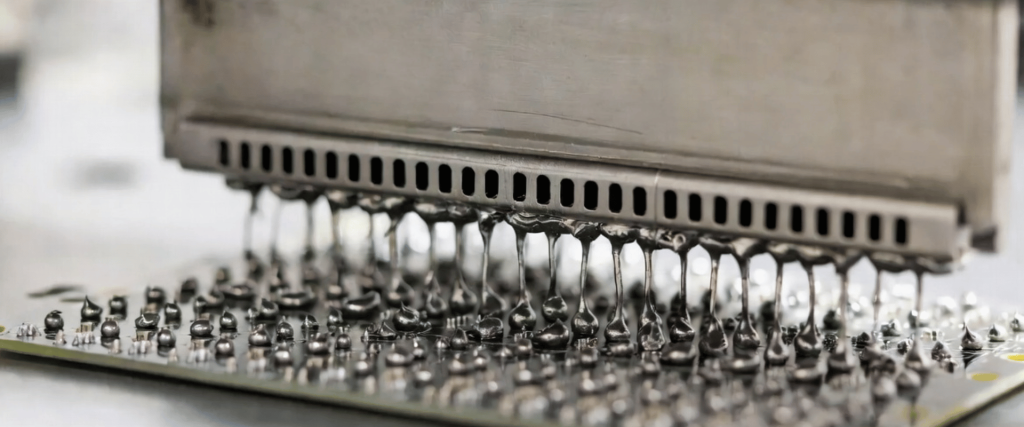

If the stencil pulls away too fast, paste can be dragged sideways across adjacent pads. If it separates too slowly for certain paste types, the paste can stretch and tear, leaving jagged deposits that spread during reflow.

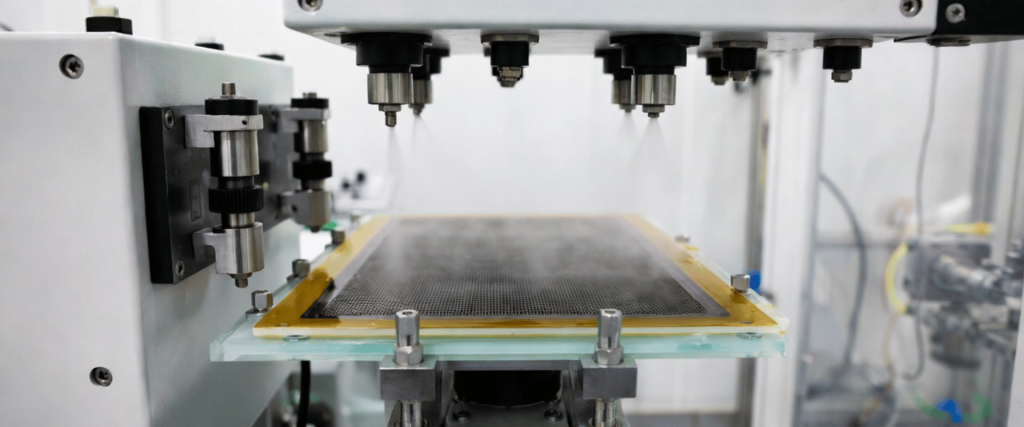

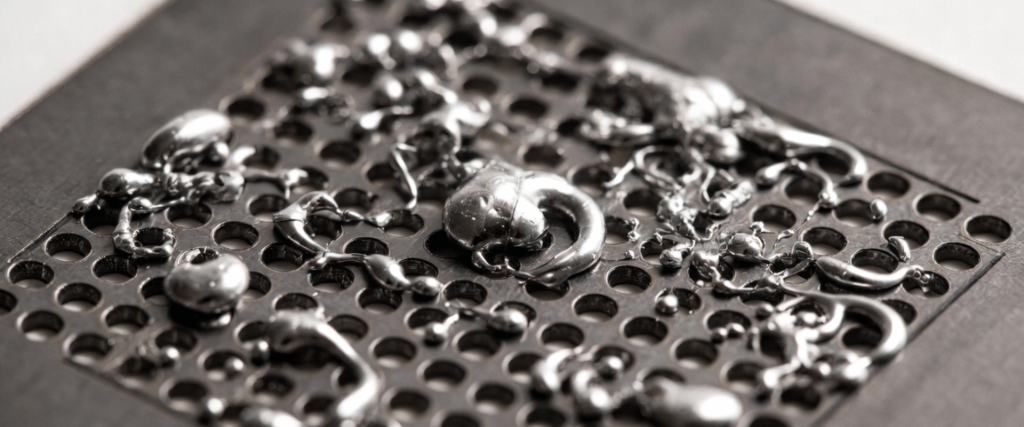

Paste accumulates on the bottom surface of the stencil with every print cycle.
If it isn’t removed, it gets dragged across the PCB surface on the next print, depositing paste where none should be. This is one of the most consistent causes of random bridging on production lines.
For high-volume production, cleaning should be scheduled every 5–10 print cycles at a minimum.
The table below summarizes how common squeegee and process settings affect solder paste quality and bridge risk.
| Parameter | Setting Too Low | Optimal Range | Setting Too High |
|---|---|---|---|
| Squeegee Pressure | Paste left on the stencil surface | 1–1.5 lbs/linear inch | Paste scooped from apertures; smearing; bridging risk |
| Squeegee Speed | Apertures may overfill; slow cycle time | 20–80 mm/s (paste-dependent) | Insufficient fill on fine-pitch apertures |
| Stencil Separation Speed | Paste tears or stretches; jagged deposits | 1–3 mm/s | Paste dragged sideways; smearing; bridging risk |
| Stencil Thickness | Insufficient paste volume; cold joints | 0.10–0.15 mm | Excess paste volume; high bridge risk on fine pitch |
| Aperture Area Ratio | Poor paste release; inconsistent deposits | ≥ 0.66 (IPC-7525) | N/A, higher is better |
| Under-Stencil Cleaning Interval | Paste buildup; smearing between pads | Every 5–10 prints | N/A, more frequent is safer |
| Environment Temperature | Paste too thick; poor flow | 22–25°C | Paste too thin; slump risk; bridging during reflow |
Boards with contaminated pads, oils from handling, oxidation, or moisture, don’t wet properly during reflow. Solder that can’t wet onto a pad will bead up and spread toward neighboring pads.
Handling boards by the edges and storing them in dry conditions prevents most surface contamination issues.
A stencil that has gone slack doesn’t maintain consistent contact (gasket) with the PCB surface during printing. Any gap allows paste to seep under the stencil edges.
Inspect stencil frames regularly, and measure stencil tension with a tensiometer if precision production is required. Replace or re-tension stencils that fall below specification.
Aperture walls should also be inspected periodically under magnification for deformation or paste buildup that wasn’t removed during cleaning. Any roughness inside the walls increases paste retention and reduces transfer efficiency.
Preventing solder bridging requires strict control of the stencil printing phase, where up to 70% of all surface-mount assembly defects originate.
Optimizing key variables, specifically maintaining an aperture area ratio above 0.66, limiting squeegee pressure to 1.5 lbs per linear inch, and enforcing frequent under-stencil cleaning cycles, directly minimizes paste smear and lateral slump.
Combining these machine parameters with proper PCB support and stable thermal profiles prevents molten solder from escaping designated pad boundaries during reflow.
Ultimately, establishing these proactive process controls eliminates the need for expensive post-reflow rework and maximizes first-pass production yields on fine-pitch boards.
Excessive solder paste volume is the most common cause. When too much paste is deposited, due to an oversized stencil aperture, a thick stencil, or paste buildup on the underside of the stencil, it spreads during reflow and bridges adjacent pads.
Too much squeegee pressure forces paste under the stencil edges and smears it across the board surface, which leads to deposits in areas between pads. The correct approach is to use the minimum pressure that still produces a clean wipe.

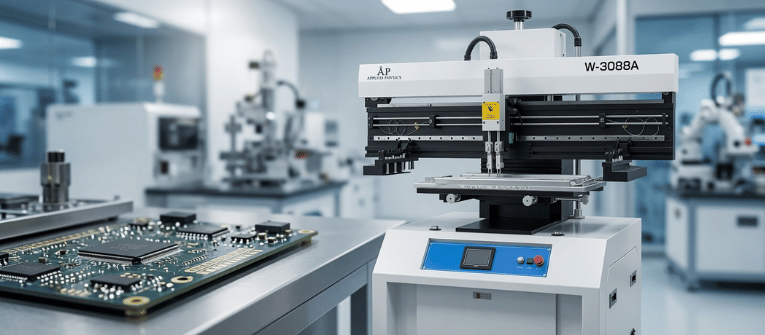

Yes, directly. A semi-automatic printer gives operators precise control over squeegee pressure, speed, and stencil separation, the three variables that most directly affect paste volume and placement accuracy. Controlled, repeatable settings reduce the variation that leads to bridging.
IPC-7525 recommends a minimum area ratio of 0.66. For fine-pitch components like 0402s or QFPs with 0.5 mm pitch, design stencil apertures to meet or exceed that ratio by using a thinner stencil (0.10 mm) or reducing aperture dimensions slightly.
At a minimum, clean the underside of the stencil every 5–10 print cycles. On fine-pitch or high-density boards, more frequent cleaning reduces the chance of paste buildup transferring to the board surface.
