300T/H Automatic Chemistry Analyzer BK-310

Description

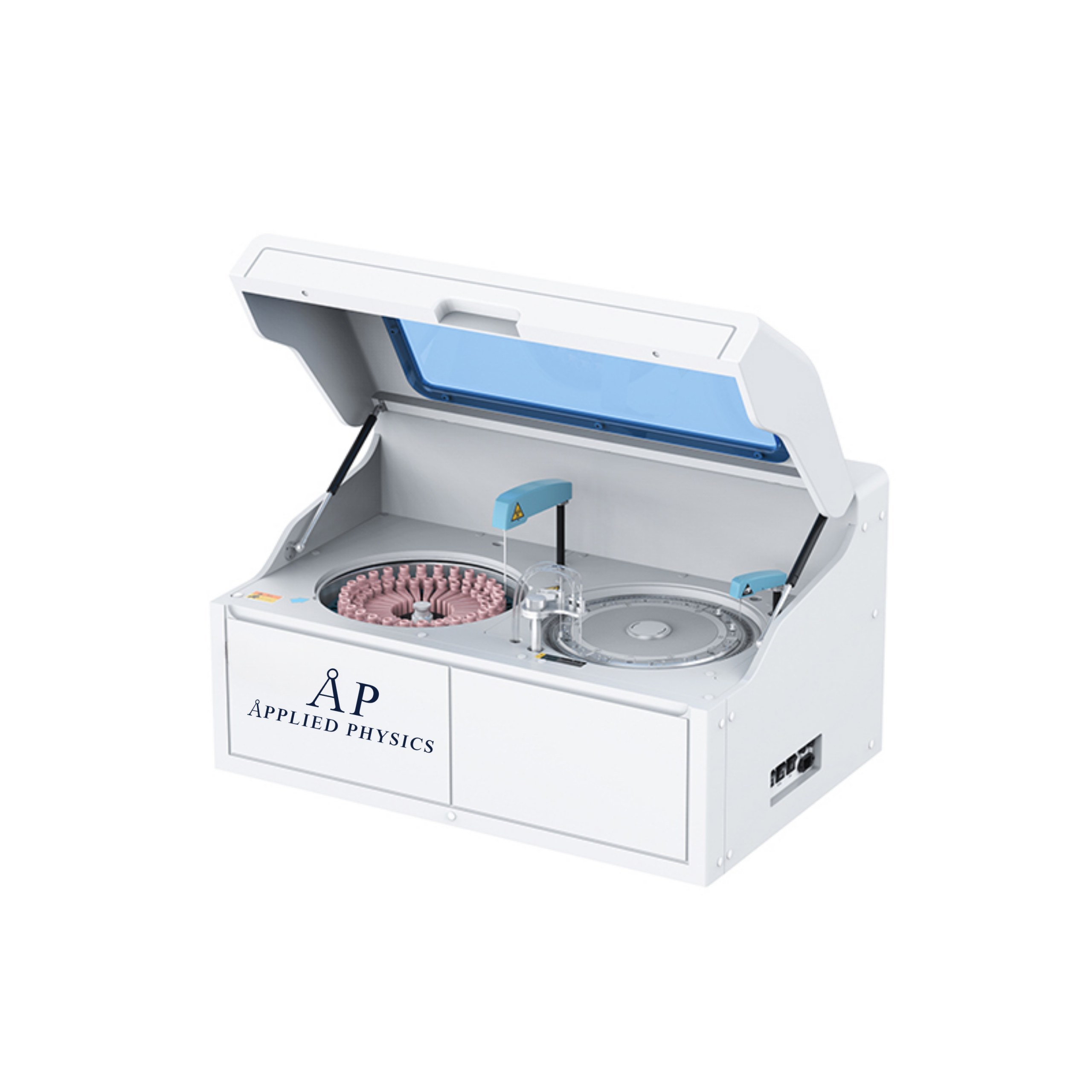

300T/H Automatic Chemistry Analyzer BK-310

Features:

1. 50 sample positions

2. 56 reagent positions.

3. 120 reaction cuvettes.

4. 300 tests per hour.

5. Probe with anti-collision function, liquid level dectection function.

Technical Parameters:

Model

BK-310

Overall

Performance

Throughput

300 tests/hour, ISE(Optional)

Analysis Method

End-point, Fixed-time, Rate(Kinetic), Turbidimetry

Certificates

CE, FDA, ISO9001, ISO14001, ISO13485

System

Optional open or close system, continuous working for 24 hours

Sample&Reagent System

Sample Positions

50 sample positions

Reagent Position

56 reagent positions

Sample Volume

2~70μl

Reagent Volume

20~350μl

Probe

With anti-collision function, liquid level detection function

Probe Washing

Automatic washing interior and exterior

Reagent Cooling

2~12℃ for 24 hours

Reaction System

Temperature Control

37±0.2℃, real-time monitoring

Cuvettes

120 reusable cuvettes

Mixer Probe

Independent stirring, automatic frequency conversion

Washing

Automatic cuvettes washing

Optical System

Light Source

Halogen lamp, water-cooling

Spectrophotometry

Post-spectral spectrophotometry

Wavelength

340~800nm

Absorbance

0~3.5Abs

Calibration&QC

Calibration

Linear: K factor, 1-point, 2-point and multipoint linear

Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P

Quality Control

Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D)

Data Management

Software

Windows 7/8/10, 32 or 64 bit

LIS System

Bi-direction, support HL7 protocol

Interface

LAN port access

Printer

External, multiple reporting mode available

Working Conditions

Power Supply

AC220V±10%, 50/60Hz(Standard)

110V±10%, 60Hz(Optional), 350VA

Temperature

15~30℃(±2℃)

Water Consumption

Deionized water＜6L/h

Humidity

40~85%

Size&Weight

External Size(W*D*H)

873*585*500mm

Net Weight

80kg

Package Size(W*D*H)

1130*735*1040mm

Gross Weight

125kg
