The -40 degree temperature range is ideal for many items in the medical field that require specialized refrigeration conditions. These items include vaccines, blood products, medications, and other biological samples. The medical refrigeration unit can provide a stable and consistent low-temperature environment, ensuring the quality and effectiveness of these items.
$0.00

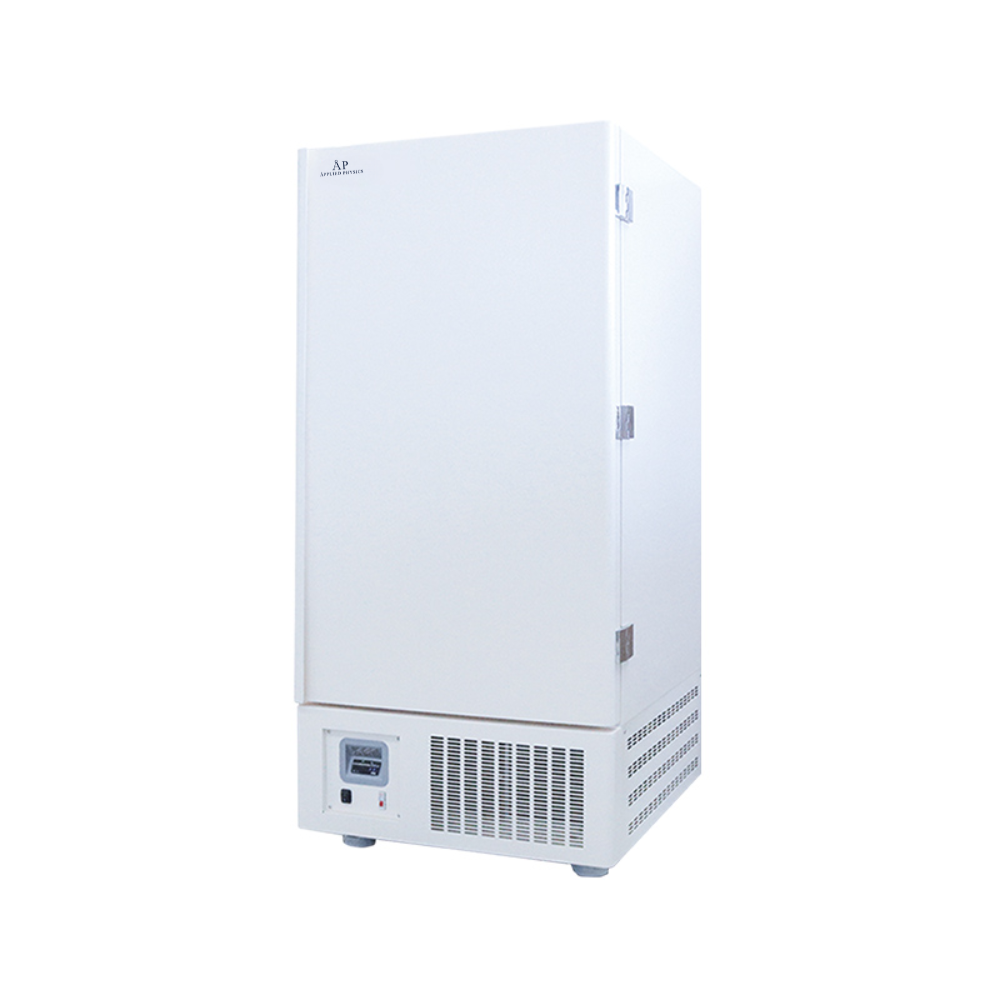

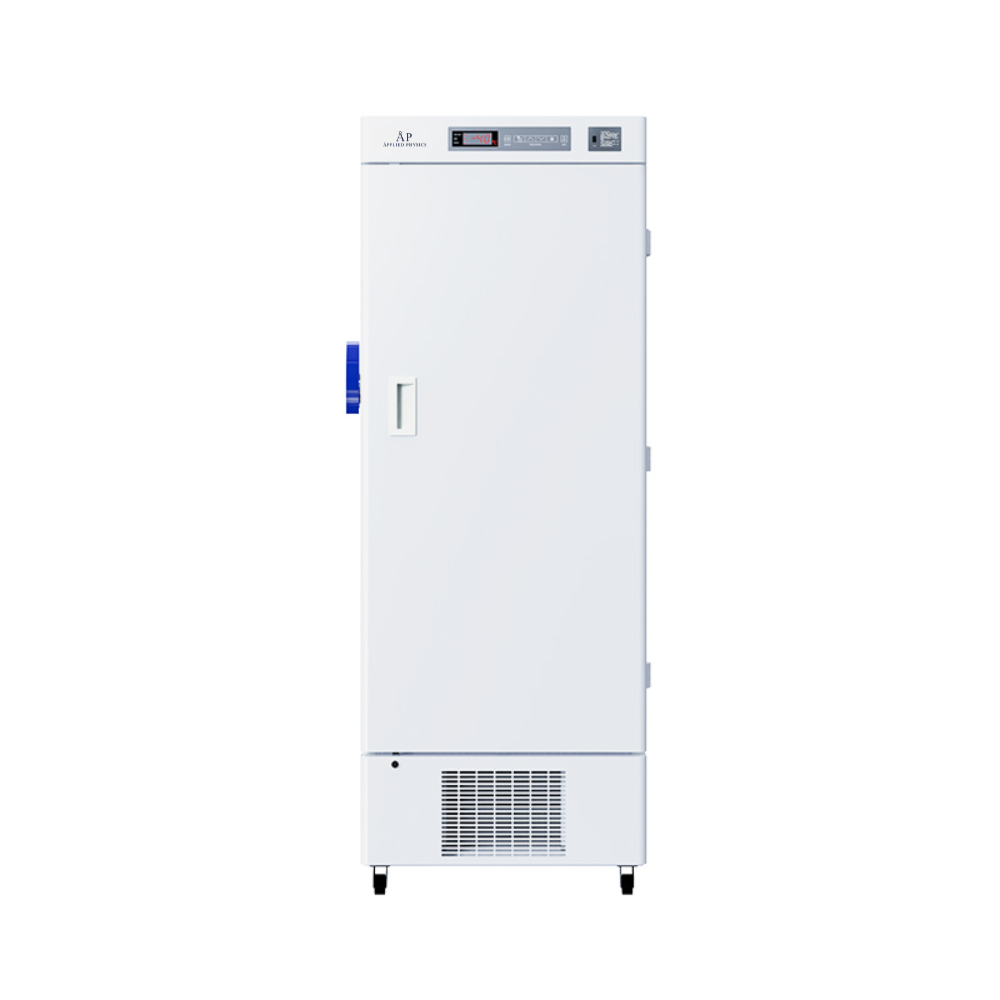

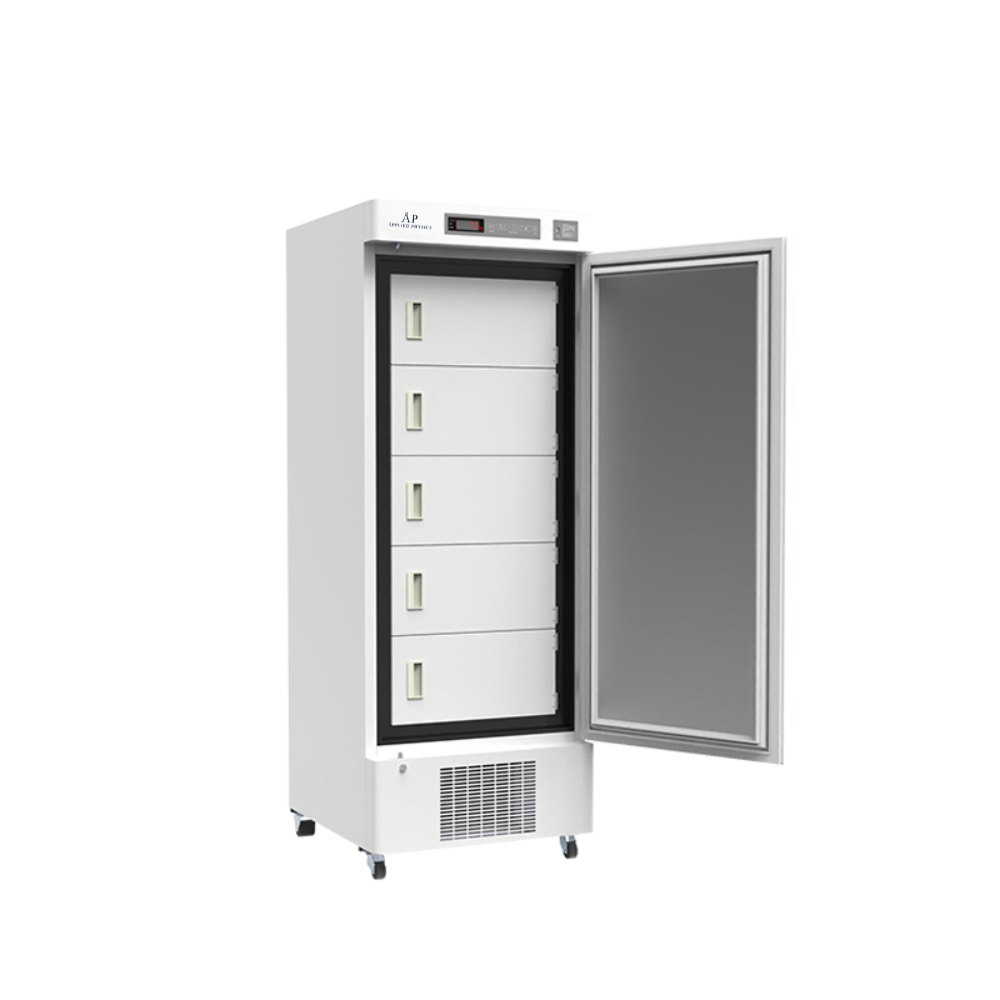

‘-40℃ Freezer 362L 408L 450L
Technical Parameters:
Model
BDF-40V362
BDF-40V398
BDF-40V450
Capacity
362L
408L
450L
Temp. Range
-15~-40℃
Temp. Accuracy
0.1℃
Temp. Uniformity
≤4℃
Temp. Stability
≤4℃
Recovery Time(Recover to -37℃ in an ambient temp. of 25℃)
≤30min
40min
≤30min
Cooling Time(Cool down to -40℃ in an ambient temp. of 25℃)
≤4h
50min
≤4h
Control System
Microprocessor control
Display
LED display
Alarm
High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(8h)
High and low temperature alarm, thermostat fault alarm
High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(8h)
Refrigeration Type
Direct-cooling
Refrigerant
R290/86g
R404A/R23/390g
R290/115g
Compressor
International famous brand compressor/1
Condenser&Evaporator
Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator
Finned copper tube condenser; built-in coil type copper tube evaporator
Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator
Defrost
Manual defrost
Construction
Polyurethane cyclopentane foam
Material
Internal Material
304 stainless steel
External Material
Sprayed steel plate
Door
Outer door: cyclopentane integral foam outer door*1
Inner door: cold plate spray door*5
Outer door: cyclopentane integral foam outer door*1
Inner door: 304 stainless steel door*4
Outer door: cyclopentane integral foam outer door*1
Inner door: cold plate spray door*5
Consumption
278W
700W
510W
Power Supply
AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional)
AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer)
Casters
Yes
Shelf
4
3
4
Standard Accessory
Test hole, USB interface
Optional Accessory
RS485 interface, printer
RS485 interface
RS485 interface, printer
Internal Size(W*D*H)
520*567*1266mm
610*615*1120mm
522*683*1266mm
External Size(W*D*H)
690*744*1885mm
850*900*1780mm
750*905*1885mm
Package Size(W*D*H)
840*860*2050mm
980*980*1930mm
855*1000*2080mm
Net Weight
130kg
188kg
147kg
Gross Weight
155kg
238kg
180kg
| Model | BDF-40V362, BDF-40V398, BDF-40V450 |
|---|
