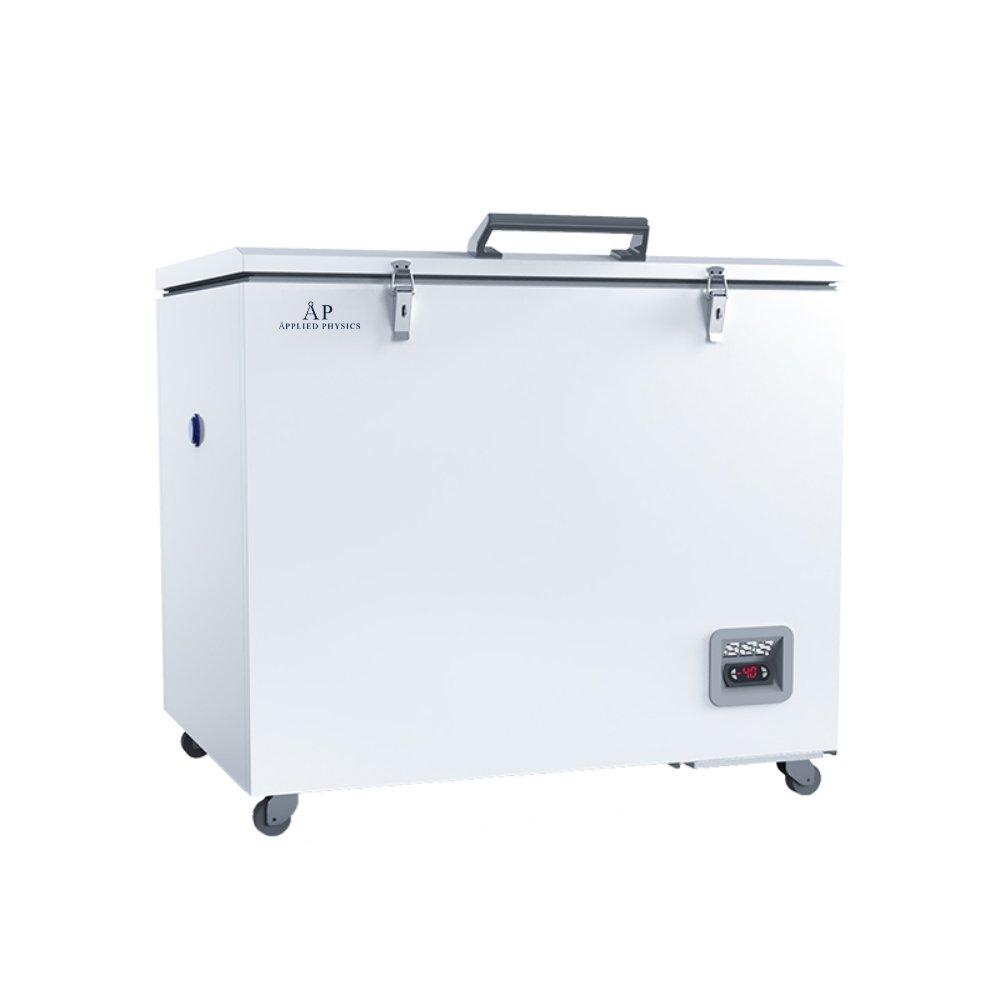

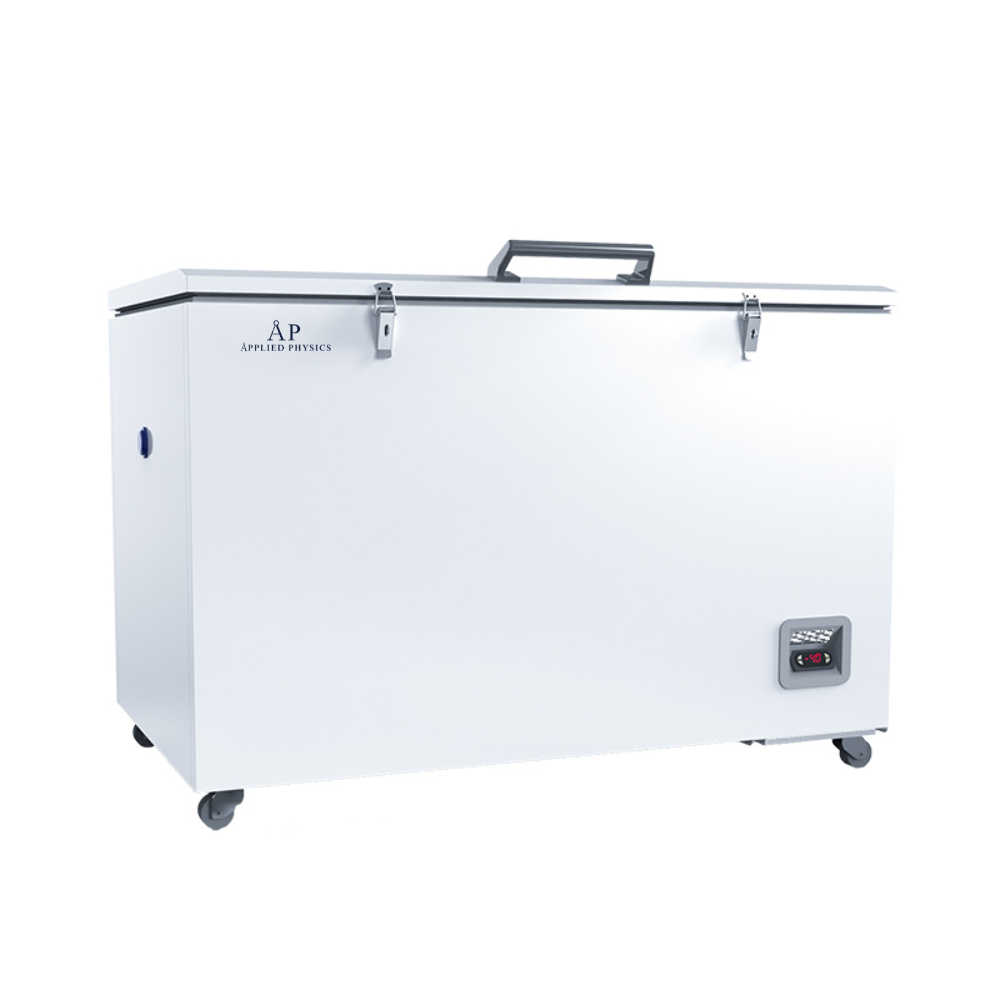

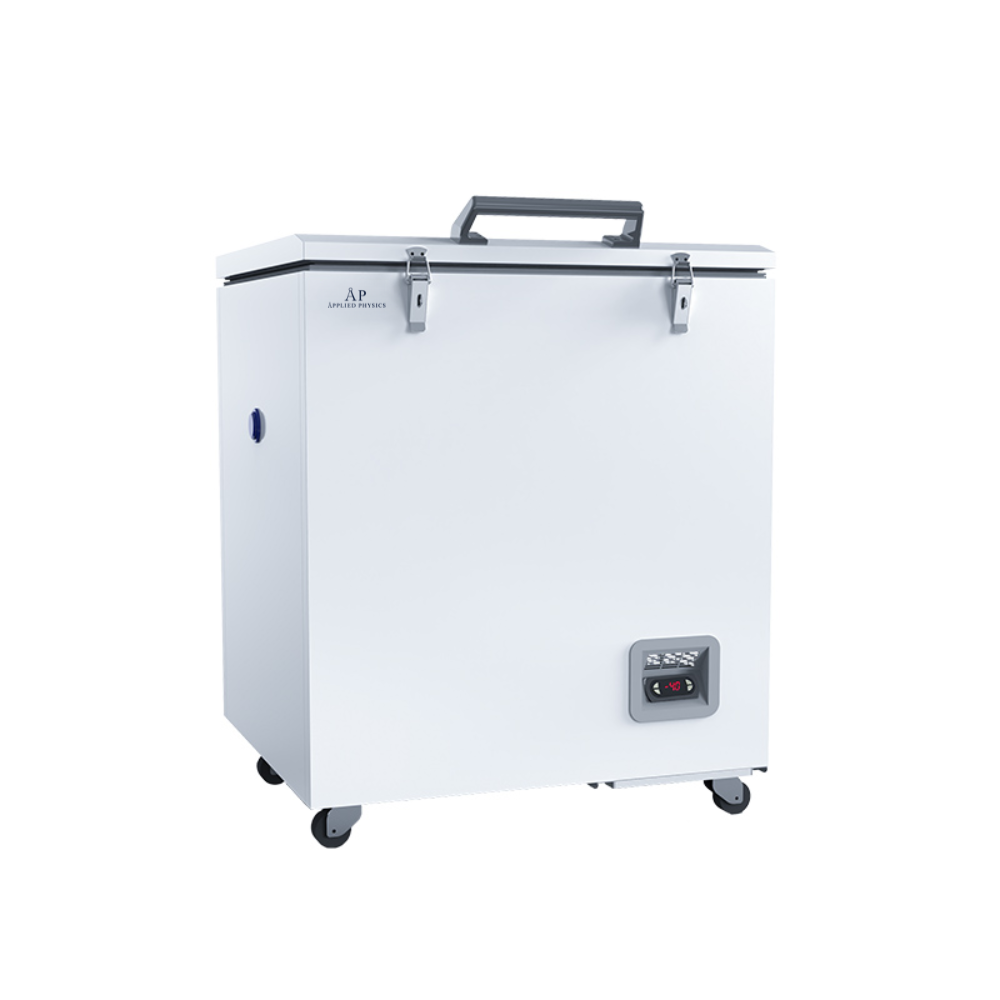

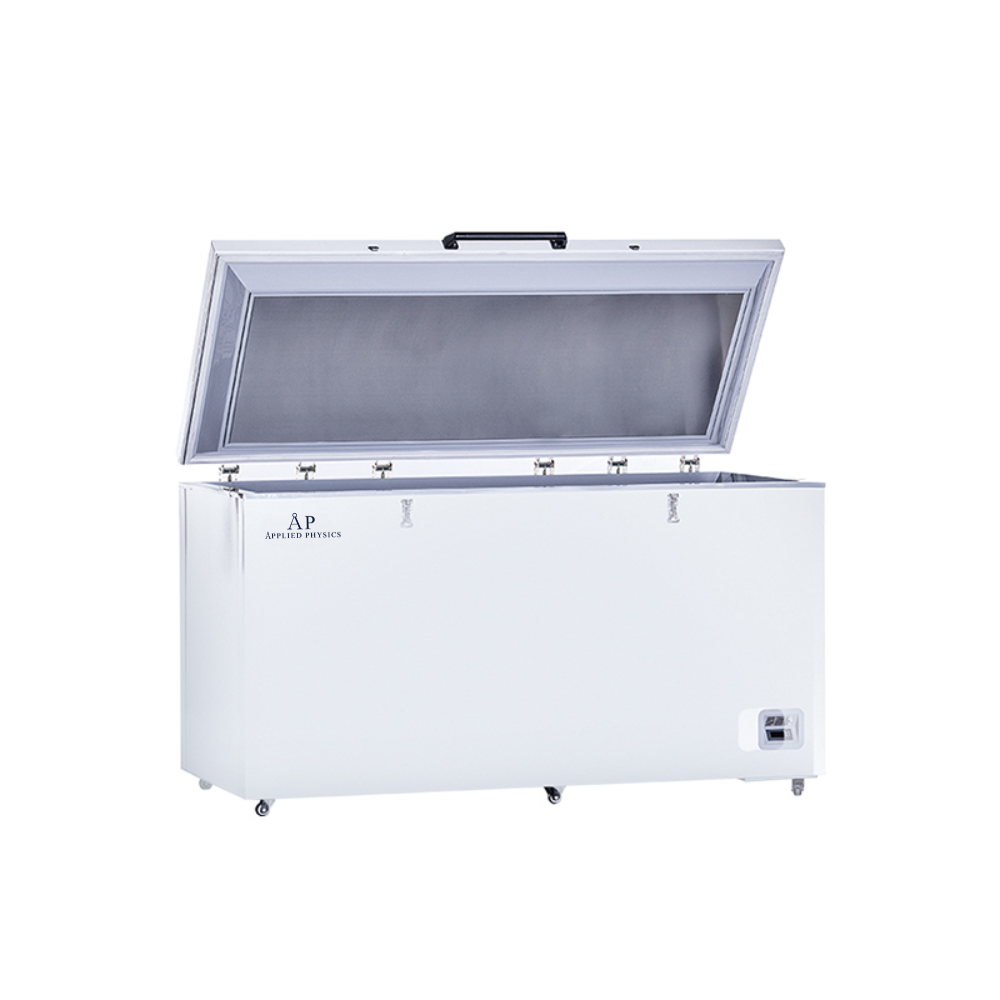

‘-40℃ Freezer BDF-40H110 BDF-40H210 BDF-40H310 BDF-40H485

Description

‘-40℃ Freezer BDF-40H110 BDF-40H210 BDF-40H310 BDF-40H485

Technical Parameters:

Model

BDF-40H110

BDF-40H210

BDF-40H310

BDF-40H485

Capacity

110L

210L

308L

485L

Temp. Range

-15~-40℃

-20~-40℃

Temp. Accuracy

0.1℃

Temp. Uniformity

≤3℃

Temp. Stability

≤3℃

Recovery Time

(Recover to -37℃ in an ambient temp. of  25℃)

≤5min

Cooling Time

(Cool down to -40℃ in an ambient temp. of  25℃)

≤150min

≤195min

Control System

Microprocessor control

Display

LED display

Alarm

High and low temperature alarm, thermostat fault alarm, power failure alarm(48h)

High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(48h)

Refrigeration Type

Direct-cooling

Refrigerant

R290/50g

R290/55g

R290/60g

R290/68g

Compressor

International famous brand compressor /1

Condenser & Evaporator

Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator

Defrost

Manual defrost

Construction

Polyurethane cyclopentane foam

Material

Internal Material

304 stainless steel

External Material

Sprayed steel plate

Door

Outer door: cyclopentane integral foam outer door*1

Inner door: /

Consumption

270W

280W

290W

300W

Power Supply

AC 220V, 50Hz(Standard); 110/220V, 60Hz(Optional, external transformer)

AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)

Casters

Yes

Shelf

/

Standard Accessory

Test hole

Optional Accessory

Temperature recorder, RS485 interface, USB interface

Temperature recorder

Internal Size (W*D*H)

520*460*600mm

760*540*600mm

1038*540*600mm

1455*525*665mm

External Size (W*D*H)

705*705*885mm

945*785*885mm

1225*790*885mm

1667*863*949mm

Package Size (W*D*H)

805*800*1015mm

1045*880*1015mm

1325*885*1015mm

1775*900*1050mm

Net Weight

58kg

68kg

76kg

124kg

Gross Weight

73kg

88kg

101kg

138kg
