Introduction:
AP Medical 5-Part Veterinary Hematology Analyzer represents cutting-edge technology in veterinary diagnostics, offering precise and efficient blood analysis for comprehensive veterinary care. With its advanced features and user-friendly interface, it provides veterinarians with accurate results quickly, aiding in timely diagnoses and treatment decisions.
$0.00

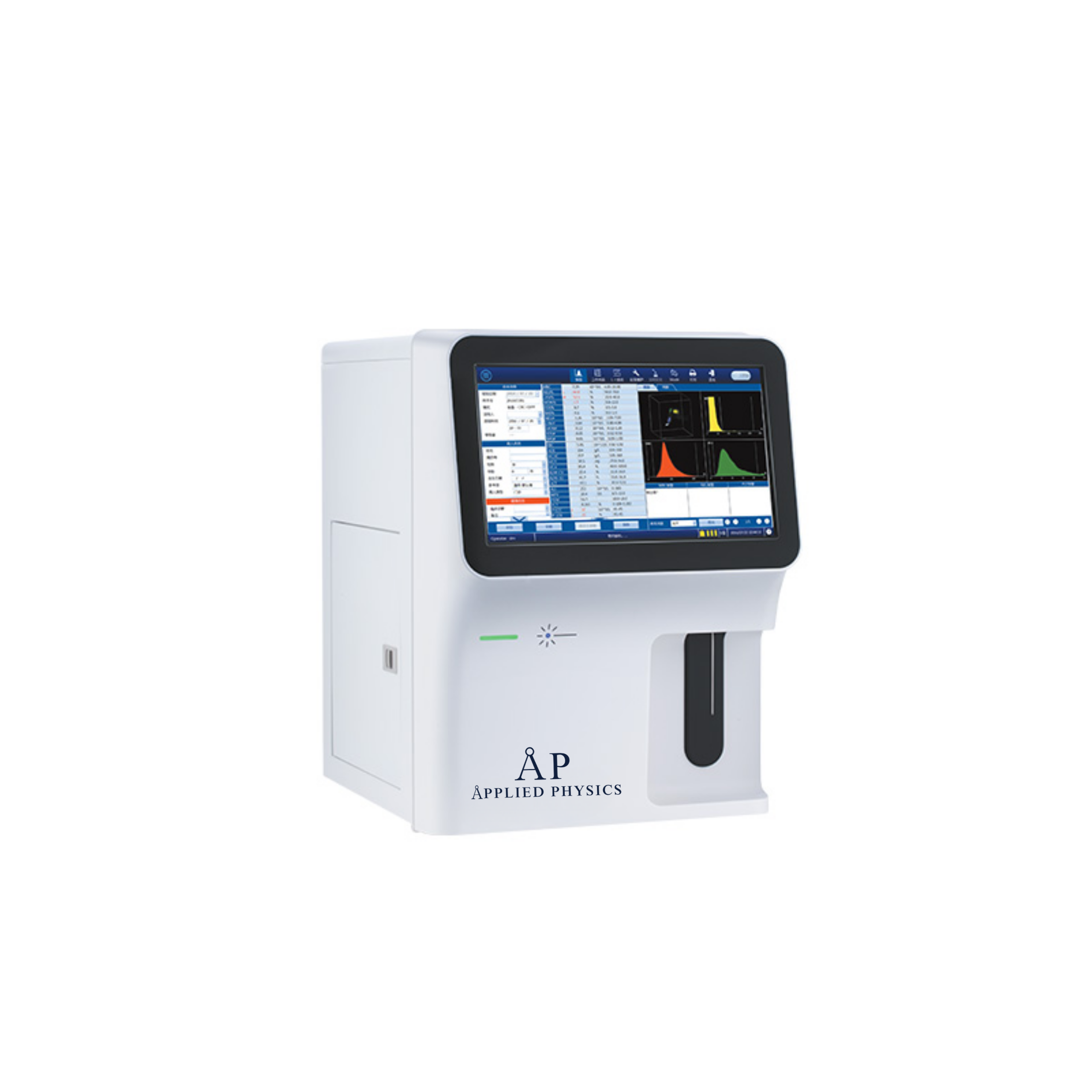

5-Part Auto Veterinary Hematology Analyzer BK-6310VET
Features:
1. Throughput 60T/H.
2. 14-inch touch screen.
3. Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting.
4. 3D holographic scattergram displays the accurate 5-part differentiation of WBC.
5. Large storage capacity: 300,000 results(including histogram, scattergram, animal information).
Technical Parameters:
Model
BK-6310VET
Throughput
60 Tests/hour
Sample Profile
Dog, cat, horse, sheep, goat, camel, cow, more species coming soon
Assay Items
5 parts, 25 parameters, 3 histograms, 3D scattergram
Principle
Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test
Test Mode
CBC mode, CBC+DIFF mode
Venous whole blood, prediluted
Sample Volume
CBC+DIFF mode: 19.8μl
CBC mode: 10μl
prediluted blood: 20μl
Parameters
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#. 4 research parameters: ALY%, ALY#, LIC%, LIC#
Performance
Item
Linearity range
Carry Over
CV
WBC
1~99.9*109/L
≤0.5%
≤2.0%
RBC
0.3~7*1012/L
≤0.5%
≤1.5%
HGB
20~240g/L
≤0.5%
≤1.5%
PLT
20~999*109/L
≤1.0%
≤4.0%
Storage
300,000 results including histograms, scattergrams and patient information
Interface
4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader
Power Supply
AC100-240V,50/60Hz, 300VA
Package Size(W*D*H)
575*490*690mm
Gross Weight
46kg
Reagent Package Size
330*330*330mm, 400*290*240mm, 400*290*240mm
Reagent Gross Weight
22kg 2kg, 2kg
| Model | BK-6310VET |
|---|
