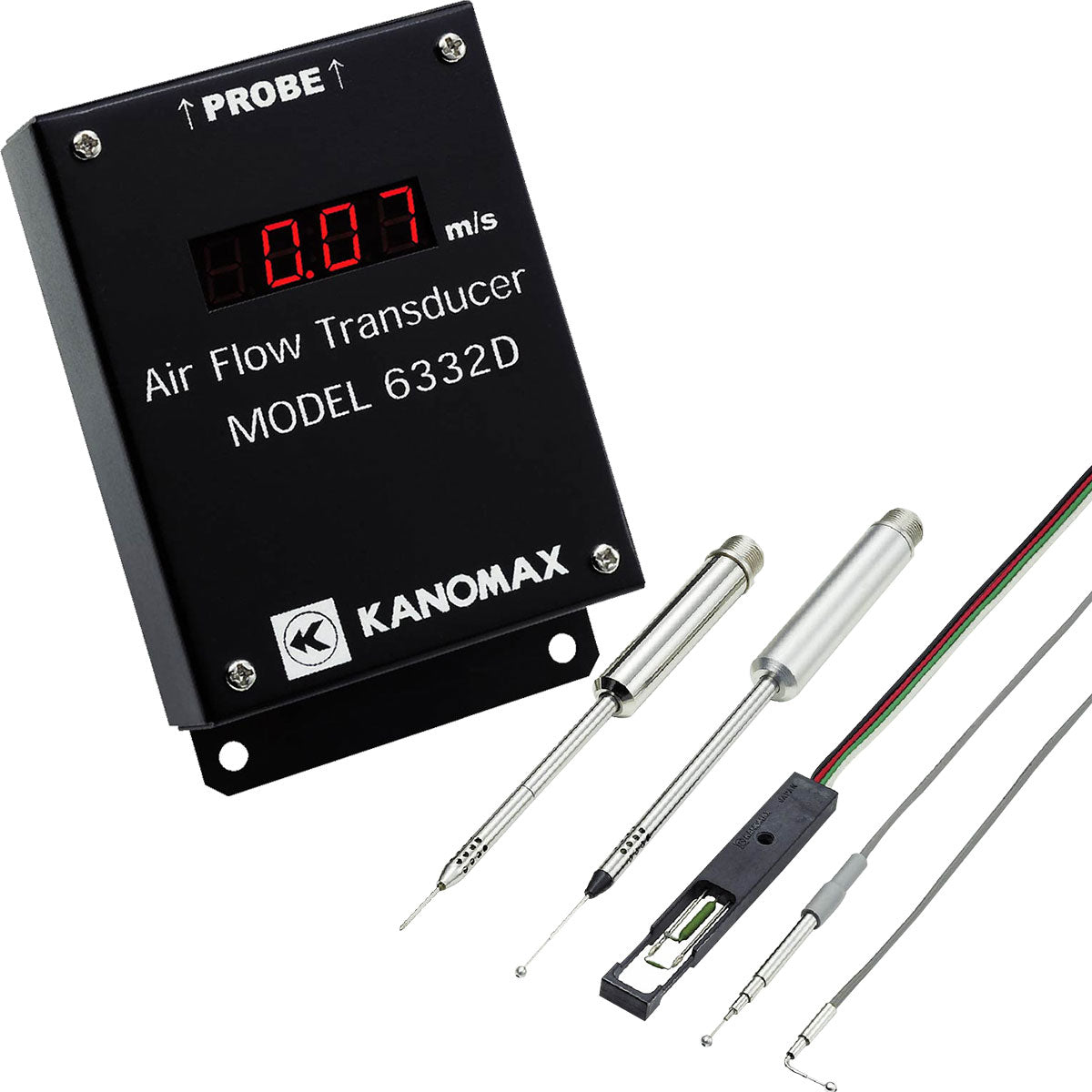

The Kanomax Airflow Transducer – Models 6332/6332D comes equipped with analog output and smart probe technology, making it easy to integrate with other equipment. Smart probe technology lets you change probes without recalibrating the transducer. Multiple probe options are available separately, allowing you to choose the ones that meet your application needs. This instrument is ideal for applications involving the need to measure or monitor air velocity over a long duration. Model 6332D comes with a display, while Model 6332 does not have a display.
Description
Features & Benefits
- Analog output makes it easy to integrate with other equipment
- Smart probe technology lets you change probes without recalibrating the transducer
- Purchase probes separately and choose the ones that meet your application needs
- Quality Control monitoring and controlling air velocity and distribution during drying/ shaping process
- Combined with thermographic system measure air velocity across the board to evaluate the cooling efficiency
- Model 6332D comes with a display, Model 6332 does not have a display
- Airflow transducers are designed for fixed installation
- Use on your production line quality control system
- Monitor facility exhaust ventilation system
- Transducers feature 0 to 5 VDC or 4 to 20 mA analog output so you can send your data to other instruments such as data loggers, alarms, or controllers
- Selectable Output (Output can be set to either voltage [0 to 5V] or current [4 to 20mA])
Applications
- Quality inspection of factory inspection line
- Evaluation of thermal measures for PCBs
- Air volume monitoring of local ventilation system
- 24-hour monitoring of in-house ventilation
- Indoor farming
Specifications
| Main Unit Specifications | ||
|---|---|---|
| General Specifications | ||
| Analog Output | Current output: DC 4~20mA (Max. load resistance: 250Ω) Voltage output: DC 0~5V |
|
| Display Resolution (Model 6332D only) | 0.01m/s (Velocity Range: 0 to 2, 0 to 5, 0 to 10 m/s) 0.1m/s (Velocity Range: 0 to 25, 0 to 50 m/s) |
|
| Response Time | Display: 0.3 second Sampling: 0.1 second Output: 0.1 second | |
| Power Supply | DC 12 to 24V | |
| Operating Temperature Range | 41 to 104 ºF (5 to 40 ºC) with no condensation | |
| Storage Temperature Range | 14 to 122°F (-10 to 50°C) with no condensation | |
| Dimensions | 128(W)×78(D)×30(H) mm | |
| Weight | 0.7 lbs (320g) | |
| Warranty | 1 year | |
| What’s Included | Meter, Operation Manual | |
| Airflow Transducer Probes (See Table Below) | ||
| Measurement Specifications | ||
| Air Velocity | Ranges | 0.1 to 25.0 m/s 0.1 to 50.0 m/s |
| Accuracy | +/- (3% of READING +/- 0.1) m/s | |
| Operating Temperature Range | -4 to 158°F (-20 to 70°C) with no condensation | |
| Storage Temperature Range | 14 to 122°F (-10 to 50°C) with no condensation | |
| Warranty | 1 year | |
| What’s Included | Probe, Data ROM, NIST TRACEABLE CALIBRATION Certificate | |
| Model | 0962-00 | 0963-00 | 0965-00 | 0965-01 | 0965-03 | 0965-04 | 0965-07 | 0965-08 | 0965-09 | 0965-10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Air Velocity Range (m/s) | 0.1 to 50.0 | 0.1 to 50.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 25.0 | 0.1 to 50.0 | 0.1 to 50.0 |
| Airflow Directivity | Mono | Mono | Omni | Omni | Omni | Omni | Omni | Omni | Omni | Omni |
| Probe Type | Rod | Rod | Spherical | Spherical | Miniature | Miniature | Miniature | Miniature | Spherical | Spherical |
| Air Velocity | O | O | O | O | O | O | O | O | O | O |
| Acclimation Time (sec) | 1 | 1 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
Resources
User Manual
Data Sheet - English
Data Sheet - Espanol
Application Note - Airflow Monitoring for Indoor Farming
Engineering Drawings - Probes Information
Accessories
- Uni-Directional Probe (V): Model 0962-00
- Uni-Directional Probe (V): Model 0963-00
- Omni-Directional Probe (V): Model 0965-00
- Omni-Directional Probe (V): Model 0965-01
- Miniature Omni-Directional Probe (V): Model 0965-03
- Miniature Omni-Directional Probe (V): Model 0965-04
- Miniature Omni-Directional Probe (V): Model 0965-07
- Miniature Omni-Directional Probe (V): Model 0965-08
- Omni-Directional Probe (V): Model 0965-09
- Omni-Directional Probe (V): Model 0965-10
- AC Adapter: Model 6332-02
- 11mm Probe Protector: Model 6521-30
- 4.6mm Probe Protector: Model 1500-03
- 2M 1-Channel Probe Cable (V): Model 1504-02
- 5M 1-Channel Probe Cable (V): Model 1504-03
- 10M 1-Channel Probe Cable (V): Model 1504-04
- 20M 1-Channel Probe Cable (V): Model 1504-05
- 30M 1-Channel Probe Cable (V): Model 1504-06
