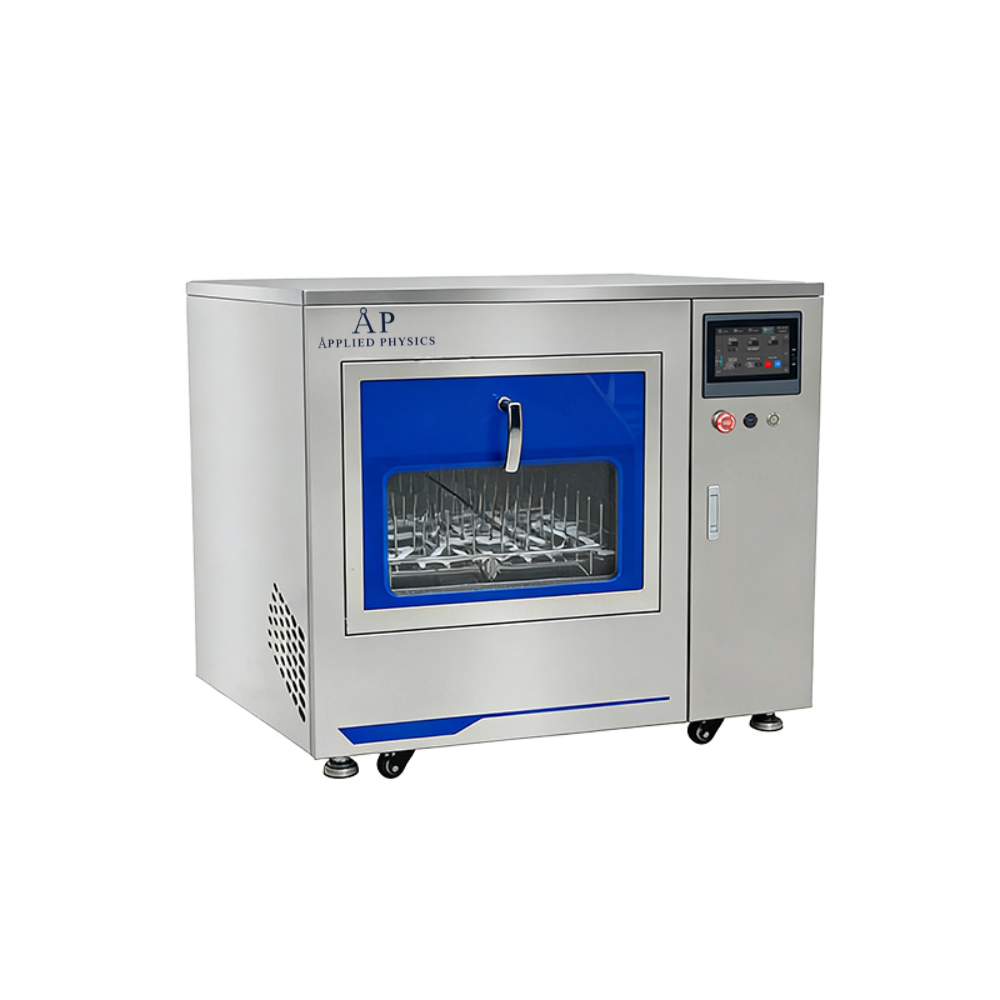

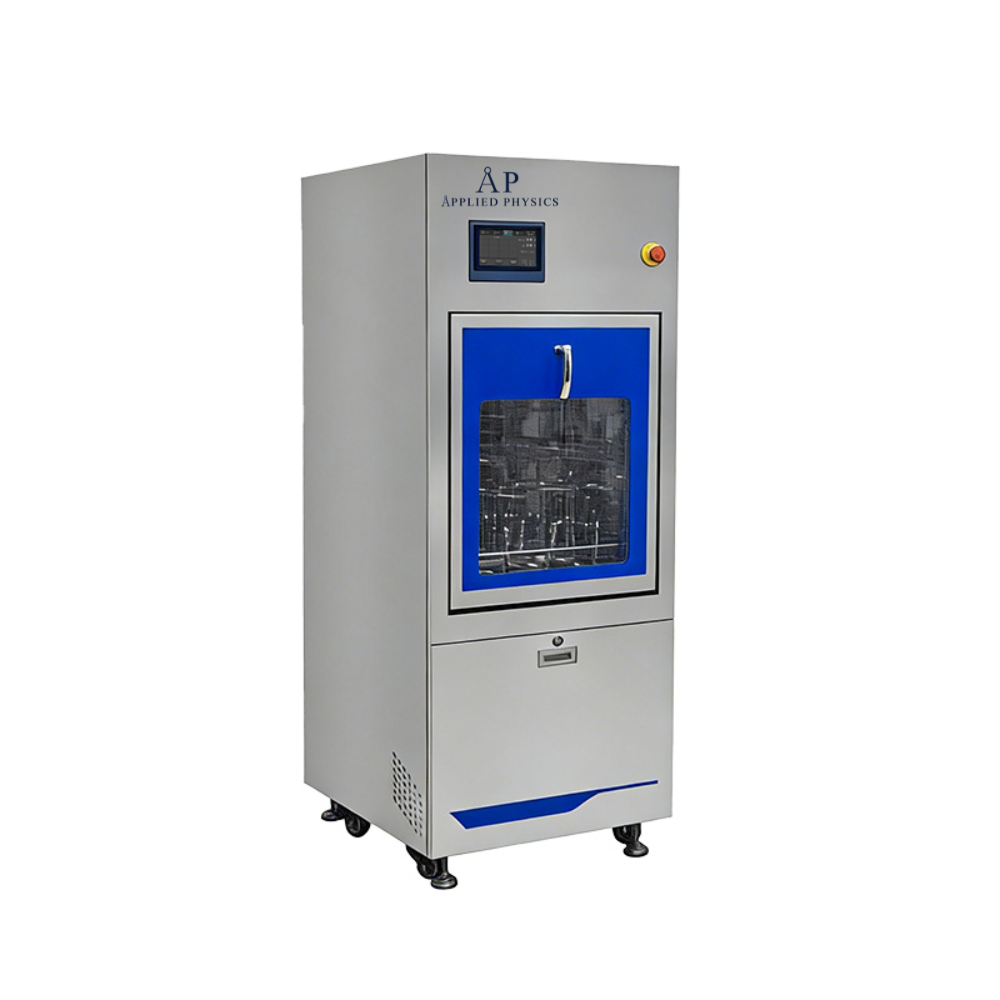

Lab Automatic Glassware Washer provides standard and automatic cleaning and disinfection for most of medical equipment, so as to eliminate the possibility of infection in cleaning and disinfecting.
$0.00
Features:
1. High efficient cleaning system, designed with European reliable pump, optimized spray arm and nozzles, and self-cleaning program.
2. Rapid and efficient drying system, designed with independent air heater, HEPA filter and drying process.
3. Water heating temperature can reach 99℃, while hot air drying temperature can reach 120℃.
4. Professional configuration design—stainless steel for corrosion resistance;reinforced glass window mounted to achieve a clear view on washing process.
5. PLC touch screen control with preset 12 programs and 99 cutomized programs.
6. Safety protection—electronic security door lock to prevent unexpected door opening, water&drying air temperature dual control and equipped with emergency switch.
Standard Washing Procedure(can be self-designed by the user):
Pre-cleaning→Washing with cleaner→Rinse→Washing with neutralization→Rinse→Washing with hot water→Drying

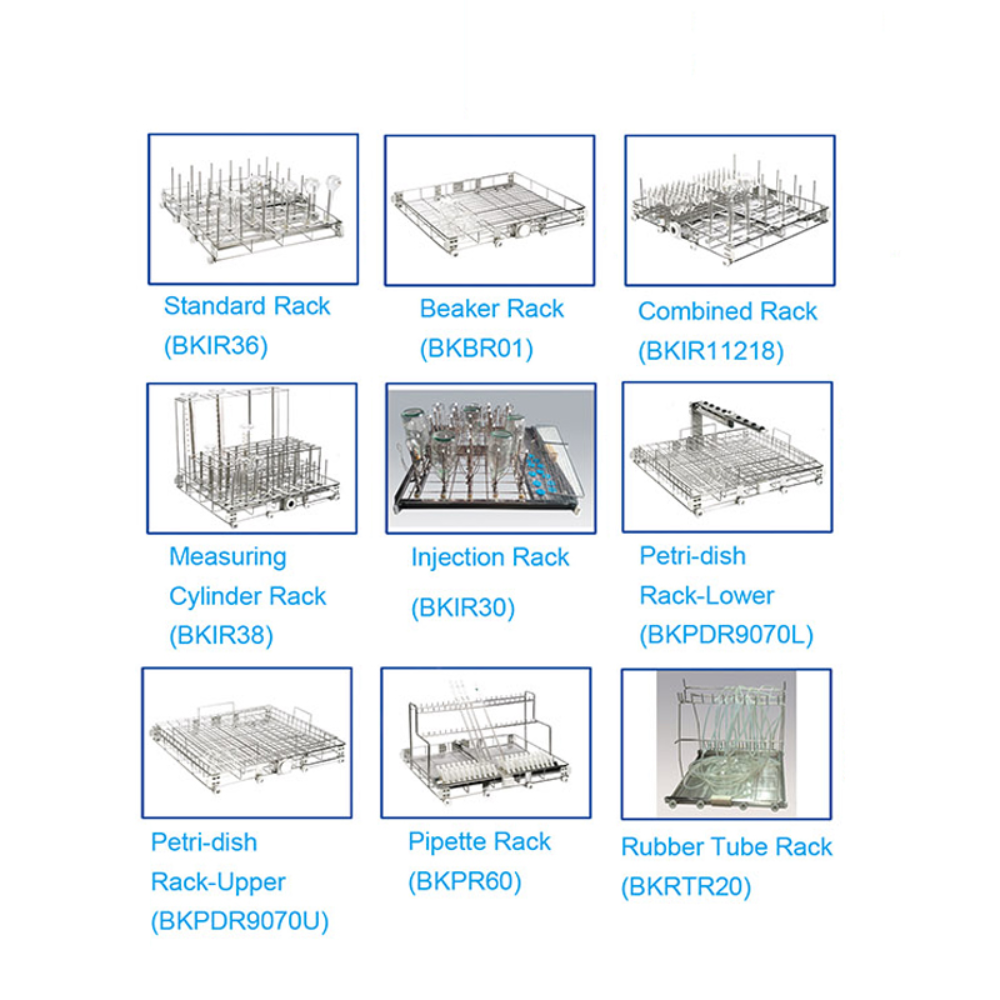

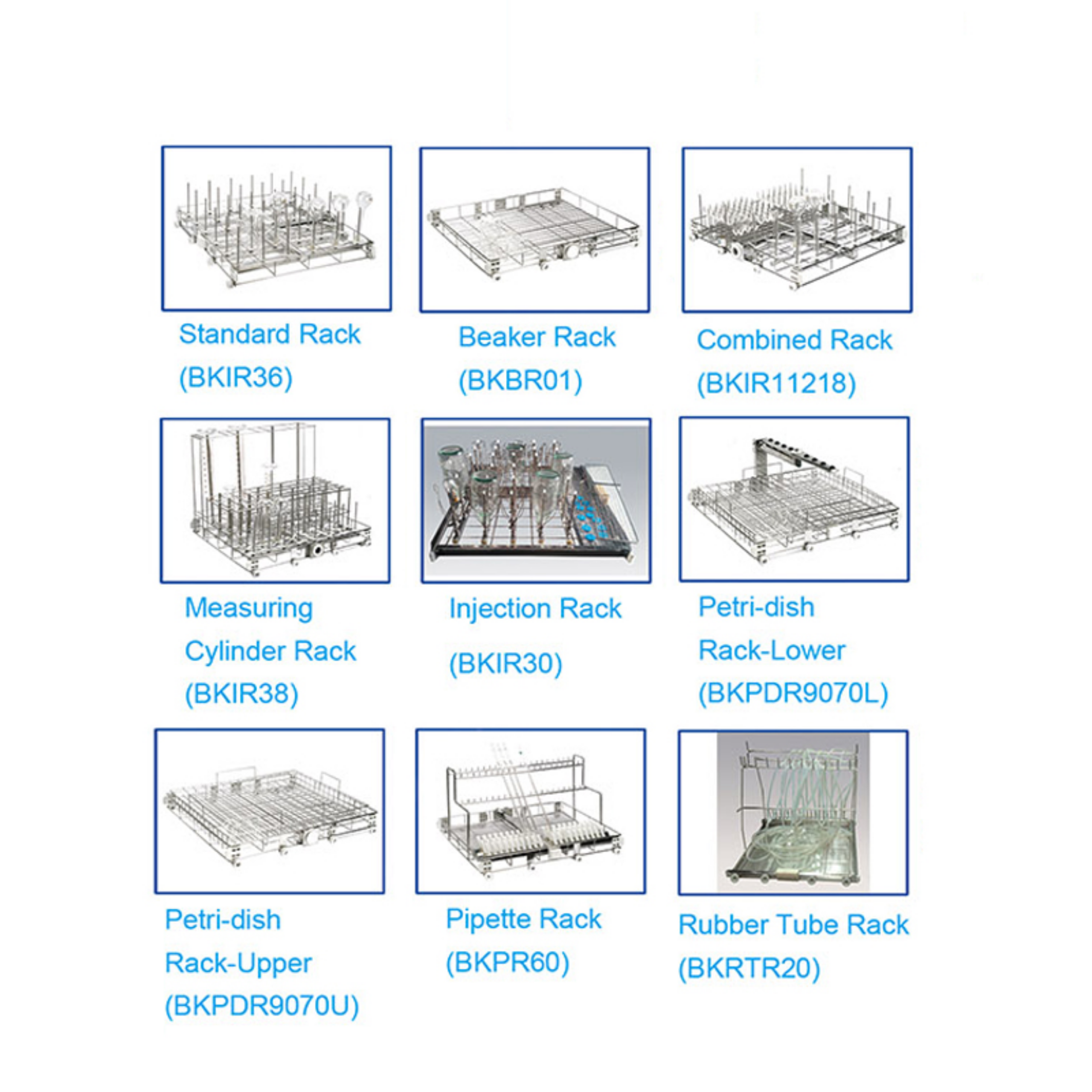

ALL cleaning racks can be removed completely, convenient to washing rack pipeline:
Technical Parameters:
| Model | BK-LW120 | BK-LW220 | BK-LW320 | |||
| Cleaning | Capacity | 120L | 220L | 320L | ||
| Washer Load Level | 1 | 2 | 3 | |||
| Water Wash Power | 0.75KW | 0.75KW | 1.5KW | |||
| Water Heater Power | 5KW | 5KW | 15KW | 5KW | 15KW | |
| MAX. Power | 6KW | 6KW | 16KW | 7KW | 17KW | |
| Water Consumption/Step | 17L | 20L | 22L | |||
| Tank Internal Temperature | 0~99℃ | |||||
| Water Supply Pressure | 0.3~1.0Mpa | |||||
| Peristaltic Pump for Cleaning Agent | 2 independent pumps control detergent agent and neutralizing agent | |||||
| Cleaning Agent Level Sensor | YES | |||||
| Washing Pump | Sweden 430L/min | Sweden 800L/min | Sweden 1000L/min | |||
| Standard Cleaning Racks | BKIR36*1 | BKIR36*2 | BKIR36*3 | |||
| Drying | Drying Function | YES | ||||
| Steam Condenser | YES | |||||
| Dry Power | 3KW | 3.6KW | 3.6KW | |||
| Control System and Traceability | Control System | 7″ color LCD touch screen display, microprocessor | ||||
| Cleaning Program | 12 pre-set programs(editable)+99 PLC free programming | |||||
| Password Protection | 3 levels password | |||||
| Safety Emergency Button | YES | |||||
| USB Port | YES | |||||
| Integrated Printer | Optional | |||||
| Online Monitor Performance of Washing | Optional | |||||
| Dimensions&Weight | Chamber Dimension(W*D*H) | 600*629*539mm | 600*629*754mm | 600*629*915mm | ||
| Exterior Dimension(W*D*H) | 980*740*870mm | 695*870*1820mm | 695*870*1990mm | |||
| Package Dimension(W*D*H) | 1110*940*1075mm | 810*990*2015mm | 810*990*2185mm | |||
| Net Weight(Host only) | 169kg | 220kg | 237kg | |||
| Gross Weight(Host with rack) | 200kg | 300kg | 320kg | |||
| Others | Door | Double-layered glass door | ||||
| Safety Door Lock | YES | |||||
| Built-in RO Water Pump | YES | |||||
| Noise | <50dB | <55dB | <55dB | |||
| Power Supply | AC220V, 50Hz(Standard);
AC110V, 50/60Hz; 220V, 60Hz(Optional) |
AC220V, 50Hz; 380V, 50Hz(Standard);
AC110V, 50/60Hz; AC220V, 60Hz; 220V, 60Hz(Three phase), 380V, 60Hz(Optional) |
||||
| Model | BK-LW120, BK-LW220, BK-LW320 |
|---|
