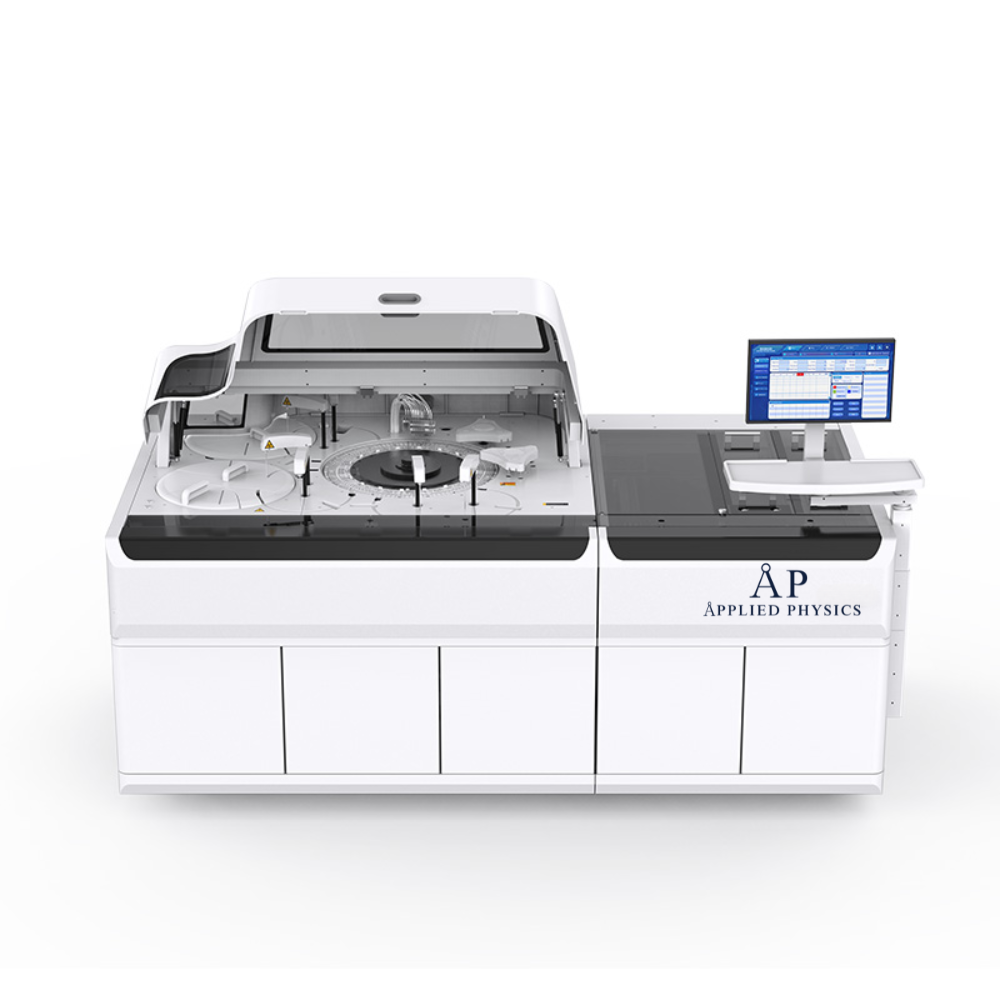

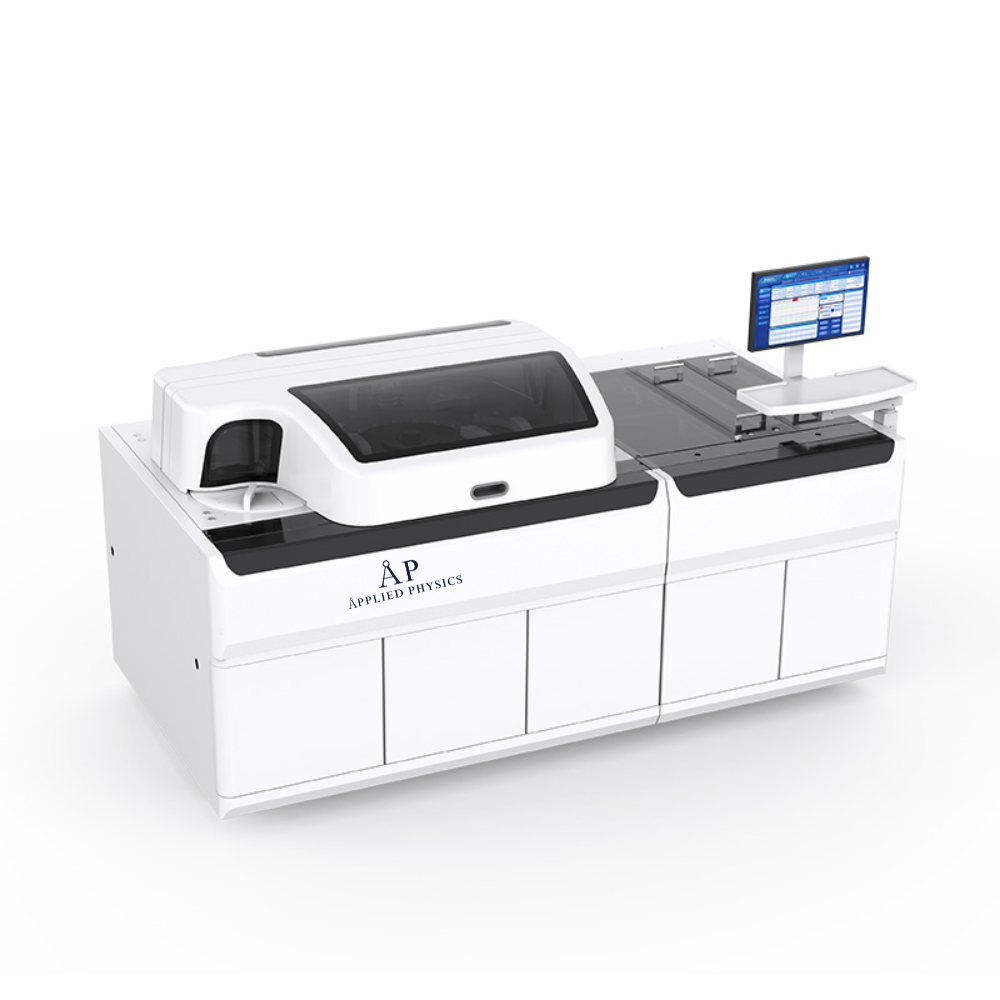

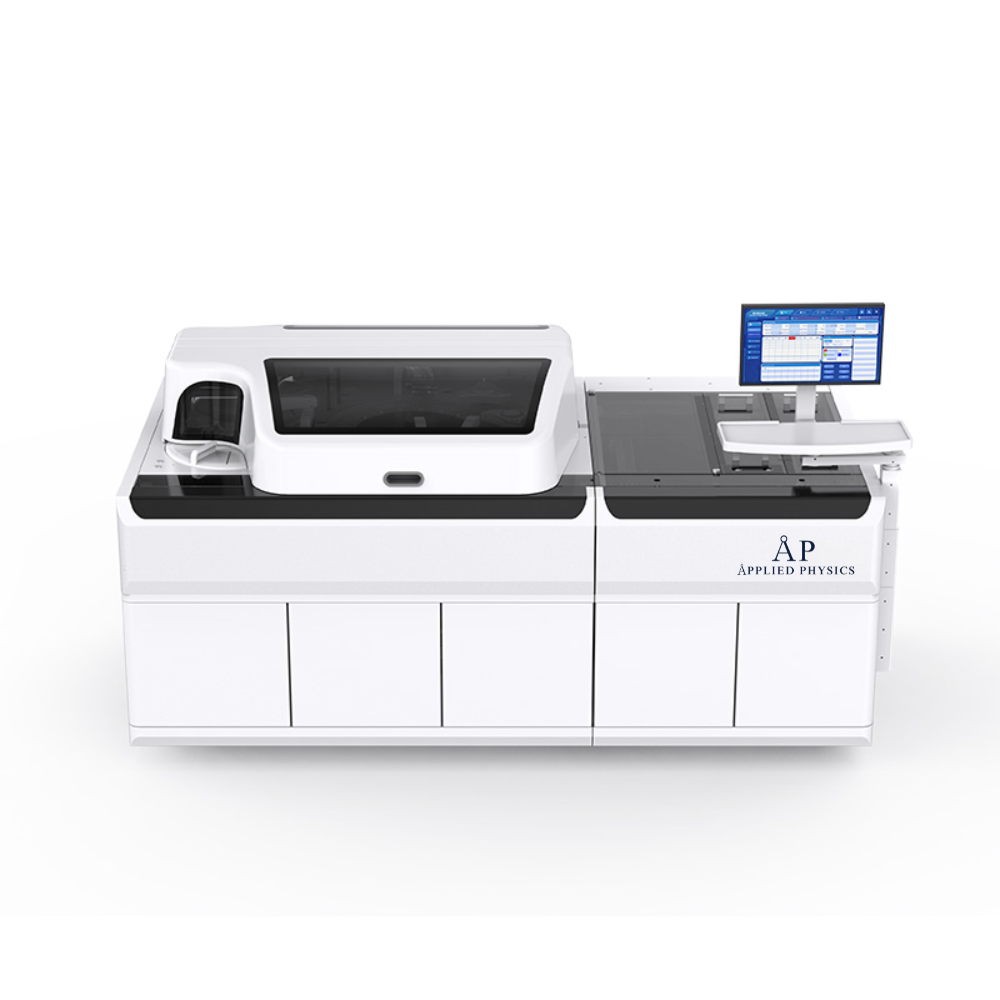

Automatic Chemistry Analyzer BK-2000

Description

Automatic Chemistry Analyzer BK-2000

Features:

1. 300 sample positions.

2. 432 reaction cuvettes.

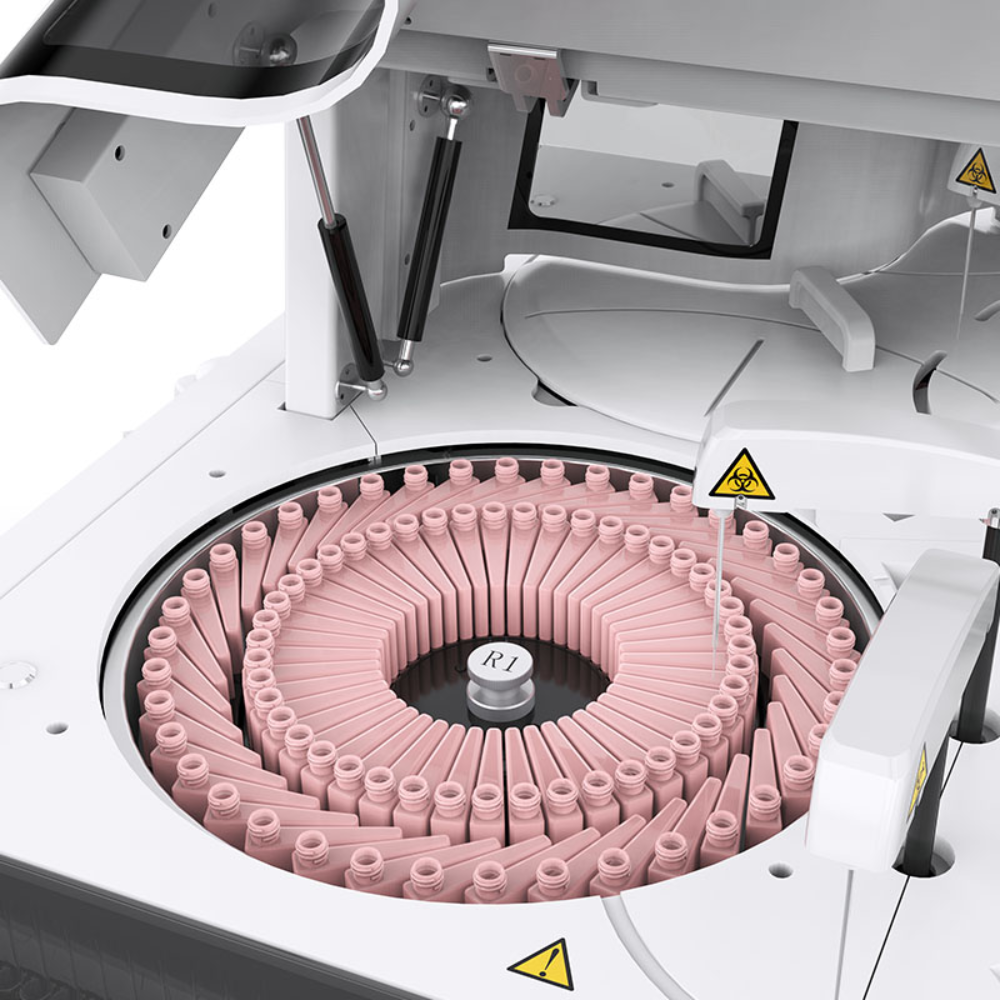

3. 250 refrigerated reagent positions.

4. Double focus, double aperture, holographic concave grating.

5. 2000 tests per hour, ISE is optional.

6. Built-in sample barcode system.

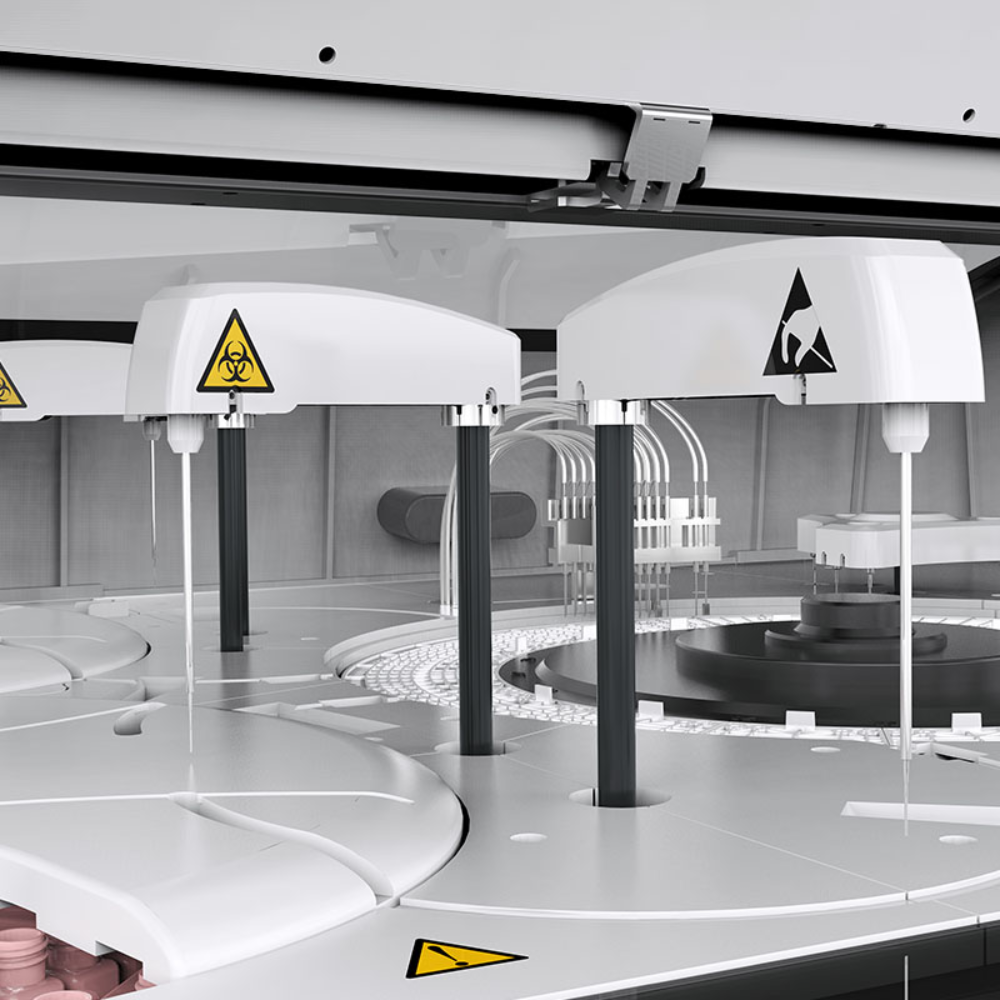

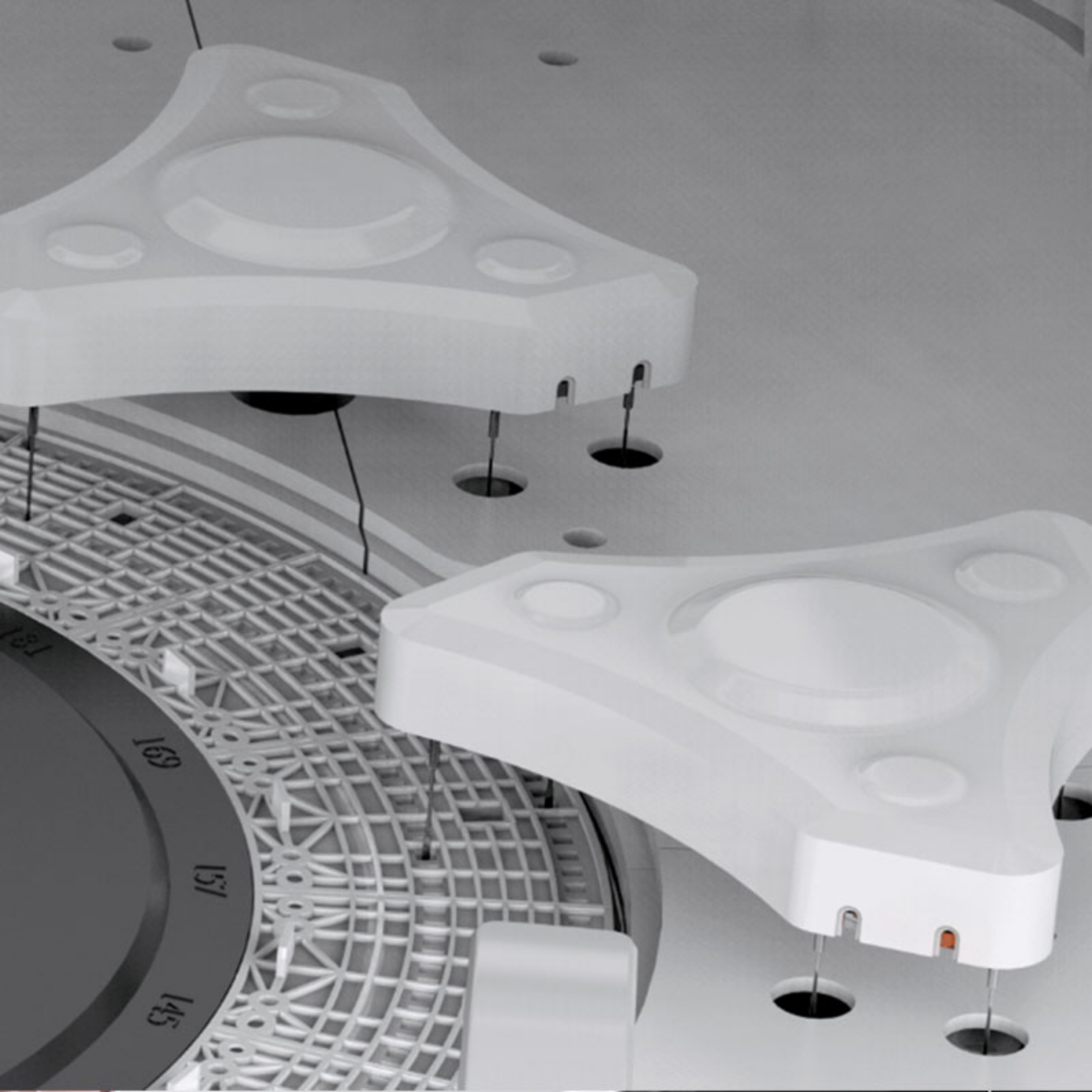

7. Probe with anti-collision function, liquid level detection function.

Technical Parameters:

Model

BK-2000

Overall
Performance

Throughput

2000 tests/hour, ISE(Optional)

Analysis Method

End-point, Fixed-time, Rate(Kinetic), Turbidimetry

Certificates

CE, FDA, ISO9001, ISO14001, ISO13485

Sample&Reagent System

Sample Positions

350 sample positions

Reagent Positions

250 reagent positions

Sample Volume

1~35μl

Reagent Volume

10~350μl

Probe

Teflon coating, with anti-collision function, liquid level detection function

Probe Washing

Automatic washing interior and exterior

Reagent Cooling

Refrigerated tray with independent switch

Reaction System

Temperature Control

Water bath 37±0.1℃, real-time monitoring

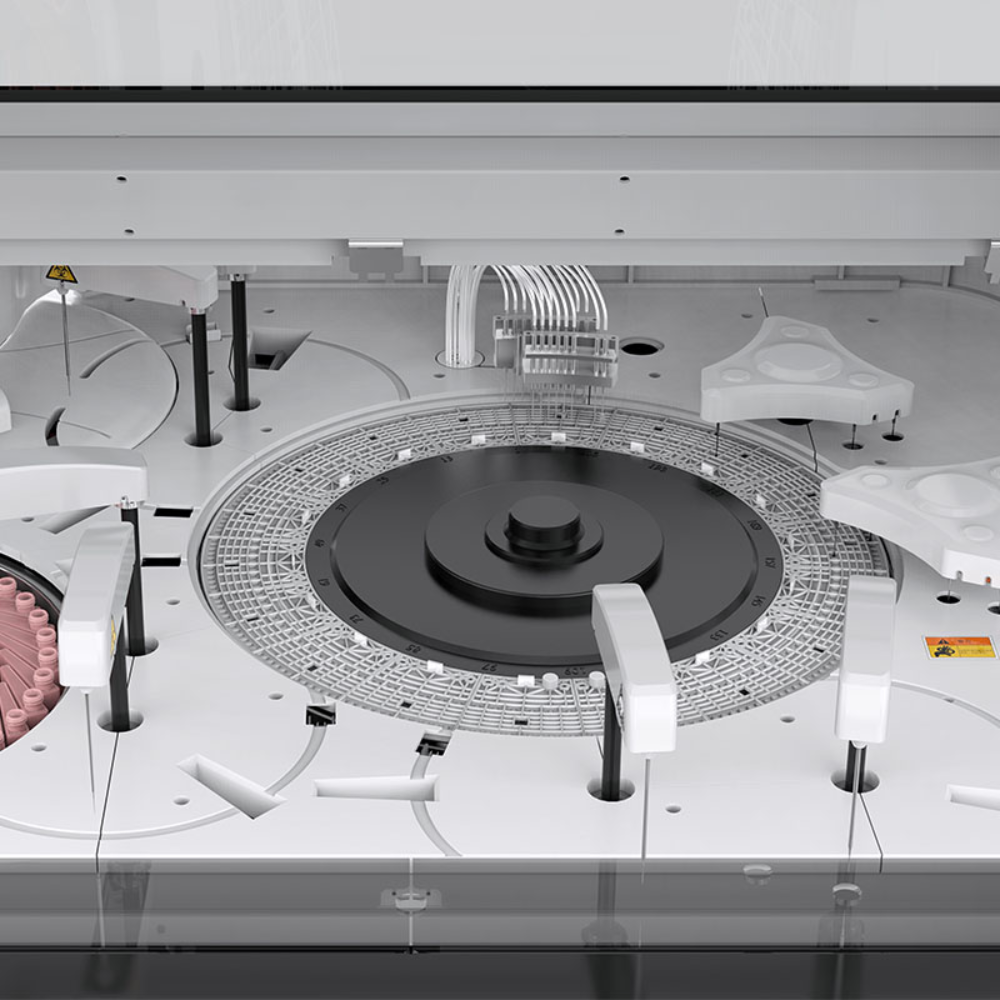

Cuvettes

432 reusable cuvettes, optical length 5.5mm

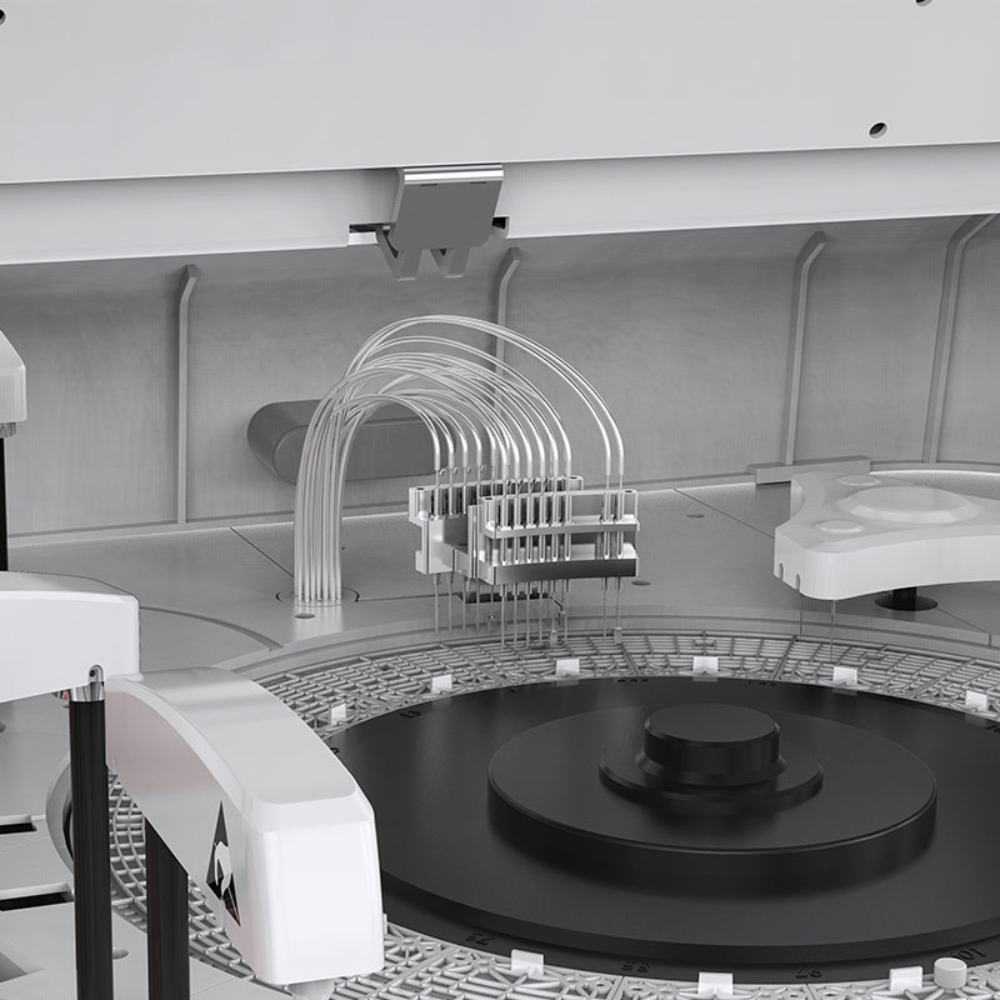

Mixer Probe

Independent stirring

Washing

Automatic cuvettes washing

STAT function

YES

Optical System

Light Source

12V/100W halogen lamp/holographic concave grating

Spectrophotometry

Post-spectral spectrophotometry

Wavelength

16 wavelength from 340~850nm

Absorbance

0~3.5Abs

Calibration&QC

Calibration

Linear: K factor, 1-point, 2-point and multipoint linear

Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P

Quality Control

Real-time QC, Westgard Multi Rule, Cumulative Sum Check, Twin Plot(2D)

Data Management

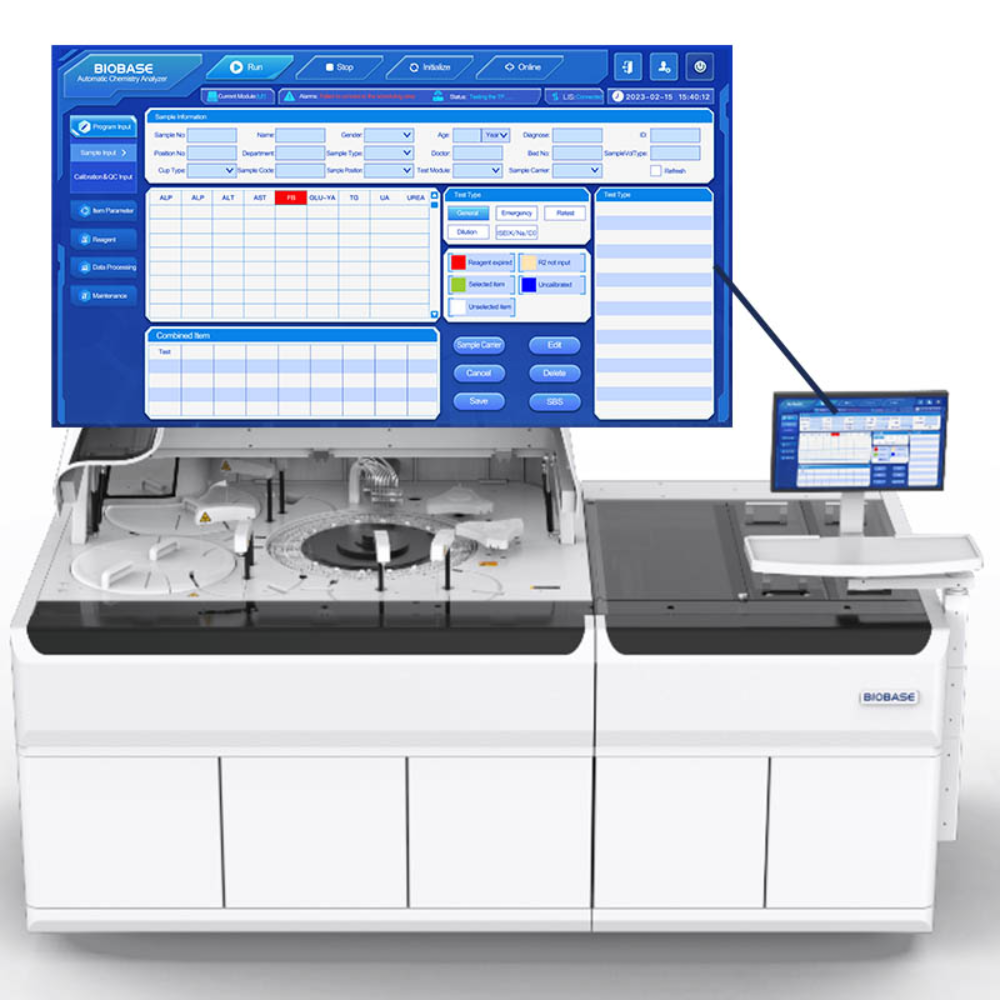

Software

Windows 7/8/10, 32 or 64 bit

LIS System

Bi-direction, support HL7 protocol

Interface

LAN port access

Printer

External, multiple reporting mode available

Working Conditions

Power Supply

AC220V±10%, 50/60Hz(Standard)

110V±10%, 60Hz(Optional), 3000W

Temperature

15~30℃(±2 ℃)

Water Consumption

Deionized water: 80L/H

Humidity

40~85%

Size&Weight

External Size(W*D*H)

Scheduling module: 972*1225*1495mm

Analysis module: 1505*1225*1245mm

Net Weight

Scheduling module: 160kg

Analysis module: 500kg

Package Size(W*D*H)

Scheduling module: 1410*1350*1170mm

Analysis module: 1685*1410*1460mm

Gross Weight

Scheduling module: 235kg

Analysis module: 600kg
