Application:
AP Medical Automatic Fiber Analyzer is designed for accurate and efficient determination of crude fiber, acid detergent fiber (ADF), and neutral detergent fiber (NDF) in food, feed, and agricultural samples. Featuring automated operation and precise temperature control, it significantly improves testing efficiency while reducing manual error.
$0.00

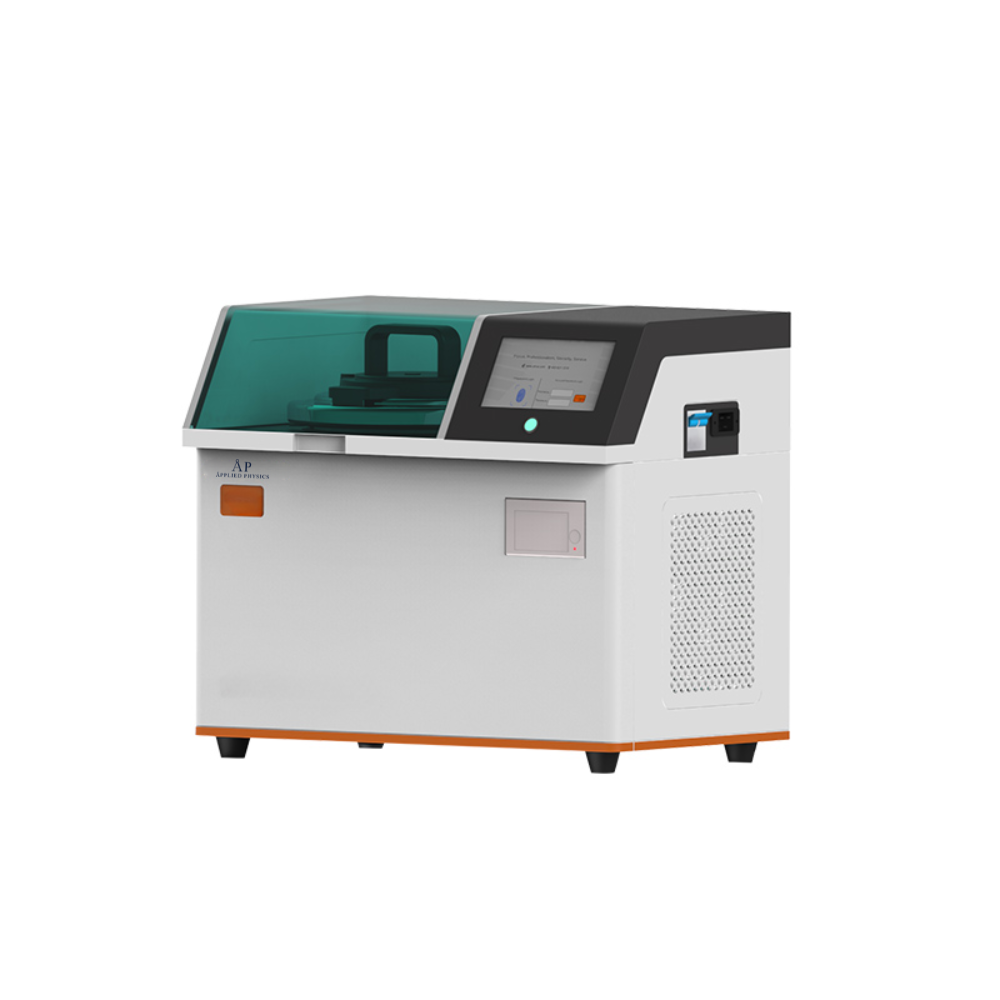

Automatic Fiber Analyzer BK-F5800
Features:
1. Full compliance with international standards, full-automatic operation, solves traditional drawbacks, and ensures accurate CF/ADF/NDF testing.
2. Advanced filter bag technology for stable, reliable CF/NDF/ADF analysis results.
3. 16-bit true-color touch screen: intuitive, easy to operate.
4. 50 configurable experimental programs to meet diverse testing needs.
5. 5 user accounts with hierarchical permissions for standardized management.
6. Fingerprint login: no account/password, faster operation.
7. Built-in component detection: easy maintenance, longer equipment life.
8. Special material reaction kettle: high temperature/pressure/corrosion resistance, safe and stable operation.
9. Anti-foam design: no defoamer, eco-friendly, cost-saving.
10. Automatic reagent filling (5 types): high-speed, quiet, self-cleaning pipelines, no cross-contamination.
11. High-power heating: ≤5min to set temperature, high efficiency.
12. Closed digestion: no cooling water, precise temperature control, accurate results.
13. Intelligent alarms: auto-pause on abnormalities, protects equipment.
14. Experiment completion prompts: built-in formulas + printer, no manual calculation.
Technical Parameters:
Model
BK-F5800
Processing Temperature Range
Room temperature ~100℃
Sample Batch Capacity
1~24
Sampling Amount/Bag
0.5~1.5g
Adding Method
Automatic
Fiber Test Range
0.1~100%
Temperature Control Accuracy
±0.2℃
The Cooking Time Setting of Each Stage
0~999min
Repeatability Accuracy
If the fiber content is less than 10%, the relative deviation is ≤5%;
If the fiber content is greater than 10%, the relative deviation is ≤3%
Daily Processing Capacity
24~96 pieces of crude fiber, 24~120 pieces of neutral detergent fiber/acid detergent fiber/lignin(8-hour working system)
Power Supply
AC220V, 50Hz
Standard Accessories
Special 3D Filter Bags*200; Inert Black Marking Pens*1; Sealer*1; Filter Bag Fixing Bracket*1; Filter Bag Placement Rack*1; Cover*1
External Size(W*D*H)
580*410*495mm
Net Weight
38kg
Package Size(W*D*H)
680*520*710mm
Gross Weight
56kg
| Model | BK-F5800 |
|---|
