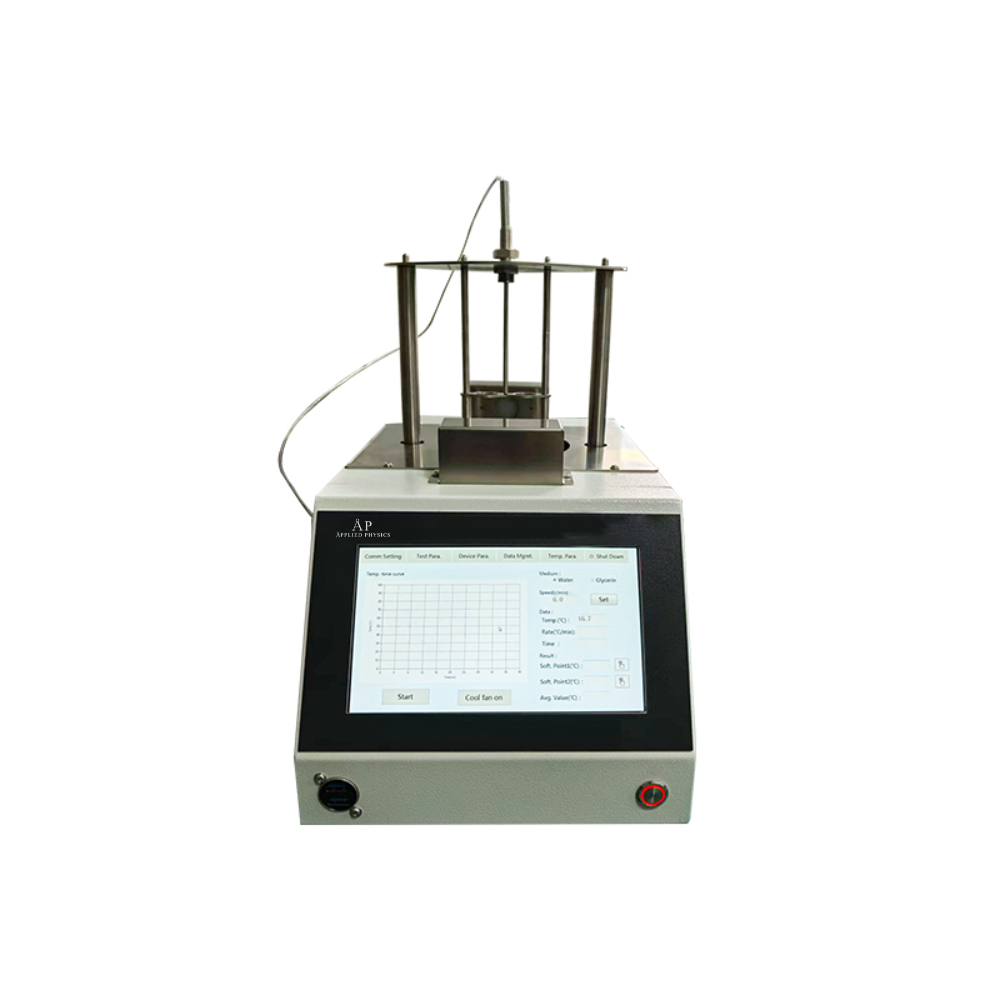

Automatic Softening Point Tester BK-SPT2806G-1

Description

Automatic Softening Point Tester BK-SPT2806G-1

Features:

1. Uses 32-bit ARM processor, color touch LCD & laser detection, with uniform medium temperature, stable heating rate, auto softening point detection, and excellent test repeatability.

2. Advanced algorithm filters bubble impact on test results during medium heating.

3. Software-selectable media: water (20-90℃) and glycerol (70-160℃).

4. Dual-sample simultaneous testing, auto softening point analysis with temp-rise curve & average calculation, reliable results.

5. Stepless magnetic stirrer for real-time speed adjustment, ensuring bath temperature uniformity.

6. Software temperature correction + high-precision mercury thermometer for regular self- calibration, consistent display and measurement.

Technical Parameters:

Model

BK-SPT2806G-1

Capacity of Beaker

1000ml

Measurement Range

5 ℃～80℃ (softening point ≦80 ℃)

32℃～160℃ (softening point >80 ℃)

Temperature Resolution

0.1 ℃

Heating Mode

Bottom electric hotplate heating

Heating Rate

Water Medium

Auto-adjusts to (5±0.5)℃/min 3 mins post-experiment start

Oil Medium

Auto-adjusts to (5±0.5)℃/min after reaching 60℃

Stirrer

Electromagnetic stirring: continuously adjustable speed

Data Display

Built-in industrial PC LCD display

Data Export

USB, high-precision mercury thermometer

Ambient Temperature

15℃～35℃

Relative Humidity

≤85%

Consumption

1500W

Power Supply

AC220±10%V, 50Hz

External Size(W*H*D)

240*400*400mm

Package Size(W*H*D)

660*455*480mm

Net Weight

15kg

Gross Weight

25kg
