The Biological Microscope is a powerful scientific instrument for studying the microscopic world of biology. It offers high-resolution imaging, versatile observation modes, and precision controls, making it an indispensable tool for researchers, educators, and enthusiasts.
$0.00

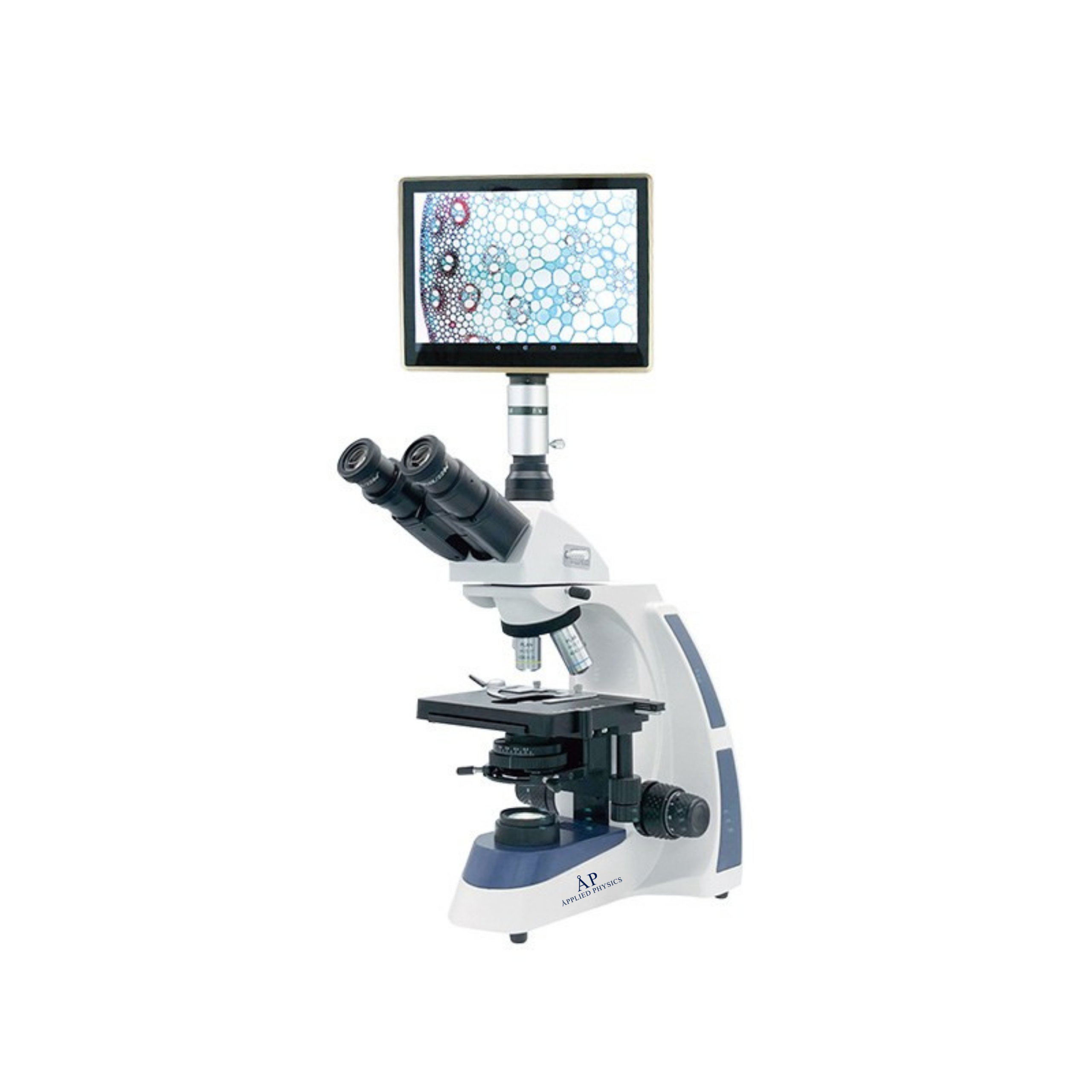

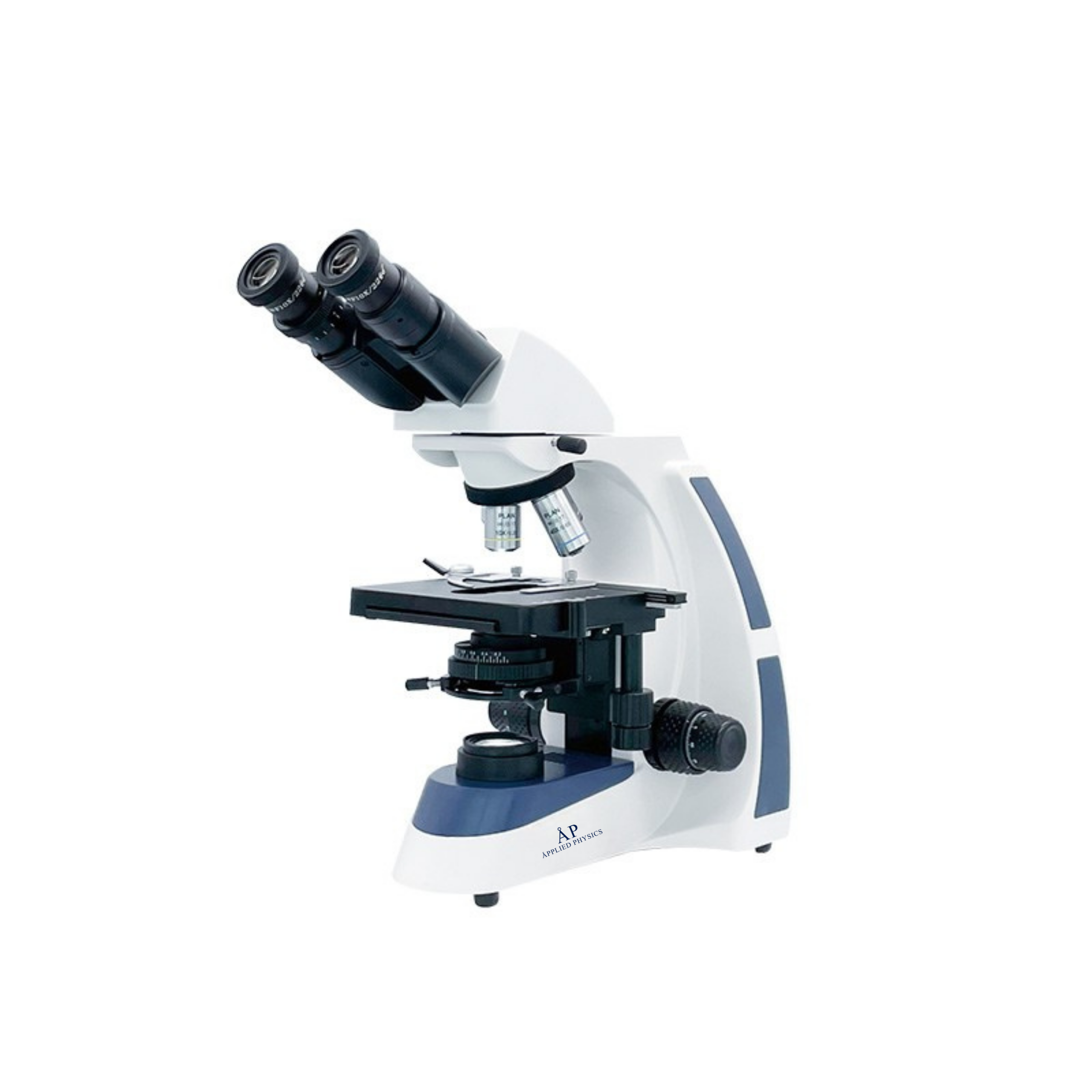

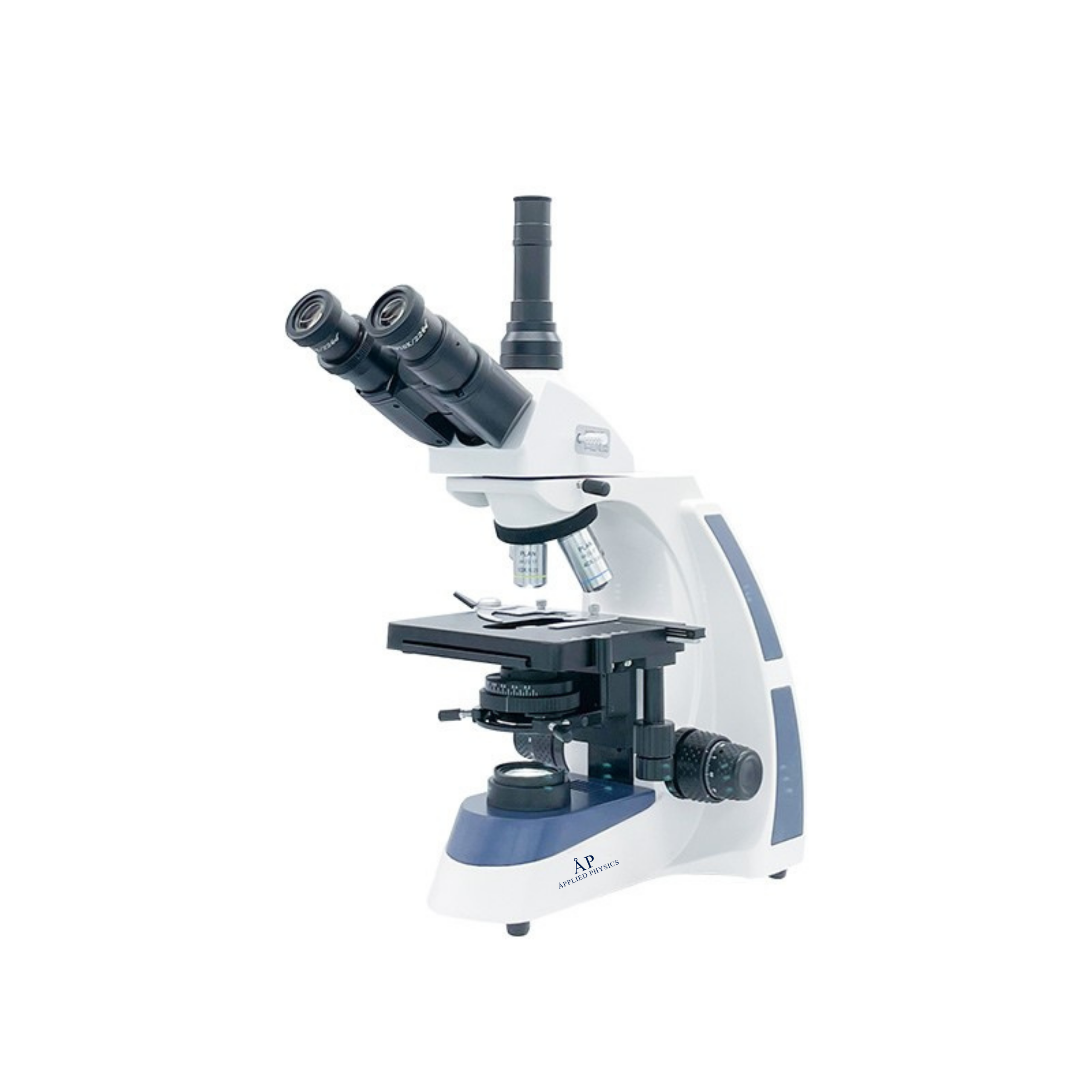

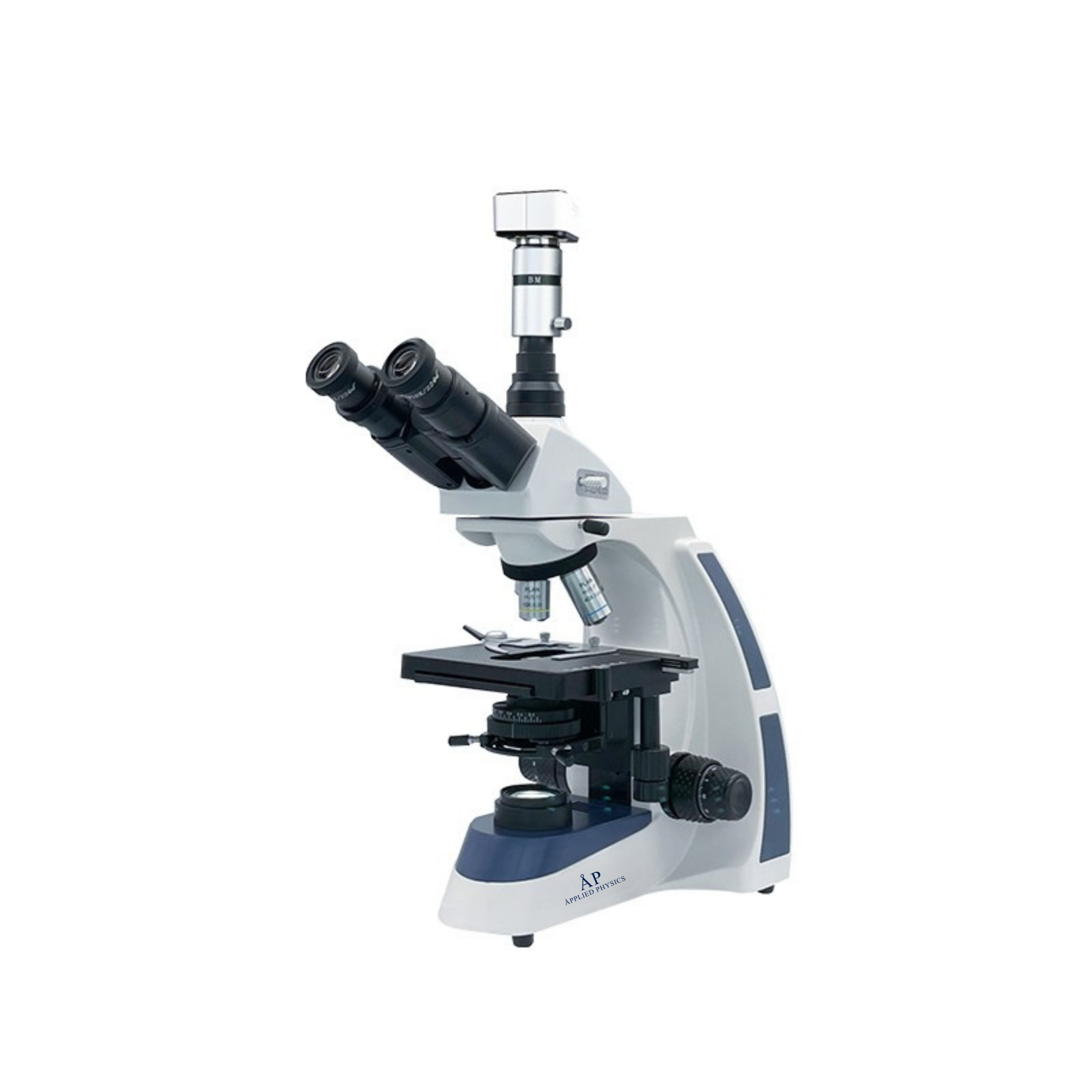

Biological Microscope BBM-17 BBM-17A
Technical Parameters:
Model
BBM-17
BBM-17A
BBM-17AP
BBM-17AD
Optical System
Infinite optical system
View Head
Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 45~75mm
Compensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 45~75mm
Compensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm
Eyepiece
WF10X/22mm, P16X/15mm(Optional)
WF10X/22mm, P16X/15mm(Optional)
Infinite Achromatic Objective
4X N.A=0.10 WD=20.00mm
10X N.A=0.25 WD=13.50mm
40X N.A=0.65 WD=0.68mm
100X(Oil) N.A=1.25 WD=0.20mm
Focusing
Coaxial Coarse＆Fine Adjustable System, Range 30mm, Fine Division 0.002mm
Stage
Mechanical Stage 140*160mm, Moving Range 76*45mm
Condenser
Abbe NA1.25 centerable condenser with Iris Diaphragm＆Filter
Illumination
LED lamp, brightness adjustable
Filter
Yellow, green
Imaging System
/
10.5-inch Android system PAD, MCL-Z adapter
500W CMOS Camera, MCL-Z adapter
Power Supply
AC85~240V, 50/60Hz
Package Size
410*260*525mm
410*260*610mm
Net Weight
9kg
10kg
Gross Weight
11kg
12kg
| Model | BBM-17, BBM-17A, BBM-17AD, BBM-17AP |
|---|
