The Biological Microscope BM-2CA is your gateway to exploring the tiniest details of life with unparalleled precision and clarity. This cutting-edge microscope is designed to meet the needs of both beginners and experienced researchers, making it an essential tool for various scientific disciplines and educational settings.
$0.00

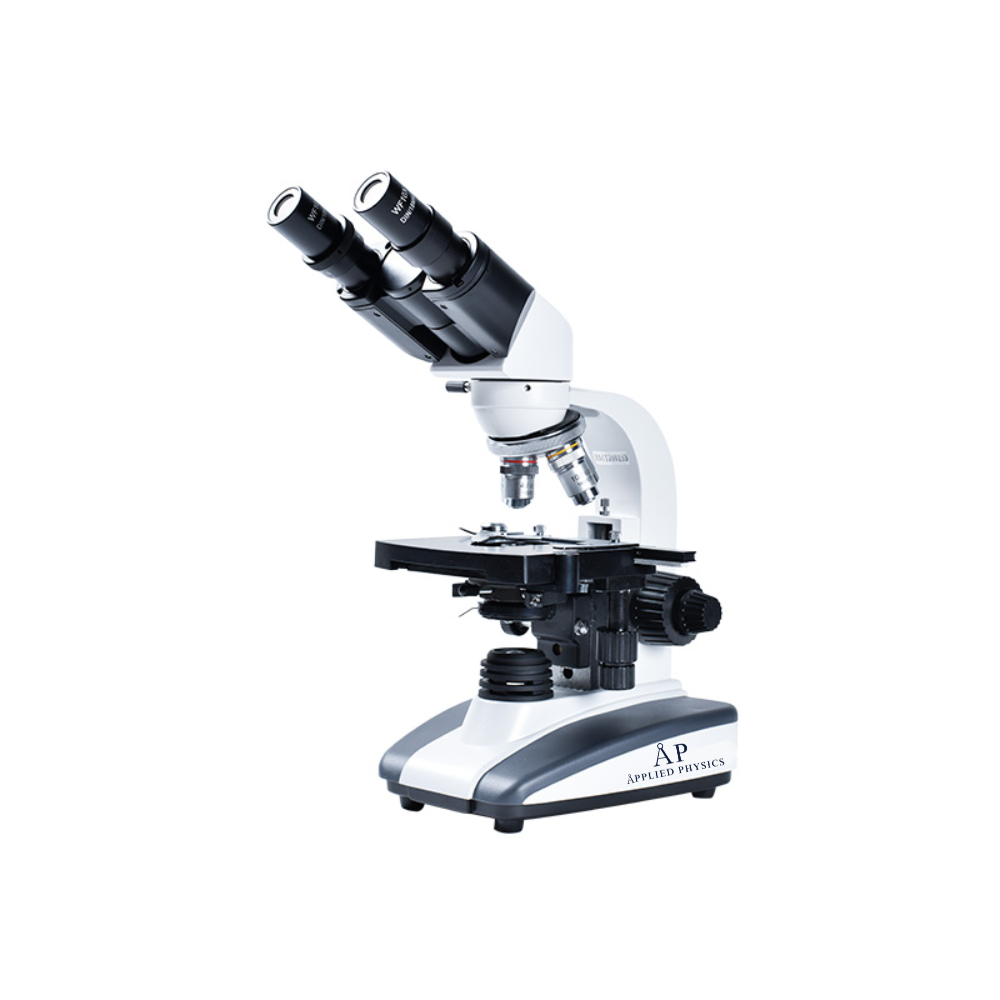

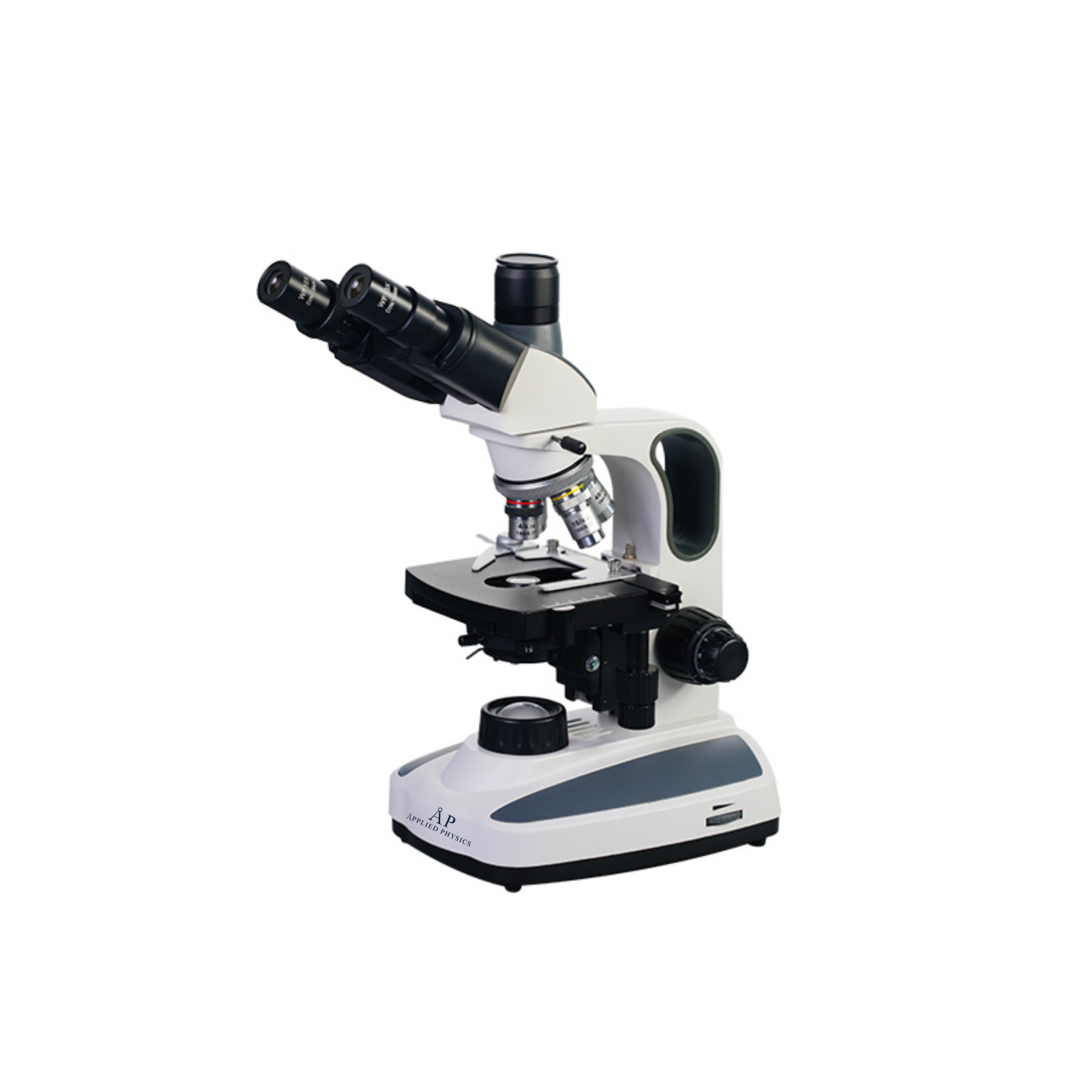

Biological Microscope BM-2CA BM-2CBA
Technical Parameters:
Model
BM-2CA
BM-2CBA
View Head
Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 55~75mm
Compensation free trinocular head, Inclined at 30°, 360°rotatable, Interpupillary 55~75mm
Eyepiece
P10X/18mm, P16X/11mm
Achromatic
Objective
4X N.A=0.10 WD=37.50mm
10X N.A=0.25 WD=7.31mm
40X N.A=0.65 WD=0.63mm
100X(Oil) N.A=1.25 WD=0.18mm
Focusing
Coaxial Coarse＆Fine Adjustable System, Range 15mm, Fine Division 0.002mm
Stage
Mechanical Stage 130*130mm, Moving Range 70*30mm, Vernier 0.1mm
Mechanical Stage 130*125mm, Moving Range 70*30mm, Vernier 0.1mm
Condenser
Abbe NA1.25 condenser with Iris Diaphragm＆Filter
Illumination
LED lamp, brightness adjustable
Filter
Yellow, green
Power Supply
AC85~240V, 50/60Hz
Package Size
435*330*235mm
335*215*470mm
Gross Weight
5.5kg
| Model | BM-2CA, BM-2CBA |
|---|
