Introduction:
The Biological Microscope is a sophisticated optical instrument designed for the detailed examination of biological specimens. Ideal for use in educational institutions, research laboratories, medical facilities, and clinical settings, this microscope offers high-resolution imaging and advanced features to support a wide range of applications.
$0.00
Biological Microscope BM-F101 BM–F102 BM-F103 BM-F104 BM-F105 BM-F106 BM-F108
Technical Parameters:
Model
BM-F101
BM-F102
BM-F103
BM-F104
BM-F105
BM-F106
BM-F108
Eyepiece
Wide Field Eyepieces WF10X(WF25X or WF20X or WF16X optional)
√
√
√
√
√
√
√
Viewing Head

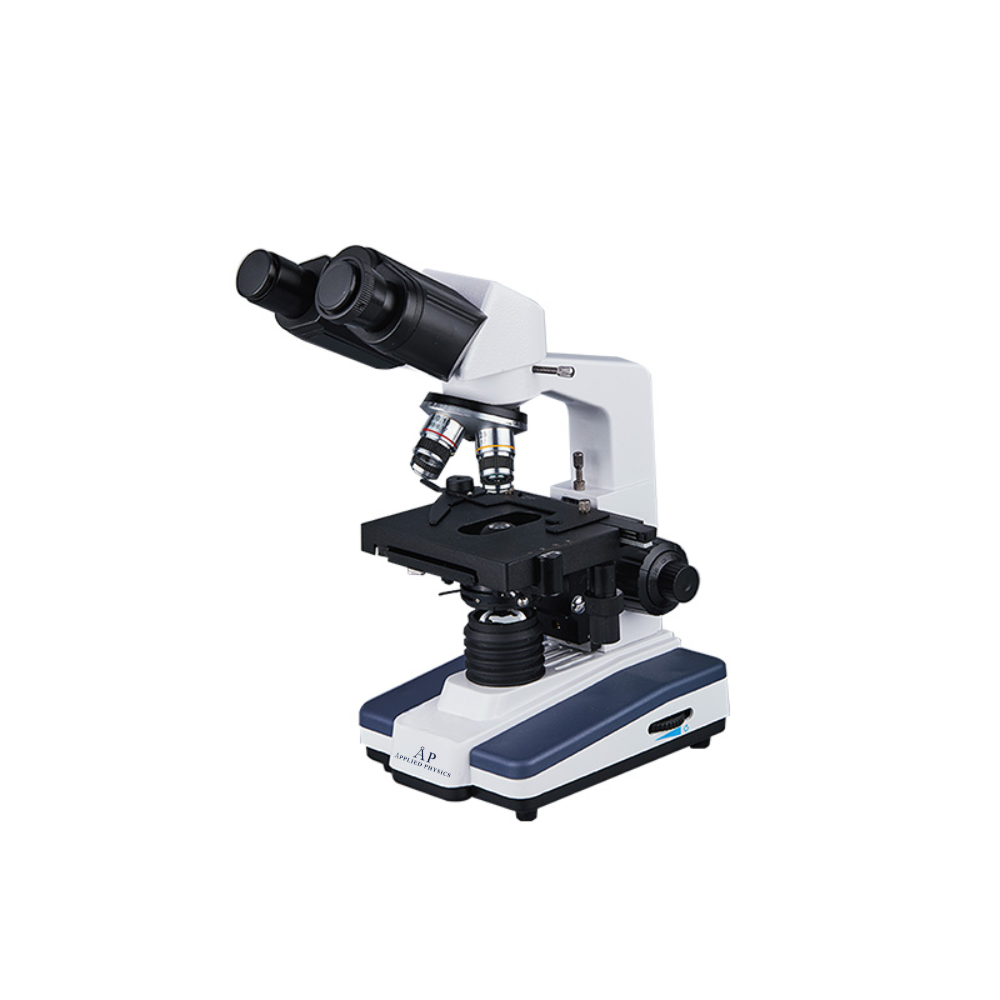

Compensation Free Binocular Head
√
√

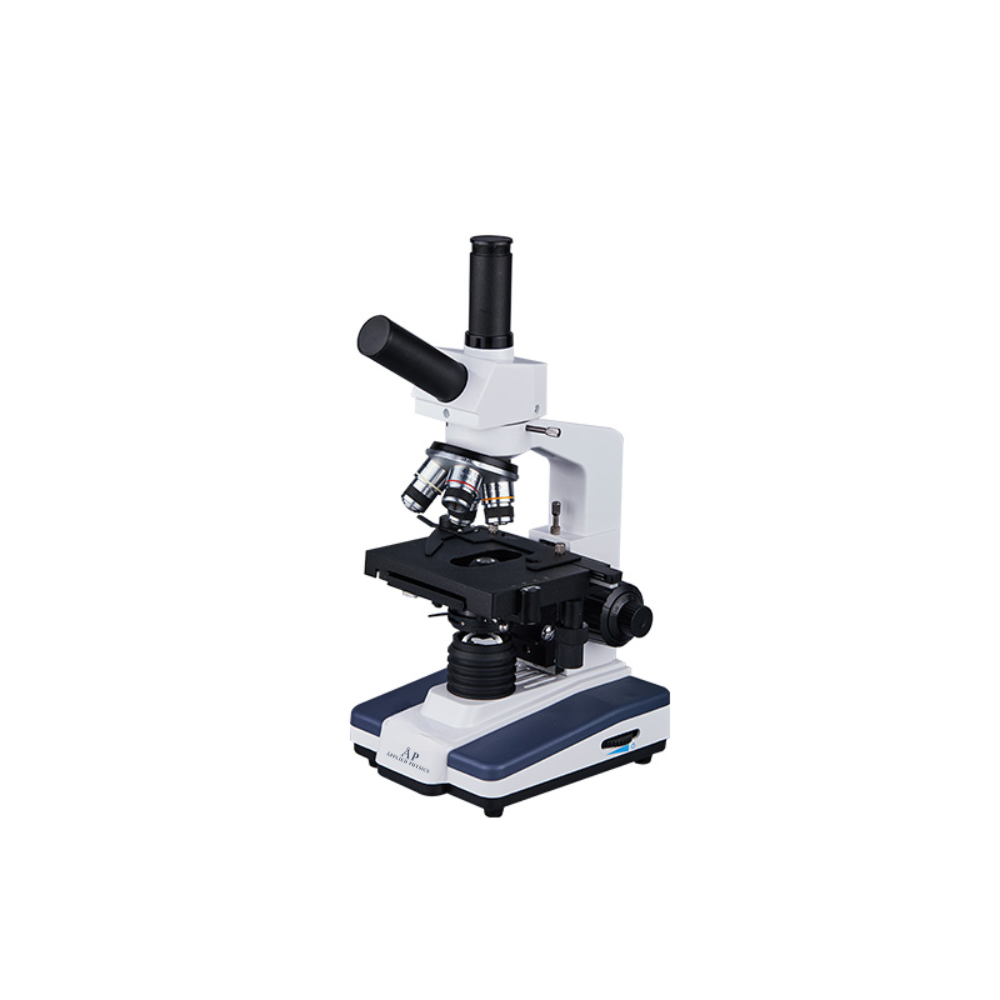

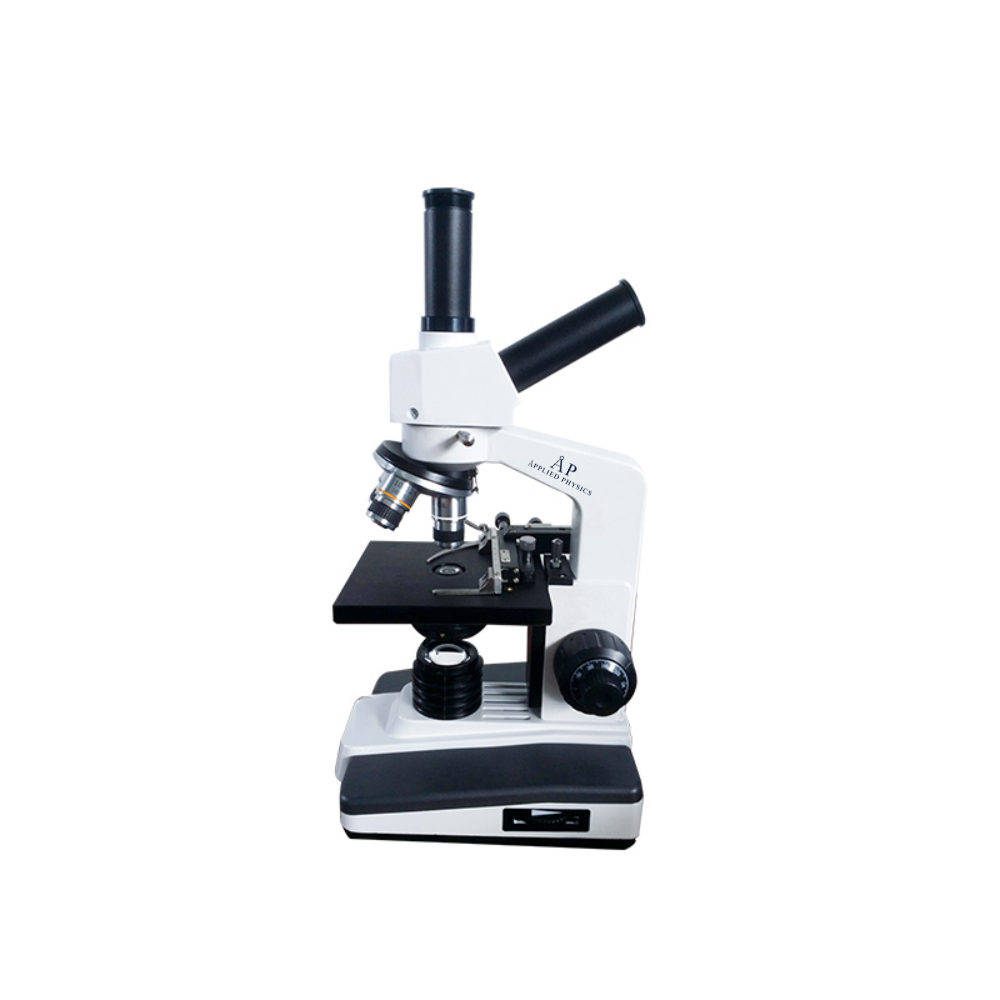

Dual Viewing Head, one Tube 30º Inclined and Another Tube Vertical, 360º Rotatable
√
√

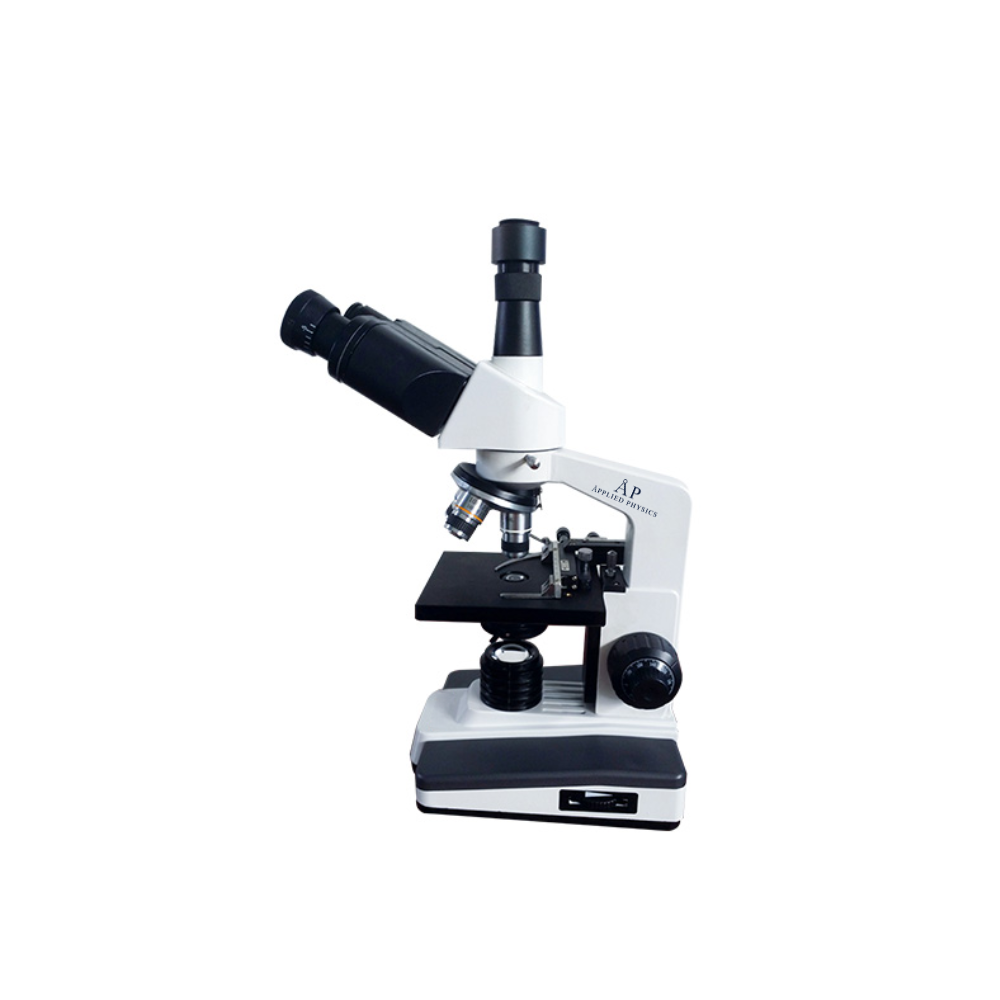

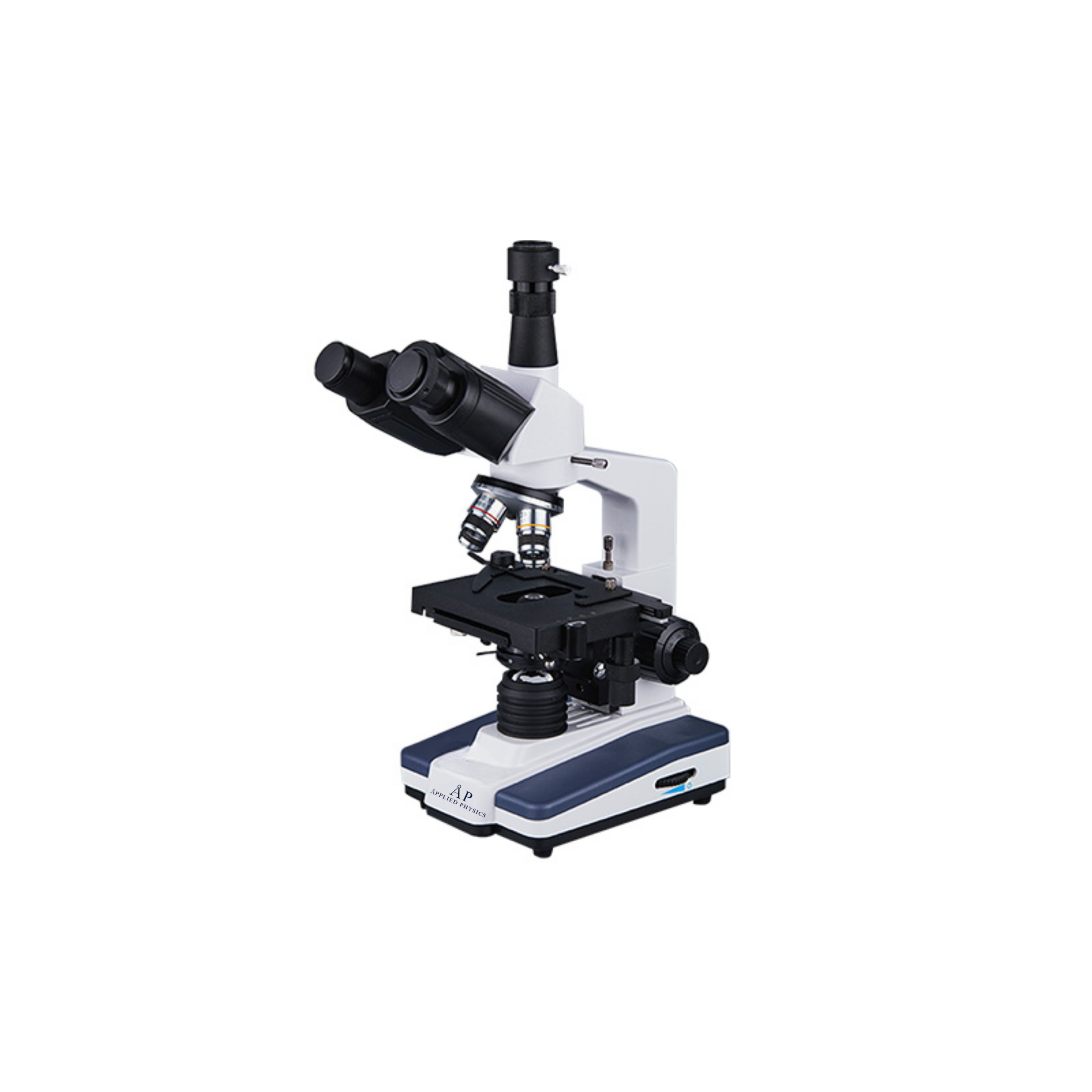

Compensation Free Trinocular Head
√
√

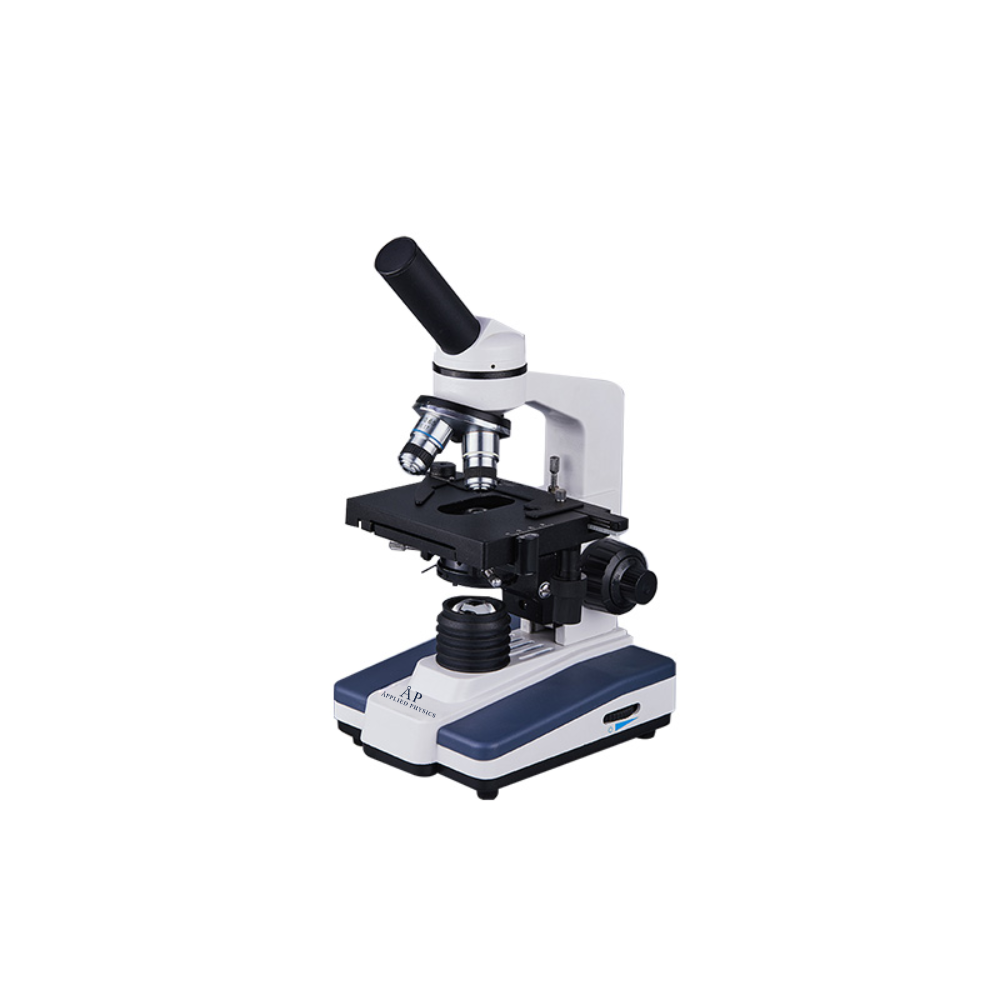

Monocular
√
Achromatic Objective
4X,10X,40X(Spring),100X(Spring, Oil)(185)
√
√
√
√
√
√
√
4X,10X,40X(Spring), 100X(Spring, Oil)(195)
●
●
●
●
●
●
●
Nosepiece
Triple Nosepiece
●
●
●
●
●
●
●
Quadruple Nosepiece
√
√
√
√
√
√
√
Stage
Double Layer Mechanical Stage, Size: 110*125mm
√
√
√
√
Plain Stage with Moving Scale
√
√
√
Focusing
Coaxial Coarse and Fine Adjustment, Focusing Range 20mm
√
√
√
√
√
√
√
Condenser
Simple N. A=1.25 Abbe Condenser &Iris Diaphragm
√
√
√
Handwheel Adjustment
N.A=1.25 Abbe Condenser &Iris Diaphragm
√
√
√
√
Illumination
No Strobe High Brightness LED Light
√
√
√
√
√
√
√
Power Supply
AC Input 100~230V,
DC Output 12V
√
√
√
√
√
√
√
Package Size(W*D*H)mm
270*310*410
Gross Weight(kg)
4
4
4.2
4.5
5
5
5.2
Note: √ Standard Outfit, ● Optional
| Model | BM–F102, BM-F101, BM-F103, BM-F104, BM-F105, BM-F106, BM-F108 |
|---|
