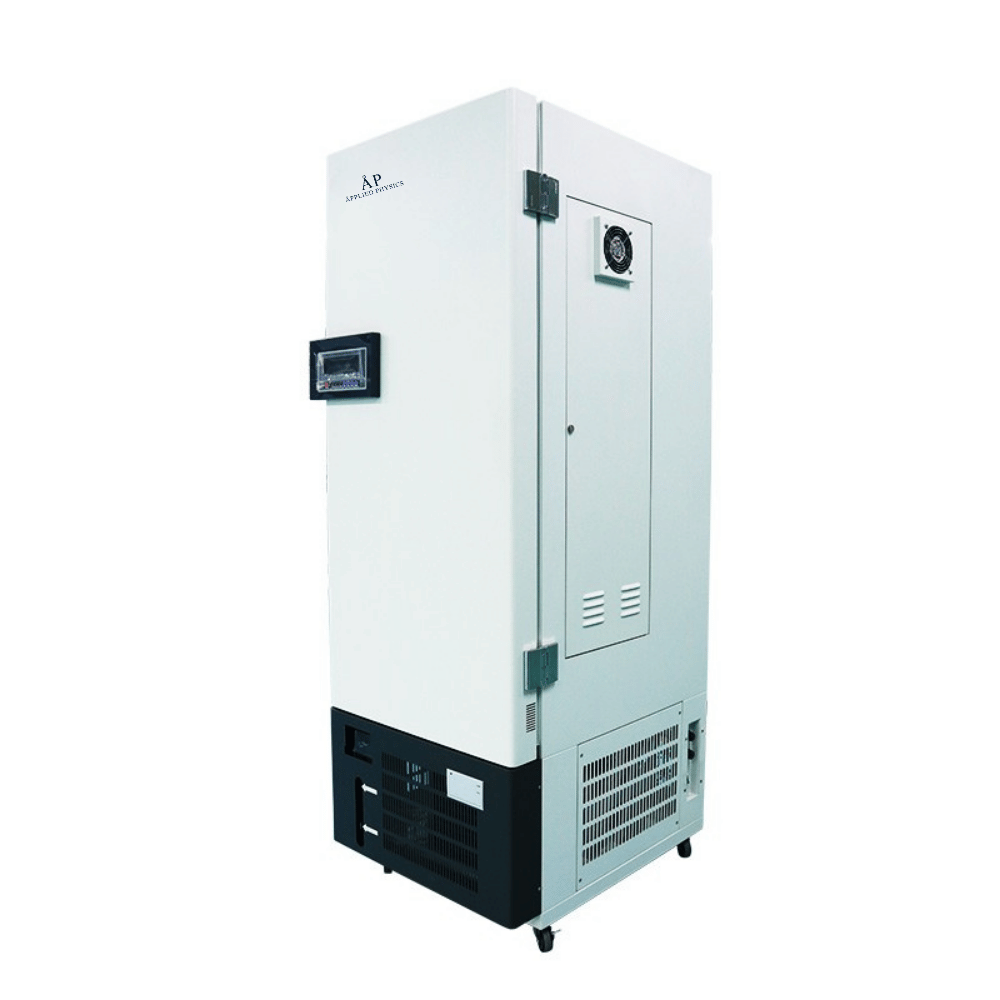

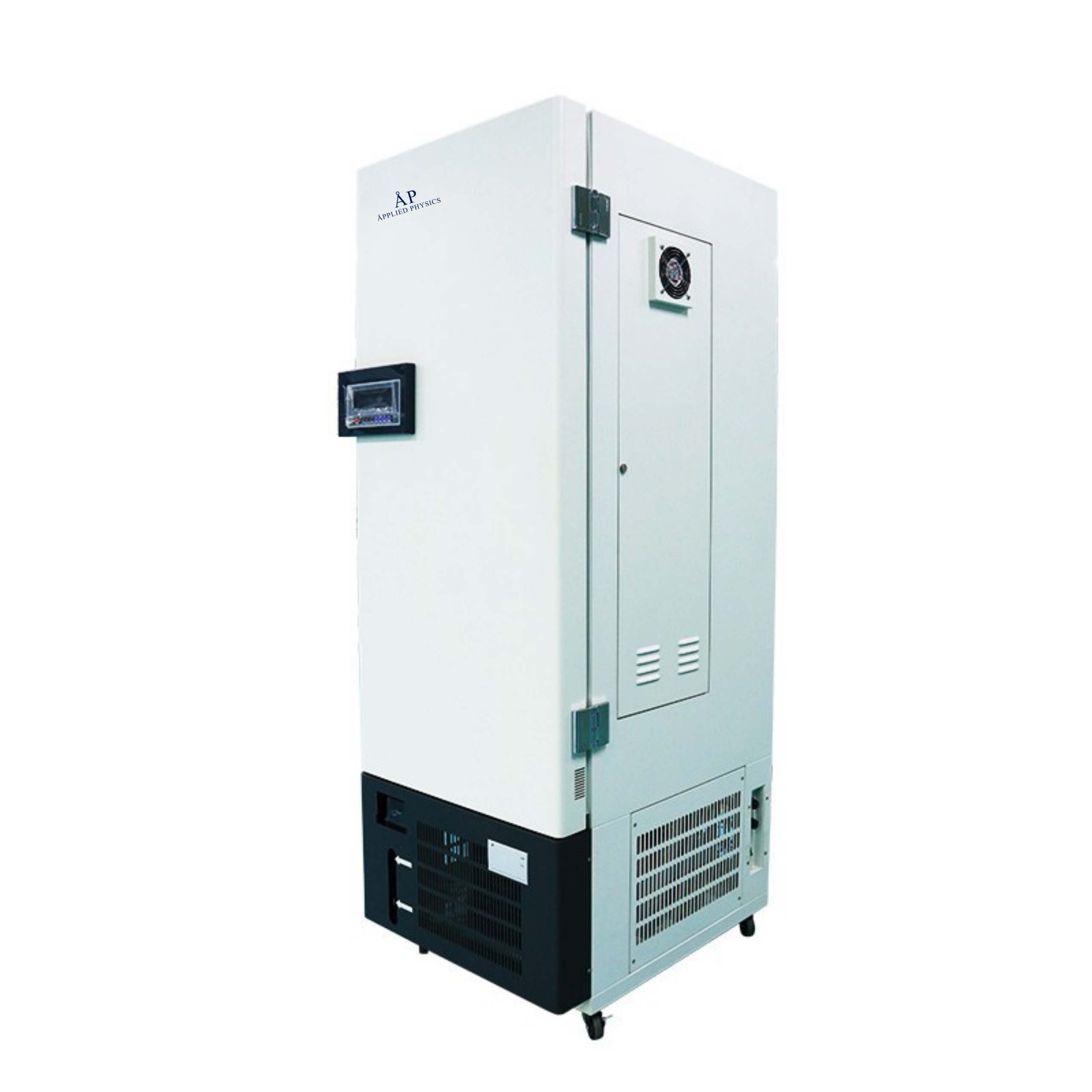

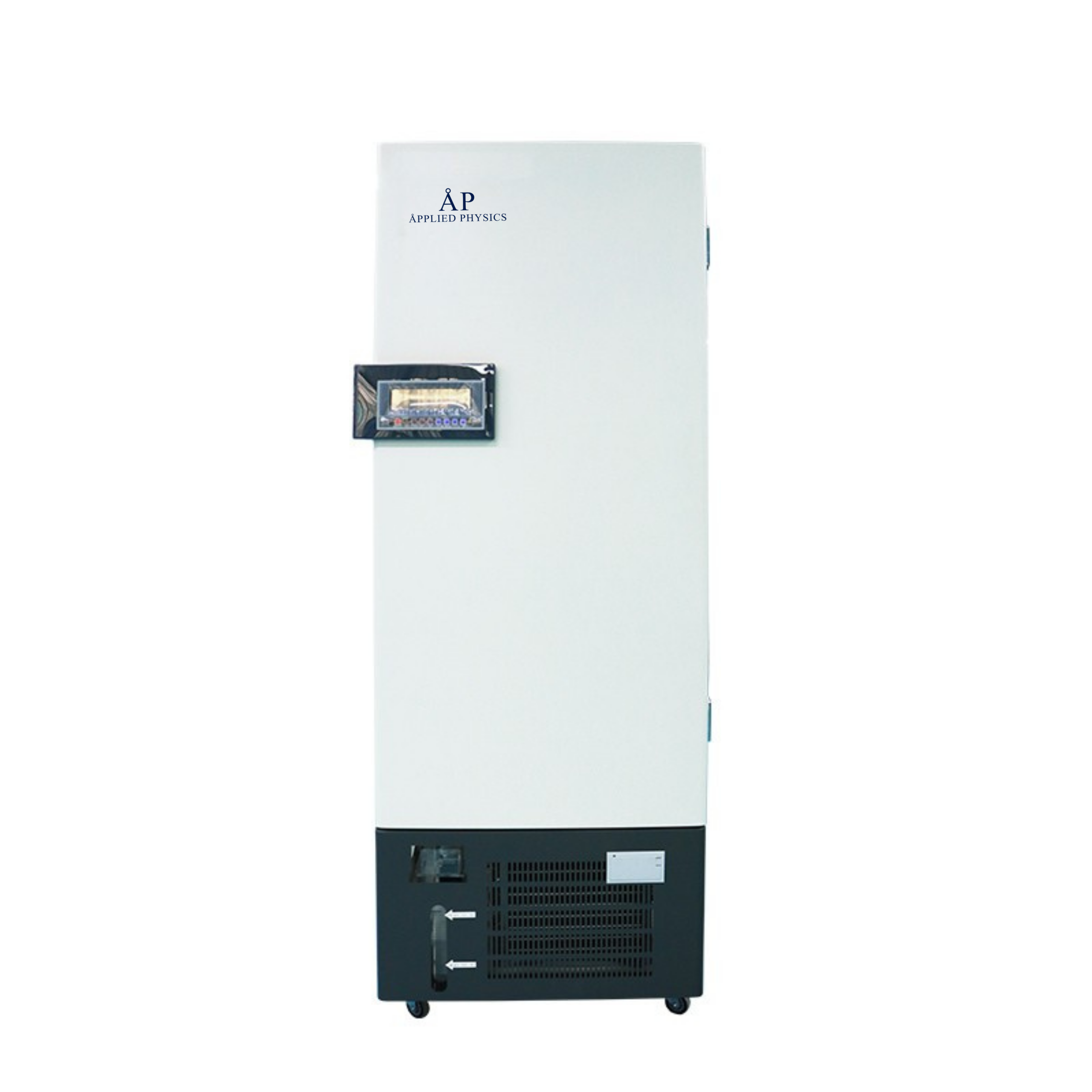

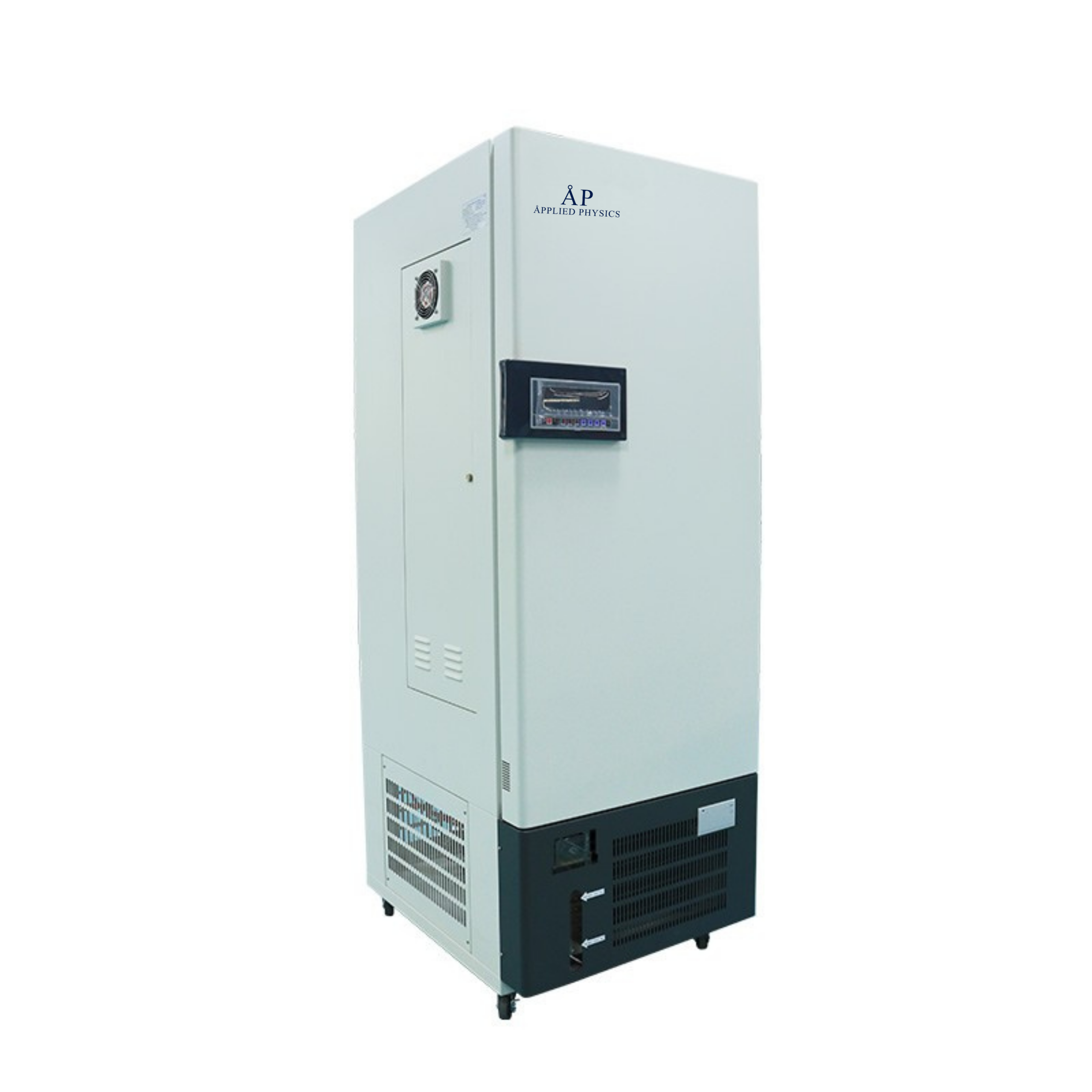

BJPX-MS300 BJPX-MS400 Medicine Sability Test Chamber

Description

BJPX-MS300 BJPX-MS400 Medicine Sability Test Chamber

Model

BJPX-A250/II

BJPX-A300/II

BJPX-A350II

BJPX-A400II

Capacity

255L

298L

350L

403L

Lighting Type

BJPX-A series: 2-side illumination;BJPX-AII series:3-side illumination

Temp. Range

With illumination: 10~50 °C, Without illumination: 5~50 °C

Temp. Fluctuation

±0.5°C

±1°C

±0.5°C

Temp. Uniformity

±2°C

Humidity Range

With illumination: 50%~80%(18~45°C);

Without illumination: 50%~90%(15~45°C)

Lighting Illumination

BJPX-A250/300/400: 0~6000 Lux (6-gradeadjustable);

BJPX-A250II/300II/400II: 0~12000 Lux (5-gradeadjustable);

BJPX-A350II: 0~15000 Lux (6-gradeadjustable);

Ambient Temp.

5~35°C

Continuous Working Time

≥180h

Shelves

3 pcs/adjustable

Consumption

2400W

2900W

1640W

3000W

Power Supply

AC220V ±10%, 50/60Hz

Internal Size(W*D*H)mm

470*460*1180

490*475*1280

550*550*1200

560*600*1200

External Size(W*D*H)mm

665*765*1820

685*780*1920

780*780*1900

755*905*1840

Packing Size(W*D*H)mm

800*1010*1990

790*1040*2090

990*940*2080

870*1140*2040

Gross Weight(kg)

148

158

160

178

Safety function:

1. Over temperature protection.

2. Temperature sensor for open circuit or short circuit protection.

3. Parameters can be saved automatically when power off or system error.

Notice:Please don’t keep setting the temperature lower than 20°C for more than 160h.
