Ductless PP Fume Hood FH1000 (PD)

This style fume hood is a custom-made fume hood for perchloric acid. The alkaline water neutralization and circulation system behind the deflector of the fume hood is the primary neutralization system…

Description

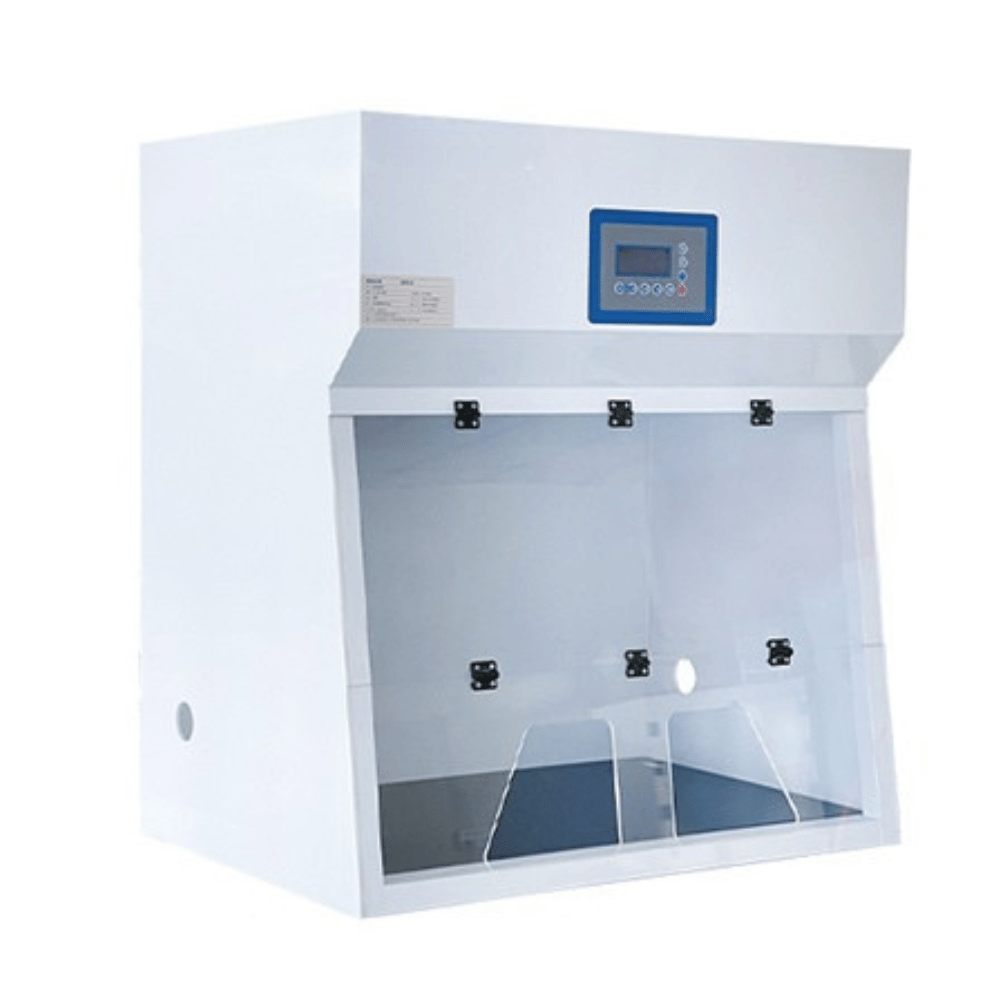

This style fume hood is a custom-made fume hood for perchloric acid. The alkaline water neutralization and circulation system behind the deflector of the fume hood is the primary neutralization system, and its function is to ensure that high concentrations of perchloric acid residues do not accumulate in the fume hood, thereby causing chemical reactions such as combustion, explosion or a lot of heat.

Features:
1. The case is made of 8mm PP plate, with good finish and corrosion resistance.

2. The front window has 8°physiological incline, ergonomic design, larger viewing angle.

3. The front window is foldable acrylic window, and the lower acrylic window has the function of stopping at will.

4. Electronic control system with anti-overload, anti-shock and other functions, stable performance, long service life.

5. With power failure memory function, that is, when encountering a sudden power failure, power again can maintain the working state before the power failure, convenient experimental operation.



Technical Parameters:

Model

FH1000(PD)

FH1500(PD)

External Size

1000*700*1100mm

1500*700*1100mm

Internal Size

980*606*688mm

1480*606*688

Max Opening

640mm

Airflow Volume

230m³/h

460m³/h

Air Velocity

0.3~0.8m/s

Noise

≤65dB(A)

LED Lamp

15W

15W*2

Illumination

≥400lx

Blower

Built-in centrifugal blower

Built-in centrifugal blower*2

Power Supply

220V, 50/60Hz

Consumption

150W

300W

Material

Main Body: PP plate, thickness 8mm

Work Table: Chemical resistant phenolic resin

Standard Accessory

Active carbon filter*2

Optional Accessory

Water tap, Gas tap, Water sink, Base stand, UV lamp, HEPA filter

Package Size

1120*820*1280mm

1630*830*1330mm

Net Weight

85kg

120kg

Gross Weight

115kg

150kg
