Flow cytometer is a high-precision analytical and sorting instrument widely used in life sciences, medicine, immunology, and other fields. It integrates fluid mechanics, optics, electronics, and computer technology to rapidly analyze and sort individual cells (or particles) in a liquid suspension. By detecting scattered light signals and fluorescent signals from cells labeled with specific probes, the instrument can quantitatively measure multiple physical and chemical properties of cells (such as size, granularity, surface antigens, and intracellular components) at a speed of thousands to tens of thousands of cells per second, enabling high-throughput, multi-parameter, and non-destructive cellular analysis.
$0.00

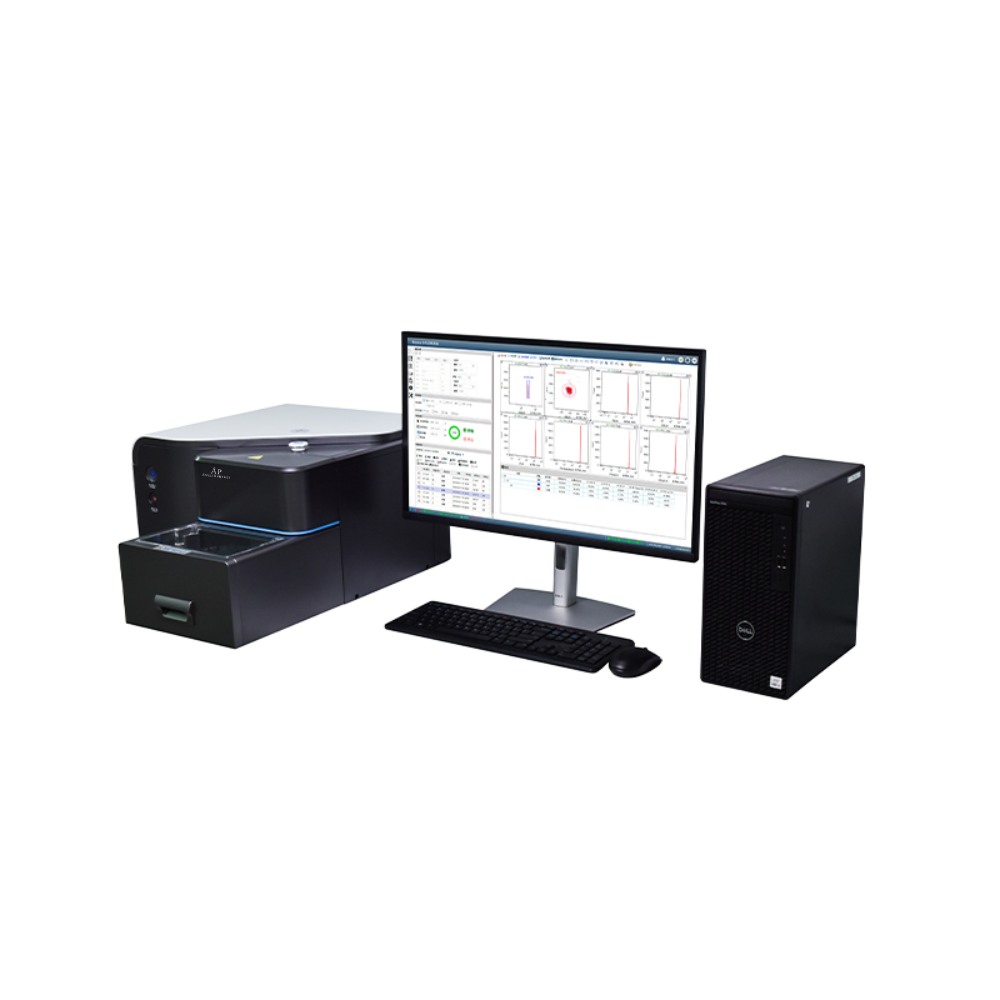

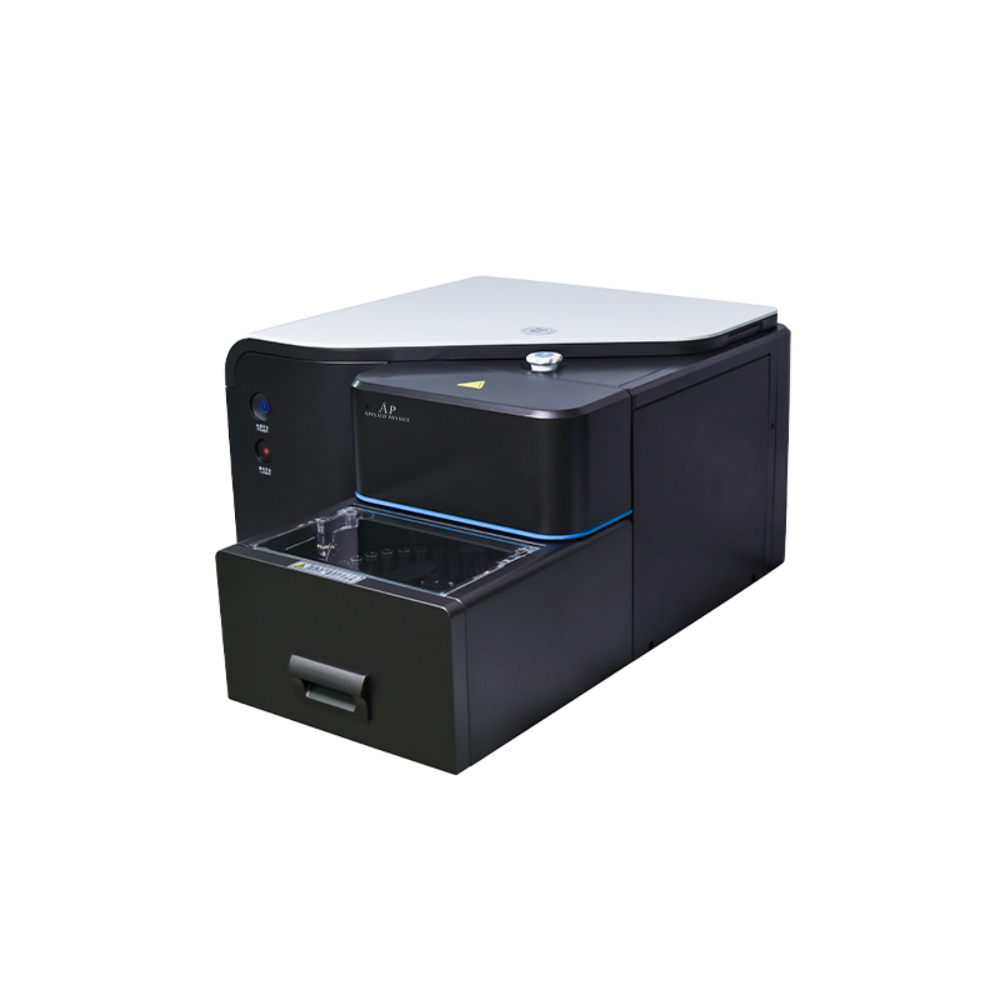

Flow Cytometer FlowCyte B7H FlowCyte B7
Features:
Recommended Reagent Information:
Item
Recommended Reagent
Application Department
Lymphocyte Subset T Analysis
CD45
CD4
CD3
CD8
Clinical Laboratory
Infectious Disease Department
Oncology Department
Department of Rheumatology and Immunology
Department of Pediatrics Blood Specialty
Lymphocyte Subset T/B/NK Analysis
CD45
CD3
CD16
CD56
CD19
Absolute Count of CD4+T Lymphocyte
CD45
CD4
CD3
CD8
CDC (AIDS)
Infectious Disease Department
Cytokine Th1/Th2/Th17 Analysis
Th1: IL-2, IFN-γ, TNF-α
Th2: IL-4, IL-6, IL-10
Th17: IL-17
Infectious Disease Department
Oncology Department
Department of Rheumatology and Immunology
Department of Organ Transplantation
Respiratory Department
HLA-B27 Detection for AS
HLA-B27-FITC
HLA-B7-PE
IgG2a-FITC
IgG1-PE
Department of Rheumatology and Immunology
Orthopedics
DFI Analysis
Acridine orange (AO) Staining Solution
Reproductive Department
Infertility Department
Reproductive Medicine Centre
Technical Parameters:
Model
FlowCyte B7H
FlowCyte B7
Laser
488nm solid（60mW）
Detector
FSC, SSC, FL1-FL5
Fluorescence Channel
FL1:525/50（FITC）
FL2:585/40（PE）
FL3:630/30（PE-Texas Red/ECD/PI）
FL4:697/60（PerCP/PE-Cy5/PE-Cy5.5）
FL5:780/60（PE-Cy7）
Fluorescence Sensitivity
FITC≤50 MESF, PE≤30MESF
Fluorescence Linearity
≥0.99
FSC Sensitivity
≤1μm
Test Particle Size
0.2~50μm
Carry Over
≤0.5%
Instrument CV
FSC and all FL channel CV less than 2%
FSC and SSC CV
Can separate red blood cells and platelet, can separate white blood cells into 3 groups
Test Speed
≥46000 cells/s
Minimum Sample Vol
90μL
Measure Range
Maximum Support 10⁷
Threshold
Double threshold, minimum cells fraction
Fluorescence Compensation
Support auto online compensation, offline compensation and visualized compensation
Item Template
Support Item template, acquisition conditions/fluorescence compensation one-click use
Intake Method
Manual intake
Rotary wheel auto-sampling with auto-mixing function:32tests/wheel
Liquid Storage Station
Sheath bottle, waste bottle, shutdown liquid bottle 2L,
cleaning liquid bottle 0.5L
Software
English/Chinese
PC
Dell（CPU i5/8G DDR4/1T hard disk）+Dell 27 inches monitor
Power Supply
AC220/110V±10%, 50/60Hz
Auto-sampler
/
32-postions autosampler(Stanndard)
External Size(W*D*H)
430*500*330mm
650*500*330mm
Net Weight
30kg
35kg
Packing Size(W*D*H)
Main Instrument: 860*635*648mm
Accessories: 860*680*810mm
Reagent: 405*270*400mm
Gross Weight
Main Instrument: 56kg
Accessories: 54kg
Reagent: 16kg
| Model | FlowCyte B7H FlowCyte B7 |
|---|
